Oncogenic function of the homeobox A13-long noncoding RNA HOTTIP-insulin growth factor-binding protein 3 axis in human gastric cancer

INTRODUCTION

Homeobox genes are known as the transcriptional regulators of mammalian embryogenic development and are deregulated in tumorigenesis. There are few known direct targets of Hox proteins, and their mechanism of regulation is incompletely understood. The homeobox A13 (HoxA13) gene is the most posterior of the HOX clusters in 7p15.2. This gene is expressed in the genital tubercle during embryogenesis [1, 2] and plays an essential role in skeletogenesis, interdigital programmed cell death, and cell sorting of autopod formation. The loss of HoxA13 function in mice causes missing phalanx elements and affects the carpal and tarsal regions [3]. In humans, mutations in HoxA13 are associated with dominantly inherited hand–foot–genital syndrome (HFGS; OMIM #140000) [4, 5] and Guttmacher syndrome (GS; OMIM #176305), which include limb and genitourinary abnormalities [6, 7]. Similar malformations have also been observed in the spontaneous mouse mutants, hypodactyly [8], and in engineered HoxA13 -null mouse models [9, 10]. HoxA13 is essential for placental vascular patterning and labyrinth endothelial specification through direct regulation of tyrosine kinase with immunoglobulin-like and epidermal growth factor-like domain 1 and forkhead box F1 [11].

The role of HoxA13 in cancer progression has been reported in hepatocarcinogenesis [12], especially in the liver stem-like cell lines [13], and in prostatic neoplasia [14], leukemogenesis [15], and esophageal squamous cell carcinoma [16]. HoxA13 is a prognostic marker of the aggressive phenotype of gastric cancer [17]. However, the mechanism underlying HoxA13-mediated gastric carcinogenesis and progression of gastric cancer is unclear.

Long noncoding RNAs (lncRNAs) that do not encode proteins are defined as transcripts containing > 200 nucleotides. lncRNAs account for more than 90% of the transcriptome and are typically transcribed by RNA polymerase II. They play an essential role in the control of gene expression involved in various physiological processes, including development, differentiation, and metabolism [18]. HOTTIP lncRNA is located at the 5′-end of the HoxA cluster and is associated with the polycomb repressive complex 2 (PRC2) and WD repeat domain 5 (WDR5) [19]. The interaction between HOTTIP and the WDR5–mixed lineage leukemia (MLL) complex increases histone H3 lysine 4 trimethylation and activates the expression of multiple 5′-HoxA genes [19]. Recent reports have shown that HOTTIP is associated with cancer metastasis and is a negative prognostic factor in patients with liver and tongue cancer [20, 21]. In addition, HOTTIP expression promotes cancer progression and drug resistance by regulating HoxA13 in pancreatic cancer [22]. Another study shows that HOTTIP increases pancreatic cancer cell proliferation, survival, and migration through HoxA family genes other than HoxA13 [23].

The insulin-like growth factor-binding protein-3 (IGFBP-3) influences several molecular mechanisms or signaling pathways that determine cell death or survival, particularly in the context of cancer. Whereas the biological activity of IGFBP-3 is attributed in part to its ability to bind and neutralize insulin-like growth factors (IGF), thereby inhibiting IGF receptor (IGFR) activation, there is other evidence that IGFBP-3 also has intrinsic IGF- or IGF1R-independent effects that influence cell fate. IGFBP-3 inhibits cell growth and apoptosis in some circumstances but stimulates cell growth and survival in others [24–26]. IGFBP-3 is known to bind nuclear receptors of retinoic acid, vitamin D, peroxisome proliferator-activated receptor γ, nuclear hormone receptor 77, and epidermal growth factor receptors as well as the protein kinase catalytic subunits of DNA repair enzymes [25]. IGFBP-3 is known as a transcriptional target of the tumor suppressor protein p53, which modulates IGFBP-3 [26, 27]. However, the relationship between HoxA13 and IGFBP-3 remains elusive.

The progression of gastric cancer is recognized as a multistep process that involves the activation of oncogenes and inactivation of tumor suppressor genes [28, 29]. We have previously established a nonmalignant gastric cell line, CSN, from the stomach mucosa of a patient with mild gastritis, which exhibits features of stem/progenitor cells [30]. After a prolong expansion of CSN cells, a tumorigenic subline CS12 was generated, which exhibited anchorage-independent growth, xenograft tumor formation in nude mice, duplication of the short arm of chromosome 7 (7p15.1–15.3 and 7p22.1–22.3) on chromosome 12, and increased expression of HoxA cluster genes when compared with the nontumorigenic CSN cells [31]. Thus, the increased expression of HoxA genes may contribute to gastric tumorigenesis. Here, we examined the role of HoxA13 in contributing to the cancerous characteristics of CS12 cells and identified the HoxA13-HOTTIP-IGFBP-3 axis as the underlying mechanism.

RESULTS

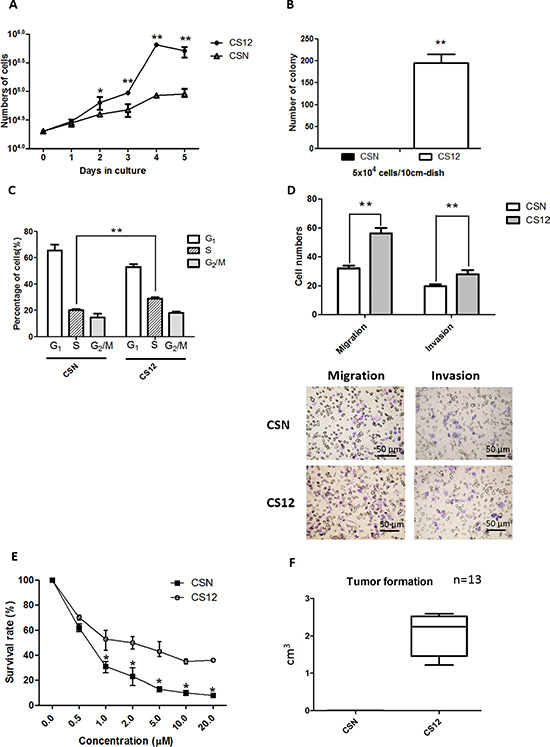

CS12 cells exhibited more aggressive cancerous features than CSN cells

To characterize the cancerous features of CS12 cells in vitro, cell growth, colony formation, cell motility, and chemoresistance between CSN and CS12 cells, were compared. A trypan blue dye exclusion assay showed that CS12 cells proliferated more rapidly than CSN cells (Figure 1A). A colony-formation assay showed that CS12 (5 × 10⁴ cells) generated about 200 colonies, but CSN cells did not produced any colonies (Figure 1B). Cell-cycle analysis showed that 27%–32% of CS12 cells were in S-phase, whereas only 18%–22% of CSN cells were in S-phase (Figure 1C). All data were consistent with the more proliferative nature of CS12 cells. A Transwell invasion assay demonstrated that both the invasion and the migration efficiencies were 1.4-fold higher in CS12 cells than in CSN cells (Figure 1D), which showed that CS12 exhibited increased migration and invasion activities. These findings were supported by the elevated expression of matrix metalloproteinase (MMP) and epithelial to mesenchymal transition (EMT) genes, such as Snail and Zeb 1 in CS12, but not the expression of Twist (Supplementary Figure 1A). Their sensitivity to 5-fluorouracil, a common anticancer drug used for treatment of gastric cancer [32], was examined. The results showed that CS12 were more resistant to 5-fluorouracil than CSN cells (Figure 1E). Their in vivo tumorigenicity was examined using a xenograft transplantation test and only CS12 cells generated tumors in SCID mice (Figure 1F) consistent with previous findings [30, 31]. The tumor showed 10% malignant cells that contained little cytoplasm (Supplementary Figure 1B). Taken together, these data indicate that CS12 cells exhibit more cancerous characteristics than CSN cells.

Differential expression of stemness genes and pluripotency in CSN and CS12 cells

Acquired chemoresistance and EMT are well-known as hallmarks of cancer stem cell-like cells [32, 33]. Both CS12 and CSN cells express OCT4 stemness genes [30, 31]. Here, we further characterized whether CS12 possessed typical stem cell features. Immunofluorescence analysis showed the expression of stemness markers including OCT4, SOX2, KLF4, SSEA-3, SSEA-4, TRA-1-60, and TRA-1-81 in both CSN and CS12 cells, but LGR5 and NANOG were only detected in CS12 cells (Supplementary Figure 2A, 2B and 2C). Semiquantitative reverse transcription-polymerase chain reaction (RT-PCR) analysis showed that the transcript levels of SOX2, NANOG, hTERT, and REX1 were significantly higher in CS12 compared with CSN cells (Supplementary Figure 2D). These data suggest that CS12 cells exhibit more stem-like cell characteristics.

We next examined the pluripotency of CS12 cells by inducing teratoma formation. CS12 differentiated into cells including osteoblasts, muscle cells, and megakaryocytes that were derived from two germ layers (Supplementary Figure 2E). Neither CSN nor CS12 cells stained positively for alkaline phosphatase (data not shown), suggesting that CSN and CS12 cells were not pluripotent stem cells.

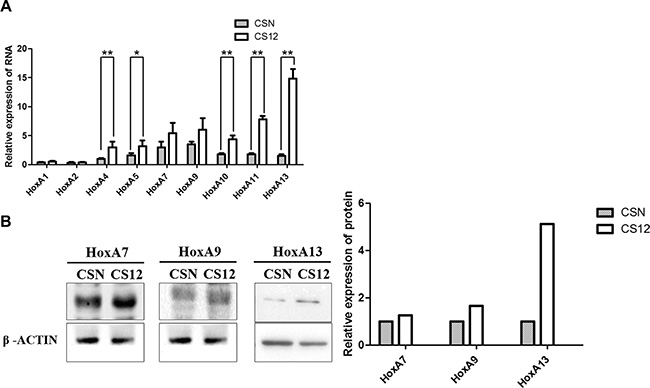

Upregulation of HoxA13 was critical for the tumorigenic properties of CS12 cells

We previously reported that CS12 cells exhibited duplicated chromosome 7 short arm where HoxA genes reside [4]. Both the qPCR and western blot data showed that HoxA13 was 4.7- to 15-fold upregulated in CS12 than in CSN cells (Figure 2A and 2B). These results suggested that HoxA13 was upregulated through mechanisms other than simply duplicated gene dosage.

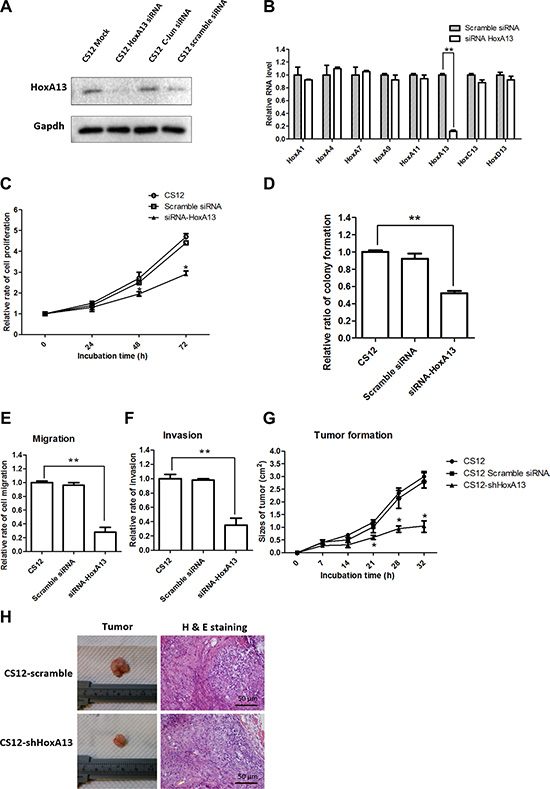

Because of the oncogenic role of HoxA13, we suspect that high expression of HoxA13 may contribute to gastric tumorigenesis of CS12 from CSN cells. To test this hypothesis, HoxA13 expression was knocked down in CS12 cells and then the cell growth, cell mobility, colony formation, and tumor formation in SCID mice were examined. Knockdown by HoxA13 siRNA significantly reduced HoxA13 expression at protein (Figure 3A) and mRNA (Figure 3B) levels, but the scrambled siRNA and off-target C-Jun siRNA did not affect the expression of HoxA13. After knockdown of HoxA13 expression in CS12 cells, the cell proliferation activity (Figure 3C) and colony formation ability (Figure 3D) were reduced by about 50%. The migration and invasion activities of HoxA13-knockdown CS12 cells were decreased to around 30% of controls (Figure 3E and 3F). Knockdown of HoxA13 expression induced by shHoxA13 lentivirus also significantly impaired tumor formation ability of CS12 cells in SCID mice (Figure 3G and 3H). Hematoxylin and eosin staining of tumor sections demonstrated that tumor regions shrank by knockdown of HOXA13 (Figure 3H). These results indicate that elevated HoxA13 expression is critical for the cancerous features of CS12 cells.

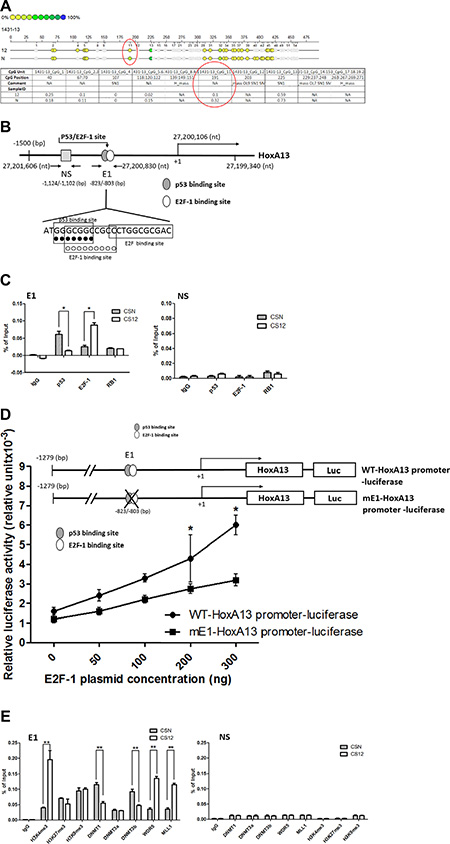

Hypomethylation of the HoxA13 promoter at the p53/E2F-binding site in CS 12 cells

To investigate the mechanism underlying HoxA13 overexpression in CS12 cells, we first examined the DNA methylation of HoxA13 promoter by sodium bisulfite conversion followed by pyrosequencing analysis. The results showed a decreased DNA methylation (ratio; 0.1 vs 0.32) at the CpG position 191 of HoxA13 promoter in CS12 when compared with CSN cells (Figure 4A). Notably, the CpG position 191 is a composite p53/E2F-binding site (27,200,830; designated as the E1 site) (Figure 4B). To examine the differential binding of p53 and E2F1 at this position in CS12 and CSN cells, chromatin immunoprecipitation (ChIP) assays were conducted. The results showed that recruitment of p53 to the E1 site of HoxA13 promoter was decreased in CS12 cells, whereas the interaction between E2F1 and E1 site was increased (Figure 4C). The recruitment of RB1 was similar in CSN and CS12 cells and the nonspecific (NS) site in the HOXA13 promoter did not recruit p53 or E2F1. Thus, the recruitment of E2F-1 to the E1 site is critical for the activation of HoxA13 promoter in CS12 cells. In attempt to confirm this observation further, we performed the forced expression of E2F-1 to observe the enhanced expression of HoxA13 promoter. We generated the HoxA13 promoter-luciferase constructs of wild type- (WT-) and its E1 mutant (mE1)-promoter luciferase and examined the effects of E2F-1. The expression of WT- HoxA13 promoter was more greatly increased by overexpression of E2F-1 than that of mE1 mutant promoter in CS12 cells (Figure 4D) and CSN cells (Supplementary Figure 3A). Thus, a decrease of p53 binding at the E1 site by ChIP assay was consistent with the reduction of p53 and p21 expression in CS12 cells (Supplementary Figure 4A and 4B). By contrast, further addition of p53 significantly repressed the expression of WT- HoxA13 promoter in CSN cells (Supplementary Figure 3B) and the transactivation activity of p53 and the p53-regulated p21^Cip1 promoter activity were also decreased in CS12 when compared with those in CSN cells (Supplementary Figure 4C and 4D). These results suggest that expression of E2F-1 was increased and expression of p53 was decreased in CS12 cells as compared with CSN cells. These results were consistent with the increase of S phase in CS12 compared with CSN cells (Figure 1C).

Differential recruitment of DNA/histone methyltransferases and altered histone modification at the E1 site of HoxA13 promoter

Because the hypomethylation at the E1 site of HoxA13 promoter was found in CS12 cells, we next conducted ChIP assays to compare the recruitment of DNA methyltransferases to the E1 site in CS12 and CSN cells. The results showed that the recruitment of DNMT1 and DNMT3b to the E1 site was one-half to one-third lower in CS12 than in CSN cells (Figure 4E), supporting the observed hypomethylation of HoxA13 promoter even though the expression of DNMT1 and DNMT3b was 1.8-fold higher in CS12 cells than in CSN cells (Supplementary Figure 5).

Next, we examined the recruitment of MLL1 and WDR5 and the methylation of histone H3 at the E1 site in CS12 and CSN cells because the previous study showed that MLL1/WDR5 complex mediates trimethylation of histone H3 lysine 4 (H3K4me3) at the 5′- HoxA cluster and activates HOXA gene expression. The results showed that MLL1 and WDR5 densely occupied at the E1 site but not at the NS site, which was coincident with increased H3K4me3 and HoxA13 expression in CS12 but not in CSN cells (Figures 2 and 4E).

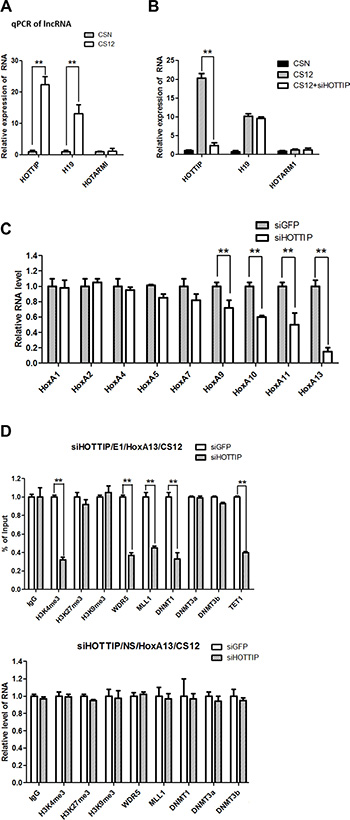

The recruitment of lncRNA HOTTIP was involved in the upregulation of HoxA13 in CS12 cells

The recruitment of the WDR5–MLL complex to the 5′-end HOXA cluster is mediated by the lncRNA HOTTIP [19, 20]. The q-PCR results showed that the expression level of HOTTIP was 17.8–25.1-fold higher in CS12 cells than in CSN cells (Figure 5A). However, the expression level of HOTARMI, the lncRNA resides on the 3′-end HoxA cluster, was similar between both cells. Interestingly, another lncRNA H19 was also highly expressed in CS12 cells.

To confirm the involvement of HOTTIP in the upregulation of HoxA13 in CS12 cells, siRNA against HOTTIP was introduced to reduce the HOTTIP, but not the H19 RNA levels (Figure 5B). Upon HOTTIP knockdown, the expression of 5′-end HOXA genes including HoxA13 were reduced in CS12 cells when compared with the effect of control siRNA (Figure 5C). ChIP analyses showed that both the recruitment of WDR5 and MLL1 and the level of H3K4me3 at the E1 site, but not at the NS site, were decreased in CS12 cells after HOTTI knockdown (Figure 5D). In addition, the recruitment of DNMT3b, but not DNMT1, was restored by HOTTIP knockdown at the E1 site. Thus, HOTTIP might affect the recruitment of DNA methyltransferase DNMT3b but not DNMT1. These results demonstrated that HOTTIP was involved in the upregulation of HoxA13 in CS12 cells.

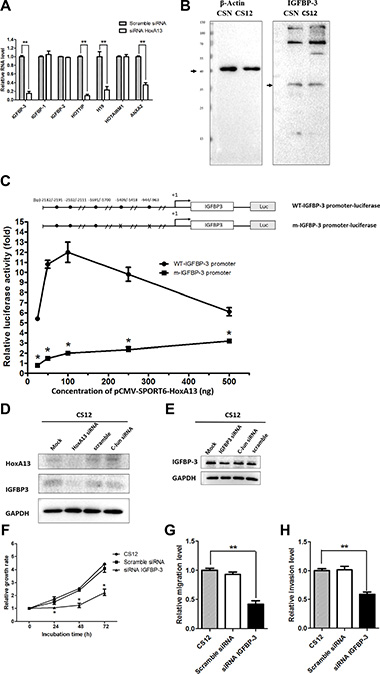

IGFBP-3 was a HoxA13 downstream target and was important for the cancerous features of CS12 cells

To investigate the mechanism underlying HoxA13 downstream genes including those for Annexin A2 (ANXA2) [34, 35] and IGFBP-3. siRNA against HoxA13 decreased the expression of HOTTIP, H19, IGFBP-3, and ANXA2 in CS12 cells (Figure 6A). The endogenous expression of IGFBP-3 was about two- to threefold higher in CS12 than in CSN cells (Figure 6B). To verify the effect of HoxA13 on IGFBP-3 expression, IGFBP-3 promoter was cloned to a luciferase reporter, and then cotransfected with a HoxA13 expressing construct or vector control into CSN cells. The results showed that ectopic HoxA13 expression significantly activated IGFBP-3 promoter activity (Figure 6C). However, this transactivation was impaired by mutation of two putative HOX-binding sites on the IGFBP-3 promoter. These results confirmed that IGFBP-3 was a HOXA13 target gene. We also examined the effect of HoxA13 on the expression of IGFBP-3 in HoxA13 siRNA transfected CS12 cells and found that HoxA13 siRNA reduced the expression of IGFBP-3 by 80 to 85%, but scramble and off-target siRNA did not show the significant reduction (Figure 6D). To search for IGFBP-3 mediated cancer related activity, we constructed IGFBP-3 siRNA. The expression of IGFBP-3 in IGFBP-3 siRNA-transfected CS12 cells was significantly reduced, but the scrambled and off-target siRNA did not change the expression of IGFBP-3 (Figure 6E). Importantly, siRNA against IGFBP-3 reduced cell growth of CS12 cells significantly, but scrambled siRNA did not reduce cell growth (Figure 6F). Knockdown of IGFBP-3 also reduced migration (Figure 6G) and invasion (Figure 6H) activities of CS12 cells. These results suggest that IGFBP-3 is critical for the cancerous features of CS12 cells.

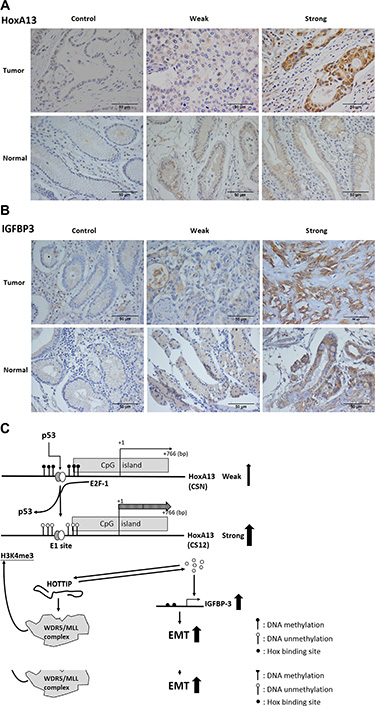

Increased expression of HoxA13 and IGFBP-3 in human gastric cancer

The expression of HoxA13 was examined by immunohistochemistry (IHC) in gastric cancer obtained from 57 patients. HoxA13 was detected in 73.7% (42/57) of these samples (Figure 7A and 7B). The expression of IGFBP-3 was stained for 28 specimens and the positive rate was 50.0% (14/28). By scoring expression levels (0 to 7) by positivity and intensity of IHC staining, HoxA13 and IGFBP-3 were highly expressed (score ≥ 4) in 63.2% (36/57) and 28.6% (8/28), respectively, of these gastric cancer specimens (Supplementary Table 1). We also analyzed HoxA13 and IGFBP-3 expression using the gastric cancer data of The Cancer Genome Atlas and found that both genes were overexpressed (Supplementary Figure 6).

DISCUSSION

We found DNA hypomethylation at the p53–E2F-1 responsive element (E1 site) of the HoxA13 promoter in CS12 cells when compared with CSN cells, together with increased recruitment of E2F, but exclusion of p53 binding at the E1 site, which were consistent with increased HoxA13 expression in CS12 cells. Forced expression of E2F-1 activated, but p53 inhibited HoxA13 promoter in CS12 and CSN cells (Figure 4D, Supplementary Figure 3). The identification of differential DNA methylation at the E1 site of the HoxA13 promoter in CSN and CS12 cells is a new finding, which provides a mechanism to explain the upregulation of HoxA13 expression during the development of gastric cancer (Figure 2). Moreover, expression of HoxA13 was observed in gastric cancer specimen (Figure 7A, Supplementary Figure 6, and Supplementary Table 1). One previous study reported that increased HoxA13 expression was a poor prognostic factor in gastric cancer [17], this study further demonstrated that HoxA13 enhanced the migration and invasion ability of gastric cancer cells.

The hypomethylation at the E1 site of the HoxA13 promoter in CS12 cells was concurrent with decreased recruitments of the DNA methyltransferases DNMT1 and DNMT3b (Figure 4E). In addition, increased binding of WDR5 and MLL complex together with elevated levels of H3K4me3 were observed at the E1 site, which were dependent on increased HOTTIP expression in CS12 cells (Figure 5D). These result showed that HOTTIP activated HoxA13 expression through epigenetic mechanism including DNA methylation and histone modification. Interestingly, knockdown of HoxA13 led to a decrease of HOTTIP expression (Figure 6), demonstrating a positive feedback control of HoxA13 and HOTTIP expression.

More than 230 sequence-specific and specially expressed lncRNAs have been reported to be associated with the HOX gene family [39]. In liver, pancreas, and tongue squamous cell cancers, HOTTIP is positively associated with HoxA13 expression [20, 22, 23].

Up-regulation of HOTTIP is a negative prognostic factor for hepatocellular carcinoma patients [20]. Overexpression of HOTTIP in human pancreatic cancers increases cell proliferation, invasion, and EMT activity [23]. These studies support the oncogenic role of HOTTIP, which induces expression of another oncogene HoxA13 in gastric cancer.

We identified both IGFBP-3 and HOTTIP are the target genes of HoxA13 in gastric cancer. HoxA13 transactivated IGFBP-3 gene expression via Hox-binding elements in the GFBP-3 promoter (Figure 6C). Despite extensive investigation showing the involvement of IGFBP-3 in cancers, it is not a currently used cancer biomarker because it is debatable whether IGFBP-3 is up- or down-regulated in cancers. In gastric cancer, IGFBP-3 has been reported to be a suppressor of migration, invasion, and the EMT through suppression of invasive factors including MMP14 and urokinase-type plasminogen activator [40]. We here found contradictory results in CS12 cells, where both the expression of IGFBP-3 and cell migration were increased significantly. Besides, knockdown of IGFBP-3 inhibited cell proliferation, colony formation, migration, and invasion (Figure 6E–6G). IGFBP-3 may potentiate gastric cancer cell division and invasion that contradicts previous findings of its role as a tumor suppressor [26]. There may be multiple factors that can influence IGFBP-3 expression, and its expression may have both positive and negative effects on tumor development as reported previously [24, 25, 41].

OCT4 was expressed in CSN and CS12 cells, indicating that both cell lines may have the stemness characteristics [36]. However, only CS12 expressed NANOG and LGR5 (Supplementary Figures 1A, 1B, and 2C) and expressed higher levels of SOX2, NANOG, REX1, and hTERT than CSN cells (Supplementary Figure 2D). Only CS12 cells showed differentiation of two germ layers and exhibited strong tumor formation of xenografts in SCID mice (Supplementary Figure 2E). Thus, we conclude that CS12 cells bear the cancer stem cell-like characteristics including characteristic patterns of cell proliferation, cell cycle progression, invasion and migration, and drug resistance. However, CS12 cells are not stem cells because the staining of alkaline phosphatase is negative.

In conclusion, the previously established gastric cancer CS12 cell line showed the characteristics of stemness gene expression but was not fully pluripotent because only two germ layers were differentiated. We also identified the IGFBP-3 as the target of HoxA13 and a positive regulator of gastric cancers. Both HoxA13 and IGFBP-3 were overexpressed significantly in human gastric cancer specimens of Taiwan (Supplementary Table 1) and The Cancer Genome Atlas (Supplementary Figure 6). Thus, the HoxA13–HOTTIP–IGFBP-3 axis might be an oncogenic pathway in the gastric cancer and a potential new oncotarget for gastric cancer therapy.

MATERIALS AND METHODS

Cell lines, reagents, and animals

Human gastric normal cells CSN and cancer cells CS12 cells were cultured as described elsewhere [30] with a slight modification to include Keratinocyte-SFM (Gibco-Invitrogen Co., Carlsbad, CA, USA). 293T cells were obtained from the RIKEN Cell Bank (Tsukuba, Ibaraki, Japan) and were cultured in Dulbecco’s modified Eagle’s minimal essential medium (DMEM) (Gibco) supplemented with 10% charcoal-stripped FBS (Gibco) with or without 1% penicillin and streptomycin (Gibco). The animal welfare guidelines for the care and use of laboratory animals were approved by the Animal Care Committee of the RIKEN BioResource Center in Japan, the National Laboratory of Animal Center and the Kaohsiung Medical University in Taiwan.

Patient samples

This study enrolled patients with gastric cancers from the Kaohsiung Medical University Hospital (KMUH) from June 2010 to August 2013. The study of human subjects was approved by the Institutional Review Board of the KMUH (KMUHIRB-960343, Kaohsiung, Taiwan). All patients gave their informed consent, and the ethics and scientific committees of the participating institutions approved the study. Tumor types were determined according to the World Health Organization classification. At the time of surgery, all tissue samples were immediately flash-frozen in liquid nitrogen and stored at –80°C until use. Patient samples were stained with antibodies against HoxA13 and IGFBP-3 as described elsewhere [30, 31].

Plasmids, small interference RNA (siRNA) and short hairpin RNA (shRNA) lentivirus

The expression plasmids of human HoxA13 cDNA and HoxA13 promoter were obtained from the RIKEN DNA Bank (IRAK168L10; Tsukuba, Ibaraki, Japan) and Active motif (NM000522.4; Carlsbad, CA, USA), and inserted into the pcDNA3 (Invitrogen-Thermo Fisher Scientific, Waltham, MA, USA) and pGL4 luciferase vectors (Promega Corp., Madison, WI, USA), respectively, to generate pcDNA–Flag–HoxA13 and HoxA13 promoter-luciferase. The mutant of E1 of HoxA13 promoter was generated by polymerase chain reaction (PCR) using the primer of 5′-ATGAACAACCACCCTAACACAAC-3′. Human IGFBP-3 promoter [–2,282 nucleotide (nt) to +56 nt]-luciferase and its series of mutants were gifts by Dr. T. Hanafusa (Okayama, Univresity) [27]. All constructs were confirmed by DNA sequencing. The HoxA13 shRNA lentivirus, the GFP shRNA or scrambled shRNA lentivirus were generated in 293T cells that had been cotransfected with pCAG-HIVgp pCMV-VSV-G-RSV-Rev, and TRCN0000004881 (Academia Sinica, Taipei, Taiwan) or PLKO.1-GFP (#30323; Addgene, Cambridge, MA, USA) or scrambled control shRNA (Sigma-Aldrich, St. Louis, MO, USA). Virus supernatants were collected 72 h after transfection, and particles were purified as described [42]. The CS12 cells (1 × 10⁶) were infected with shRNA HoxA13 lentiviruses or scrambled shRNA at a multiplicity of infection of 4. After cultivation for 3 days, cells were injected into SCID mice (5 × 10⁶ cells/spot). For siRNA-mediated gene knockdown, cells were transfected with negative control siRNA (Thermo Fisher Scientific, D-001810-10-05) or the following specific siRNA-like IGFBP-3-targeting siRNA (Ambion-Thermo Fischer, s7227, s7228, s7229), HoxA13-targeting siRNA (Ambion-Thermo Fisher; s106130, s6785, 6886, 6787), HOTTIP-targeting siRNA (Sigma-Aldrich, LQ-011052-00-0002) or c-JUN-targeting siRNA (Ambion-Thermo Fischer: s7658) using Lipofectamine RNA/MAX reagents (Thermo Fisher) [43–45]. All sequences were run on BLAST, to exclude sequences that would suppress undesired genes and to ensure specificity. The cells were harvested after 48 h of incubation, and the effects of the compound alone on gene expression were assessed.

Cell proliferation, colony assay and cell cycle analyses

The living cells were counted using the trypan blue dye-exclusion method, and were analyzed by flow cytometry to identify the sub-G population of cells [43]. MTT assay was assayed as followed to the manufacturers’ instructions as described elsewhere [44, 45]. A colony assay was performed as described elsewhere [43]. Briefly, cells were plated in duplicate at 5 × 10² or 5 × 10³ cells per gelatin-coated dish. Two weeks later, colonies with a diameter > 2 mm were counted after staining with Giemsa staining solution (Wako Chemical Co., Tokyo, Japan). For analysis of the cell cycle [46], serum-starved cells were cultured in DMEM containing 15% FBS and collected at the indicated times. Harvested cells were stained with propidium iodide (PI; 1 μg/mL), and subjected to a fluorescence-activated analysis of DNA content in a flow cytometer (EPICS XL-MCL; Beckman Coulter, Miami, FL, USA).

Migration, invasion, and chmoresistance assays

Cells (1 × 10⁴ cells) cultured in DMEM without FBS were seeded in the upper Transwell plate coated with or without matrix gel (Corning, Inc., NY, USA; 1 mg/mL). The lower plate contained DMEM plus 10% FBS. Three days later, the cells on the lower plate of the Transwell were fixed with 4% formaldehyde, stained with 1% crystal violet, and the cells were counted under a microscope. Regarding chemoresistance assay, cells were seeded in 96-well plates and incubated for 24 h, to allow cell attachment. DMEM containing a serial dilution of 5-fuluorouracil (20 μg/mL) was added, and the cells were incubated for an additional 48 h in 5% CO. Cell viability was examined using the MTT assay.

Teratoma formation assay, alkaline phosphatase and immunohistochemistry

Induced pluripotent stem cells (iPS-like cells) (200 cells; one colony/spot) were injected subcutaneously into the dorsal flank of severe combined immunodeficiency (SCID) mice, as described elsewhere [47]. The teratomas that formed after the injection were fixed in 4% paraformaldehyde overnight and embedded in paraffin. Sections were stained with hematoxylin and eosin. Measurement of alkaline phosphatase activity and immunocytochemistry were performed as described elsewhere [47]. The antibodies used in this work were listed in Supplementary Table 2.

Immunoprecipitation and western blotting

Immunoprecipitation and western blotting were performed as described elsewhere [48, 49].

Reverse transcriptase PCR (RT-PCR) and quantitative polymerase chain reaction (qPCR)

Total RNA was extracted from cells using the TRIzol reagent (Thermo Fisher scientific). RNA was reverse transcribed to cDNA using a reverse transcription kit (Promega). PCR was performed using the GoTaq^® green master mix (Promega). qPCR was performed using the Quantifast SYBR green PCR kit (Qiagen, Gaithersburg, MD, USA) as described elsewhere [43–46]. Amplification curves and gene expression were normalized to those of β-actin or GAPDH which was used as an internal control. The primers used for qPCR are listed in the Supplementary Tables 3–6.

Transient transfection and luciferase assay

Transient transfection and luciferase assay were performed as described [43–46]. Cells were plated into each well of a 12-well plate and cultured for 24 h. The cells were then cotransfected with the indicated amount of constructs carrying the IGFBP3-promoter, HoxA13-promoter-luciferase reporters and with or without increasing dose of HoxA13, using Lipofectamine 2000 (Invitrogen). The total amount of transfected DNA was kept constant at 1 μg/well by the addition of pBluescript. After 48 h or the indicated period of incubation, the cells were harvested and the activities of luciferase were measured in an illuminometer (Berthold Technologies GmbH and Co. KG, Bad Wildbad, Germany) using the Dual-Luciferase Reporter Assay System (Promega). Luciferase activity values were normalized to transfection efficiency.

Quantitative DNA methylation analysis by mass ARRAY epityping

High molecular weight DNA was isolated from CSN and CS12 cells using the PureGene kit from Qiagen (Hilden, Germany). Bisulfite conversion was performed by using the EZ DNA Methylation-Gold kit (Zymo Research Co., Irvine, CA, USA, Cat. no. D5005) [49]. The promoter region of the HoxA13 gene was PCR-amplified from bisulfite-treated human genomic DNA using primers that incorporated the T7 promoter sequence. The DNA methylation analysis was performed on Mass ARRAY (Sequenon) through MALDI-TOF mass spectrometer for data acquisition [50]. Comparative sequence analysis was done by using EpiTYPER software for the percentage of specific site methylation [47]. MassAray primers were designated to cover the promoter regions of the indicated genes.

Chromatin immunoprecipitation assay (ChIP)

The ChIP assay was performed as described elsewhere [46]. The immunoprecipitated protein–DNA complexes were washed twice with binding buffer (10 mM HEPES, pH 7.9, 10 mM Tris-HCl, pH 7.9, 12.5% glycerol, 0.25% NP-40, 0.5% Triton X-100, 0.24 M NaCl, 0.75 mM MgCl₂, 1.1 mM EDTA, and protease inhibitor mixture) and then washed twice with Tris-EDTA buffer (10 mM Tris-HCl, pH 7.9, and 1 mM EDTA). The protein–DNA complexes were disrupted with proteinase K (Sigma-Aldrich) DNA was extracted with phenol and chloroform, precipitated in ethanol, and analyzed by real-time PCR using the Power SYBR Green Master Mix (Invitrogen). The PCR conditions consisted of 1 cycle of 2 min at 50°C and 1 cycle of 10 min at 95°C followed by 40 cycles of 95°C for 15 sec, and 55–60°C for 60 sec. The primers used in these experiments are shown in the Supplementary Table 7.

Statistical analysis

The data are presented as the mean ± SEM from triplicate experiments and additional replicates as indicated. Significance was assessed using two-way ANOVA (P < 0.0001) followed by two-tailed student’s t- tests. Survival analysis was performed using the Kaplan–Meier method, and the curves were compared using the log-rank test. A P value < 0.05 was considered statistically significance.

ACKNOWLEDGMENTS

We thank Y.-L. Lee, H.C. Huang and H.Y. Tseng of Welgene Biotech for RNA sequencing work and Drs. M. Noguchi, K. Kato, and K. Nagata for confirming the data and discussion.

FUNDING

This work was supported by the grants from the Ministry of Science and Technology (MOST-104-2320-B-037-033-My2; MOST-104-2314-B-037-002; MOST-104-2314-B-037-043); the National Health Research Institutes (NHRI-Ex104-10416SI); and a Kaohsiung Medical University grant (KMU-TP103A04, KMU-TP104G00, KMU-TP104G01, KMU-TP104G04, KMU-TP104E23, KMU-DT104001, KMU-DT104001).

CONFLICTS OF INTEREST

The authors have no conflicts of interest to declare.

REFERENCES

1. Dolle P, Izpisua-Belmonte JC, Brown JM, Tickle C, Duboule D. HOX-4 genes and the morphogenesis of mammalian genitalia. Genes Dev. 1991; 5:1767–1767.

2. Yokouchi Y, Sakiyama J, Kuroiwa A. Coordinated expression of Abd-B subfamily genes of the HoxA cluster in the developing digestive tract of chick embryo. Dev Biol. 1995; 169:76–89.

3. Perez WD, Weller CR, Shou S, Stadler HS. Survival of Hoxa13 homozygous mutants reveals a novel role in digit patterning and appendicular skeletal development. Dev Dyn. 2010; 239:446–457.

4. Goodman FR, Bacchelli C, Brady AF, Brueton LA, Fryns JP, Mortlock DP, Innis JW, Holmes LB, Donnenfeld AE, Feingold M, Beemer FA, Hennekam RC, Scambler PJ. Novel HOXA13 mutations and the phenotypic spectrum of hand-foot-genital syndrome. Am J Hum Genet. 2000; 67:197–202.

5. Mortlock DP, Innis JW. Mutation of HOXA13 in hand-foot-genital syndrome. Nat Genet. 1997; 15:179–180.

6. Guttmacher AE. Autosomal dominant preaxial deficiency, postaxial polydactyly, and hypospadias. Am J Med Genet. 1993; 46:219–222.

7. Innis JW, Mortlock D, Chen Z, Ludwig M, Williams ME, Williams TM, Doyle CD, Shao Z, Glynn M, Mikulic D, Lehmann K, Mundlos S, Utsch B. Polyalanine expansion in HOXA13: three new affected families and the molecular consequences in a mouse model. Hum Mol Genet. 2004; 13:2841–2851.

8. Mortlock DP, Post LC, Innis JW. The molecular basis of hypodactyly (Hd): a deletion in Hoxa 13 leads to arrest of digital arch formation. Nat Genet. 1996; 13:284–289.

9. Fromental-Ramain C, Warot X, Messadecq N, LeMeur M, Dolle P, Chambon P. Hoxa-13 and Hoxd-13 play a crucial role in the patterning of the limb autopod. Development. 1996; 122:2997–3011.

10. Stadler HS, Higgins KM, Capecchi MR. Loss of Eph-receptor expression correlates with loss of cell adhesion and chondrogenic capacity in Hoxa13 mutant limbs. Development. 2001; 128:4177–4188.

11. Shaut CA, Keene DR, Sorensen LK, Li DY, Stadler HS. HOXA13 Is essential for placental vascular patterning and labyrinth endothelial specification. PLoS Genet. 2008; 4:e1000073.

12. Cillo C, Schiavo G, Cantile M, Bihl MP, Sorrentino P, Carafa V, M DA, Roncalli M, Sansano S, Vecchione R, Tornillo L, Mori L, De Libero G, et al. The HOX gene network in hepatocellular carcinoma. Int J Cancer. 2011; 129:2577–2587.

13. Huang T, Chesnokov V, Yokoyama KK, Carr BI, Itakura K. Expression of the Hoxa-13 gene correlates to hepatitis B and C virus associated HCC. Biochem Biophys Res Commun. 2001; 281:1041–1044.

14. Kasper S. Exploring the origins of the normal prostate and prostate cancer stem cell. Stem Cell Rev. 2008; 4:193–201.

15. Shah N, Sukumar S. The Hox genes and their roles in oncogenesis. Nat Rev Cancer. 2010; 10:361–371.

16. Gu ZD, Shen LY, Wang H, Chen XM, Li Y, Ning T, Chen KN. HOXA13 promotes cancer cell growth and predicts poor survival of patients with esophageal squamous cell carcinoma. Cancer Res. 2009; 69:4969–4973.

17. Han Y, Tu WW, Wen YG, Li DP, Qiu GQ, Tang HM, Peng ZH, Zhou CZ. Identification and validation that up-expression of HOXA13 is a novel independent prognostic marker of a worse outcome in gastric cancer based on immunohistochemistry. Med Oncol. 2013; 30:564.

18. Flynn RA, Chang HY. Long noncoding RNAs in cell-fate programming and reprogramming. Cell Stem Cell. 2014; 14:752–761.

19. Wang KC, Yang YW, Liu B, Sanyal A, Corces-Zimmerman R, Chen Y, Lajoie BR, Protacio A, Flynn RA, Gupta RA, Wysocka J, Lei M, Dekker J, et al. A long noncoding RNA maintains active chromatin to coordinate homeotic gene expression. Nature. 2011; 472:120–124.

20. Quagliata L, Matter MS, Piscuoglio S, Arabi L, Ruiz C, Procino A, Kovac M, Moretti F, Makowska Z, Boldanova T, Andersen JB, Hammerle M, Tornillo L, et al. Long noncoding RNA HOTTIP/HOXA13 expression is associated with disease progression and predicts outcome in hepatocellular carcinoma patients. Hepatology. 2014; 59:911–923.

21. Zhang H, Zhao L, Wang YX, Xi M, Liu SL, Luo LL. Long non-coding RNA HOTTIP is correlated with progression and prognosis in tongue squamous cell carcinoma. Tumour Biol. 2015; 36:8805–8809.

22. Li Z, Zhao X, Zhou Y, Liu Y, Zhou Q, Ye H, Wang Y, Zeng J, Song Y, Gao W, Zheng S, Zhuang B, Chen H, et al. The long non-coding RNA HOTTIP promotes progression and gemcitabine resistance by regulating HOXA13 in pancreatic cancer. J Transl Med. 2015; 13:84.

23. Cheng Y, Jutooru I, Chadalapaka G, Corton JC, Safe S. The long non-coding RNA HOTTIP enhances pancreatic cancer cell proliferation, survival and migration. Oncotarget. 2015; 6:10840–10852. doi: 10.18632/oncotarget.3450.

24. Johnson MA, Firth SM. IGFBP-3: a cell fate pivot in cancer and disease. Horm IGF Res. 2014; 24:164–173.

25. Baxter RC. Nuclear actions of insulin-like growth factor binding protein-3. Gene. 2015; 569:7–13.

26. Buckbinder L, Talbott R, Velasco-Miguel S, Takenaka I, Faha B, Seizinger BR, Kley N. Induction of the growth inhibitor IGF-binding protein 3 by p53. Nature. 1995; 377:646–649.

27. Hanafusa T, Shinji T, Shiraha H, Nouso K, Iwasaki Y, Yumoto E, Ono T, Koide N. Functional promoter upstream p53 regulatory sequence of IGFBP3 that is silenced by tumor specific methylation. BMC Cancer. 2005; 5:9.

28. Jemal A, Siegel R, Ward E, Murray T, Xu J, Smigal C, Thun MJ. Cancer statistics, 2006. CA. 2006; 56:106–130.

29. Marrelli D, Polom K, de Manzoni G, Morgagni P, Baiocchi GL, Roviello F. Multimodal treatment of gastric cancer in the west: Where are we going? World J Gastroenterol. 2015; 21:7954–7969.

30. Yang YC, Wang SW, Hung HY, Chang CC, Wu IC, Huang YL, Lin TM, Tsai JL, Chen A, Kuo FC, Wang WM, Wu DC. Isolation and characterization of human gastric cell lines with stem cell phenotypes. J Gastroenterol Hepatol. 2007; 22:1460–1468.

31. Yang YC, Wang SW, Wu IC, Chang CC, Huang YL, Lee OK, Chang JG, Chen A, Kuo FC, Wang WM, Wu DC. A tumorigenic homeobox (HOX) gene expressing human gastric cell line derived from putative gastric stem cell. Eur J Gastroenterol Hepatol. 2009; 21:1016–1023.

32. Xu ZY, Tang JN, Xie HX, Du YA, Huang L, Yu PF, Cheng XD. 5-Fluorouracil chemotherapy of gastric cancer generates residual cells with properties of cancer stem cells. Int J Biol Sci. 2015; 11:284–294.

33. Clark AG, Vignjevic DM. Modes of cancer cell invasion and the role of the microenvironment. Curr Opin Cell Biol. 2015; 36:13–22.

34. Ma RL, Shen LY, Chen KN. Coexpression of ANXA2, SOD2 and HOXA13 predicts poor prognosis of esophageal squamous cell carcinoma. Oncol Rep. 2014; 31:2157–2164.

35. Shen LY, Chen KN. Exploration of target genes of HOXA13 in esophageal squamous cell carcinoma cell line. Cancer Lett. 2011; 312:18–23.

36. Jerabek S, Merino F, Scholer HR, Cojocaru V. OCT4: dynamic DNA binding pioneers stem cell pluripotency. Biochim Biophys Acta. 2014; 1839:138–154.

37. Sherr CJ. Cancer cell cycles. Science. 1996; 274:1672–1677.

38. Hanahan D, Weinberg RA. The hallmarks of cancer. Cell. 2000; 100:57–70.

39. Rinn JL, Kertesz M, Wang JK, Squazzo SL, Xu X, Brugmann SA, Goodnough LH, Helms JA, Farnham PJ, Segal E, Chang HY. Functional demarcation of active and silent chromatin domains in human HOX loci by noncoding RNAs. Cell. 2007; 129:1311–1323.

40. Roy R, Yang J, Moses MA. Matrix metalloproteinases as novel biomarkers and potential therapeutic targets in human cancer. J Clin Oncol. 2009; 27:5287–5297.

41. Zielinska HA, Bahl A, Holly JM, Perks CM. Epithelial-to-mesenchymal transition in breast cancer: a role for insulin-like growth factor I and insulin-like growth factor-binding protein 3? Breast Cancer (Dove Med Press). 2015; 7:9–19.

42. Miyoshi H, Takahashi M, Gage FH, Verma IM. Stable and efficient gene transfer into the retina using an HIV-based lentiviral vector. Proc Natl Acad Sci USA. 1997; 94:10319–10323.

43. Pan J, Nakade K, Huang YC, Zhu ZW, Masuzaki S, Hasegawa H, Murata T, Yoshiki A, Yamaguchi N, Lee CH, Yang WC, Tsai EM, Obata Y, et al. Suppression of cell-cycle progression by Jun dimerization protein-2 (JDP2) involves downregulation of cyclin-A2. Oncogene. 2010; 29:6245–6256.

44. Kawasaki H, Song J, Eckner R, Ugai H, Chiu R, Taira K, Shi Y, Jones N, Yokoyama KK. p300 and ATF-2 are components of the DRF complex, which regulates retinoic acid- and E1A-mediated transcription of the c-jun gene in F9 cells. Genes Dev. 1998; 12:233–245.

45. Kawasaki H, Eckner R, Yao TP, Taira K, Chiu R, Livingston DM, Yokoyama KK. Distinct roles of the co-activators p300 and CBP in retinoic-acid-induced F9-cell differentiation. Nature. 1998; 393:284–289.

46. Tanigawa S, Lee CH, Lin CS, Ku CC, Hasegawa H, Qin S, Kawahara A, Korenori Y, Miyamori K, Noguchi M, Lee LH, Lin YC, Steve Lin CL, et al. Jun dimerization protein 2 is a critical component of the Nrf2/MafK complex regulating the response to ROS homeostasis. Cell Death Dis. 2013; 4:e921.

47. Stanssens P, Zabeau M, Meersseman G, Remes G, Gansemans Y, Storm N, Hartmer R, Honisch C, Rodi CP, Bocker S, van den Boom D. High-throughput MALDI-TOF discovery of genomic sequence polymorphisms. Genome Res. 2004; 14:126–133.

48. Wang SW, Wang SS, Wu DC, Lin YC, Ku CC, Wu CC, Chai CY, Lee JN, Tsai EM, Lin CL, Yang RC, Ko YC, Yu HS, et al. Androgen receptor-mediated apoptosis in bovine testicular induced pluripotent stem cells in response to phthalate esters. Death Dis. 2013; 4:e907.

49. Paulin R, Grigg GW, Davey MW, Piper AA. Urea improves efficiency of bisulphite-mediated sequencing of 5′-methylcytosine in genomic DNA. Nucleic Acids Res. 1998; 26:5009–5010.

50. Ehrich M, Nelson MR, Stanssens P, Zabeau M, Liloglou T, Xinarianos G, Cantor CR, Field JK, van den Boom D. Quantitative high-throughput analysis of DNA methylation patterns by base-specific cleavage and mass spectrometry. Proc Natl Acad Sci U S A. 2005; 102:15785–15790.
