Abstract
Chen-Yi Jiang1,*, Jun-Jie Yu2,*, Yuan Ruan3, Xiao-Hai Wang1, Wei Zhao1, Xing-Jie Wang1, Yi-Ping Zhu1, Yuan Gao1, Kui-Yuan Hao1, Lei Chen1, Bang-Min Han1, Shu-Jie Xia1,3, Fu-Jun Zhao1
1Department of Urology, Shanghai General Hospital, Shanghai Jiao Tong University School of Medicine, Shanghai 200080, China
2Department of Urology, Subei People’s Hospital of Jiangsu Province, Clinical Medical College of Yangzhou University, Yangzhou 225001, China
3Department of Urology, Shanghai General Hospital Affiliated to Nanjing Medical University, Shanghai 200080, China
*These authors have contributed equally to this work
Correspondence to:
Fu-Jun Zhao, e-mail: [email protected]
Shu-Jie Xia, e-mail: [email protected]
Keywords: prostate cancer, stromal cell, stromal-epithelial crosstalk, LIM domain only 2 (LMO2), Interleukin-11 (IL-11)
Received: November 16, 2015 Accepted: March 07, 2016 Published: March 25, 2016
ABSTRACT
Mechanisms of stromal-epithelial crosstalk are essential for Prostate cancer (PCa) tumorigenesis and progression. Peripheral zone of the prostate gland possesses a stronger inclination for PCa than transition zone. We previously found a variety of genes that differently expressed among different prostate stromal cells, including LIM domain only 2 (LMO2) which highly expressed in peripheral zone derived stromal cells (PZSCs) and PCa associated fibroblasts (CAFs) compared to transition zone derived stromal cells (TZSCs). Studies on its role in tumors have highlighted LMO2 as an oncogene. Herein, we aim to study the potential mechanisms of stromal LMO2 in promoting PCa progression. The in vitro cells co-culture and in vivo cells recombination revealed that LMO2 over-expressed prostate stromal cells could promote the proliferation and invasiveness of either prostate epithelial or cancer cells. Further protein array screening confirmed that stromal LMO2 stimulated the secretion of Interleukin-11 (IL-11), which could promote proliferation and invasiveness of PCa cells via IL-11 receptor α (IL11Rα) – STAT3 signaling. Moreover, stromal LMO2 over-expression could suppress miR-204-5p which was proven to be a negative regulator of IL-11 expression. Taken together, results of our study demonstrate that prostate stromal LMO2 is capable of stimulating IL-11 secretion and by which activates IL11Rα – STAT3 signaling in PCa cells and then facilitates PCa progression. These results may make stromal LMO2 responsible for zonal characteristic of PCa and as a target for PCa microenvironment-targeted therapy.
INTRODUCTION
Prostate cancer (PCa) is the second most frequently diagnosed cancer in men worldwide, whose incidence increases rapidly in China [1]. In early 1980s John E. McNeal proposed a zonal anatomy of the prostate by dividing the gland into peripheral zone (PZ), transition zone (TZ), central zone (CZ), and anterior fibromuscular stroma [2]. About 70% PCa originate from PZ, and the rest originate from TZ or CZ. PCa in PZ manifests stronger aggressiveness, higher pathological degree and biochemical recurrence compared to TZ [3]. However, molecular mechanisms related to the distinctive zonal characteristic of PCa remain elusive. While prostatic stromal-epithelial crosstalk is liable for this to a certain degree. The dominant cell types in prostate stroma are fibroblasts and myofibroblasts providing a homeostatic environment for epithelial/luminal cells through paracrine of essential substances including cytokines [4]. It assumes that aberrant signaling pathways mediated by cytokines in PZ may lead to PCa zonal tumorigenesis and development. Previous researches revealed that normal PZ derived stromal cells (PZSCs) as well as PCa associated fibroblasts (CAFs) possess higher tumor promotion role compared with the normal TZ derived stromal cells (TZSCs) [5–8]. Distinct functions and signaling pathways among PZSCs, TZSCs and CAFs indicate their different gene expression patterns which provide clues for further investigating the zonal characteristic of PCa.
LIM domain only 2 (LMO2) was first identified in T-cell acute lymphoblastic leukemia (T-ALL) [9, 10]. Recently, studies have indicated that LMO2 over-expression correlate with several malignancies in addition to T-ALL, including gastric cancer [11], haemangioma [12], glioma [13], pancreatic cancer [14], etc. Also, in PCa LMO2 was found positively expressed in DU145, PC-3 cells and androgen-independent CWR22 xenografts. Further, LMO2 could promote invasiveness of PCa cells through repression of E-cadherin [15]. In-depth studies using gene array move forward to confirm that LMO2 possesses a higher expression level in PZSCs and CAFs as compared to TZSCs [8, 16]. Yet, relations between stromal LMO2 and prostate tumorigenesis remain unclear.
In the present study, we attempt to elucidate potential mechanisms of tumor promotion role introduced by over-expression of LMO2 in PZSCs and CAFs. We report that stromal LMO2 over-expression can stimulate secretion of interleukin-11 (IL-11) which facilitates proliferation and invasiveness of either prostate epithelial or cancer cells via IL-11 – IL-11 receptor α (IL11Rα) – STAT3 signaling pathway. Additionally, we also suggest that impairment of miR-204-5p expression by LMO2 might be the possible reason for IL-11 up-regulation in prostate stromal cells.
RESULTS
LMO2 expression analyses in prostate stromal cells
To profile the gene expression patterns of PZSCs and TZSCs, we performed gene array analyses [8]. In all, 514 differently expressed genes were detected. Among these genes, we noticed that LMO2 is highly expressed in PZSCs compared to TZSCs (Figure 1A). Next, we measured LMO2 mRNA and protein expression using qRT-PCR (Figure 1B), Western blot (Figure 1D) and immunofluorescence (IF) (Figure 1C) for verification. Data indicated that CAFs possessed the highest expression level of LMO2, and PZSCs possessed lower LMO2 expression but still remarkably higher than TZSCs. Additionally, LMO2 protein expression in human prostate tissues was also examined using immunohistochemistry (IHC), by which the highest proportion of LMO2 positive stromal cells can be observed in PCa tissues compared with normal PZ tissues. While normal TZ tissues possess the lowest proportion of LMO2 positive stromal cells (Figure 1E, Supplementary Figure S1B). These data confirm that the expression of LMO2 has a zonal feature in prostate stroma.

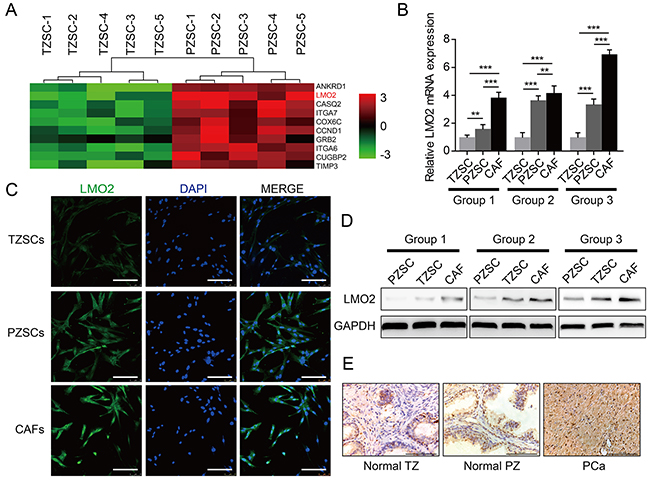

Figure 1: LMO2 is highly expressed in PZSCs and CAFs compared with TZSCs. A. Different gene expression patterns between five TZSCs and five PZSCs were assessed using gene array. Heat map depicting top-10 genes that highly expressed in PZSCs compared to TZSCs and showing that LMO2 expression levels of PZSCs is higher than that of TZSCs. B. QRT-PCR analyses showing different LMO2 mRNA levels among TZSCs, PZSCs and CAFs derived from three cases (**P<0.01; ***P<0.001). C. IF analyses showing LMO2 protein localization and different expressions levels among TZSCs, PZSCs and CAFs (scale bar = 150 μm). D. Western blot showing different LMO2 protein levels among TZSCs, PZSCs and CAFs derived from three cases. E. IHC analyses showing different LMO2 protein expression in normal prostate TZ, normal prostate PZ and PCa tissues (scale bar = 100 μm).
Tumor promotion role of LMO2 over-expressed prostate stromal cells
To study functions of LMO2 in prostate stromal cells, we constructed WPMY-1LMO2 prostate stromal cells which over-express LMO2 (Supplementary Figure S1C). We also silenced LMO2 expression in prostate stromal cells through RNA interference. Among all three unique siRNAs we designed, siLMO2-2 possesses the highest knockdown efficiency (Supplementary Figure S1D) whose sequence was made available for CAFshLMO2 stable cell line construction. Afterward, we examined whether LMO2 modified stromal cells were capable of modulating the proliferation and invasiveness of prostate epithelial and cancer cells. Notably, in the in vitro co-culture systems EdU positive PC-3 or BPH-1 cells were increased after co-culture with WPMY-1LMO2 cells as compared with WPMY-1Vec cells (Figure 2A–2C). CCK-8 experiments further showed that over-expression of LMO2 in WPMY-1 promoted viability of PC-3 or BPH-1 cells in co-culture system (Supplementary Figure S2A–S2B). Conversely, knockdown of LMO2 in CAFs inhibited viability of PC-3 or BPH-1 cells in co-culture system (Supplementary Figure S2C–S2D). The in vivo PC-3/WPMY-1 recombination xenograft model further supported the tumor promotion role of stromal LMO2 (Figure 2D). Mean volume of PC-3/WPMY-1LMO2 heterogeneity xenograft is larger than that of PC-3/WPMY-1Vec xenograft and PC-3 homogeneous xenograft at the fifth, sixth and seventh week (Figure 2E). IHC showed that PC-3/WPMY-1LMO2 xenograft tissues possessed more Ki-67 positive cells than other groups (Supplementary Figure S2E–S2F). Additionally, the possible effect of stromal LMO2 on invasiveness of epithelial or cancer cells was determined using Matrigel invasion experiments. Results showed an increasing of invaded PC-3 or BPH-1 cells after co-culture with WPMY-1LMO2 (Figure 2F–2G). While a decreasing of invaded PC-3 cells, but not BPH-1 cells, could be observed after co-culture with CAFshLMO2 (Figure 2H–2I). Collectively, these data confirm a tumor promotion role of LMO2 over-expressed prostate stromal cells.

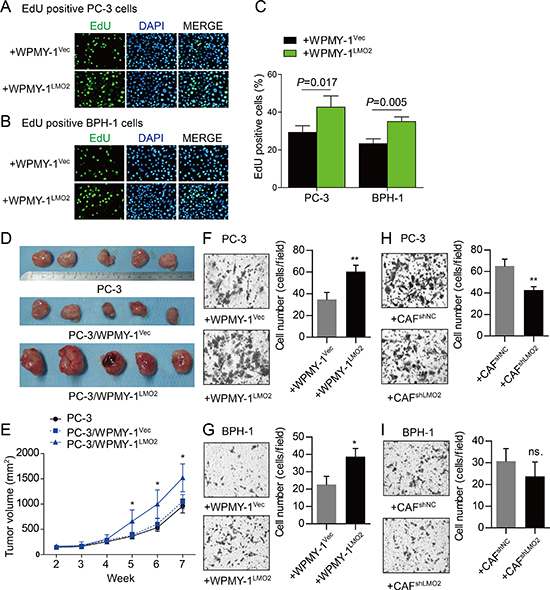

Figure 2: Tumor promotion role of LMO2 over-expressed stromal cells. A, B. EdU cell proliferation assays showing proliferation change of PC-3 (A) or BPH-1 (B) cells after separately co-culturing with WPMY-1Vec or WPMY-1LMO2 cells in vitro. 1×105 PC-3 or BPH-1 cells were plated in the upper compartment of 6.5mm Transwell (0.4μm pore); 1×105 WPMY-1Vec or WPMY-1LMO2 cells were plated in the lower compartment. After 72h, proliferation of PC-3 or BPH-1 cells was assessed using EdU reagent. C. Histogram showing proliferation changes of PC-3 and BPH-1 cells after co-culture with WPMY-1Vec or WPMY-1LMO2 cells. D. PC-3 homogeneous xenografts (top), PC-3/WPMY-1Vec recombination xenografts (middle) and PC-3/WPMY-1LMO2 recombination xenografts (bottom) were excised at week seven after subcutaneous inoculation. E. Growth curve depicting different volumes of xenografts (*P<0.05). F–I. Matrigel invasion assays showing invasiveness change of PC-3 (F and H) or BPH-1 (G and I) cells after separately co-culturing with different stromal cells in vitro. 1×105 PC-3 or BPH-1 cells were plated in the upper compartment of Matrigel coated 6.5 mm Transwell (8μm pore); 2×105 stromal cells were plated in lower compartment. After co-culture for 48h, the invaded cells were stained with crystal violet.
Identification of tumor promoting cytokines stimulated by LMO2 in prostate stromal cells
Stromal-epithelial crosstalk in PCa may mediate by paracrine of tumor promoting cytokines. Base on the results from cells co-culture, we would like to find the possible cytokines stimulated by LMO2 in stromal cells. To this end, we performed protein array analyses, by which we identified 49 proteins with different concentrations between WPMY-1Vec and WPMY-1LMO2 supernatant (Figure 3A, Supplementary Figure S3A). Among these proteins, the concentration of IL-11 in WPMY-1LMO2 supernatant up-regulated by 21.99-fold than that inWPMY-1Vec supernatant. Further, ELISA assays which carried out to examine the concentration of IL-11 in supernatant of WPMY-1 cells and CAFs support the result of protein array analyses (Figure 3B–3E). Compared with control cells, WPMY-1LMO2 cells also possessed higher IL-11 mRNA and protein expression levels (Figure 3F, Supplementary Figure S1C). Conversely, knockdown of LMO2 in CAFs was capable of reducing IL-11 mRNA and protein expression (Figure 3F, Supplementary Figure S1D). Collectively, our data suggest that LMO2 over-expression is capable of up-regulating IL-11 mRNA expression and stimulating secretion of IL-11 in prostate stromal cells.

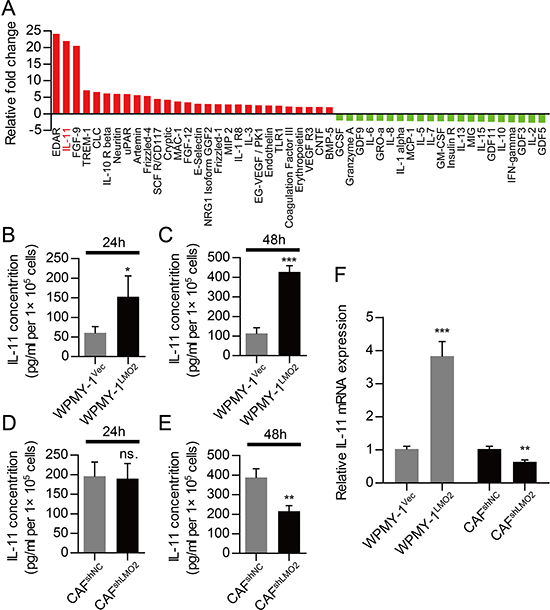

Figure 3: Stromal LMO2 facilitates PCa progression via paracrine of IL-11. A. Histogram showing increased (red columns) and decreased (green columns) proteins in supernatant of WPMY-1LMO2 supernatant as compared to WPMY-1Vec supernatant. Proteins with more than 2-fold change are shown. B, C. ELISA showing different IL-11 concentration between WPMY-1Vec and WPMY-1LMO2 supernatant after culture for 24h (B) and 48h (C). D, E. ELISA showing different IL-11 concentration between CAFshNC and CAFshLMO2 supernatant after culture for 24h (D) and 48h (E). F. QRT-PCR analyses showing fold change of IL-11 mRNA in WPMY-1 cells after LMO2 over-expression and in CAFs after knockdown of LMO2. (ns. = not significant; * P<0.05; ** P<0.01; *** P<0.001).
Paracrine of IL-11 by prostate stromal cells facilitated PCa progression via activation of STAT3 signaling
To examine IL-11 expression in prostate tissues, we carried out IHC analyses indicating a higher IL-11 staining density in PCa tissues compared with normal prostate tissues (Figure 4A). It has been clearly discussed that biological functions of IL-11 are mediated by binding its specific receptor, IL11Rα [17]. To examine PCa promotion role of IL-11, we suppressed IL11Rα in PC-3 cells using RNA interference. CCK-8 proliferation assays indicated that either WPMY-1LMO2 conditioned medium (CM) and medium containing 100ng/ml recombinant human IL-11 protein (rhIL-11) was capable of promoting the proliferation of PC-3shNC cells rather than PC-3shIL11Rα cells (Figure 4B–4C). Furthermore, Matrigel invasion experiments suggested that invasiveness of PC-3shNC cells was promoted by WPMY-1LMO2 CM, however, knockdown of IL11Rα in PC-3 cells reduced this function of WPMY-1LMO2 CM (Figure 4D–4E). Next, activation of STAT3 signaling when IL-11 exists was examined by Western blot. Notably, WPMY-1LMO2 CM was capable of inducing phosphorylation of STAT3 protein in PC-3 cells, while the capability could be blocked by IL-11 neutralizing antibody (Figure 4F). Moreover, knockdown of IL11Rα in PC-3 could decrease STAT3 phosphorylation mediated by rhIL-11 or WPMY-1LMO2 CM (Figure 4G). These data suggest that paracrine of IL-11 in stromal cells facilitates PCa progression via IL11Rα – STAT3 signaling.

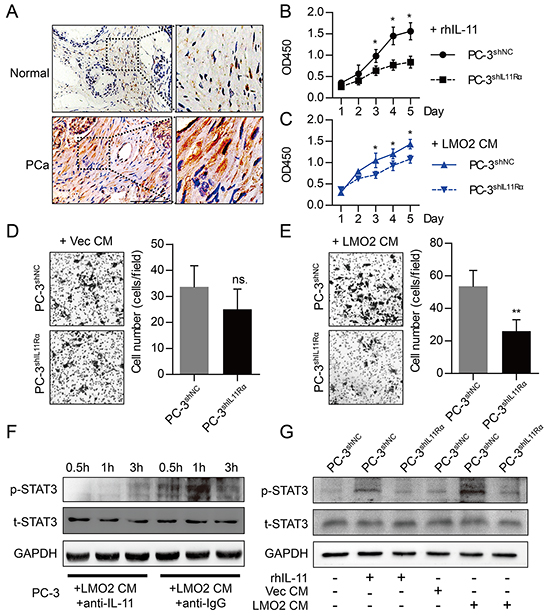

Figure 4: Paracrine of IL-11 by prostate stromal cells promotes proliferation and invasiveness of PCa cells via activating STAT3 signaling. A. IHC analyses showing different IL-11 protein expression in normal prostate and PCa tissues (scale bar = 100μm). B. CCK-8 cell proliferation assays showing different proliferation between PC-3shNC and PC-3shIL11Rα cells cultured in medium with 100 ng/ml rhIL-11. C. CCK-8 cell proliferation assays showing different proliferation between PC-3shNCand PC-3shIL11Rα cells cultured in conditioned medium from WPMY-1LMO2 cells (LMO2 CM). D, E. Matrigel invasion assays showing different invasiveness between PC-3shNCand PC-3shIL11Rα cells cultured in (D) or in LMO2 CM (E). 1×105 cells were plated in the upper compartment of Matrigel coated 6.5mm Transwell (8μm pore); Vec CM or LMO2 CM was added into the lower compartment. After co-culture for 48h, the invaded cells were stained with crystal violet. F. Western blot showing different phospho-STAT3 (p-STAT3) and total STAT3 (t-STAT3) protein levels of PC-3 cells cultured in LMO2 CM. STAT3 phosphorylation can be blocked by IL-11 neutralizing antibody (0.05 μg/ml), IgG antibody was used as control. G. Western blot showing different phospho-STAT3 (p-STAT3) and total STAT3 (t-STAT3) protein levels of PC-3shNCand PC-3shIL11Rα cells cultured in different mediums. Phospho-STAT3 level increased after incubating PC-3shNC with WPMY-1LMO2 CM or with medium containing 100ng/ml IL-11. Knockdown of shIL11Rα in PC-3 cells attenuates STAT3 protein phosphorylation. (ns. = not significant; * P<0.05; ** P<0.01).
IL-11 expression in prostate stromal cells can be reversed by miR-204-5p
To profile microRNAs (miRNAs) expression patterns of prostate stromal cells, we performed miRNA array analyses seeking for differently expressed miRNAs between PZSCs and TZSCs. In all, we identified 26 differently expressed miRNAs including 19 miRNAs which expressed lower levels in PZSCs than in TZSCs. MiR-204-5p was at a significantly lower expression level in PZSCs compared with TZSCs (Figure 5A). To better examine miR-204-5p expression among TZSCs, PZSCs and CAFs, we performed qRT-PCR which confirmed that expression levels of miR-204-5p in PZSCs and CAFs were less than that in TZSCs (Figure 5B). More importantly, suppression of IL-11 directly by miR-204-5p was confirmed previously, and two binding sites of miR-204-5p in the 3′UTR of IL-11 mRNA could be found (Figure 5C) [18, 19]. QRT-PCR results further demonstrated that the mRNA levels of IL-11 were decreased due to miR-204-5p mimic transfection in CAFs and WPMY-1LMO2 cells (Figure 5D). Collectively, data indicate that miR-204-5p can suppress IL-11 in prostate stromal cells.

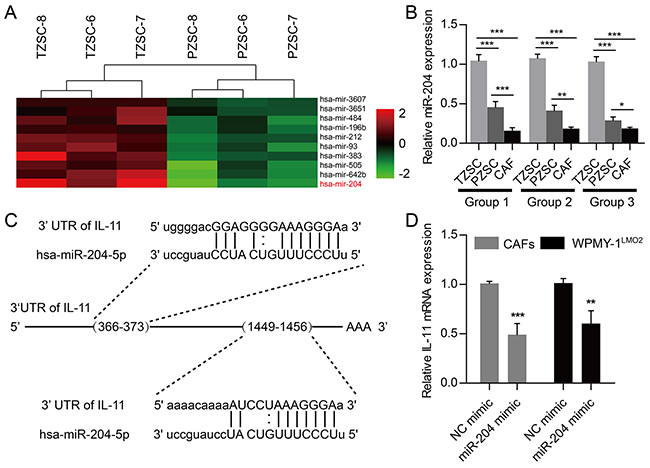

Figure 5: MicroRNAs profiling and suppression of IL-11 by miR-204-5p in prostate stromal cells. A. Different miRNAs expression patterns between three TZSCs and three PZSCs were assessed using gene array. Heat map depicting top-10 genes with low expression levels in PZSCs compared to TZSCs including miR-204-5p. B. QRT-PCR analyses showing different miR-204-5p levels among TZSCs, PZSCs and CAFs derived from three cases. C. Two miR-204-5p binding sites can be found in the 3′UTR of IL-11 mRNA. D. QRT-PCR analyses showing fold change of IL-11 mRNA by miR-204-5p mimic transfection in CAFs and WPMY-1LMO2 cells. (* P<0.05; ** P <0.01; ***P <0.001).
LMO2 attenuates miR-204-5p expression in prostate stromal cells
To investigate relevance between expression of miR-204-5p and LMO2 in prostate stromal cells, we performed qRT-PCR. Data showed that miR-204-5p expression was remarkably inhibited after LMO2 over-expression in WPMY-1 cells, reversely, increased due to knockdown of LMO2 in CAFs (Figure 6A–6B). LMO2 can positively or negatively modulate expression of its downstream genes. Thus we wonder whether LMO2, as a transcription factor, can regulate expression of miR-204 transcription. Interestingly, qRT-PCR data showed that LMO2 can regulated pre-miR-204 and miR-204-5p expression in an opposite way in WPMY-1 cells (Figure 6A). Next, to examine whether LMO2 could promote miR-204 gene transcription as an enhancer, we constructed gene reporter plasmids for dual-luciferase assays. Further analyses of the promoter region of human miR-204 gene implicated potential LMO2 binding sites which identified by adjacent E-box and GATA site (Supplementary Figure S3B). Then, pGL3 promoter reporter plasmids that containing different length of sequences of miR-204 gene promoter region were constructed and transfected into WPMY-1Vec and WPMY-1LMO2 cells. Luciferase activities of pGL3-2 or pGL3-3 plasmids transfected WPMY-1LMO2cells were higher than that of pGL3-1 or control plasmids transfected WPMY-1LMO2cells (Figure 6C). Based on these results, we suggest that LMO2 could promote miR-204 gene transcription and might attenuate miR-204-5p maturation in prostate stromal cells.

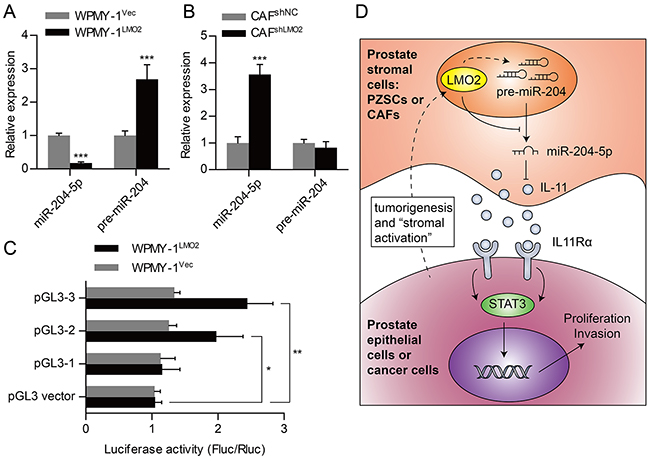

Figure 6: LMO2 attenuate miR-204-5p expression in prostate stromal cells. A. QRT-PCR analyses showing fold change of miR-204-5p or pre-miR-204 expression levels between WPMY-1Vec and WPMY-1LMO2 cells. B. QRT-PCR analyses showing fold change of miR-204-5p or pre-miR-204 expression levels between CAFshNC and CAFshLMO2. C. Dual-luciferase assays showing different luciferase activity after co-transfection of pGL4.73 Renilla luciferase plasmids and different pGL3 firefly luciferase reporter plasmids into WPMY-1Vec and WPMY-1LMO2 (* P < 0.05; ** P <0.01; ***P <0.001). D. Schematic diagram of PCa promotion role of LMO2 over-expressed prostate stromal cells, which shows that stromal LMO2 is capable of inducing PCa through paracrine of IL-11 and activation of STAT3 signaling pathway.
DISCUSSION
Prostate stromal cells provide a homeostatic microenvironment for normal prostate development through precise and complicated stromal-epithelial crosstalk. However, tumorigenesis promotes self-alteration of stromal cells to inclination for growth and metastasis of cancer cells [20, 21]. This process is called “stromal activation” by which an abnormal stromal-epithelial crosstalk is established [4]. Inhibition or reclamation against cancerous stromal-epithelial crosstalk offers a microenvironment-targeted strategy for PCa treatment [22]. Our previous studies have revealed that the proliferation or invasiveness of PCa cells can be induced by PZSCs and CAFs rather than TZSCs [5, 8]. Distinct gene expression patterns among TZSCs, PZSCs and CAFs implicate their different tumor promotion roles. Nevertheless, biological functions of certain genes that distinctively expressed among different stromal cells are largely unexplored. LMO2 which highly expressed in PZSCs and CAFs compared to TZSCs attracts our sight. LMO2 protein is one of the members of LIM-only gene family, which acts as a transcription factor and may perform as an oncogene [11–14]. Compared with TZSCs, PZSCs express a higher level of LMO2. So we suggest this may be accountable for the zonal characteristic of PCa. Moreover, LMO2 expression further up-regulates when PZSCs transform to CAFs after “stromal activation”, which also implicates a PCa promotion role of stromal LMO2. However, functions of LMO2 in prostate stromal cells have never been discussed. In this research, we elucidate one potential mechanism of stromal LMO2 in promoting PCa progression through stromal-epithelial crosstalk by paracrine of IL-11.
Numerous cytokines, such as transforming growth factors (TGFs) [23], fibroblast growth factors (FGFs) [24], interleukins (ILs) [25, 26], epithelial growth factor (EGF) [27], CCL2, CXCL12 [28, 29], etc., are involved in cancerous stromal-epithelial crosstalk and provide eligible microenvironment for PCa progression. Since proliferation and invasiveness of PCa cells increased after co-culture with LMO2 over-expressed stromal cells, we believe stromal LMO2 may account for PCa progression through paracrine manners. Our data based on protein array analyses suggest that stromal LMO2 can stimulate secretion of IL-11 which is a tumor promoting cytokine. IL-11, a member of the IL-6 family, can activate STAT3 signaling downstream via its unique receptor IL11Rα [17]. Previous studies confirmed serum IL-11 concentration elevation in patients with PCa [30], breast cancer [31] and lung cancer [32]. Additionally, IL-11 has the potential to promoting cancer progression in tumor microenvironment. Calon et al. found that secretion of IL-11 by CAFs triggers STAT3 signaling and increase metastasis in colorectal cancers [33]. Marusyk et al. reported that IL-11 is one of a dominant cytokines in the non-cell-autonomous driving of tumor growth [34]. Putoczki et al. revealed that IL-11 has a more prominent role compared to IL-6 during the progression of inflammation-associated colon and gastric cancers [35]. In PCa, Onnis et al. revealed that hypoxic condition can stimulate tumor cells’ autocrine of IL-11 which further promote tumor progression [36]. Our study revealed the critical role of IL-11 in crosstalk between the LMO2 highly expressed stromal cells and their adjacent cancer cells. While in-depth researches necessitate understanding of the mechanisms underlying LMO2 induced IL-11 up-regulation in prostate stromal cells.
MiR-204-5p has believed to be a tumor suppressor and can attenuate IL-11 expression [18, 19]. After examining miRNAs expression of prostate stromal cells, we found that CAFs and PZSCs express lower miR-204-5p than TZSCs. We also confirmed miR-204-5p down-regulation after LMO2 over-expression in prostate stromal cells. MiR-204-5p mimic transfection was capable of suppressing IL-11 in LMO2 over-expressed stromal cells, which further suggests that LMO2 induced miR-204-5p down-regulation accounts for IL-11 accumulation. As a transcription factor, LMO2 may regulate miR-204-5p expression by transcription or post-transcription level. Previous researches in hematopoietic cells have identified several genes including c-kit [37], GPA [38], and some miRNAs [39, 40], etc. which could be modulated by a complex formed by LMO2, E47, SCL, LDB1, and GATA1. This complex specifically binds to adjacent E-box and GATA site in the promoter region of putative targets of LMO2 to enhance or inhibit their expression [41]. As for the interaction between LMO2 and miR-204 transcription in prostate stromal cells, gene reporter assays we performed only confirmed a promotion role of LMO2. Whether LMO2 can function directly by binding miR-204 promoter region entails more persuasive experiments such as chromatin immunoprecipitation and mutation assays. Thus, we believe stromal LMO2 over-expression may attenuate miR-204-5p expression post-transcriptionally, such as intercepting pre-miR-204 maturation or RNA-induced silencing complex (RISC) assembly.
In conclusion, the present study confirmed that LMO2 over-expression in prostate stromal cells, especially PZSCs and CAFs, is capable of suppressing miR-204-5p which entails up-regulation of IL-11. Further, increased paracrine of IL-11 by stromal cells in prostate microenvironment facilitate the proliferation and invasiveness of PCa cells via IL11Rα – STAT3 signaling (Figure 6D). These results may make stromal LMO2 responsible for zonal characteristic of PCa and as a target for PCa microenvironment-targeted therapy.
MATERIALS AND METHODS
Cells and human prostate specimens
PC-3 and WPMY-1 cells obtained from American Type Culture Collection (ATCC, Manassas, VA). BPH-1 cell was a gift from Prof. Ju Zhang (Nankai University, Tianjin, China). TZSCs, PZSCs and CAFs were primary cultured from normal prostate TZ tissues, normal prostate PZ tissues and PCa tissues respectively (Supplementary Figure S1A) according to procedures of primary stromal cell culture technique described previously [8, 42]. Cell lines authentication was performed according to UKCCCR Guidelines every six months, including mycoplasma detection, DNA-Fingerprinting, isozyme detection and cell vitality detection. All cells were maintained in RPMI-1640 medium (HyClone, Logan, UT) supplemented with 10% fetal bovine serum (FBS) (Gibco, Foster City, CA), 1% penicillin-streptomycin (HyClone), and cultured at 37oC in a 5% CO2 environment. Tissue specimens were obtained from surgery at Shanghai General Hospital between January 2011 and July 2015. The Ethical Committee of Shanghai General Hospital approved all experimental procedures, and informed consent was obtained from each patient before surgery.
Gene array analyses
Gene array used for identifying different mRNAs expression between TZSCs and PZSCs was previously described [8]. As for identifying different miRNAs expression between TZSCs and PZSCs, we performed Affymetrix GeneChip miRNA 3.0 Array (Affymetrix, Santa Clara, CA) analyses. After Benjamini–Hochberg correction, only miRNAs under 10% false discovery rate (FDR) and more than 2-fold change difference were considered as differently expressed genes.
SiRNAs and miRNA mimics transfection
SiRNAs, miRNA mimics and their negative controls were synthesized by GenePharma Co, Ltd. (GenePharma, Shanghai, China) and transfected into cells using Lipofectamine 2000 reagent (Life Technologies, Carlsbad, CA) according to the manufacturer’s instructions. SiRNAs sequences detailed in Supplementary Table S1.
Lentivirus construction and infection
The Coding sequence (CDS) of LMO2 mRNA (NM_005574.3) was synthesized and cloned into plenti6.3 (Life Technologies) lentivirus over-expression vectors. The siLMO2-2, siIL11Rα or negative control siRNAs were designed and cloned into pGLV (GenePharma) lentivirus shRNA vectors. After packaging, the plenti6.3-LMO2 and negative control lentivirus were used to infect WPMY-1 cells (multiplicity of infection, MOI=100) for construction of LMO2 over-expressed WPMY-1LMO2 and negative control WPMY-1Vec cells respectively; the pGLV-shLMO2 and pGLV-shNC were used to infect CAFs (MOI=100) for construction of LMO2 suppressed CAFshLMO2 and negative control CAFshNC cells respectively; the pGLV-shIL11Rα and pGLV-shNC were used to infect PC-3 cells (MOI=20) for construction of IL11Rα suppressed PC-3shIL11Rα and negative control PC-3shNC cells respectively.
Conditioned medium (CM) preparation of prostate stromal cells
1×107 prostate stromal cells were plated on 10-cm dishes in regular growth media and allowed to adhere overnight. Afterward, the supernatant was collected after culturing in serum free RPMI-1640 medium for 48h. The supernatant was centrifuged at 5,000g for 10min, filtered with 0.22mm filters (Millipore, Billerica, MA) and kept at −20°C until use. As for CM preparation, the supernatant should dilute 1:1 with fresh complete medium. 0.05 μg/ml IL-11 neutralizing antibody (500-P01, Peprotech, Rocky Hill, NJ, USA) was used to neutralize IL-11 activity in the CM. IgG antibody was used as control. Medium with 100ng/ml recombinant human IL-11 protein (rhIL-11, 218-IL, R&D, Minneapolis, MN) was used as positive control.
Cells proliferation and invasion assays
Cell proliferation assays were performed using Cell Counting Kit-8 (CCK-8, Dojindo, Kumamoto, Japan) and EdU (RiboBio, Guangzhou, China) reagents. CCK-8 experiments were carried out for consecutive five days by adding 30 μl of CCK-8 reagent with 300μl PBS to each well, and incubated at 37°C for 2h. Viable cells were evaluated by absorbance measurements at 450nm. EdU experiments were carried out for analyzing viability of PC-3 or BPH-1 cells after co-culture with stromal cells for 72h using Cell-Light EdU Apollo 488 In Vitro Imaging Kit (RiboBio) according to the manufacturer’s instructions. Cell invasiveness were analyzed by Matrigel (Corning) invasion experiments. 1×105 PC-3 or BPH-1 cells were plated in the upper compartment of Matrigel coated 6.5mm Transwell (8μm pore) with serum free medium. After culture for 48h, the cells in the upper compartment were removed with a cotton swab, and the trans-membrane cells were fixed in 4% paraformaldehyde and stained with crystal violet. Stained cells were counted by photographing five fields/membrane at 100× magnification. All assays were performed in triplicate.
In vitro cells co-culture
To construct in vitro cells co-culture system for proliferation and invasion assays, PC-3 or BPH-1 cells were plated in upper compartment of 6.5mm Transwell (0.4μm pore for proliferation assays, 8μm pore for invasion assays) with serum free medium, and stromal cells were plated in the lower compartment with complete medium (Supplementary Figure S1E).
In vivo cells recombination
Five to six week-old male BALB/c nude mice were purchased from Animal Center of the Chinese Academy of Sciences (Shanghai, China) and maintained in a specific pathogen-free barrier facility. To construct in vivo cells recombination xenografts, 1×106 PC-3 cells mixed with 1×106 WPMY-1Vec or WPMY-1LMO2 cells were suspended in 200μl PBS diluted Matrigel (100μl PBS+100μl Matrigel), which was subcutaneously inoculated into the flank of mice. Volumes of the xenografts were measured weekly, and the assay was terminated at seven weeks after inoculation. The animal experiments were in accordance with the US Public Health Service Policy on Humane Care and Use of Laboratory Animals, and were approved by the Scientific Investigation Board of Shanghai General Hospital.
Quantitative real-time polymerase chain reaction (qRT-PCR)
Total RNA of prostate stromal cells was extracted using TRIzol reagent (Life Technologies). Reverse transcript PCR for mRNA was carried out using PrimeScript RT Master Mix (Takara, Otsu, Shiga, Japan) according to the manufacturer’s instructions. Real-time qPCR were performed using the SYBR Premix Ex Taq (Takara). GAPDH was as an internal control for mRNAs expression. miRNA was purified using a SanPrep Column microRNA Mini-Preps Kit (Sangon Biotech, Shanghai, China) and a miRNA First Strand cDNA Synthesis Kit (Sangon Biotech) was used for Reverse transcript PCR; MicroRNAs Quantification PCR Kit (Sangon Biotech) was used for qPCR. U6 small nuclear RNA was an internal control for miRNA expression. Primer pairs detailed in Supplementary Table S1. All experiments were performed in triplicate.
Western blot
Western blot was performed as previously described [43]. Primary antibodies against human LMO2 (AF2726, R&D), IL-11 (500-P01, Peprotech), Phospho-STAT3 (pY705) (ab76315, Abcam, Cambridge, UK), STAT3 (ab68153, Abcam) and GAPDH (5174, Cell Signaling Technology, Danvers, MA) were used in this study.
Protein array analyses and enzyme linked immunosorbent assay (ELISA)
The secretion levels of proteins in the supernatant of WPMY-1Vec and WPMY-1LMO2 were measured using Label-Based Human Antibody Array 507 (AAH-BLG-1, RayBiotech, Norcross, GA) according to the manufacturer’s instructions. IL-11 protein levels in supernatant of prostate stromal cells were quantified using Human IL-11 ELISA kit (ELH-IL11, RayBiotech) according to the manufacturer’s instructions. Cells were counted after supernatant were removed, and measurement were normalized for cell numbers. Results are given in pg/ml per 1×105 cells.
Hematoxylin and eosin (HE) staining, Immunohistochemistry (IHC) and Immunofluorescence (IF)
HE staining, IHC, and IF was performed as previously described [8, 43, 44]. Primary antibodies against human LMO2 (AF2726, R&D), IL-11 (500-P01, Peprotech) and Ki-67 (ab15580, Abcam) were used in IHC or IF analyses; FITC-conjugated anti-Goat IgG Secondary Antibody (NL997, R&D) was used for fluorescence staining. As for quantification of LMO2 positive stromal cells in IHC analyses, five ocular measuring fields within one sample were randomly chosen under a microscope at 400× magnification. The proportion of LMO2 positive stromal cells for each tissue specimen was calculated as the number of LMO2 positive stromal cells divided by the total number of stromal cells.
Reporter plasmids construction and luciferase assays
To test whether LMO2 could induce pre-miR-204 expression via its promoter area, human pre-miR-204 promoter fragments (-953/+35, -1397/+35, and -1587/+35) were amplified by PCR from genomic DNA isolated from WPMY-1 cells. The amplified fragments were cloned into the pGL3-promoter vector (E1761, Promega, Madison, WI) at Mlu I and Xho I. Primers for vector construction detailed in Supplementary Table S1. WPMY-1Vec and WPMY-1LMO2 cells were co-transfected with pre-miR-204 promoter vectors together with the control pGL4.73 vector (E691A, Promega). Firefly (Fluc) or Renilla luciferase (Rluc) activity was measured by Dual-Luciferase Reporter Assay System (E1910, Promega) 48h post-transfection according to the manufacturer’s instructions. Fluc activity was standardized to the Rluc activity as an internal control. All experiments were performed in triplicate.
Statistical analysis
All statistical analyses were carried out using SPSS (version 19.0.0, SPSS Inc., Chicago, IL). Data are shown as mean ± standard deviation. Differences between groups were analyzed using two-sided Student’s t-test, one-way ANOVA. Statistical significance was set at P < 0.05.
CONFLICTS OF INTEREST
We declare no conflicts of interest.
GRANT SUPPORT
This study was supported by the National Natural Science Foundation of China (No. 81072114 to Fu-Jun Zhao, No. 81300625 to Xiao-Hai Wang, and No. 81572702 to Jun-Jie Yu), the Shanghai health systems cooperative research projects of major diseases (No.2013ZYJB0102 to Shu-Jie Xia).
REFERENCES
1. Chen W, Zheng R, Baade PD, Zhang S, Zeng H, Bray F, Jemal A, Yu XQ, He J. Cancer statistics in China, 2015. CA Cancer J Clin. 2016: doi:10.3322/caac.21338.
2. McNeal JE. The zonal anatomy of the prostate. The Prostate. 1981; 2: 35-49.
3. Pavelić J, Zeljko Za, Bosnar MH. Molecular genetic aspects of prostate transition zone lesions. Urology. 2003; 62: 607-13. doi:10.1016/s0090-429500501-6.
4. Barron DA, Rowley DR. The reactive stroma microenvironment and prostate cancer progression. Endocrine-related cancer. 2012; 19: R187-204. doi:10.1530/ERC-12-0085.
5. Wang XH, Zhao FJ, Han BM, Jiang Q, Wang YC, Wu JH, Tang YQ, Zhang YP, Xia SJ. Primary stromal cells isolated from human various histological/pathological prostate have different phenotypes and tumor promotion role. Chinese Med J-Peking. 2011; 124: 1700-7. doi:10.3760/cma.j.issn.0366-6999.2011.11.018.
6. Olumi AF, Grossfeld GD, Hayward SW, Carroll PR, Tlsty TD, Cunha GR. Carcinoma-associated fibroblasts direct tumor progression of initiated human prostatic epithelium. Cancer research. 1999; 59: 5002-11.
7. Barclay WW, Woodruff RD, Hall MC, Cramer SD. A system for studying epithelial-stromal interactions reveals distinct inductive abilities of stromal cells from benign prostatic hyperplasia and prostate cancer. Endocrinology. 2005; 146: 13-8. doi:10.1210/en.2004-1123.
8. Zhao FJ, Han BM, Yu SQ, Xia SJ. Tumor formation of prostate cancer cells influenced by stromal cells from the transitional or peripheral zones of the normal prostate. Asian J Androl. 2009; 11: 176-82. doi:10.1038/aja.2008.33.
9. Royer-Pokora B, Loos U, Ludwig WD. TTG-2, a new gene encoding a cysteine-rich protein with the LIM motif, is overexpressed in acute T-cell leukaemia with the t(11;14)(p13;q11). Oncogene. 1991; 6: 1887-93.
10. Boehm T, Foroni L, Kaneko Y, Perutz MF, Rabbitts TH. The rhombotin family of cysteine-rich LIM-domain oncogenes: distinct members are involved in T-cell translocations to human chromosomes 11p15 and 11p13. Proceedings of the National Academy of Sciences of the United States of America. 1991; 88: 4367-71.
11. Feng D, Ye X, Zhu Z, Wei Z, Cai Q, Wang Y. Comparative transcriptome analysis between metastatic and non-metastatic gastric cancer reveals potential biomarkers. Molecular medicine reports. 2015; 11: 386-92. doi:10.3892/mmr.2014.2709
.12. Sun ZJ, Cai Y, Chen G, Wang R, Jia J, Chen XM, Zheng LW, Zhao YF. LMO2 promotes angiogenesis probably by up-regulation of bFGF in endothelial cells: an implication of its pathophysiological role in infantile haemangioma. Histopathology. 2010; 57: 622-32. doi:10.1111/j.1365-2559.2010.03676.x.
13. Park CG, Sohn YW, Kim EJ, Kim SH, Kim SC, Kim H. LIM domain only 2 induces glioma invasion via cytosolic p27. Tumour biology. 2015: doi:10.1007/s13277-015-4072-0.
14. Nakata K, Ohuchida K, Nagai E, Hayashi A, Miyasaka Y, Kayashima T, Yu J, Aishima S, Oda Y, Mizumoto K, Tanaka M, Tsuneyoshi M. LMO2 Is a Novel Predictive Marker for a Better Prognosis in Pancreatic Cancer. Neoplasia. 2009; 11: 712-9. doi:10.1593/neo.09418.
15. Ma S, Guan XY, Beh PS, Wong KY, Chan YP, Yuen HF, Vielkind J, Chan KW. The significance of LMO2 expression in the progression of prostate cancer. The Journal of pathology. 2007; 211: 278-85. doi:10.1002/path.2109.
16. Zhao H, Ramos CF, Brooks JD, Peehl DM. Distinctive gene expression of prostatic stromal cells cultured from diseased versus normal tissues. Journal of cellular physiology. 2007; 210: 111-21. doi:10.1002/jcp.20828.
17. Balakrishnan L, Soman S, Patil YB, Advani J, Thomas JK, Desai DV, Kulkarni-Kale U, Harsha HC, Prasad TS, Raju R, Pandey A, Dimitriadis E, Chatterjee A. IL-11/IL11RA receptor mediated signaling: a web accessible knowledgebase. Cell communication & adhesion. 2013; 20: 81-6. doi:10.3109/15419061.2013.791683.
18. Pollari S, Leivonen SK, Perala M, Fey V, Kakonen SM, Kallioniemi O. Identification of microRNAs inhibiting TGF-beta-induced IL-11 production in bone metastatic breast cancer cells. Plos One. 2012; 7: e37361. doi:10.1371/journal.pone.0037361.
19. Li G, Luna C, Qiu J, Epstein DL, Gonzalez P. Role of miR-204 in the regulation of apoptosis, endoplasmic reticulum stress response, and inflammation in human trabecular meshwork cells. Investigative ophthalmology & visual science. 2011; 52: 2999-3007. doi:10.1167/iovs.10-6708.
20. Leach DA, Need EF, Trotta AP, Grubisha MJ, DeFranco DB, Buchanan G. Hic-5 influences genomic and non-genomic actions of the androgen receptor in prostate myofibroblasts. Mol Cell Endocrinol. 2014; 384: 185-99. doi:10.1016/j.mce.2014.01.004.
21. Delury C, Hart C, Brown M, Clarke N, Parkin E. Stroma-induced Jagged1 expression drives PC3 prostate cancer cell migration; disparate effects of RIP-generated proteolytic fragments on cell behaviour and Notch signaling. Biochemical and biophysical research communications. 2016: doi:10.1016/j.bbrc.2016.02.101.
22. Karlou M, Tzelepi V, Efstathiou E. Therapeutic targeting of the prostate cancer microenvironment. Nature reviews Urology. 2010; 7: 494-509. doi:10.1038/nrurol.2010.134.
23. Yang F, Chen Y, Shen T, Guo D, Dakhova O, Ittmann MM, Creighton CJ, Zhang Y, Dang TD, Rowley DR. Stromal TGF-beta signaling induces AR activation in prostate cancer. Oncotarget. 2014; 5: 10854-69. doi:10.18632/oncotarget.2536.
24. Elo TD, Valve EM, Seppanen JA, Vuorikoski HJ, Makela SI, Poutanen M, Kujala PM, Harkonen PL. Stromal activation associated with development of prostate cancer in prostate-targeted fibroblast growth factor 8b transgenic mice. Neoplasia. 2010; 12: 915-27. doi:10.1593/neo.10776.
25. Rodriguez-Berriguete G, Sanchez-Espiridion B, Cansino JR, Olmedilla G, Martinez-Onsurbe P, Sanchez-Chapado M, Paniagua R, Fraile B, Royuela M. Clinical significance of both tumor and stromal expression of components of the IL-1 and TNF-alpha signaling pathways in prostate cancer. Cytokine. 2013; 64: 555-63. doi:10.1016/j.cyto.2013.09.003.
26. Rocha J, Zouanat FZ, Zoubeidi A, Hamel L, Benidir T, Scarlata E, Brimo F, Aprikian A, Chevalier S. The Fer tyrosine kinase acts as a downstream interleukin-6 effector of androgen receptor activation in prostate cancer. Mol Cell Endocrinol. 2013; 381: 140-9. doi:10.1016/j.mce.2013.07.017.
27. Yoshida GJ, Saya H. EpCAM expression in the prostate cancer makes the difference in the response to growth factors. Biochemical and biophysical research communications. 2014; 443: 239-45. doi:10.1016/j.bbrc.2013.11.093.
28. Maxwell PJ, Neisen J, Messenger J, Waugh DJ. Tumor-derived CXCL8 signaling augments stroma-derived CCL2-promoted proliferation and CXCL12-mediated invasion of PTEN-deficient prostate cancer cells. Oncotarget. 2014; 5: 4895-908. doi:10.18632/oncotarget.2052.
29. Kasina S, Macoska JA. The CXCL12/CXCR4 axis promotes ligand-independent activation of the androgen receptor. Mol Cell Endocrinol. 2012; 351: 249-63. doi:10.1016/j.mce.2011.12.015.
30. Furuya Y, Nishio R, Junicho A, Nagakawa O, Fuse H. Serum interleukin-11 in patients with benign prostatic hyperplasia and prostate cancer. International urology and nephrology. 2005; 37: 69-71. doi:10.1007/s11255-004-6086-1.
31. Ren L, Wang X, Dong Z, Liu J, Zhang S. Bone metastasis from breast cancer involves elevated IL-11 expression and the gp130/STAT3 pathway. Medical oncology. 2013; 30: 634. doi:10.1007/s12032-013-0634-4.
32. Luis-Ravelo D, Anton I, Zandueta C, Valencia K, Ormazabal C, Martinez-Canarias S, Guruceaga E, Perurena N, Vicent S, De Las Rivas J, Lecanda F. A gene signature of bone metastatic colonization sensitizes for tumor-induced osteolysis and predicts survival in lung cancer. Oncogene. 2014; 33: 5090-9. doi:10.1038/onc.2013.440.
33. Calon A, Espinet E, Palomo-Ponce S, Tauriello DV, Iglesias M, Cespedes MV, Sevillano M, Nadal C, Jung P, Zhang XH, Byrom D, Riera A, Rossell D, et al. Dependency of colorectal cancer on a TGF-beta-driven program in stromal cells for metastasis initiation. Cancer cell. 2012; 22: 571-84. doi:10.1016/j.ccr.2012.08.013.
34. Marusyk A, Tabassum DP, Altrock PM, Almendro V, Michor F, Polyak K. Non-cell-autonomous driving of tumour growth supports sub-clonal heterogeneity. Nature. 2014; 514: 54-8. doi:10.1038/nature13556.
35. Putoczki TL, Thiem S, Loving A, Busuttil RA, Wilson NJ, Ziegler PK, Nguyen PM, Preaudet A, Farid R, Edwards KM, Boglev Y, Luwor RB, Jarnicki A, et al. Interleukin-11 is the dominant IL-6 family cytokine during gastrointestinal tumorigenesis and can be targeted therapeutically. Cancer cell. 2013; 24: 257-71. doi:10.1016/j.ccr.2013.06.017.
36. Onnis B, Fer N, Rapisarda A, Perez VS, Melillo G. Autocrine production of IL-11 mediates tumorigenicity in hypoxic cancer cells. The Journal of clinical investigation. 2013; 123: 1615-29. doi:10.1172/JCI59623.
37. Lecuyer E, Herblot S, Saint-Denis M, Martin R, Begley CG, Porcher C, Orkin SH, Hoang T. The SCL complex regulates c-kit expression in hematopoietic cells through functional interaction with Sp1. Blood. 2002; 100: 2430-40. doi:10.1182/blood-2002-02-0568.
38. Lahlil R, Lecuyer E, Herblot S, Hoang T. SCL Assembles a Multifactorial Complex That Determines Glycophorin A Expression. Molecular and cellular biology. 2004; 24: 1439-52. doi:10.1128/mcb.24.4.1439-1452.2004.
39. Yuan W, Sun W, Yang S, Du J, Zhai CL, Wang ZQ, Zhang J, Zhu TH. Downregulation of microRNA-142 by proto-oncogene LMO2 and its co-factors. Leukemia. 2008; 22: 1067-71. doi:10.1038/sj.leu.2405001.
40. Fujiwara T, Okitsu Y, Katsuoka Y, Fukuhara N, Onishi Y, Ishizawa K, Harigae H. Expression profiling of ETO2-regulated miRNAs in erythroid cells: Possible influence on miRNA abundance. FEBS open bio. 2013; 3: 428-32. doi:10.1016/j.fob.2013.10.004.
41. El Omari K, Hoosdally SJ, Tuladhar K, Karia D, Vyas P, Patient R, Porcher C, Mancini EJ. Structure of the leukemia oncogene LMO2: implications for the assembly of a hematopoietic transcription factor complex. Blood. 2011; 117: 2146-56. doi:10.1182/blood-2010-07-293357.
42. Jiang Q, Han BM, Zhao FJ, Hong Y, Xia SJ. The differential effects of prostate stromal cells derived from different zones on prostate cancer epithelial cells under the action of sex hormones. Asian J Androl. 2011; 13: 798-805. doi:10.1038/aja.2011.22.
43. Zhang Y, Zhao FJ, Chen LL, Wang LQ, Nephew KP, Wu YL, Zhang S. MiR-373 targeting of the Rab22a oncogene suppresses tumor invasion and metastasis in ovarian cancer. Oncotarget. 2014; 5: 12291-303. doi:10.18632/oncotarget.2577.
44. Yu J, Lu Y, Cui D, Li E, Zhu Y, Zhao Y, Zhao F, Xia S. miR-200b suppresses cell proliferation, migration and enhances chemosensitivity in prostate cancer by regulating Bmi-1. Oncol Rep. 2014; 31: 910-8. doi:10.3892/or.2013.2897.
