Frequent ATRX, CIC, FUBP1 and IDH1 mutations refine the classification of malignant gliomas

INTRODUCTION

Gliomas are the most common primary tumors of the central nervous system. They are classified as grade I to grade IV on the basis of histological criteria established by the World Health Organization (WHO) [1]. Besides grading, gliomas are further classified into subtypes of which the most common include astrocytomas and oligodendrogliomas. Grade I gliomas are usually benign and operable, and rarely progress to higher-grade gliomas. Grade II astrocytomas and oligodendrogliomas can progress to grade III anaplastic astrocytomas and anaplastic oligodendrogliomas, respectively. Grade III gliomas are generally incurable and have a median survival of 3-10 years. Glioblastomas (GBMs) are grade IV astrocytomas including mainly “primary GBMs” (95%) that arise de novo, and “secondary GBMs” that have progressed from clinically discernible grade II or III astrocytomas. Grade II-III oligoastrocytomas are a subset of gliomas that present with an appearance of mixed glial cell origin, astrocytoma and oligodendroglioma [1]. These “mixed gliomas” are particularly difficult to diagnose and their interpretation is often subjective and varies between different pathologists [1-3].

Recent research has begun to characterize the molecular landscape of gliomas to better understand their molecular pathogenesis and to aid in their classification for clinical management. High-throughput molecular studies by The Cancer Genome Atlas and other groups have focused on the more common and lethal grade IV GBMs and identified molecular subgroups of those tumors [4-8]. Major findings include frequent activating mutations in isocitrate dehydrogenase genes, IDH1 and IDH2 (“IDH mutation” refers to a mutation in either gene), in secondary GBMs (>50%) and rarely in primary GBMs (<5%) [5, 9-12]. Additionally, inactivating alterations in Alpha Thalassemia/Mental Retardation Syndrome X-linked (ATRX) were recently identified in 7% of adult GBMs and in 14-31% of pediatric GBMs [13, 14]. ATRX is critical for normal telomere homeostasis by regulating incorporation of histone variant H3.3 into telomeric chromatin [15-17], and ATRX alterations are associated with an alternative lengthening of telomeres (ALT) phenotype among GBMs [13, 14]. Recent GBM exome sequencing studies also confirmed frequent mutations in the tumor suppressor gene TP53 among secondary GBMs (65%), and less frequently in primary GBMs (28%) [5, 6, 14, 18].

The molecular properties of grade II-III gliomas are less well-characterized than grade IV GBMs. Lower-grade gliomas share molecular features with secondary GBMs and with a subset of primary GBMs, including frequent IDH mutations (>70%) [10, 12, 19], a proneural gene expression signature [6, 7, 20], and a glioma CpG island hypermethylator phenotype (G-CIMP) [8]. Grade II-III astrocytomas frequently harbor TP53 mutations, which are uncommon in oligodendrogliomas [3, 10]. ALT occurs frequently in grade II-III astrocytomas (63%) but less commonly in oligodendrogliomas (20%) [21-24]. However, whether ATRX mutations occur in adult grade II-III astrocytomas, and whether they may associate with ALT in those tumors, remains unknown.

Co-deletion of chromosomal arms 1p and 19q is a well-known prognostic marker found frequently (>60%) in grade II-III oligodendrogliomas [25-27]. Recent exomic sequencing of oligodendrogliomas revealed inactivating mutations in two tumor suppressor genes: homolog of Drosophila capicua (CIC) and far-upstream binding protein 1 (FUBP1) in 53% and 15% of oligodendrogliomas, respectively [28-30]. Since CIC is located on chromosomal arm 19q and FUBP1 is located on chromosomal arm 1p, 1p/19q loss is thought to be a mechanism to inactivate CIC and FUBP1 [28]. Among grade II-III gliomas, CIC and FUBP1 mutational status has only been investigated in oligodendrogliomas, oligoastrocytomas and preselected astrocytomas with 19q loss [30].

Given the difficulty in classifying gliomas, in particular grade II-III gliomas, we sought to characterize the landscape of genetic alterations in numerous common subtypes of brain tumors. We focused on both alterations that have been discovered recently in at least one glioma subtype by high-throughput molecular analyses (ATRX, CIC, FUBP1) and on classic alterations (IDH, TP53, 1p/19q) that could be routinely detected in a molecular genetics laboratory. This analysis uncovered frequent alterations in ATRX, CIC, and FUBP1 in new glioma subtypes and identified an association between ATRX alterations and ALT in grade II-III gliomas. The mutational pattern identified here also revealed mutually exclusive, highly recurrent, multi-gene mutational signatures that correlated well with the clinical features of the patients.

RESULTS

ATRX inactivation is linked to mutations in TP53 and IDH, and to altered telomeres

ATRX alterations were found in 93 out of 363 brain tumors, in ten tumor subtypes (Table 1). ATRX alterations occurred frequently in grade II astrocytomas (67%, n=15), grade III astrocytomas (73%, n=44), secondary GBMs (57%, n=14), and in tumors of mixed astrocytic and oligodendrocytic lineage (68%, n=40). In contrast, ATRX alterations were rare in primary GBMs (4%, n=94) and uncommon in pediatric GBMs (20%, n=25) and pure oligodendroglial tumors (14%, n=50). Surprisingly, while all of the ATRX mutations in pediatric GBMs were found near the carboxy-terminal Helicase domain as observed previously [14, 31], mutations in adult gliomas instead distributed evenly (Figure 1 and Supplementary Table 1).

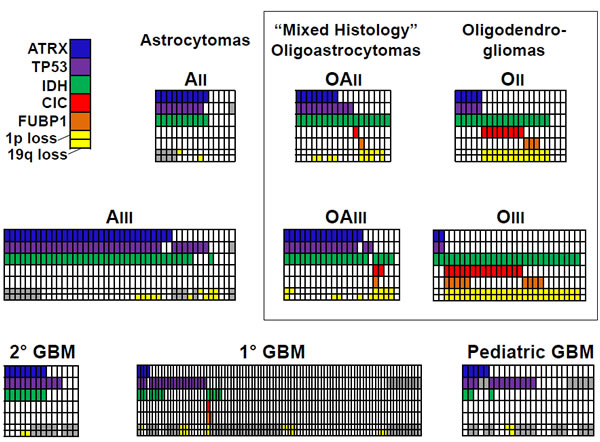

The association between ATRX alterations and other frequent molecular alterations was analyzed among the grade II-IV gliomas (Figure 2 and Supplementary Fig. 1). IDH mutations were observed in 87 of 88 adult gliomas with an ATRX alteration (99%). We termed tumors with this genetic signature “I-A gliomas”, denoting that these tumors had alterations in either IDH1 or IDH2 and in ATRX. Most I-A adult gliomas also had mutations in TP53 (94%, n=87), and the majority of adult gliomas with TP53 mutations had the I-A signature (72%, n=113). The I-A signature was tightly associated with ALT among grade II-III gliomas (n=71): 100% (49/49) of gliomas with ALT were I-A, and 98% (49/50) of gliomas with I-A were ALT positive (P<0.001, Figure 3). ATRX alterations and 1p/19q loss rarely co-occurred (only one case, P<0.001).

CIC and FUBP1 mutations are linked to IDH mutation and 1p/19q loss

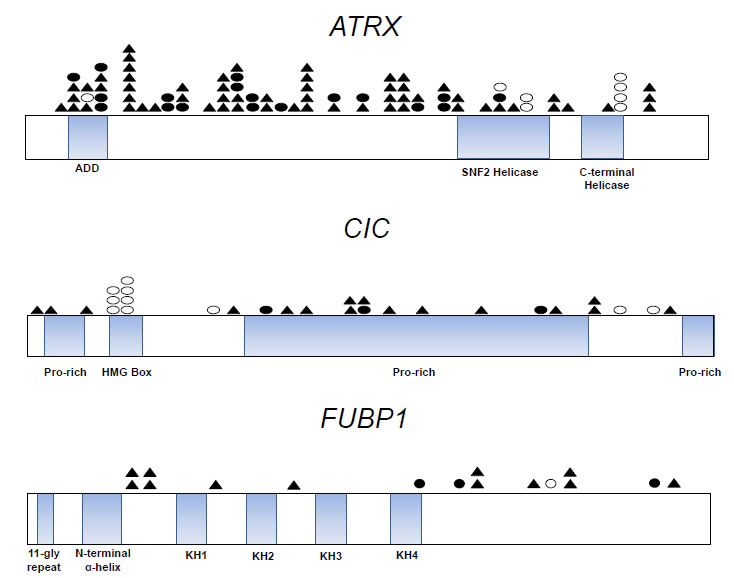

Sequencing analysis of CIC and FUBP1 genes in the same brain tumors revealed 29 and 16 somatic mutations, respectively (Figure 1 and Supplementary Table 1). The highest frequency of CIC and FUBP1 mutations occurred in grade II (38% and 14%, n=21) and grade III oligodendrogliomas (52% and 31%, n=29). In contrast, CIC and FUBP1 mutations were rare in primary GBMs (1% and 2%, n=94) and completely absent (0%, n=59) in grade II-III pure astrocytic tumors. Seven tumors had concurrent CIC and FUBP1 mutations. Every glioma with a CIC or an FUBP1 mutation exhibited an IDH gene mutation (Figure 2 and Supplementary Fig. 1). Almost every glioma with a CIC or an FUBP1 mutation exhibited loss of both chromosomes 1p and 19q (98%, n=36). Therefore, we termed tumors that had mutations in IDH1 or IDH2 combined with either 1p/19q loss, CIC mutation, or FUBP1 mutations as “I-CF gliomas.” CIC and FUBP1 mutations were mutually exclusive with ATRX or TP53 mutations (P<0.001 for all four comparisons).

For the purposes of this study, other adult gliomas that did not fall into the I-A or I-CF signatures were categorized as I-X gliomas (i.e. not I-A or I-CF). Nearly half of adult gliomas included in this study (47%, n=257) were classified as I-X gliomas. Seventy-four percent of the I-X gliomas were diagnosed as grade IV primary GBMs and 95% of primary GBMs were classified as I-X gliomas. Most, but not all I-X gliomas (87%) were IDH wild type. Mutant TP53 was found in 26% of these tumors, and most of the I-X gliomas with IDH mutations (69%) also had TP53 mutations. Seven percent of adult gliomas were ATRX mutant or showed loss of 1p and 19q and were considered I-X gliomas because they lacked IDH mutations.

Pathologic and clinical characteristics of I-A, I-CF and I-X gliomas

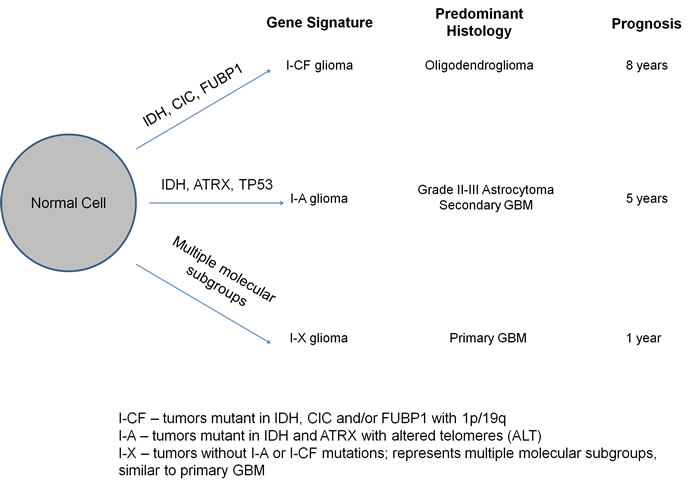

On the basis of the mutational patterns described above, gliomas could be classified as either I-A, I-CF, or I-X. We sought to determine whether these glioma genetic signatures were associated with any differences between the clinical characteristics of the patients who bore the tumors. Survival, age at diagnosis, and histopathological diagnosis data were collected for 199 grade II-IV adult glioma patients, including a cohort of glioma patients from the United States (n=156 patients) and a cohort of glioma patients from Brazil (n=43 patients). Age, median survival, and histopathological diagnosis of patients with I-A, I-CF, and I-X tumors were similar in the two cohorts (Supplementary Table 2). Distribution of genetic signatures among the combined cohort of 199 patients is shown in Table 2 and was as follows: gliomas classified as astrocytic were primarily I-A (32%) or I-X (66%) and rarely carried the I-CF (2%) genetic signature. Oligodendroglial tumors were primarily I-CF (77%) but a significant proportion harbored the I-A (16%) or I-X (7%) genetic signatures.

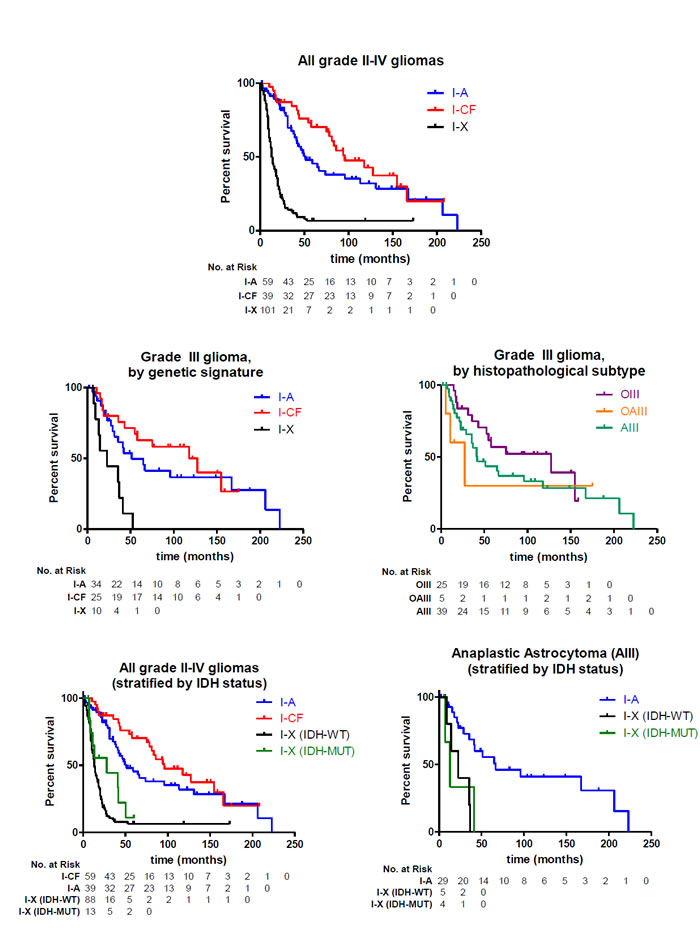

Age at diagnosis and survival parameters were first analyzed among the group of 199 grade II-IV glioma patients, and then among subgroups of patients with specific tumor types. At the time of diagnosis, patients with I-A gliomas were younger (mean age of 34) than patients with I-CF tumors (mean age of 44, P<0.001) and patients with I-X tumors (mean age of 54, P<0.001). This stratification in age was independent of tumor grade, as patients with I-A tumors were younger than patients with the other two signatures among the group of grade III patients (34, 46, and 46 years old, P<0.001) and the group of grade IV patients (29, 53, and 55 years old, P<0.001).

Among all grade II-IV glioma patients, those whose tumors bore the I-A and I-CF signatures survived longer than those with I-X tumors (median 51, 96, and 13 months, P<0.001) (Figure 4). Even when stratified by grade, patients whose tumors bore the I-A and I-CF signature survived longer than patients with the I-X signature among the subgroup of grade III gliomas (median 51, 127, and 22 months, P<0.001, Figure 4). In contrast, there was not a significant difference in survival between groups of grade III gliomas that were stratified by standard histopathological diagnostic criteria (P=0.37, log-rank test, Figure 4). I-A patients also survived longer than I-X patients among GBMs (median 31 vs. 13 months, P=0.016,) and among all astrocytomas (grade II-IV, median 51 vs. 13 months, P<0.001) (Supplementary Fig. 2). Significant differences in median survival between I-A, I-CF, and I-X signatures were not observed among the grade II glioma patients or grade II-III oligodendrogliomas, or between CIC and FUBP1 mutated patients (Supplementary Fig. 2).

IDH mutations are associated with improved survival in gliomas [10, 11, 32]. Among all gliomas with IDH mutations, patients with IDH mutations in the I-X group had a shorter median survival (28 months) than patients with I-A tumors (51 months, P=0.007) or I-CF tumors (96 months, P<0.001) (Figure 4). In the grade III astrocytoma group, patients with I-A tumors survived much longer (66 months) than patients with IDH-mutated I-X tumors (13 months, P=0.002) and IDH wild-type I-X tumors (22 months, P=0.005) (Figure 4). These results suggest that the I-A and I-CF signatures may provide more prognostic information than IDH mutational status alone.

I-A and I-CF signatures can discriminate gliomas with mixed histopathology

40 gliomas with mixed oligodendrocytic and astrocytic histopathology were examined to determine their I-A, I-CF, and I-X status (Supplementary Table 3). 33 of these cases showed incomplete loss at loci on 1p36, 1p32, and 19q in prior clinical FISH testing and exhibited light microscopic appearances that were considered to be equivocal between oligodendroglioma or astrocytoma based on nuclear morphology and cytologic appearance. Greater than half of all mixed histology gliomas were I-A (65%), although I-CF (23%) and I-X (10%) genetic signatures were also found in this subgroup. In one case, the tumor had a “mixed” genetic signature: one grade III oligoastrocytoma demonstrated both an ATRX alteration and 1p/19q loss. When grouped by genetic signature, the age of oligoastrocytoma patients showed the same pattern observed for other glioma types: mean age at diagnosis was 35 for I-A patients, 49 for I-CF patients, and 59 for I-X patients (P=0.001). Survival statistics were not tabulated because this cohort was only recently collected and median follow-up was insufficient.

DISCUSSION

The mutational analysis of 363 brain tumors reported here represents the largest effort to date to define the distribution of ATRX, CIC, and FUBP1 mutations in gliomas. This analysis revealed for the first time to our knowledge that ATRX mutations are frequent among grade II-III adult astrocytic tumors and are tightly associated with an ALT phenotype. The association between ATRX mutations with IDH mutations, and the association between CIC/FUBP1 mutations and IDH mutations as well as 1p/19q loss defined I-A and I-CF genetic signatures. These signatures are especially common among the grade II-III gliomas and remarkably homogeneous in terms of genetic alterations and clinical characteristics. I-A tumors were defined by alterations in ATRX and in IDH; they almost always had ALT and TP53 mutations, typically had an astrocytic histological component, and were often diagnosed in the fourth decade of life. I-CF tumors were defined by IDH mutations and by alterations in either CIC, FUBP1, and/or 1p/19q, rarely displayed ALT, typically had an oligodendroglial component and were often diagnosed in the fifth decade of life. This molecular classification system distinguishes the prognosis of gliomas with I-A and I-CF genetic signatures from each other and from the poorly-performing, genetically heterogeneous I-X group (Figure 5).

Our mutational analysis expands on recent reports that ATRX, CIC, and FUBP1 mutations are frequent in specific nervous system tumor types [14, 28-31, 33]. ATRX mutations were recently found to define a clinically distinct population of teenaged and young adult neuroblastoma patients, who often had a protracted course with death occurring many years after diagnosis [33]. Our results reveal striking parallels to the ATRX-mutated neuroblastoma patients, since ATRX-mutated glioma patients are also relatively young adults and demonstrate a protracted but ultimately fatal course (median overall survival 51 months). In contrast to a previous report that FUBP1 mutations always co-occurred with a CIC mutation among a cohort of 18 oligodendrogliomas and 42 oligoastrocytomas reported by Sahm and colleagues [30], we did not observe any significant associations between CIC and FUBP1 mutations among 50 oligodendrogliomas and 40 oligoastrocytomas (Figure 1). However, we did observe a case with CIC mutation that occurred in the absence of 1p/19q loss, which is a situation that was observed in one oligodendroglial tumor by Sahm and colleagues [30]. In addition to expanding on previous preliminary reports of the frequency of ATRX, CIC, and FUBP1 mutations in selected tumor types, our study for the first time identifies associations between these mutations and age at diagnosis and clinical outcome among glioma patients.

Mutational analysis of ATRX, CIC, and FUBP1 refined the prognostic information provided by the known prognostic markers IDH, TP53, and 1p/19q [1, 2, 11, 32, 34]. This refinement is shown by comparing tumors with isolated IDH mutations to patients who had these mutations in the context of a full I-A or I-CF genetic signature (Figure 4). 1p/19q status alone also may not be sufficient to determine whether a tumor contains alterations in CIC or FUBP1, since CIC mutation occurred in the absence of 1p/19q alteration in one of the cases studied. Also, the presence of an oligoastrocytoma with “mixed” I-A and I-CF signatures raises the possibility that a subset of histopathologically mixed tumors are truly heterogeneous in a manner that may not be detected by routine 1p/19q analysis alone. IDH-mutated gliomas are a subset of the gliomas with the proneural gene expression signature [6], and IDH mutations tightly overlap with the G-CIMP hypermethylator phenotype among gliomas [8, 35]. Therefore, the I-A and I-CF genetic signatures provide a molecular platform to further subclassify the broader proneural and G-CIMP molecular subgroups of gliomas.

In contrast to the I-A and I-CF genetic signatures, which represent homogeneous genetic disease entities, I-X tumors are a genetically heterogeneous group. Based on their association with poor patient survival and advanced patient age, and on their lack of IDH or ATRX mutations, I-X tumors are similar to primary GBMs [3, 10, 13] and to IDH wild-type low-grade gliomas [36, 37]. Patients with these tumors can be further classified into prognostic subgroups on the basis of other mutational, copy number, gene expression, and DNA methylation alterations such as EGFR amplification, PTEN deletion, gene expression signatures, and other previously-described markers [3-8]. Our genetic classification scheme provides a prognostic tool to identify uncommon I-A and I-CF tumors among the grade IV gliomas and to classify the vast majority of grade II-III gliomas.

Many tumors classified as one glioma subtype by histopathological criteria bore hallmark genetic and clinical features of another tumor type in the present study. 16% (7/39) of oligodendrogliomas and 3% (3/87) of primary GBMs bore the I-A genotype, suggesting that a subset of tumors diagnosed as oligodendrogliomas or primary GBMs are genetically more similar to grade II-III astrocytomas. 11% (15/132) of grade II-III gliomas and GBMs lacked I-A or I-CF gene signatures altogether and had a poor survival (I-X tumors) and are likely genetically more similar to primary GBMs than to other grade II-III gliomas. Moreover, 98% (39/40) of gliomas containing histopathological features of both oligodendrogliomas and astrocytomas could be unambiguously assigned to a genetic signature: 26 were I-A, 9 were I-CF, and 4 were I-X.

Currently, there are no significant differences in the treatment of gliomas based on astrocytic or oligodendrocytic differentiation, or based on any molecular prognostic markers. Treatment decisions are based on WHO tumor grade [2, 38] despite the fact that outcomes vary significantly between different glioma subgroups [1, 7, 25, 27]. With the development of personalized therapies for glioma patients, a refined classification that incorporates genetic signatures may become critical for their management. As sequencing technology declines in cost, genotypic analysis is expected to become increasingly accessible to patients, not only as part of clinical trials, but also as part of standard clinical care. In the interim, these data suggest that new therapeutic trials for patients with gliomas should incorporate genetic signatures, as well as histopathologic signatures, to help to classify patients for eligibility for a specific treatment and to determine their outcomes. Furthermore, the identification in this study of genetic alterations that may cooperate in driving glioma pathogenesis will inform future studies of the molecular mechanism of glioma pathogenesis and the design of targeted therapies.

METHODS

Patient Samples

Snap-frozen tumor tissue and matched blood was obtained from patients from The Preston Robert Tisch Brain Tumor Center Biorepository at Duke University Medical Center (n=291), Johns Hopkins Medical Institutes (n=27), and the University of Sao Paulo, Brazil (n=45) with informed consent from the patients under protocols approved by the Institutional Review Boards of the respective instituions. Tissue sections were centrally reviewed by board-certified neuropathologists to ensure that ≥ 95% of the section consisted of tumor cells and to confirm histopathological diagnosis. DNA was extracted from snap-frozen tissue obtained from primary brain tumors or from xenografts that were serially passaged in mice that were derived from primary brain tumors. All samples were obtained in accordance with the Health Insurance Portability and Accountability Act (HIPAA). 9 grade I pilocytic astrocytomas, 15 grade II astrocytomas, 44 grade III astrocytomas, 15 grade IV secondary GBMs, 94 grade IV primary GBMs, 25 grade IV pediatric GBMs, 21 grade II oligodendrogliomas, 29 grade III oligodendrogliomas, 18 grade II oligoastrocytomas, 22 grade III oligoastrocytomas, 65 medulloblastomas, 2 pleomorphic xanthoastrocytoma, and 5 ependymomas were sequenced. Secondary GBM designates a GBM which was resected > 1 year after a prior diagnosis of a lower grade glioma (grade I-III). Pediatric GBM samples were defined if between the ages of 0-20 and adult GBM was classified as ages 21+. One grade IV GBM was not included in mutation frequency analyses as described below. Pilocytic astrocytomas, pleomorphic xanthoastrocytomas, ependymomas, and medulloblastomas were not considered for clinical analyses of grade II-IV gliomas. Median and mean ages reported in Table 1 was based on patients with available clinical information. Patients with survival of 1 month or less, likely due to surgical complications, were excluded from the survival analysis.

Sequencing

DNA was isolated from frozen tissue and the entire coding sequences of ATRX, CIC, and FUBP1 were analyzed by Sanger sequencing [39] for 363 tumors. 1p and 19q copy number was determined by microsatellite marker analysis and mutational status of TP53, IDH1, and IDH2 was determined, as described previously [10]. All coding exons of ATRX, CIC, and FUBP1 were examined in 363 tumors for this study. Death domain associated protein (DAXX) was sequenced in all grade II-III astrocytomas and oligodendrogliomas because it is mutated in pancreatic neuroepithelial tumors and pediatric GBMs [14, 31] and because it functions in the same telomere-regulating pathway as ATRX [17]. No DAXX mutations were found in those gliomas. ATRX mutational status (but not CIC or FUBP1 mutational status) for a subset of GBMs, medulloblastomas, and 13 oligodendrogliomas were reported in a previous resequencing study [13]. No grade II-III gliomas aside from those 13 oligodendrogliomas were examined for ATRX in that analysis. CIC and FUBP1 mutational status for 7 oligodendrogliomas were reported in a previous whole-exome sequencing study [28]. CIC and FUBP1 status from other oligodendrogliomas, and for non-oligodendroglioma brain tumors reported here were not included in that analysis. Sequencing was performed by PCR amplification followed by Sanger sequencing as described previously [39].

For IDH1, IDH2, TP53, and 1p/19q status, sequencing efforts on an overlapping panel of 445 brain tumors for those alterations [10] were supplemented by analyzing these markers in all remaining tumors for which additional tumor DNA or tissue was available. IDH1 and IDH2 status were based on the presence or absence of either R132 or R172 mutations, respectively, from exon 4 sequencing of either gene. TP53 mutational status, as well as 1p and 19q chromosomal status based on microsatellite markers, were determined as described previously [10]. All mutations were validated with Sanger sequencing in tumors and matched normal controls. One sample pGBM IV-2, harbors a somatic deletion adjacent to the intron exon edge of ATRX and is likely to affect functionality; this sample was considered to have an ATRX mutation for the purposes of this study. Another sample, GBM-13, had a “hypermutator” phenotype and harbored an extreme number of mutations that were likely to be passenger mutations, as discussed in a previous exomic sequencing analysis [5]. This case was excluded from analyses of mutation frequency, mutation co-occurrence, and patient characteristics.

Telomere FISH, and Immunolabeling

Telomere length was assessed by FISH in 71 samples with available formalin-fixed, paraffin-embedded tissue, and p53 labeling was performed by immunofluorescence [13, 24, 31, 40, 41]. Loss of ATRX nuclear immunolabeling indicates that ATRX is inactivated by genetic or epigenetic changes not identifiable by sequencing of ATRX exons [13, 42], therefore tumors with ATRX mutation and/or loss of ATRX nuclear immunolabeling in tumor cells but not normal cells as assessed by immunohistochemistry [13] were considered to have an ATRX alteration. Fisher’s exact test was used to determine whether two aberrations were associated among a group of patients.

Deparaffinized slides were hydrated, steamed for 20 minutes in citrate buffer (catalog# H-3300; Vector Laboratories), dehydrated and hybridized with a Cy3-labeled peptide nucleic acid (PNA) probe complementary to the mammalian telomere repeat sequence ([N-terminus to C-terminus] CCCTAACCCTAACCCTAA). Following post-hybridization washes, the desired primary antibody was applied (anti-ATRX, as described above), followed by application of species-appropriate Alexa 488 fluorescent secondary antibody (Molecular Probes Cat.# A-11034 or A-11001) and nuclear counterstaining with DAPI . Slides were imaged with a Nikon 50i epifluorescence microscope equipped with X-Cite series 120 illuminator (EXFO Photonics Solutions Inc., Ontario, CA) and appropriate fluorescence excitation/emission filters. Grayscale images were captured using Nikon NIS-Elements software and an attached Photometrics CoolsnapEZ digital camera, pseudo-colored and merged.

The FISH and immune-labeled slides were assessed and scored independently by 2 authors (C.H. and A.K.M.). Large, ultra-bright telomere repeat DNA aggregates are unique to ALT-positive cell populations and are significantly larger and brighter than the FISH signals emanating from individual telomeres in the same cell population (for further details, see detailed discussion of these foci as markers for the ALT phenotype in Supplementary Online Material of [13]). In this study, gliomas were classified as ALT-positive if they met the following criteria: (i) the presence of ultra-bright, intra-nuclear foci of telomere FISH signals, with signal intensities and areas for individual foci being significantly larger than any telomeric signals in individual benign cells within the same case and (ii) ≥1% of neoplastic cells displaying ALT-associated telomeric DNA foci. Tumor samples lacking ALT-associated telomeric foci in which at least 5000 cells were assessed were considered ALT-negative. In all cases, areas exhibiting necrosis were excluded from consideration.

ATRX Immunohistochemistry

Heat-induced antigen retrieval was performed in a steamer using citrate buffer (catalog# H-3300, Vector Laboratories) for 30 minutes. Endogenous peroxidase was blocked (catalog# S2003, Dako) and serial sections were then incubated with primary antibody; anti-ATRX (1:400 dilution; catalog# HPA001906, Sigma-Aldrich, lot R00473) for 1 hour at room temperature. The primary antibodies were detected by 30 minute incubation with HRP-labeled secondary antibody (catalog# PV6119, Leica Microsystems) followed by detection with 3,3′Diaminobenzidine (Sigma-Aldrich), counterstaining with Harris hematoxylin, rehydration and mounting. Only nuclear labeling of either protein was evaluated. The immune-labeled glioma slides were assessed and scored by 3 authors (R.F.W., F.R., and A.K.M.); internal controls included endothelial cells (including within intratumoral vessels), and benign neurons, which demonstrated strong nuclear immunolabeling for ATRX. 29 tumors were analyzed for ATRX nuclear staining, 14 of which were also analyzed by sequence analysis. Tumors were considered to have an ATRX alteration if either a mutation was present when analyzed by sequencing, or if ATRX nuclear expression was lost when tumor tissue was analyzed by immunostaining, as done previously [13]. p53 nuclear protein immunohistochemistry was performed as described previously [41]. Of the 93 tumors that were considered to have ATRX alterations, eight tumors without a detectable ATRX mutation demonstrated loss of ATRX nuclear staining in tumor cells but not normal cells.

Survival Analysis

Survival was analyzed for adult patients (>20 years old at diagnosis) with grade II-IV gliomas with available survival and age information. 156 patients from Duke (Cohort A) and 43 patients from Brazil (Cohort B) met these criteria. A Mantel-Cox log-rank test was used to determine whether survival was significantly different between two or more groups of patients. A two-tailed Student’s t-test and single factor ANOVAs were used to determine whether mean age was significantly different between two or three groups of patients, respectively.

ACKNOWLEDGEMENTS

We thank Lisa J. Ehinger and Diane L. Satterfield for collecting clinical samples. Additionally we thank the following for their assistance: David Lister for 1p/19q analysis, and Lee Chen and Vivian Yuan for statistical analysis. B. Vogelstein, N. Papadopoulos, L.A. Diaz, and K.W. Kinzler are members of the Scientific Advisory Board of Inostics, a company that is developing technologies for the molecular diagnosis of cancer. B. Vogelstein, N. Papadopoulos, L.A. Diaz, and K.W. Kinzler also own stock in Inostics. B. Vogelstein, N. Papadopoulos, K.W. Kinzler, and L.A. Diaz, Jr. are members of the Scientific Advisory Board of PDGx and own stock in the company. The authors are entitled to a share of the royalties received by the University on sales of products related to genes described in this article. The terms of these arrangements are being managed by the University in accordance with their conflict of interest policies. B. Vogelstein and K.W. Kinzler, and Johns Hopkins University, also own stock in Exact Sciences, which is managed under similar arrangements. H. Yan receives research funding and a consulting fee from Sanofi-Aventis. This project was supported by American Cancer Society Research Scholar Award RSG-10-126-01-CCE, NCI Grants 5R01-CA140316, The Pediatric Brain Tumor Foundation Institute Grant, The Southeastern Brain Tumor Foundation Grant, Voices Against Brain Cancer Foundation Grant, The James S. McDonnell Foundation Grant, The V Foundation and Accelerate Brain Cancer Cure Foundation Grant. This work was also supported by the following NIH grants: NINDS Grant 5P50 NS20023, NCI SPORE Grant 5P50 CA108785, CA057345, CA129825 and NCI Merit Award R37 011898.

Editorial note

This paper was accepted based in part on extensive peer-review in another journal as well as extensive editorial peer-review in Oncotarget.
