PI3K inhibition synergizes with glucocorticoids but antagonizes with methotrexate in T-cell acute lymphoblastic leukemia

Abstract

The PI3K pathway is frequently hyperactivated in primary T-cell acute lymphoblastic leukemia (T-ALL) cells. Activation of the PI3K pathway has been suggested as one mechanism of glucocorticoid resistance in T-ALL, and patients harboring mutations in the PI3K negative regulator PTEN may be at increased risk of induction failure and relapse. By gene expression microarray analysis of T-ALL cells treated with the PI3K inhibitor AS605240, we identified Myc as a prominent downstream target of the PI3K pathway. A significant association was found between the AS605240 gene expression signature and that of glucocorticoid resistance and relapse in T-ALL. AS605240 showed anti-leukemic activity and strong synergism with glucocorticoids both in vitro and in a NOD/SCID xenograft model of T-ALL. In contrast, PI3K inhibition showed antagonism with methotrexate and daunorubicin, drugs that preferentially target dividing cells. This antagonistic interaction, however, could be circumvented by the use of correct drug scheduling schemes. Our data indicate the potential benefits and difficulties for the incorporation of PI3K inhibitors in T-ALL therapy.

INTRODUCTION

T-cell acute lymphoblastic leukemia (T-ALL) is an aggressive hematologic cancer [1]. The prognosis of children with T-ALL has improved with modern treatment protocols, based on the use of aggressive multi-agent therapies [2]. However, T-ALL patients displaying chemotherapy resistance show very poor survival. Accumulating evidence indicates that the PI3K pathway is linked to resistance to therapy in several types of cancer [3].

Class I PI3Ks are a family of lipid kinases predominantly activated by protein tyrosine kinases in response to cell surface receptors. PI3K phosphorylates phosphatidylinositol 4, 5-bisphosphate (PIP₂) generating phosphatidylinositol 3, 4, 5-trisphosphate (PIP₃). PIP₃ serves as an anchor for pleckstrin homology (PH) domain-containing proteins, which initiate the assembly of signaling complexes that results in the activation of a plethora of downstream effector molecules, including protein kinase B (Akt) [4] and the mammalian target of rapamycin complex 1 (mTORC1) [5]. The PI3K pathway is central to the control of cell survival, energy metabolism, cellular motility and cell cycle progression [6–7].

Constitutive activation of the PI3K pathway in hematological malignancies has been shown to support tumor cell proliferation, viability and drug resistance in vitro [8–10]. Moreover, PI3K signaling pathway is frequently hyperactivated in primary T-ALL cells, for instance due to microenvironmental stimulation, interleukin-7 receptor (IL7R) oncogenic mutations or phosphatase and tensin homolog (PTEN) inactivation [11–15]. Activation of the PI3K effector mTOR in T-ALL has been suggested to represent one mechanism of resistance to glucocorticoids, a common feature of relapse [16–17]. Moreover, synergistic effects of inhibitors of the PI3K-downstream mTOR pathway in T-ALL cell lines have been described [18–19]. We and others have shown that T-ALL patients harboring PTEN mutations may be at increased risk of induction failure and relapse [13, 20]. Importantly, PTEN aberrations were associated with poor outcome and relapse in T-ALL [20–22], suggesting that the level of PI3K activation may influence resistance to treatment.

In this study, T-ALL cells were treated with a PI3K inhibitor to identify a transcriptional PI3K activity signature. PI3K inhibition downregulated genes associated with cellular growth and targets of Myc. Moreover, the comparison of the PI3K signature with gene expression data of primary T-ALL samples indicates that higher PI3K activity is associated with glucocorticoid resistance and worse clinical outcome. We opted to use the PI3K inhibitor AS605240 in light of its favorable pharmacological and biochemical characteristics [23–24]. This allowed us to test the long term inhibition effects of PI3K in a NOD/SCID xenograft model of T-ALL. Functional assays demonstrated that PI3K inhibition sensitizes T-ALL cells to glucocorticoids, but antagonizes methotrexate (MTX) and daunorubicin (DNR), unless correct drug scheduling is used.

RESULTS

PI3K activity is associated with increased chemotherapy resistance and poor prognosis in T-ALL

Most cell lines are maintained in culture for years and accumulate several genetic lesions not characteristic of primary disease [25]. On the other hand, ALL primary cells do not divide in vitro [26], which may affect their response to small molecules [27]. Hence, we decided to obtain transcriptional signatures of PI3K activity from both cell lines and primary cells, which would provide complementary aspects of gene expression modulation by PI3K. To do so, seven T-ALL cell lines [GSE50998] and 15 diagnostic T-ALL patient samples [GSE51000] were treated with the PI3K inhibitor AS605240 or vehicle for 6 h, and subjected to global gene expression analysis using whole-transcript Affymetrix expression arrays. Principal Component Analysis (PCA) showed that most samples responded similarly to PI3K inhibition, irrespectively of PTEN and NOTCH1 mutational status (Supplementary Figure 1). Using paired Limma analysis, we obtained 211 genes downregulated and 78 genes upregulated in T-ALL primary cells (adjusted p-value < 0.05, FC > 1.5; Supplementary Table 1) and 174 genes downregulated and 395 genes upregulated in T-ALL cell lines (adjusted p-value < 0.05, FC > 1.5; Supplementary Table 2) in response to AS605240 treatment. As expected, Connectivity Map analysis showed that the signature resulting from PI3K inhibition in T-ALL cell lines correlated with signatures of classical PI3K inhibitors (wortmannin and LY-294002), and rapamycin (sirolimus; Supplementary Figure 2). Rapamycin is an inhibitor of mTORC1, a complex downstream of PI3K signaling [5]. Although other interpretations may be possible, genes downregulated by AS605240 were here considered to be under positive transcriptional control of PI3K, whereas those upregulated by AS605240 were considered under negative control of PI3K.

GSEA analysis showed that AS605240 treatment downregulated several gene sets related to cellular growth in both T-ALL cell lines and primary cells, including energy metabolism (glucose transport and metabolism, oxidative phosphorylation, pyruvate metabolism, and TCA cycle), transcription (nucleotide metabolism, RNA polymerase III transcription, tRNA and miRNA biosynthesis) and biosynthesis of a plethora of compounds and cellular structures (biosynthesis of purines, pyrimidines, amino acids, glucose, fatty acids and steroids, and biogenesis of lysosome vesicles and mitochondria). Among the top tier of gene sets transcriptionally downregulated by AS605240 in both cell lines and primary cells, four different gene sets represented targets of Myc (Figure 1a–1d; Supplementary Figure 3a–b) [28–30]. A fifth gene set representing a Myc oncogenic signature [31] was downregulated by AS605240 in cell lines (Supplementary Figure 3b).

The transcription factor Myc is a master regulator of cell growth and multiple biosynthetic and metabolic pathways [32], and its expression correlates with leukemia initiating activity in T-ALL [33]. Myc inhibition by AS605240 appeared to be Notch1-independent, since Notch1 direct targets [34] were not transcriptionally modulated (Figure 1e–1f). On the other hand, a broader gene set of Notch1-responsive genes, which includes several Myc targets [35], was significantly downregulated in cell lines treated with AS605240 (Supplementary Figure 3c). Although MYC mRNA levels were not significantly altered after 6 h of AS605240 treatment (data not shown), western blotting analysis evidenced decreased Myc protein levels in Jurkat and Molt-4 cells after PI3K inhibition (Figure 1g). Quantitative PCR confirmed downregulation of Myc targets ALOX5AP, BCAT1, PRDX4 and LDHA in primary cells treated with AS605240 (Supplementary Figure 3d). BCAT1 was found to induce cell proliferation, migration and invasion in nasopharyngeal carcinoma [36]. LDHA and PRDX4 were described as overexpressed in high-risk neuroblastomas independently of other markers [37–38].

Ingenuity Pathway Analysis showed that the top biological functions downregulated by AS605240 in both cell lines and primary cells were related to cholesterol biosynthesis (Supplementary Figure 4). Glucocorticoid resistance in T-ALL has been associated to the upregulation of genes linked to cellular respiration, biosynthetic and metabolic pathways, proliferation and Myc. Notably, genes responsible for cholesterol biosynthesis were found highly upregulated in prednisolone resistant T-ALL [39], and ALL cells were shown to be particularly dependent on endogenously synthesized cholesterol, which is essential for the synthesis of cellular membranes of highly proliferative cells [40]. Because PI3K inhibition targeted genes involved in Myc signaling, cellular growth, and cholesterol biosynthesis, we hypothesized that the AS605240-derived signature would be correlated with gene expression patterns of glucocorticoid resistance in T-ALL. Indeed, GSEA analysis showed that genes associated with prednisolone resistance [39] were downregulated due to PI3K inhibition (Figure 1h), whereas those associated with prednisolone sensitivity [39] were upregulated (Figure 1i).

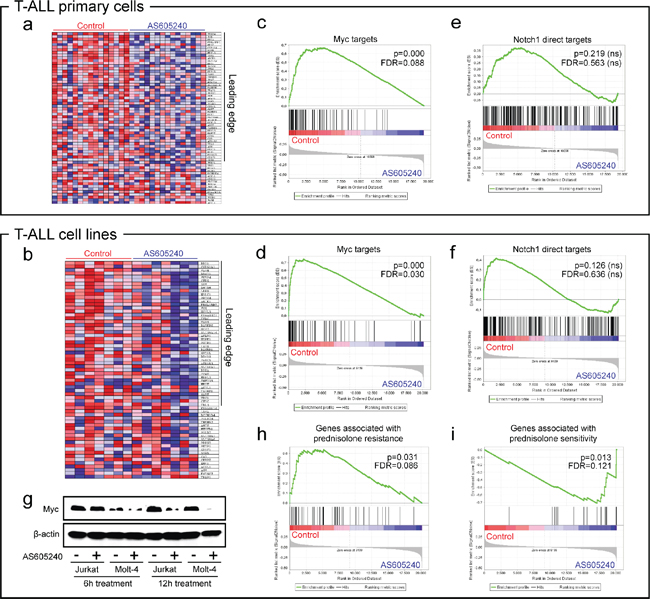

Figure 1: PI3K inhibition downregulates Myc in a Notch1-independent manner and is associated to glucocorticoid sensitivity. GSEA heatmaps (a–b) and enrichment plots (c–d). Targets of Myc [28–30] are downregulated in T-ALL cell lines (CCRF-CEM, HPB-ALL, Jurkat, Molt-4, P12-ICHIKAWA, ALL-SIL and TALL-1, from left to right in heatmaps) and primary cells upon treatment with the PI3K inhibitor AS605240 for 6 h. We show representative plots corresponding to the gene set described in Schuhmacher et al., 2001 (SCHUHMACHER_MYC_TARGETS_UP) [30]. Additional plots are provided in Supplementary Figure 3. In heatmaps, red and blue tones indicate higher or lower expression, respectively. Leading edge genes are indicated. (e–f) GSEA enrichment plots. Direct targets of Notch1 [34] were not significantly modulated by AS605240. (g) AS605240 inhibits accumulation of Myc protein. Western blotting of Myc and β-actin of Jurkat and Molt-4 cells treated with the IC₅₀ values of AS605240 or vehicle for 6 h and 12 h. (h–i) Genes discriminative for prednisolone resistance [39] were downregulated in AS605240-treated cell lines and genes discriminative for prednisolone sensitivity [39] were upregulated in AS605240-treated ones.

The PI3K activity signatures were then compared against expression microarray data of 43 primary T-ALL samples obtained at diagnosis from patients treated under the GBTLI ALL-99 [41] and GBTLI-2009 protocols at Centro Infantil Boldrini [GSE50999] (for clinical and biological data, refer to Supplementary Table 3). GSEA analysis showed that patients that underwent relapse had higher expression of genes under positive control of PI3K (downregulated by AS605240) and lower expression values of genes under negative control of the pathway (upregulated by AS605240; Figure 2). Altogether, our gene expression data suggest that higher PI3K activity may be associated with increased glucocorticoids resistance and poor prognosis, which is in accordance with previous data showing that PTEN mutated patients may be at increased risk of early treatment failure and relapse [13, 20].

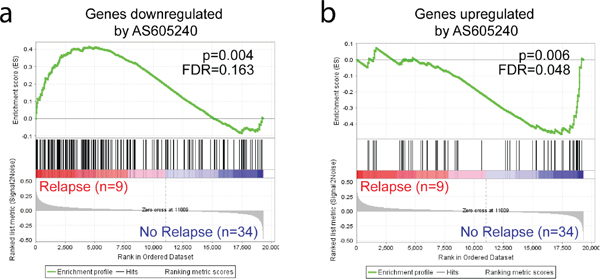

Figure 2: Genes responsive to PI3K inhibition show differential expression in T-ALL samples of patients who underwent relapse. Diagnostic T-ALL samples of patients who underwent relapse showed (a) higher expression of genes downregulated by AS605240 and, conversely, (b) lower expression of genes upregulated by AS605240 in primary cells in vitro.

The PI3K inhibitor AS605240 shows anti-leukemic activity and prevents leukemic progression in T-ALL engrafted NOD/SCID mice

Next, we sought to characterize the effects of AS605240 against T-ALL cells, with the goal of pre-clinically assessing the potential benefits of PI3K inhibition in T-ALL. AS605240 inhibited p-Akt (Figure 3a–3b) and PIP₃ (Figure 3c) accumulation and promoted apoptosis in both T-ALL cell lines and primary cells, with activation of Caspase-3 (Figure 3d, Supplementary Figure 5). The IC₅₀ concentrations of AS605240 in a 96 h assay ranged from 12 to 22 μM depending on the cell line tested (Figure 3b, Supplementary Figure 6). These values are within the same range necessary to inhibit approximately 75% of PIP₃ accumulation in Jurkat cells (Figure 3b). The lower survival plateau reached zero in all cell lines and no correlation was found between IC₅₀ concentrations and PTEN mutational status (data not shown). Notably, T-ALL primary cells were significantly more sensitive to AS605240 than normal human thymocytes (Figure 3e).

To test the in vivo efficacy of AS605240 treatment, NOD/SCID mice were transplanted with primary T-ALL cells derived from one patient sample and randomized eleven days later to receive AS605240 (20mg/kg) or vehicle, intraperitoneally twice a day, 5 days a week. Mice treated with the PI3K inhibitor showed decreased leukemic progression in comparison to control mice, as evaluated by the percentage of human CD45+ cells in peripheral blood at different time points (Figure 3f).

AS605240 synergizes with glucocorticoids both in vitro and in a mouse xenograft model of T-ALL

To further evaluate the clinical potential of PI3K inhibition for T-ALL treatment, we measured the cytotoxic effect of AS605240 in combination with commonly used chemotherapeutic drugs (Table 1). We observed a synergistic interaction between AS605240 and a glucocorticoid (prednisolone) in 5 out of 6 cell lines tested (Figure 4a). Notably, cell lines intrinsically more resistant to prednisolone (CCRF-CEM, HPB-ALL and Molt-4) showed weaker synergism between AS605240 and prednisolone, characterized by higher Combination Index (CI) values (Figure 4a–4b). According to the COSMIC database, cell lines CCRF-CEM, Jurkat and Molt-4 show glucocorticoid receptor (NR3C1) missense mutations. P12-ICHIKAWA and TALL-1 don’t show alterations in NR3C1. The mutations identified in CCRF-CEM and Jurkat have been associated with functionally defective glucocorticoid receptors [42–43]. In agreement with that, these cell lines were more resistant to prednisolone than the remaining cell lines analyzed. Jurkat cells showed the highest calculated IC₅₀ value of prednisolone. For this cell line, we were unable to measure the CI between prednisolone and AS605240.

Accordingly, NOD/SCID mice engrafted with primary T-ALL cells derived from two patient samples showed enhanced survival when treated with a combination of AS605240 (30 mg/kg once a day) and another glucocorticoid (dexamethasone), in comparison to treatment with either drug alone (Figure 4c). Noteworthy, no difference was observed in weight loss of T-ALL transplanted NOD/SCID mice treated with AS605240 versus dexamethasone (Supplementary Figure 7). In conclusion, our data strongly suggest that PI3K inhibition potentiates the activity of glucocorticoids against T-ALL cells both in vitro and in vivo.

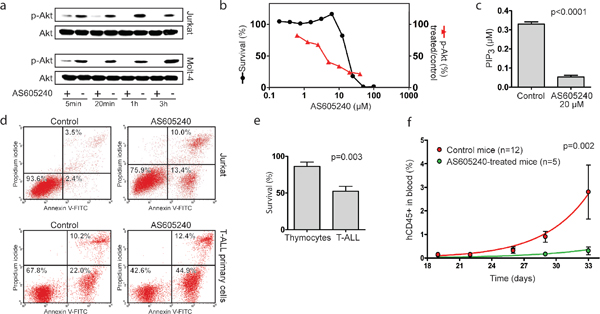

Figure 3: AS605240 inhibited p-Akt and PIP3 accumulation in T-ALL and showed anti-leukemic activity both in vitro and in vivo. (a) Western blotting analysis for Akt and p-Akt (Ser473) in Jurkat and Molt-4 cells treated with AS605240 IC₅₀ values or vehicle. (b) Effect in cell survival and p-Akt accumulation of increasing concentrations of AS605240 in Jurkat cells. Survival was assessed by the MTT assay after 96 h of incubation. Quantification of p-Akt was performed with the AKT [pS473] ELISA Kit (Invitrogen) after 24 h of incubation. (c) AS605240 inhibits PIP₃ accumulation, as assessed by PIP₃ mass ELISA quantification in Jurkat cells incubated for 24 h with AS605240 or vehicle. P-value obtained with a paired T-test. (d) AS605240 induces apoptosis, as assessed by Annexin V/PI double staining and flow cytometry analysis in Jurkat and primary T-ALL cells treated with AS605240 or vehicle for 8 h and 6 h, respectively. Additional plots in Supplementary Figure 5. (e) Primary T-ALL cells (n = 7) are more sensitive to AS605240 than normal human thymocytes (n = 7). Cells were incubated with 10 μM of AS605240 for 48 h and survival was assessed by the MTT assay. P-value obtained with an unpaired T-test. (f) AS605240 prevents leukemic progression in NOD/SCID mice engrafted with primary T-ALL cells. Eleven days after the injection of 10⁷ T-ALL cells, mice started to be treated with 20 mg/Kg of AS605240, intraperitoneally twice a day, 5 days a week. Peripheral blood proportion of human CD45+ cells was measured by flow cytometry analysis after red blood cells lysis. Exponential growth curves were compared with the F test of the best-fit K values. Error bars indicate the standard error of the mean (SEM).

PI3K inhibition requires scheduling when combined with drugs that target dividing cells

AS605240 showed an antagonistic interaction in vitro with both MTX (Table 1; Figure 5a) and DNR (Table 1) in all cell lines tested. MTX is an antimetabolite that allosterically inhibits dihydrofolate reductase (DHFR), which participates in the synthesis of tetrahydrofolate, an essential molecule for the biosynthesis of purines, thymidylate and several amino acids [44]. MTX acts specifically during DNA and RNA synthesis, and thus it is cytotoxic during the S-phase of the cell cycle. AS605240 treatment completely abrogated MTX-induced S-phase arrest in vitro (Figure 5b). Part of this antagonistic interaction may result from AS605240-induced G₀/G₁ cell cycle arrest, which decreases the number of S-phase MTX-susceptible cells (Table 2, Figure 5b). BrdU incorporation assays also showed decreased rate of nucleotide incorporation during S-phase in Jurkat, Molt-4 and P12-ICHIKAWA cells after 24 h treatment with AS605240 (Table 2, Figure 5c). The lower rate of DNA duplication in AS605240-treated cells may induce increased tolerance to lower nucleotide availability under MTX treatment [45]. Altogether, these results indicate that both AS605240-induced cell cycle arrest at G₀/G₁ and the lower rate of DNA replication may contribute to the antagonistic interaction between AS605240 and MTX.

Based on these evidences, we explored alternative administration schedules to find possible therapeutic windows for AS605240 use in the context of modern ALL treatment protocols, which include MTX and other anticancer drugs that target dividing cells. When AS605240 was added 48 h after MTX and DNR, we observed lower Combination Index values for all cell lines tested. For MTX, a synergistic interaction was present in P12-ICHIKAWA cells and additive interactions were present in 3 out of 7 cell lines tested. For DNR, combination indexes characterizing slight synergism were present in 2 out of 3 cell lines (Table 1, Figure 5d). Noteworthy, when using this schedule, the most synergistic interactions were observed for the cell lines (HPB-ALL, CI = 1.0; P12-ICHIKAWA, CI = 0.76; ALL-SIL, CI = 0.96) found to be resistant to MTX in a 48 h assay (Figure 5e). Overall, our data indicate that scheduling is of major importance when considering the introduction of PI3K inhibitors in T-ALL treatment schemes with chemotherapeutic drugs that require cell division.

Table 1: Combination Index (CI) between AS605240 and methotrexate (MTX), prednisolone (Pred), asparaginase (Asp) or daunorubicin (DNR) in T-ALL cell lines. MTT assay of cell lines treated for 96h with several ratios of the IC₅₀ values of each drug. Combination index (CI) was calculated with the Calcusyn software. Synergistic effect is characterized by CI<0.9, additive effect by 0.91.1. The columns named Pred, Asp, MTX and DNR represent results obtained with the simultaneous use of AS605240 and the respective drug. Columns MTX sched and DNR sched represent the scheduling scheme where AS605240 was added to culture media 48h after the respective drug.

	Combination index (CI)
Cell line	Pred	Asp	MTX	MTX sched	DNR	DNR sched
CCRF-CEM	0.88	0.84	2.91	1.11	1.76	1.67
HPB-ALL	0.86	1.48	1.23	1.00	1.07	-
Jurkat	-	1.07	-	1.62	2.10	-
Molt-4	0.96	1.07	2.55	1.21	1.48	-
P12-ICHIKAWA	0.08	0.93	1.78	0.75	1.27	0.89
ALL-SIL	0.33	1.35	1.39	0.96	1.12	-
TALL-1	0.55	0.94	1.57	1.10	1.63	0.89

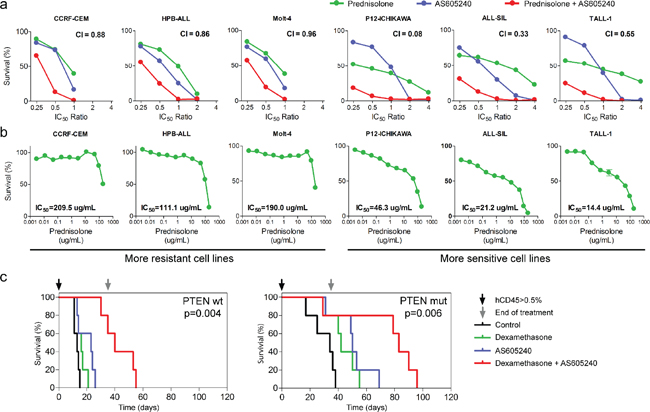

Figure 4: AS605240 shows a synergistic interaction with prednisolone. (a) MTT assay of T-ALL cell lines treated for 96 h with several ratios of the IC₅₀ values of AS605240, prednisolone or both. Combination Index (CI) values are indicated. Synergistic effect is characterized by CI < 0.9 and additive effect by 0.9 > CI > 1.1. (b) MTT assay of T-ALL cell lines treated for 96 h with increasing concentrations of prednisolone. (c) NOD/SCID mice engrafted with primary T-ALL cells were treated with 30 mg/Kg of AS605240 and/or 5 mg/Kg of dexamethasone, intraperitoneally once a day, 5 days a week. Treatment started when human CD45+ accounted for more than 0.5% of peripheral blood cells after red blood cells lysis.

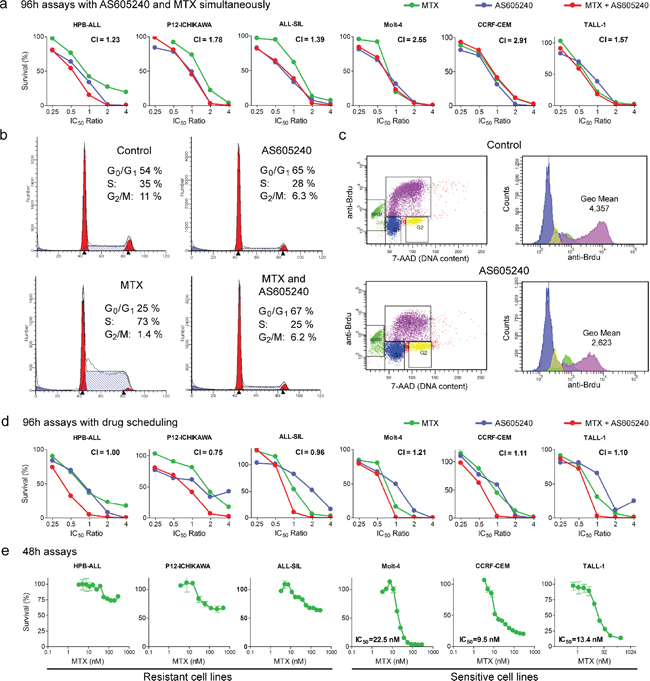

Figure 5: AS605240 showed an antagonistic interaction with MTX, which could be successfully circumvented by means of proper drug scheduling. (a) AS605240 shows an antagonistic interaction with MTX when drugs are administered concomitantly. MTT assay of T-ALL cell lines treated for 96 h with several ratios of the IC₅₀ values of AS605240, MTX or both. Combination index (CI) values are indicated. Synergistic interaction, CI < 0.9; additive interaction, 0.9 < CI < 1.1; antagonistic interaction, CI > 1.1. (b) AS605240 reduces the percentage of cells in S and completely abrogates MTX-induced S-phase arrest. Molt-4 cells were incubated with the IC₅₀ values of AS605240 and/or MTX for 24 h, propidium iodide stained and analyzed by flow cytometry. (c) AS605240 reduces BrdU nucleotide incorporation, as shown by reduced anti-BrdU fluorescence intensity of S-phase cells (pink) in Jurkat, P12-ICHIKAWA and Molt-4 cells. Cell lines were treated with AS605240 IC₅₀ value for 24 h. Representative plots of P12-ICHIKAWA cells are shown. (d) AS605240 shows an additive/synergistic interaction with MTX when the PI3K inhibitor is added 48 h after those drugs (4 out of 7 cell lines tested) in a 96 h MTT assay. (e) MTT assay of T-ALL cell lines treated for 48 h with increasing concentration of MTX. IC₅₀ values were calculated with the GraphPad Prism 5 software.

Table 2: AS605240 induces G₀/G₁ cell cycle arrest and reduces BrdU nucleotide incorporation in T-ALL cell lines. Each cell line was treated with the IC₅₀ value of AS605240 for 24 h and incubated with BrdU for 30 min. Percentage of cells in each phase of the cell cycle and BrdU incorporation were measured with the BD BrdU Flow Citometry Assay Kit and flow cytometry analysis

Cell line	Treatment	G0/G1 (%)	S (%)	G2/M (%)	BrdU in S (Geo Mean)
Jurkat	Control	48.1	37.8	7.4	2.736
	AS605240	55.6	3.3	20.7	1.732
Molt-4	Control	47.0	45.1	4.1	4.751
	AS605240	63.8	27.1	4.2	3.587
P12-ICHIKAWA	Control	45.8	37.5	6.6	4.357
	AS605240	48.3	26.2	9.6	2.623

DISCUSSION

Aberrant activation of PI3K signaling pathways has been implicated in many types of cancer [46]. PTEN mutations and elevated Akt activity were found to be associated with poor prognosis in solid tumors [47–48] and T-ALL [13, 20]. In this study, we show data indicative of higher PI3K pathway activity in patients who underwent relapse.

Given that PI3Kγ is predominantly expressed in the hematopoietic system [49], the use of a PI3Kγ specific inhibitor could offer an innovative rationale-based therapeutic strategy for T-ALL. AS605240 was previously described as an isoform-selective ATP-competitive inhibitor of PI3Kγ with 30-fold selectivity over PI3K δ and β, and 7.5-fold selectivity over PI3Kα [23]. However, we found that AS605240 did not have cytotoxic effects against T-ALL cells at concentrations expected to inhibit solely PI3Kγ (0.1–0.2 μM) [23], being cytotoxic only at concentrations high enough to inhibit more than 70% of p-Akt accumulation (Figure 3b), presumably disrupting the activity of several PI3K isoforms. All PI3K p110 subunits are highly expressed in primary T-ALL cells (Supplementary Figure 8) [50] and evidence points to roles of PI3Kα, γ and δ in T-ALL leukemogenesis [13, 50], suggesting that multiple isoforms of PI3K might play a role in T-ALL.

Although the concentrations of AS605240 needed to inhibit the PI3K pathway and induce cell death in vitro were in the micromolar range, the drug was more selective to leukemic cells than to normal thymocytes. More importantly, the PI3K inhibitor prevented primary T-ALL progression in vivo and may be given to mice for months without inducing generalized toxicity [23–24]. Although this indicates the feasibility of AS605240 use to treat T-ALL patients, we observed that mice had mobility difficulties and remained immobile for several minutes after AS605240 administration (Supplementary Video). This raises the possibility of undesirable neurological side effects not previously reported.

This is the first time that gene products downstream of PI3K have been identified in T-ALL. Interestingly, we observed a prominent effect of PI3K inhibition on the expression of Myc target genes. The PI3K/Akt/mTORC1 pathway is known to positively regulate Myc protein abundance. Previous work in T-ALL demonstrated that Akt phosphorylates and deactivates Gsk3-beta, preventing phosphorylation of Myc and its degradation through the ubiquitin/proteasome pathway [51]. mTORC1 phosphorylates S6K1 which in turn enhances translation of Myc mRNA by modulating the phosphorylation of eukaryotic initiation factor eIF4B [52]. At the transcriptional level, in T-ALL, Myc is under control of Notch1 [53]. Our microarray data showed no regulation of Notch1 direct targets in response to AS605240, suggesting that the effect of this drug on Myc targets most likely occurred by posttranscriptional inhibition of Myc. Accordingly, Myc protein levels were downregulated in response to AS605240.

Glucocorticoids play a role of great importance in contemporary ALL treatment protocols. Early response to glucocorticoids is an informative prognostic factor in childhood ALL [54] and glucocorticoid resistance is a well-documented feature of relapse [17, 55]. Glucocorticoid resistance was previously associated with a proliferative phenotype involving upregulation of glycolysis, cholesterol biosynthesis, and activation of PI3K/Akt/mTOR and Myc signaling pathways [39, 56]. Indeed, fast growing T-ALL cell lines are more resistant to both prednisolone and dexamethasone [39]. Previous studies observed a synergistic interaction between rapamycin and dexamethasone in T-ALL [16, 57]. Moreover, the PI3K inhibitor LY294002 sensitized MLL-rearranged ALL cells to prednisolone in vitro [58]. In the present study, we showed that PI3K inhibition promotes downregulation of metabolic and biosynthesis pathways towards a gene expression profile more typical of glucocorticoid sensitive ALL cases. The PI3K inhibitor AS605240 synergized with glucocorticoids in vitro and the combined use of AS605240 and dexamethasone enhanced survival of mice engrafted with T-ALL. We observed no difference between PTEN mutated and wild-type transplanted leukemias with respect to AS605240 effect, which raises the question if T-ALL patients may benefit from PI3K inhibition irrespectively of PTEN mutational status. Notably, we observed that T-ALL cell lines intrinsically more resistant to prednisolone (CCRF-CEM, HPB-ALL and Molt-4) showed weaker synergism between AS605240 and prednisolone (Figure 4a–4b). This suggests that the PI3K pathway is not the only pathway underlying glucocorticoid resistance, corroborating previous findings [59]. Recent clinical and preclinical studies have shown that RAS mutations limit the effectiveness of PI3K inhibitors [60–61].

AS605240 showed an antagonistic interaction with MTX and DNR when both drugs were administered simultaneously to cell cultures. MTX kills growing tumor cells by limiting their supply of dTTP and purine nucleotides, which leads to DNA repair defects, DNA strand breaks and apoptosis. MTX-induced DNA strand break accumulation is minimal in growth-arrested tumor cells [45]. The anthracycline DNR increases the levels of topoisomerase II:DNA covalently bound complexes, generating DNA double strand breaks and inducing apoptosis. Anthracyclines appear to be particularly toxic during S-phase, when replication forks and transcription complexes are both present [62]. Our results showed that PI3K inhibition in leukemia cell lines not only induces cell cycle arrest at G₀/G₁, but also decreases DNA synthesis rate during cell division. This cytostatic effect is probably responsible for the tolerance exhibited by AS605240-treated cells to MTX and DNR. Our data also showed that the antagonistic interaction with MTX and DNR could be successfully circumvented by means of proper drug scheduling in more than half of the cell lines studied in vitro (Figure 5).

Recent evidence shows that genes most significantly correlated with ALL resistance to prednisolone are inversely correlated with MTX resistance, and that the transcriptional networks underlying resistance to one drug may actually sensitize cells to the other. Translation was suggested as one critical pathway determining the balance between glucocorticoid and MTX sensitivity in T-ALL [63]. We now provide evidence that this disparate prednisolone/MTX transcriptional profile may be under PI3K pathway control.

In summary, our gene expression analysis indicated that PI3K activity is associated with chemotherapy resistance in T-ALL. Accordingly, PI3K inhibition sensitized T-ALL cells to glucocorticoids both in vitro and in vivo. Furthermore, our data indicate that correct scheduling will be of upmost importance when combining PI3K inhibitors with drugs targeting dividing cells, which are mainstream in current protocols against T-ALL.

METHODS

Ethics Statement. Investigation has been conducted in accordance with the ethical standards and according to the Declaration of Helsinki and according to national and international guidelines. The use of patient samples was approved by the FCM/UNICAMP Research Ethics Committee (CAAE: 0014.0.144.146–08) and informed consent was obtained from parents. The use of the xenograft animal model was approved by the CEEA/UNICAMP Animal Experimentation Ethics Committee (Protocol 1766–1).

Synthesis of AS605240. The water-soluble potassium salt of AS605240 was synthesized according to patent WO 2004007491. Identity and purity were confirmed by mass spectrometry and nuclear magnetic resonance.

Primary T-ALL cells. Bone marrow mononuclear cells were obtained from patients with newly diagnosed T-ALL accrued from 2000 to 2013 at Centro Infantil Boldrini, Campinas, Brazil. Treatment was performed according to the Brazilian GBTLI ALL-99 [41] and GBTLI ALL-2009 protocols. NOTCH1, PTEN and IL7R were sequenced as described elsewhere [12, 20, 64].

Cell lines culture and survival assays. Cell lines were cultured in RPMI-1640 medium, 10% fetal bovine serum (FBS), and penicillin/streptomycin at 37°C and 5% CO₂. Medium was changed 12–24 h before all experiments. To measure IC₅₀ values, cells (2–6 × 10⁴) were incubated for 96 h with increasing concentrations of AS605240, prednisolone, L-asparaginase, MTX or DNR. To measure Combination Index (CI) values between AS605240 and the other drugs, 2-fold ratios of the calculated IC₅₀ values (0.25×, 0.5×, 1×, 2× or 4×) of each drug were used either in combination or as single drugs. Cells were treated for a total of 96 h. When drug scheduling was applied, one of the drugs was added 48 h after the start of the experiment. Cell viability was measured by the MTT assay. IC₅₀ and CI values were calculated with the GraphPad Prism 5 (GraphPad Software, La Jolla, CA, USA) and Calcusyn (Biosoft, Cambridge, UK) [65] softwares, respectively. Calculated IC₅₀ values are shown in Supplementary Table 4.

PI3K gene expression signatures. Cell lines (5–10 × 10⁷) were cultured with the AS605240 IC₅₀ value or vehicle for 6 h, RNA was extracted by the phenol-chloroform method and purified with the RNAeasy Mini Kit (Qiagen, Inc., Valencia, CA, USA). Samples were processed with the One-Cycle Target Labeling and Control Reagents Kit (Affymetrix, Santa Clara, CA, USA) and hybridized on HG-U133 Plus 2.0 Arrays (Affymetrix). Cryopreserved primary T-ALL cells were thawed, washed in RPMI-1640 twice and viable cells were isolated with the Dead Cell Removal Kit (Miltenyi, Bergisch Gladbach, Germany). Approximately 3 × 10⁶ cells were cultured with 20 μM of AS605240 or vehicle for 6 h in AIM-V medium (Invitrogen, Carlsbad, CA, USA) supplemented with 2 mM glutamine, 10% FBS, and penicillin/streptomycin at 37°C and 5% CO₂. RNA was extracted with the Illustra RNAspin Mini RNA Isolation Kit (GE Healthcare, Little Chalfont, UK), processed with the GeneChip WT cDNA Synthesis and Amplification Kit (Affymetrix) and hybridized on Human Gene 1.0 ST Arrays (Affymetrix). Expression values were obtained with the iterPLIER+16 algorithm and expressed in a log2 scale. Paired Limma analysis (http://www.bioconductor.org/packages/2.12/bioc/html/limma.html) was used to obtain differentially expressed genes with FDR adjusted p-value < 0.05 and Fold-change > 1.5. Cells of each patient or cell line treated with AS605240 or vehicle were assigned as counterparts for the paired analysis. GSEA analysis (http://www.broadinstitute.org/gsea/) [66] was performed with 1000 phenotype permutations and default settings. Only probesets/transcript clusters annotated with a Gene Symbol were used in the analysis. For Connectivity Map analysis (http://www.broadinstitute.org/cmap/) [67], only probesets identical in HG-U133A and HG-U133 Plus 2.0 arrays were used. Gene sets were considered significantly regulated when p < 0.05 and FDR < 0.25. Ingenuity Pathways Analysis (Ingenuity Systems, Redwood City, CA, USA) was performed with the Gene Symbols of AS605240 responsive genes. Principal Component Analysis was performed with the MultiExperiment Viewer (http://www.tm4.org/mev.html).

Gene expression of diagnostic T-ALL. Total RNA was extracted from T-ALL lysates preserved in guanidine isothiocyanate solution using the Illustra RNAspin Mini RNA Isolation Kit (GE Healthcare). RNA samples were processed with the WT Expression Kit (Ambion, Austin, TX, USA) and GeneChip WT Terminal Labeling and Controls Kit (Affymetrix), and hybridized on Human Gene 1.0 ST Arrays. Expression values were obtained with the iterPLIER+16 algorithm and expressed in a log2 scale. GSEA analysis was performed with 1000 gene set permutations. All array files used in this study are publicly available through the Gene Expression Omnibus (GEO) database under the accession GSE51001. For clinical and biological data, refer to Supplementary Table 3.

Quantitative PCR. RNA samples of T-ALL primary cells treated with AS605240 or vehicle in vitro were submitted to cDNA synthesis with the ImProm-II Reverse Transcription System (Promega, Madison, USA) and quantitative PCR with HOT FIREPol EvaGreen qPCR Mix Plus (Solis BioDyne, Tartu, Estonia) in a 7500 Fast Real-Time PCR System (Life Technologies, Carlsbad, USA). Expression was calculated relative to ABL expression. Primers used were: ALOX5AP (forward TAGGAGAGAGAACGCA GA, reverse AGGAACAGGAAGAGTATGA), BCAT1 (forward AGAAGAAGAACTGGCAAC, reverse CACCTTAAATTCACCCCAC), LDHA (forward TTCACCCATTAAGCTGTC, reverse CAACATTCATTCCACTCC), PRDX4 (forward GTCCAA CTGAAATTATCGCT, reverse CCAGGCCAAATGGG TAAA) and ABL (forward TGGAGATAACACTCTA AGCATAACTAAAGGT, reverse GATGTAGTTGCTTGG GACCCA) [68].

Cell signaling assays. PIP₃ quantification of Jurkat cells (3 × 10⁷) treated for 8 h with AS605240 IC₅₀ value or vehicle was performed in duplicates using the K-2500 PIP₃ Mass ELISA Kit (Echelon Biosciences, Salt Lake City, UT, USA). Phospho-Akt quantification of Jurkat and Molt-4 cells treated for 24 h with increasing concentrations of AS605240 or vehicle was performed using the Akt [pS473] ELISA Kit (Invitrogen). Western blotting analysis of Jurkat cells treated with AS605240 IC₅₀ values or vehicle was performed using antibodies against Akt (#4691, Cell Signaling Technology, Beverly, MA, USA), p-Akt (#4060, Cell Signaling Technology), Myc (N-262, Santa Cruz Biotechnology, Santa Cruz, CA, USA) and β-actin (IM-0075, Rhea Biotech, Campinas, Brazil).

Apoptosis analysis. Jurkat cells (1 × 10⁶) treated for 8 h with AS605240 IC₅₀ value or vehicle and primary T-ALL cells (1.5 × 10⁶) treated for 6 h with 20 μM of AS605240 or vehicle were analyzed for apoptosis. Cells were either stained with PE Rabbit Anti-Active Caspase-3 (Becton Dickinson) according to manufacturer's instructions, or incubated at 37°C for 15 minutes with FITC-conjugated Annexin-V (Invitrogen Corporation) and PI 5 μg/mL in Annexin-V binding buffer. Cells were analyzed in a FACSCalibur flow cytometer.

Cell cycle and Brdu incorporation assays. For cell cycle analysis, Molt-4 cells (2 × 10⁵) were treated with the IC₅₀ values of AS605240, MTX and/or vehicle for 24 h. Cells were fixed in 70% ethanol, washed with PBS and incubated at 37°C for 15 min in 1 mL PI Buffer (0.1% Triton X-100, 0.2 mg/mL RNAse, and 20 μg/mL PI, in PBS). Ten thousand events were collected in a FACSCalibur flow cytometer and data was analyzed with the ModFit LT 3.3 software (Verity Software House, Topsham, ME, USA). For Brdu incorporation assays, Molt-4, P12-ICHIKAWA and Jurkat cells (1 × 10⁶) were treated for 24 h with AS605240 IC₅₀ values or vehicle, pulsed for 30 min with 10 μM BrdU and processed with the BrdU Flow Citometry Assay Kit (Becton Dickinson). Events (2 × 10⁴) were analyzed in a FACSCanto flow cytometer (Becton Dickinson).

In vivo experiments. Primary T-ALL cells were thawed, washed with PBS and 1 × 10⁷ cells were injected in NOD/SCID (NOD.CB17-Prkdc_scid/J) mice (The Jackson Laboratory, Bar Harbor, ME, USA) via the tail vein. After 10–12 weeks, successfully engrafted mice were sacrificed, T-ALL cells were collected from spleen and liver and 1 × 10⁷ cells were immediately injected in higher number of non-irradiated mice for the following experiments. For disease progression experiments, mice received 20 mg/Kg of AS605240 (n = 5) or vehicle (n = 12), intraperitoneally twice a day, 5 days a week, starting on the eleventh day after injection of leukemia cells. Number of human CD45+ cells in the peripheral blood after red blood cells lysis was regularly measured by flow cytometry and exponential growth curves were compared with the F test of the best-fit K values. For survival analysis experiments, mice were randomly distributed into the different treatment groups (5 animals per group) when human CD45+ reached ≥ 0.5% of peripheral blood cells in half of the animals. Mice were treated with 30 mg/Kg of AS605240 and/or 5 mg/Kg of dexamethasone, intraperitoneally once a day, 5 days a week, for 35 days. Kaplan-Meier survival curves were compared using the log-rank test with the GraphPad Prism 5 software.

ACKNOWLEDGMENTS

This work was supported by grants from FAPESP (08/10034–1) to JAY. ABS and ABAL were supported by CNPq and FAPESP fellowships, respectively. We acknowledge the Laboratório Nacional de Biociências for the use of the microarrays facility. We are especially grateful to the contribution of patients and their families.

CONFLICTS OF INTEREST

The authors declare no conflict of interest.
