Abstract
Jin Sun Choi1,8, Byoung Chul Park1, Seung Wook Chi1, Kwang-Hee Bae2, Sunhong Kim3,10, Sayeon Cho5, Woo-Chan Son6,7, Pyung Keun Myung8, Jeong-Hoon Kim4,9, Sung Goo Park1
1 Medical Proteomics Research Center, Korea Research Institute of Bioscience & Biotechnology (KRIBB), Daejeon, Republic of Korea
2 Cell Function Regulation Research Center, Korea Research Institute of Bioscience & Biotechnology (KRIBB), Daejeon, Republic of Korea
3 Targeted Medicine Research Center, Korea Research Institute of Bioscience & Biotechnology (KRIBB), Daejeon, Republic of Korea
4 Targeted Gene Regulation Research Center, Korea Research Institute of Bioscience & Biotechnology (KRIBB), Daejeon, Republic of Korea
5College of Pharmacy, Chung-Ang University, Seoul, Republic of Korea
6Asan Institute for Life Sciences and Asan Medical Center, Seoul, Republic of Korea
7Department of Pathology, University of Ulsan College of Medicine, Asan Medical Center, Seoul, Republic of Korea
8College of Pharmacy, Chungnam National University, Daejeon, Republic of Korea
9Department of Functional Genomics, Daejeon, Republic of Korea
10Department of Biomolecular Science, University of Science and Technology (UST), Daejeon, Republic of Korea
Correspondence to:
Dr. Sung Goo Park, e-mail: [email protected]
Dr. Jeong-Hoon Kim, e-mail: [email protected]
Received: June 16, 2014 Accepted: September 06, 2014 Published: September 29, 2014
ABSTRACT
HS-1-associated protein X-1 (HAX1) is a multi-functional protein which was first identified as a Hematopoietic cell specific Lyn Substrate 1 (HS1)-binding protein. Although the roles of HAX1 in apoptosis have been unraveled and HAX1 has been proposed to be involved in several diseases, additional roles of HAX1 are still being identified. Here, we demonstrated that HAX1 directly interacted with cellular Inhibitor of Apoptosis Proteins (cIAPs), ubiquitin E3 ligases which regulate the abundance of cellular proteins, via ubiquitin-dependent proteasomal degradation. We showed that HAX1 promotes auto-ubiquitination and degradation of cIAPs by facilitating the intermolecular homodimerization of RING finger domain. Moreover, HAX1 regulates the non-canonical Nuclear Factor-κB (NF-κB) signaling pathway by modulating the stability of NF-κB-Inducing Kinase (NIK), which is one of the substrates of cIAPs. Taken together, these results unveil a novel role of HAX1 in the non-canonical NF-κB pathway, and provide an important clue that HAX1 is a potential therapeutic target for the treatment of cancer.
INTRODUCTION
HS-1-associated protein X-1(HAX1) is a ubiquitously expressed, multifaceted protein with multiple protein-protein interaction domains [1]. It was initially observed in mitochondria, while later it was also found to be localized in other cellular compartments [1, 2]. HAX1 exhibits weak sequence homology with the anti-apoptotic protein, B cell/lymphoma/leukemia-2 (Bcl-2), containing an N-terminal acidic domain, putative Bcl-2 homology domains (BH1 and BH2), a PEST motif, and a predicted C-terminal transmembrane domain [1]. Reminiscent to the roles of members of the Bcl-2 family, HAX1 prevents apoptosis by directly inhibiting the processing of caspase 9 in cardiac myocytes [3] or by modulating Ca2+ homeostasis via interacting with phospholamban (PLN) and sarcoplasmic reticulum Ca2+ ATPase (SERCA2) [4, 5]. Another mechanism by which HAX1 prevents apoptosis is that HAX1 contributes to presenilin-associated, rhomboid-like-mediated processing and activation of the serine protease HtrA2, thereby preventing accumulation of pro-apoptotic Bax in the outer mitochondrial membrane [6]. Consistent with this anti-apoptotic role, the level of HAX1 is elevated in various metastatic cell lines, including leukemia, melanoma, breast, lung and lymphoma [7]. Moreover, it has been known that homozygous mutations in HAX1 gene cause neutrophil apoptosis, resulting in autosomal recessive severe neutropenia in human [8, 9]. Homozygous null mice for HAX1 recapitulate the phenotype of human neutropenia, leading to postnatal lethality [6].
Inhibitor of apoptosis (IAP) protein family is an endogenous and negative regulator of apoptosis through the direct inhibition of caspases and/or the suppression of apoptotic signaling pathways [10–12]. This family includes X-linked inhibitor of apoptosis protein (XIAP), cellular inhibitor of apoptosis 1 and 2 (cIAP1, cIAP2), melanoma inhibitor of apoptosis (ML-IAP) and survivin [10]. Numerous studies have shown that IAPs are overexpressed in several types of cancer cells [13–15] and that elevated IAP levels contribute to the resistance to cytotoxic therapies, indicating that IAPs are important therapeutic targets for cancer treatment [16, 17]. Among the IAP family members, cIAP1 and cIAP2 inhibit apoptosis by suppressing the apoptotic signaling pathway rather than by directly inhibiting caspase activity [18]. One of the interesting features of cIAP1 and cIAP2 is that they can act as an E3 ubiquitin ligases with their own RING finger domain [19]. Under unstimulated conditions, cIAPs together with tumor necrosis factor (TNF)-associated factors 1 and 2 (TRAF1 and TRAF2), ubiquitinate nuclear factor kappa B (NF-κB)-inducing kinase (NIK), which results in the degradation of NIK through the proteasomal pathway [20, 21]. Once the non-canonical NF-κB signaling pathway is activated by treatment with a set of ligands that belong to the TNFα superfamily, including CD40 ligand (CD40L) [22], B cell activating factor (BAFF) [23], and lymphotoxin-related inducible ligand that competes for glycoprotein D binding to herpesvirus entry mediator on T cells (LIGHT) [24], complexes containing cIAPs are recruited to the receptors, resulting in the stabilization of NIK, which subsequently phosphorylates and activates IκB Kinase α (IKKα) [25]. Next, activated IKKα phosphorylates p100/NF-κB2 and induces partial degradation of p100 to p52 [26]. The N-terminal baculovirus IAP repeat (BIR) domains of IAP family members have been demonstrated to bind to Smac/DIABLO (second mitochondrion-derived activator of caspase) protein, which induces rapid proteasomal degradation of cIAPs [27, 28]. In addition, cIAP1/2 also contain an ubiquitin-associated (UBA) domain that binds to polyubiquitin chains [29] and a less well characterized caspase-recruitment domain (CARD), which was found to be an intrinsic inhibitory domain. Recent studies have demonstrated that Smac mimetics (SMs), which are synthetic compounds and resemble the interacting domain of Smac to cIAPs, bind to BIR2 and BIR3 domains of cIAPs [30] and induce auto-ubiquitination followed by the degradation of cIAPs by promoting the dimerization of RING finger domain [31, 32]. Although numerous studies demonstrated that SMs induce degradation of cIAPs by facilitating their RING dimerization, a cellular counterpart of SMs has not been identified yet.
Here, we show that HAX1 binds to cIAPs in vitro and in vivo, and this interaction promotes auto-ubiquitination of cIAPs by promoting dimerization of cIAPs. Furthermore, we demonstrate that HAX1 regulates the non-canonical NF-κB pathway through stabilization of NIK. These results reveal a novel role of HAX1 in non-canonical NF-κB signaling pathway.
RESULTS
HAX1 interacts with cIAPs in vivo and in vitro
In the previous study, we found that XIAP interacts with HAX1 in vitro and in vivo [33]. Because XIAP is a member of the IAP family proteins, we hypothesized that cIAP would also interact with the HAX1 protein. To test this hypothesis, we performed co-immunoprecipitation experiments in HEK293T cells. Exogenously expressed FLAG-cIAP2 or HA-cIAP1 was immunoprecipitated and the resulting immune complexes were analyzed by immunoblotting with anti-HAX1 antibody, anti-HA antibody, and anti-FLAG antibody. Interestingly, it was found that FLAG-cIAP2 or HA-cIAP1 interacted with endogenous or exogenous HAX1, respectively (Figure 1A and Supplementary Figure S1A). To corroborate this interaction in physiological condition, we performed co-immunoprecipitation experiment and proximity ligation assay in endogenous level. First, endogenous cIAP2 was co-immunoprecipitated with endogenous HAX1 in MDA-MB-231 cell line (Figure 1B). Furthermore, using proximity ligation assay technique, we showed that endogenous HAX1 is localized in the vicinity of cIAP1 and cIAP2 (Supplementary Figure S2).
In order to determine if cIAP2 directly bind to HAX1 or not, an in vitro binding assay was carried out using recombinant cIAP2 and HAX1 proteins. As a result, recombinant HAX1 proteins were co-immunoprecipitated with cIAP2 (Figure 1C) and vice versa (Figure 1D), clearly demonstrating that cIAP2 directly binds to HAX1. To further characterize the region responsible for the interaction, various truncation mutants of HAX1 and cIAP2 were generated (Figure 1E and G). Co-immunoprecipitation experiment in HEK293T cells revealed that C-terminus of HAX1 (amino acid 128–279) binds to cIAP2 (Figure 1F). Meanwhile, the in vitro binding assay using truncated cIAP2 and purified HAX1 proteins indicated that the CARD domain of cIAP2 is required for the interaction with HAX1 (Figure 1H). In addition, co-immunoprecipitation experiment in HEK293T cells suggested that the CARD domain is sufficient for this interaction (Supplementary Figure S1B). Taken together, these results showed that the C-terminal region of HAX1 interacts with the CARD domain of cIAP2.

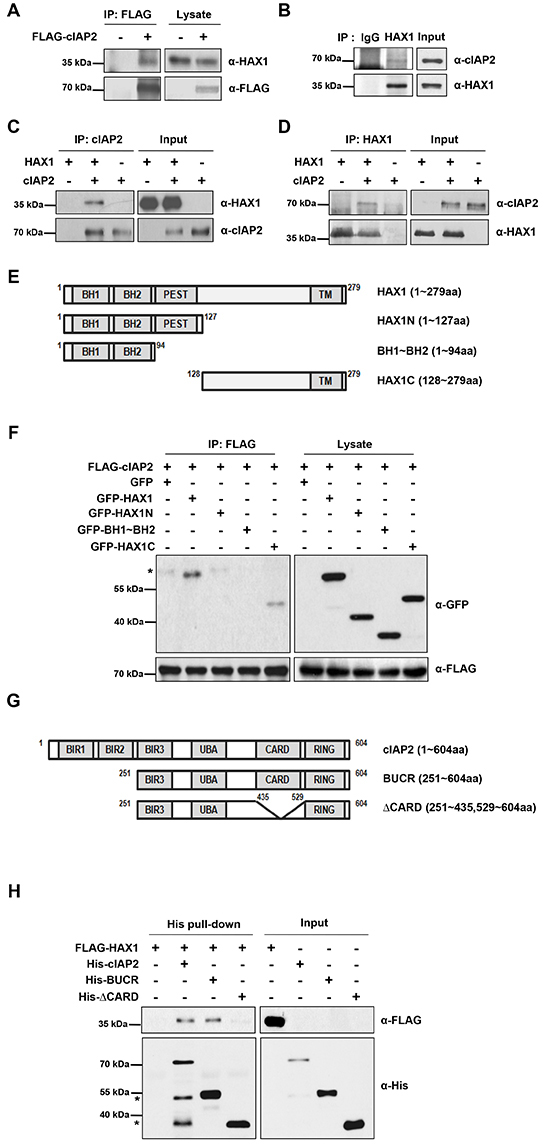

Figure 1: HAX1 interacts with cIAP2. (A) FLAG-cIAP2 protein was expressed in HEK293T cells and immunoprecipitated with anti-FLAG M2 antibody-conjugated agarose beads. The immune complexes were analyzed by immunoblotting with anti-HAX1 antibody and anti-FLAG antibody. (B) The lysates from MDA-MB-231 cells were incubated with IgG or anti-HAX1 antibody, and the immune complexes were analyzed by immunoblotting with anti-cIAP2 antibody and anti-HAX1 antibody. (C,D) Mixtures containing purified HAX1 protein or/and cIAP2 protein were immunoprecipitated with anti-cIAP2 antibody (C) or anti-HAX1 antibody (D), and then the immune complexes were analyzed by immunoblotting with anti-cIAP2 antibody and anti-HAX1 antibody. (E) Schematic diagram of various HAX1 deletion mutants. BH; Bcl-2 homology domain, PEST; proline (P), glutamic acid (E), serine (S), and threonine (T)-enriched sequence domain, TM; transmembrane domain. (F) FLAG-cIAP2 protein was expressed with various GFP-HAX1 deletion mutants in HEK 293T cells. FLAG-cIAP2 was precipitated with anti-FALG M2 antibody-conjugated agarose beads and then anti-GFP antibody and anti-FLAG antibody were used to detect HAX-1 mutants and cIAP2. Asterisk indicates nonspecific bands. (G) Schematic diagram of various cIAP2 deletion mutants. (H) After purified FLAG-HAX1 protein was incubated with various His-cIAP2 proteins, His-cIAP2 proteins were subjected to Ni-NTA column to pull down the protein complexes. The resulting complexes were analyzed by immunoblotting with anti-His and anti-FLAG antibodies. Asterisks indicate nonspecific bands.
HAX1 promotes degradation of cIAP2
It has been shown that cIAPs regulate the stability of various cellular proteins as well as themselves through their E3 ubiquitin ligase activity [19, 34–36]. Thus, we wondered whether HAX1 regulates stability of cIAP2. To this end, we examined the protein level of cIAP2 when the level of HAX1 protein was altered. Compared with the scrambled control, the reduced expression of HAX1 by siRNA increased the level of endogenous and transfected cIAPs (Figure 2A and Supplementary Figure 3A for endogenous cIAPs, Supplementary Figure S3B and S4A for overexpressed cIAPs). On the other hand, overexpression of HAX1 reduced the level of endogenous and exogenous cIAPs in a dose-dependent manner (Figure 2B; left panels, Supplementary Figure S3C and S4B). However, the proteasome inhibitor, bortezomib, completely blocked the effect of HAX1 on cIAP2 (Figure 2B; right panels), implying that HAX1 promotes the proteasomal degradation of cIAP2. In addition, overexpression of HAX1N, which does not bind to cIAP2 (Figure 1F), has no effect on the stability of cIAP2, indicating that the degradation of cIAP2 is mediated by the physical interaction between cIAP2 and HAX1 (Figure 2C and D, Supplementary Figure S4C). As HAX1 has been demonstrated to bind to some mRNA and attenuate their processing [37, 38], mRNA levels of cIAP1 and cIAP2 were examined by RT-qPCR to see if HAX1 affects mRNAs of cIAPs. The transfection of siRNA of HAX1 did not change the level of mRNA of cIAPs (Supplementary Figure S4D), indicating that HAX1 regulates cIAPs post transcriptionally. Moreover, we also monitored the half-life of cIAP2 protein in the presence of the protein synthesis inhibitor, cycloheximide (CHX). Overexpression of full-length HAX1 induced more rapid degradation of cIAP2 by two fold than HAX1N did (Figure 2E and F). Collectively, these results demonstrate that HAX1 promotes the degradation of cIAP1 and cIAP2.

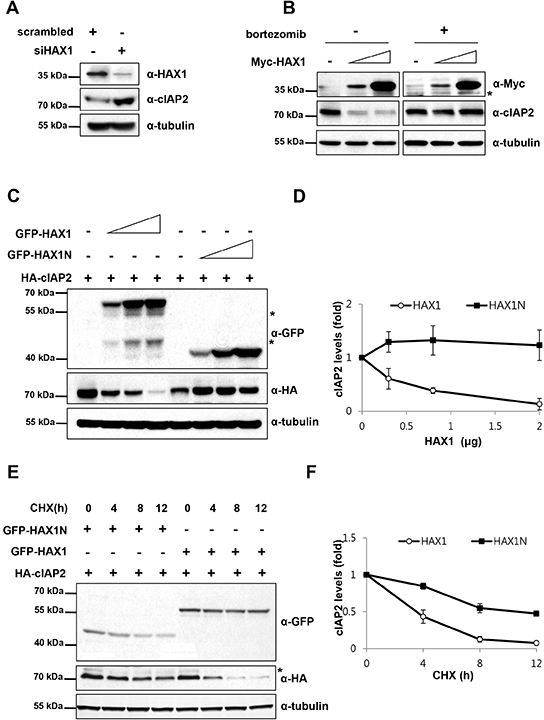

Figure 2: HAX1 promotes degradation of cIAP2. (A) MDA-MB-231 cells were transfected with siHAX1 or scrambled control for 24 h and the cell lysates were analyzed by immunoblotting using anti-HAX1, anti-cIAP2, and anti-tubulin antibodies. (B) MDA-MB-231 cells were transfected with increasing amounts of Myc-HAX1 (0, 0.8, and 2 μg). After 24 h, the cells were treated with or without a proteasome inhibitor, bortezomib (10 μΜ), for an additional 7 h. The cell lysates were then examined by immunoblot analysis with anti-FLAG, anti-Myc, and anti-tubulin antibodies. Asterisk indicates nonspecific bands. (C) HEK 293T cells were co-transfected with HA-cIAP2 and increasing amounts of GFP-HAX1 or HAX1N. The cell lysates were subjected to immunoblot analysis using appropriate antibodies. Asterisks indicate nonspecific bands. (D) Quantitation of the results from (C). Data are presented as mean ± SEM (error bars) of three independent experiments. (E) HEK 293T cells were co-transfected with HA-cIAP2 and increasing amounts of GFP-HAX1 or GFP-HAX1N. 24 h after transfection, the cells were treated with a protein synthesis inhibitor, cycloheximide (20 μg/mL), for the indicated time. Then, the prepared cell lysates were subjected to immunoblot analysis using appropriate antibodies. Asterisks indicate nonspecific bands. (F) Quantitation of the results from (E). Data are presented as mean ± SEM (error bars) of three independent experiments.
HAX1 augments the E3 ubiquitin ligase activity of cIAP2
Recent reports have shown that the abundance of cIAPs is governed by their auto-ubiquitination, which could serve as an indirect measure of E3 activity [19, 35, 39]. Therefore, we decided to investigate whether HAX1 could affect auto-ubiquitination of cIAP2 by in vitro auto-ubiquitination assay. As previously reported, recombinant cIAP2 proteins readily produced poly-ubiquitin chains in the presence of E1, UbcH5b, ubiquitin, and ATP (Figure 3A). When the increasing amount of HAX1 proteins was added, the auto-ubiquitination of cIAP2 increased in proportion to amounts of added HAX1 proteins (Figure 3A). However, HAX1N failed to promote the formation of poly-ubiquitin chains, which suggested that the physical interaction between cIAP2 and HAX1 is required (Supplementary Figure S5A). It is of note that the reaction without cIAP2 in the presence of HAX1 failed to produce poly-ubiquitin chains, which excluded the possibility that HAX1 could act as an E3 ligase. To further confirm this in cellular environment, exogenously expressed Myc-cIAP2 was immunoprecipitated and the resulting precipitates were analyzed by immunoblotting using anti-ubiquitin antibody. Ubiquitination of cIAP2 was increased in the presence of HAX1, suggesting that HAX1 promotes auto-ubiquitination of cIAP2 in vivo (Figure 3B).

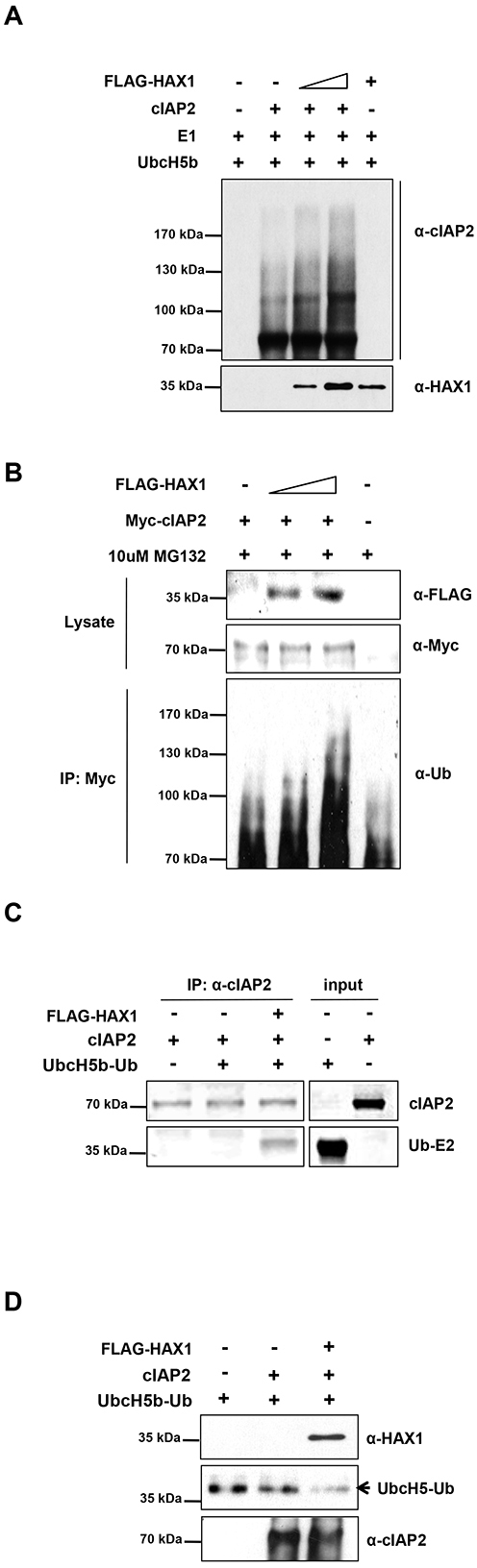

Figure 3: HAX1 augments the E3 ligase activity of cIAP2. (A) Purified cIAP2 protein was pre-incubated with increasing amounts of HAX1 proteins and the protein mixture were then incubated with E1, UbcH5b, ubiquitin, and ATP at 37 °C for 1 h. The reaction mixtures were analyzed by immunoblotting using an anti-cIAP2 antibody and anti-HAX1 antibody. (B) HEK 293T cells were co-transfected with Myc-cIAP2 and increasing amounts of FLAG-HAX1. After 24 h, the cells were treated with a proteasome inhibitor, MG132 (10 μΜ), for an additional 7 h. Myc-cIAP2 was precipitated with anti-Myc antibody-conjugated agarose beads and the resulting complexes were analyzed by immunoblotting using an anti-ubiquitin antibody (bottom panel). The expression level of each plasmid was determined using anti-FLAG and anti-Myc antibodies (top two panels). (C) Purified cIAP2 protein was pre-incubated with or without HAX1 protein and the protein mixtures were then incubated with UbcH5b-Ub at 4 °C for 1 h. The reaction mixtures were immunoprecipitated with an anti-cIAP2 antibody and immune complexes were then separated by SDS-PAGE. (D) Purified cIAP2 was pre-incubated with or without HAX1 protein and the protein mixtures were then incubated with UbcH5b-Ub at 37 °C for the 6 h. The resulting reaction mixtures were subjected to immunoblot using the indicated antibodies to analyze the conversion of the UbcH5b-Ub to free UbcH5b.
The activity of E3 ubiquitin ligase can be determined biochemically by two methods; one is to measure the interaction between RING finger domains of E3 ligases and ubiquitin conjugated E2 [40, 41] and the other is to measure the ability of E3 ligases to liberate ubiquitin from ubiquitin conjugated E2 [31, 42]. Therefore, we examined whether HAX1 could influence the ability of cIAP2 to interact with ubiquitin conjugated UbcH5b (UbcH5b-Ub). To this end, UbcH5b-Ub was prepared using E1, UbcH5b, ubiquitin, and ATP (Supplementary Figure S5B and S5C). Next, prepared UbcH5b-Ub and purified cIAP2 were used for the binding assay in the absence or presence of HAX1. The binding affinity of cIAP2 to UbcH5b-Ub strongly increased in the presence of HAX1 (Figure 3C). Furthermore, we monitored the ability of cIAP2 to discharge ubiquitin. The mixtures containing cIAP2 and UbcH5-Ub were incubated with HAX1 or without HAX1 and the resulting mixtures were subjected to immunoblot analyses. Consistent with the result shown in Figure 3C, HAX1 facilitated discharge of ubiquitin from UbcH5b-Ub (Figure 3D). Taken together, these results suggest that HAX1 augments the E3 ligase activity of cIAP2 through physical interaction.
HAX1 facilitates the dimerization of the cIAP2 RING domain
It has been demonstrated that the stable dimer formation of cIAPs via their RING finger domains is prerequisite for their activation and efficient binding to ubiquitin conjugating enzyme E2 [31, 32]. As HAX1 activates the E3 ligase activity of cIAP2, we hypothesized that HAX1 could affect the dimerization of cIAPs. Thus, to test this hypothesis, we performed an in vitro dimerization assay using purified proteins. For this purpose, full-length His-tagged cIAP2 (His-cIAP2) and GST-tagged cIAP2 fragment (GST-BUCR, Figure 1G) were used because the BUCR domain of cIAP was sufficient for the dimerization [31]. When increasing amounts of full length HAX1 were added, the degree of interaction between His-cIAP2 and GST-BUCR proportionally increased; however HAX1N had no effect (Figure 4A and 4B). To further confirm this observation in vivo, two differently tagged cIAP2 plasmids (HA-cIAP2 and Myc-cIAP2) were expressed together with or without HAX1 and the degree of dimer formation of these two cIAPs was analyzed by co-immunoprecipitation. In consistent with the in vitro results obtained in Figure 4A and 4B, overexpression of HAX1 augmented the dimer formation of cIAP2 (Figure 4C and 4D). Collectively, these data suggests that HAX1 facilitates the dimerization of cIAP2.
HAX1 regulates the degradation of NIK
Because HAX1 regulates the level of cIAP2, which in turn modulates the abundance of its substrates, we then monitored the level of a well-known substrate of cIAP2. In particular, NF-κB-inducing kinase (NIK), a substrate of cIAPs, has been demonstrated to be a key regulator of the non-canonical NF-κB pathway [20, 21, 43]. Thus we investigated whether HAX1 would regulate the levels of NIK or not. Overexpression of HAX1 increased the level of endogenous NIK, whereas the cIAP2 level decreased in a dose-dependent manner in MDA-MB-231 cells (Figure 5A). Next, we examined the abundance of NIK by utilizing RNA interference to knock down endogenous HAX1. Compared with scrambled control, knocking down HAX1 with siHAX1 reduced the levels of endogenous and exogenous NIK in MDA-MB-231 cells (Figure 5B and Supplementary Figure S6A). Along these lines, we also investigated the degree of poly-ubiquitination of NIK. Compared with the scrambled control, the amount of poly-ubiquitined NIK increased when cells were treated with siHAX1 (Figure 5C), implying that HAX1 suppresses the ubiquitination of NIK. Our results strongly suggest that HAX1 induces the stabilization of NIK through the degradation of cIAP2.

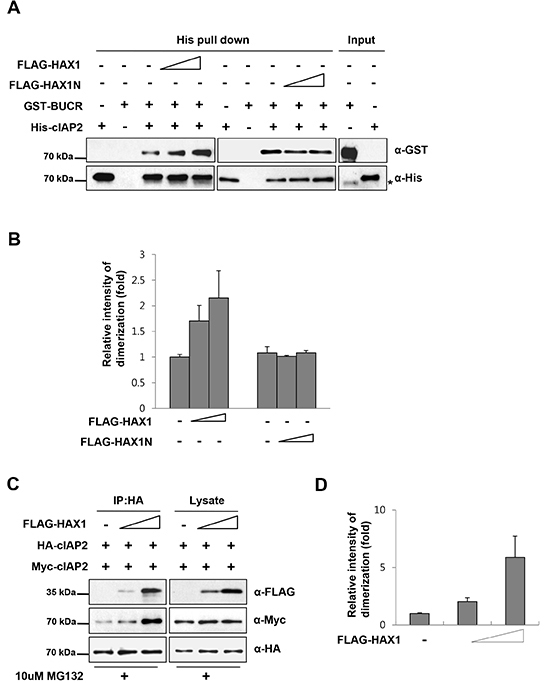

Figure 4: HAX1 facilitates the dimerization of the cIAP2 RING domain. (A) Mixtures containing purified His-cIAP2 and GST-BUCR proteins were incubated with increasing amounts of HAX1 or HAX1N proteins and then examined by the His-pull down assay. Briefly, proteins were immunoprecipitated with Ni-NTA agarose resin and the resulting complexes were analyzed by immunoblotting with anti-His and anti-GST antibodies. (B) Quantitation of the results from (A). Data are presented as mean ± SEM (error bars) of three independent experiments. (C) HA-cIAP2 and Myc-cIAP2 proteins were expressed with increasing amounts of FLAG-HAX1 in HEK 293T cells. After 24 h, the cells were treated with or without a proteasome inhibitor, MG132 (10 μΜ), for an additional 7 h and cell lysates were immunoprecipitated with anti-HA agarose. The resulting complexes were analyzed by immunoblotting using appropriate antibodies. (D) Quantitation of the results from (C). Data are presented as mean ± SEM (error bars) of three independent experiments.

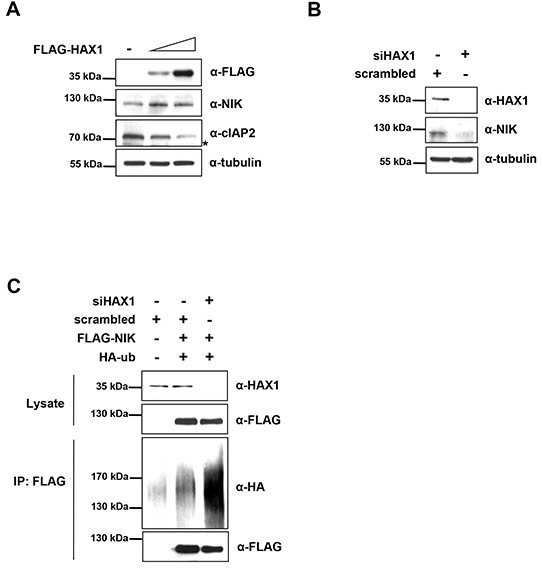

Figure 5: HAX1 regulates the degradation of NIK. (A) MDA-MB-231 cells were transfected with increasing amounts of FLAG-HAX1 (0, 0.8, and 2 μg) for 24 h, and the cell lysates were then examined by immunoblotting using appropriate antibodies. Asterisk indicates nonspecific bands. (B) MDA-MB-231 cells were transfected with siHAX1 or scrambled control for 24 h and the cell lysates were analyzed by immunoblotting using anti-HAX1, anti-NIK, and anti-tubulin antibodies. (C) HEK 293T cells were co-transfected with siHAX1 or scrambled control and FLAG-NIK and HA-ubiquitin. After 24 h, the cell lysates were immunoprecipitated with anti-FLAG M2 antibody-conjugated agarose beads and the resulting complexes were analyzed by immunoblotting with anti-HA and anti-FLAG antibodies (bottom two panel). The expression level was determined using anti-HAX1 and anti-FLAG antibodies (top two panels).
HAX1 modulates the non-canonical NF-κB signaling pathway by stabilization of NIK
The non-canonical NF-κB pathway requires NIK, which phosphorylates and activates IKKα to induce p100 processing to p52 [25, 26]. This, in turn, results in translocation of the p52-RelB complex to the nucleus [44]. Our results consistently demonstrated that HAX1 promotes the degradation of cIAP2 by facilitating its dimerization, which stabilizes NIK. If this is true, it is likely that HAX1 enhances the non-canonical NF-κB signaling pathway, which can be activated by TNFα superfamily ligands, such as CD40L, BAFF, and LIGHT. Thus, we next examined whether siHAX1 affects the non-canonical NF-κB pathway in MDA-MB-231 cells known to be responsive to CD40L, BAFF or LIGHT (Supplementary Figure S7A). Compared with the scrambled control, the reduction of HAX1 expression by siHAX1 led to the stabilization of cIAP2, degradation of NIK, and subsequent inhibition of p100 processing to p52 (Figure 6A and 6B). When the cells were treated with CD40L or LIGHT, the increased p100 processing was hampered by the knockdown of HAX1 (Figure 6A and 6B). We then examined whether HAX1 regulates the transcription of NF-κB target genes upon CD40L or LIGHT stimulation in MDA-MB-231 cells using RT-qPCR. Consistent with the above results, the augmented expression of non-canonical NF-κB target genes, such as interleukin 8 (IL8) and vascular cell adhesion molecule 1 (VCAM1) following stimulation with CD40L or LIGHT, was almost abrogated by HAX1 knockdown (Figure 6C and Supplementary Figure S7B). Collectively, these findings indicate that HAX1 modulates the non-canonical NF-κB signaling pathway by regulating the degradation of NIK and cIAP2.
Figure 6: HAX1 modulates the non-canonical NF-κB signaling pathway by stabilization of NIK. (A, B) MDA-MB-231 cells were transfected with siHAX1 or scrambled control. After 24 h, the cells were stimulated with or without CD40L (1 μg/ml) (A) or LIGHT (1 μg/ml) (B) for an additional 4 h, and the cell lysates were then examined by immunoblotting using appropriate antibodies. Arrows indicate p100, p52, NIK, and cIAP2 and asterisks indicate nonspecific bands. (C) MDA-MB-231 cells were transfected with siHAX1 or scrambled control. After 24 h, the cells were stimulated with or without CD40L (1 μg/ml) (A) for an additional 4 h. Total RNA was isolated from cells, reverse-transcribed, and analyzed by real-time qPCR to determine the mRNA levels of IL-8, VCAM1, and HAX1. Data are presented as mean ± SEM (error bars) of three independent experiments.
DISCUSSION
We have previously demonstrated that HAX1 interacts with BIR2/3 domains of XIAP and suppresses its poly-ubiqutination. However in the present study, we show that HAX1 directly binds to CARD domain of cIAPs and this interaction leads to cIAPs auto-ubiquitination by facilitating their dimerization. This may come from the structural differences between XIAP and cIAPs. XIAP does not possess CARD domain [10, 45] and forms a stable dimer with its RING domain [46]. However cIAPs require induced RING dimerization for its activity because the RING domain of cIAPs is sequestered by BIR and CARD domains [47]. Intriguingly, HAX1 can also form a dimer through its C-terminus region that interacts with both IAP proteins [48]. Based on these data, it may be a plausible model that dimerization of HAX1 induces the dimerization of RING domain of cIAPs by interacting with their CARD domain. The physical interaction of HAX1 with the CARD domain seems to induce a conformational change which renders cIAPs expose their RING domain and thereby facilitates the dimerization of cIAPs. This model is supported by the previous study that the cIAP1ΔCARD mutant readily forms dimers and shows enhanced E3 ligase activity [47]. In case of XIAP, the dimerization of HAX1 may not influence the degree of XIAP RING dimerization since XIAP already exists as a dimer.
Similar to the action of HAX1, the Smac/DIABLO proteins and Smac mimetic compounds (SM) have been shown to induce the dimer formation of RING finger domain of cIAPs, promote auto-ubiquitination/degradation, and subsequently induce caspase-dependent apoptosis in some cancers [31, 32]. However, HAX1 has been known as an anti-apoptotic factor, preventing cell death by various mechanisms [3, 4, 6]. In other words, both SM and HAX1 induce the dimerization and auto-ubiquitination of cIAPs, but produce the contradictory physiological effects. This discrepancy might be explained by our observation that HAX1 suppresses the canonical NF-κB signaling pathway through unidentified mechanisms (unpublished data). Fulda and his colleagues reported that death receptor 5 (DR5), the canonical NF-κB target gene is critical in SM-induced apoptosis [49]. However, we observed that overexpression of HAX1 led to a decreased level of phosphorylated IKKα/β and an increase in the level of IκBα. Furthermore, the transcriptional activity of the canonical NF-κB was inhibited by HAX1 expression (unpublished data). In addition, it has been reported that prolonged SM treatment induces stabilization of NIK, resulting in activation of the non-canonical NF-κB signaling pathway, thereby inducing the expression of the non-canonical NF-κB target gene cIAP2. Because cIAP1 is required for the degradation of cIAP2 and cIAP1 has been already degraded by treatment with SM, prolonged SM treatment leads to increased cIAP2 level in some cancer cells [50, 51]. However, we consistently observed that overexpression of HAX1 induces the reduction of cIAP1/2 levels and the downeregulation of HAX1 by siRNA results in increased levels of cIAP1/2, suggesting that cIAP1 is not required for HAX1-mediated cIAP2 degradation. It is of note that Jitkaew et al. suggested that HAX1 is induced by activation of NF-κB and HAX1 per se is an NF-κB target gene [52]. We did not, however, observe any significant changes in both mRNA and protein levels of HAX1 upon the treatment with TNFα, CD40L or LIGHT (Supplementary Figure S8), implicating that HAX1 may not be a direct target of NF-κB in our experimental system.
In the physiological point of view, the activation of the non-canonical NF-κB signaling pathway by NIK is essential for the organization of lymphoid tissue; therefore, deregulation of this pathway leads to several human diseases [21]. Interestingly, some studies showed that HAX1 is required to suppress apoptosis in lymphocyte [6, 53] and homozygotic mutations of HAX1 in human caused increased neutrophil apoptosis, resulting in autosomal recessive severe neutropenia [9]. In this respect, our data suggest that HAX1 may modulate the survival of the lymphocytes by regulating the non-canonical NF-κB signaling pathway.
Collectively, our results demonstrate that interaction between HAX1 and cIAPs promotes auto-ubiquitination and degradation of cIAPs by facilitating their dimerization. Reduced cIAPs levels in turn lead to stabilization of NIK and subsequently activation of the non-canonical NF-κB signaling pathway. The present study provides a mechanism of which HAX1 regulates the non-canonical NF-κB signaling pathway and contributes to the understandings of cIAPs regulation as it closely relates to cancer treatment. The schematic model depicting our results is summarized in Figure 7.
MATERIALS AND METHODS
Cell culture and transfections
HEK 293T cells (#CRL-11268) and MDA-MB-231 cells (#HTB-26, ATCC) were cultured in DMEM (GIBCO) supplemented with 10% fetal bovine serum, pen/strep (100 U/mL), and streptomycin (100 U/mL) in humidified incubators at 37 °C with 5% CO2. Transfection of HEK 293T cells and MDA-MB-231 cells with various expression vectors was carried out using Lipofectamine (Invitrogen) and X-tremeGENE (Roche).

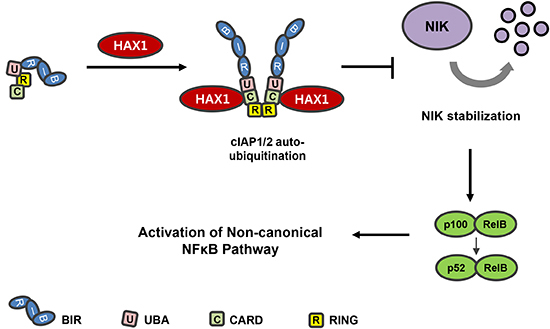

Figure 7: Model depicting the role of HAX1 in the non-canonical NF-κB signaling pathway. In the steady state, cIAPs lead to poly-ubiquitination and proteasomal degradation of NIK via their RING domain together with TRAF2 and TRAF3. The degradation of NIK results in the suppression of the non-canonical NF-κB signaling pathway. Binding of HAX1 to the cIAPs results in the auto-ubiquitination and proteasomal degradation of cIAPs. Consequently, reduced cIAP levels leads to the stabilization of NIK, which induces activation of the non-canonical NF-κB signaling pathway.
Expression plasmids
Mammalian expression constructs were obtained as follows. HAX1, cIAP1, cIAP2, and NIK were cloned into the FLAG-tagged vector pFLAG-CMV-2 (Sigma Co., USA) and the Myc-tagged vector pCMV-Myc (Clontech). HAX1, the N-terminal domain (a.a 1–127), the BH1-BH2 domain (a.a 1–94), and the C-terminal domain (a.a 128–279) of HAX1 were cloned into the green fluorescent protein (GFP)-tagged vector pEGFP-C2 (Clontech). Bacterial expression constructs were obtained as follows. cIAP2, BUCT (a.a 251–604), and ΔCARD (a.a 251–435, a.a 529–604) of cIAP2 were cloned into the His-tagged vector pET21a (Merck Millipore) and the GST-tagged vector pGEX-6p-1 (GE Healthcare Life Sciences). The FLAG-N-terminal domain (a.a 1–127) and FLAG-C-terminal domain (a.a 128–279) of HAX1 were cloned into the pET21a vector (Merck Millipore). Baculovirus expression constructs were obtained by inserting FLAG-HAX1 into the pFastBacT™ expression vector (Invitrogen).
Antibodies and reagents
The following antibodies were used for western blot: HAX1 (BD Transduction Laboratories: 610825, 1:500), cIAP2 (ABCAM: ab32059, 1:1000), cIAP1 (R&D Systems: AF8171, 1:500), FLAG (F1804, 1:5000), His (H1029, 1:3000), and α-tubulin (T6074, 1:5000) (Sigma-Aldrich Co. LLC.), p100/p52 (#3017, 1:1000), NIK (#4994, 1:1000), and cIAP2 (#3130, 1:1000) (Cells Signaling Technology, Inc.), GFP (sc-9996, 1:1000) and HA (sc-805, 1:1000) (Santa Cruz Biotechnology, Inc.), and ubiquitin (BML-PW8810, 1:100, Enzo Life Science). Recombinant human CD40 ligand/TNFSF5 (617-CL) and recombinant human LIGHT/TNFSF14 (664-LI) were obtained from R&D Systems. Pierce anti-HA agarose (26181) was obtained from Thermo Scientific. Anti-FLAG M2 affinity gels (A2220), 3× FLAG peptide (F4799), anti-c-Myc agarose affinity gels (A7470), cycloheximide (C4859), and MG132 (C2211) were purchased from Sigma-Aldrich Co. LLC. Bortezomib (velcade) (MG-341) and protein G plus/protein A agarose suspension (IP05) were purchased from Merck Millipore. Complete protease inhibitor cocktail (13760700) was purchased from Roche.
Immunoprecipitation and western blot analysis
In general, cells were grown in 60-mm plates and then transfected with the designated expression constructs. Subsequently, cells were harvested in 1000 μL lysis buffer (20 mM Tris–HCl [pH 7.5] containing 150 mM NaCl, 1% (v/v) igepal, 10% (w/v) glycerol, and 1 mM complete protease inhibitor cocktail) and incubated at 4 °C for 30 min with gentle rocking. Cell lysates were centrifuged at 15,000 × g for 15 min to remove cell debris and nuclei. An aliquot (100 μL) of the supernatant was retained for western blot analysis, and the remaining supernatant was subjected to immunoprecipitation. Cell lysates were either mixed with 20 μL of anti-FLAG M2 affinity gel or anti-HA-agarose at 4 °C for 4 h with gentle agitation or the lysates were incubated for 2 h at 4 °C with appropriate antibodies (2 μg) with gentle rotation. Then, 30 μL of protein G plus/protein A agarose was added to each sample and incubated at 4 °C for 2 h with rocking. The antigen–antibody complexes were collected by centrifugation, washed three times with lysis buffer, and then boiled in sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) sample buffer (50 μL) for 5 min to elute the antigen complex from the affinity gel. Samples were resolved by SDS-PAGE, transferred to nitrocellulose membranes (10401116, GE Healthcare Life Sciences), and analyzed by immunoblotting using appropriate antibodies. Immunoreactivity was visualized by electrochemiluminescence.
Bacterial expression and purification of proteins
Escherichia coli BL21 (DE3) cells carrying bacterial expression constructs were grown at 37 °C and protein expression was induced with 1 mM isopropyl-β-
Preparation of recombinant HAX1 in Sf9 cells
To obtain baculovirus-expressed HAX1, recombinant bacmid expressing HAX1 was transfected into Sf9 cells using CellFECTIN® (Invitrogen). The resultant viral pool in the supernatant of the transfected cells was collected 3 days later. Sf9 cells were cultured in Sf-900 II serum-free medium (Invitrogen) at 27 °C. To produce recombinant HAX1 protein, Sf9 cells seeded at a density of 1 × 106 cells per mL were infected with recombinant HAX1 virus. The cells were harvested 48 h after infection and cell pellets were resuspended in lysis buffer (20 mM Tris–HCl [pH 7.5] containing 150 mM NaCl, 1% (v/v) igepal, 10% (w/v) glycerol, and 1 mM complete protease inhibitor cocktail). The resuspended cells were lysed using a sonicator. The resulting lysates were centrifuged at 15,000 × g for 1 h (twice) and the supernatants were subjected to immunoprecipitation using FLAG M2 affinity gels. Bound proteins were eluted using 3× FLAG peptide.
siRNA-mediated knockdown
RNA interference was carried out using specific siRNA duplexes to silence HAX1 in HEK 293T or MDA-MB-231 cells. Chemically synthesized siRNA duplexes were purchased from Bioneer Corporation. The following sequences were used for all experiments: 5′-CAGCCCAAAUCCUAUUUCA-3′. Delivery of siHAX1 or scrambled control into the cells was carried out using the Neon® transfection system (Invitrogen) according to the manufacturer’s instructions; cells were then incubated for 24–48 h before analysis.
In vitro binding assay
Purified HAX1 and cIAP2 proteins were preincubated at 4 °C for 30 min after which the mixtures were precipitated with protein G plus/protein A agarose and appropriate antibodies in binding buffer (20 mM HEPES containing 100 mM NaCl, 5% [w/v] glycerol, 0.1 mg bovine serum albumin [BSA], and 0.1% Triton X-100) at 4 °C for 4 h. The formed immune complexes were then analyzed by immunoblotting using appropriate antibodies.
In vitro auto-ubiquitination assay
The polyubiquitination assay mixture contained 25 mM Tris–HCl, pH 7.4, 5 mM MgCl2, 100 mM NaCl, 2 mM ATP, 0.2 mM dithiothreitol (DTT), 20 ng E1, 0.4 μM E2 (UbcH5b, 50 ng), 2 μg ubiquitin,1 μg cIAP2, and HAX1 (0, 0.5, and 5 μg). Reactions were incubated at 37 °C for 1 h and the ubiquitinated products were detected by immunoblotting using an anti-cIAP2 antibody.
In vitro binding assays between E2-ubiqutin conjugate and cIAP2 and discharge assay
In vitro binding assays between E2-ubiquitin (E2-Ub) conjugate and cIAP2 were performed according to Catherine L. Day’s method [31]. Purified cIAP2 and HAX1 proteins were preincubated at 4 °C for 30 min. Then, cIAP2 protein and E2-Ub conjugate were mixed at 4 °C for 1 h in PBS buffer containing 0.2% Tween 20 and 2 mM DTT. The reaction mixtures were precipitated with protein G plus/protein A agarose and cIAP2 antibody at 4 °C for 4 h and then washed with PBS containing 0.2% Triton X-100 and 2 mM DTT. Bound proteins were eluted with 2× SDS-PAGE sample loading buffer. Samples were resolved by SDS-PAGE, and gels were subsequently stained using the Coomassie Blue staining method. To analyze discharge, purified cIAP2 and E2-Ub conjugate were mixed, HAX1 was added to the mixtures, and the samples were incubated in 50 mM MES, pH 6.5 at 37 °C for 6 h. The disappearance of E2-Ub conjugates was analyzed by immunoblotting using an anti-His antibody.
In vitro dimerization assay
Mixtures containing purified His-cIAP2, GST-BUCR proteins, and HAX1 (0, 0.5, and 5 μg) or HAX1N proteins (0, 0.5, and 5 μg) were preincubated at 4 °C for 30 min. Next, the reaction mixtures were examined by the His-pull down assay. Briefly, samples were added to Ni-NTA agarose resin in binding buffer (20 mM HEPES containing 100 mM NaCl, 5% [w/v] glycerol, 0.1 mg BSA, and 0.1% Triton X-100), incubated for 4 h at 4 °C, and the resulting complexes were analyzed by immunoblotting with anti-His antibody and anti-GST antibody.
In vivo dimerization assay
HEK 293T cells were co-transfected with HA-tagged cIAP2, Myc-tagged cIAP2, and increasing amounts of FLAG-tagged HAX1 (0, 0.8, and 2 μg). After 24 h, the cells were treated with the proteasome inhibitor MG132 (10 μΜ) for an additional 7 h and immunoprecipitated with anti-HA agarose for 4 h at 4 °C. Immune complexes were then analyzed by immunoblotting using appropriate antibodies.
RNA isolation and RT-qPCR
Total RNA (0.5 μg) isolated using TRIzol (Life Technologies) was reverse-transcribed with SuperScript III (Life Technologies) using random primers. The synthesized complementary DNA was used as template for qPCR using Power SYBR Green Master Mix (Life Technologies) on an Applied Biosystems 7500Fast system (Life Technologies). The primer sequences are presented in Supplementary Table S1. The relative expression level was calculated by the ΔΔCt method using glyceraldehyde-3-phosphate dehydrogenase as internal control. All amplifications were performed in triplicate wells and in more than three independent experiments.
ACKNOWLEDGEMENTS
This work was supported by KRIBB and research grant from the National Research Foundation of Korea (NRF-2011-0028172).
Contributions
J S Choi: performed experiments; J S Choi, S Kim, B C Park, S Y Cho, W C Son, P K Myung, S G Park, J H Kim; analyzed data; J S Choi, S Kim, S G Park, J H Kim, S W Chi, K H Bae; designed experiments; J S Choi, J H Kim wrote the paper.
Conflict of interest statement
The authors declare no conflict of interest
REFERENCES
1. Suzuki Y, Demoliere C, Kitamura D, Takeshita H, Deuschle U and Watanabe T. HAX-1, a novel intracellular protein, localized on mitochondria, directly associates with HS1, a substrate of Src family tyrosine kinases. Journal of immunology. 1997; 158(6):2736–2744.
2. Jeyaraju DV, Cisbani G, De Brito OM, Koonin EV and Pellegrini L. Hax1 lacks BH modules and is peripherally associated to heavy membranes: implications for Omi/HtrA2 and PARL activity in the regulation of mitochondrial stress and apoptosis. Cell death and differentiation. 2009; 16(12):1622–1629.
3. Han Y, Chen YS, Liu Z, Bodyak N, Rigor D, Bisping E, Pu WT and Kang PM. Overexpression of HAX-1 protects cardiac myocytes from apoptosis through caspase-9 inhibition. Circulation research. 2006; 99(4):415–423.
4. Vafiadaki E, Arvanitis DA, Pagakis SN, Papalouka V, Sanoudou D, Kontrogianni-Konstantopoulos A and Kranias EG. The anti-apoptotic protein HAX-1 interacts with SERCA2 and regulates its protein levels to promote cell survival. Molecular biology of the cell. 2009; 20(1):306–318.
5. Vafiadaki E, Sanoudou D, Arvanitis DA, Catino DH, Kranias EG and Kontrogianni-Konstantopoulos A. Phospholamban interacts with HAX-1, a mitochondrial protein with anti-apoptotic function. Journal of molecular biology. 2007; 367(1):65–79.
6. Chao JR, Parganas E, Boyd K, Hong CY, Opferman JT and Ihle JN. Hax1-mediated processing of HtrA2 by Parl allows survival of lymphocytes and neurons. Nature. 2008; 452(7183):98–102.
7. Trebinska A, Rembiszewska A, Ciosek K, Ptaszynski K, Rowinski S, Kupryjanczyk J, Siedlecki JA and Grzybowska EA. HAX-1 overexpression, splicing and cellular localization in tumors. BMC cancer. 2010; 10:76.
8. Smith BN, Ancliff PJ, Pizzey A, Khwaja A, Linch DC and Gale RE. Homozygous HAX1 mutations in severe congenital neutropenia patients with sporadic disease: a novel mutation in two unrelated British kindreds. British journal of haematology. 2009; 144(5):762–770.
9. Klein C, Grudzien M, Appaswamy G, Germeshausen M, Sandrock I, Schaffer AA, Rathinam C, Boztug K, Schwinzer B, Rezaei N, Bohn G, Melin M, Carlsson G, Fadeel B, Dahl N and Palmblad J. HAX1 deficiency causes autosomal recessive severe congenital neutropenia (Kostmann disease). Nature genetics. 2007; 39(1):86–92.
10. Deveraux QL and Reed JC. IAP family proteins—suppressors of apoptosis. Genes & development. 1999; 13(3):239–252.
11. Deveraux QL, Takahashi R, Salvesen GS and Reed JC. X-linked IAP is a direct inhibitor of cell-death proteases. Nature. 1997; 388(6639):300–304.
12. Tamm I, Wang Y, Sausville E, Scudiero DA, Vigna N, Oltersdorf T and Reed JC. IAP-family protein survivin inhibits caspase activity and apoptosis induced by Fas (CD95), Bax, caspases, and anticancer drugs. Cancer research. 1998; 58(23):5315–5320.
13. LaCasse EC, Baird S, Korneluk RG and MacKenzie AE. The inhibitors of apoptosis (IAPs) and their emerging role in cancer. Oncogene. 1998; 17(25):3247–3259.
14. Tamm I, Kornblau SM, Segall H, Krajewski S, Welsh K, Kitada S, Scudiero DA, Tudor G, Qui YH, Monks A, Andreeff M and Reed JC. Expression and prognostic significance of IAP-family genes in human cancers and myeloid leukemias. Clinical cancer research : an official journal of the American Association for Cancer Research. 2000; 6(5):1796–1803.
15. Li J, Feng Q, Kim JM, Schneiderman D, Liston P, Li M, Vanderhyden B, Faught W, Fung MF, Senterman M, Korneluk RG and Tsang BK. Human ovarian cancer and cisplatin resistance: possible role of inhibitor of apoptosis proteins. Endocrinology. 2001; 142(1):370–380.
16. Vucic D and Fairbrother WJ. The inhibitor of apoptosis proteins as therapeutic targets in cancer. Clinical cancer research : an official journal of the American Association for Cancer Research. 2007; 13(20):5995–6000.
17. Hunter AM, LaCasse EC and Korneluk RG. The inhibitors of apoptosis (IAPs) as cancer targets. Apoptosis : an international journal on programmed cell death. 2007; 12(9):1543–1568.
18. Eckelman BP and Salvesen GS. The human anti-apoptotic proteins cIAP1 and cIAP2 bind but do not inhibit caspases. The Journal of biological chemistry. 2006; 281(6):3254–3260.
19. Yang Y, Fang S, Jensen JP, Weissman AM and Ashwell JD. Ubiquitin protein ligase activity of IAPs and their degradation in proteasomes in response to apoptotic stimuli. Science. 2000; 288(5467):874–877.
20. Vallabhapurapu S, Matsuzawa A, Zhang W, Tseng PH, Keats JJ, Wang H, Vignali DA, Bergsagel PL and Karin M. Nonredundant and complementary functions of TRAF2 and TRAF3 in a ubiquitination cascade that activates NIK-dependent alternative NF-kappaB signaling. Nature immunology. 2008; 9(12):1364–1370.
21. Zarnegar BJ, Wang Y, Mahoney DJ, Dempsey PW, Cheung HH, He J, Shiba T, Yang X, Yeh WC, Mak TW, Korneluk RG and Cheng G. Noncanonical NF-kappaB activation requires coordinated assembly of a regulatory complex of the adaptors cIAP1, cIAP2, TRAF2 and TRAF3 and the kinase NIK. Nature immunology. 2008; 9(12):1371–1378.
22. Coope HJ, Atkinson PG, Huhse B, Belich M, Janzen J, Holman MJ, Klaus GG, Johnston LH and Ley SC. CD40 regulates the processing of NF-kappaB2 p100 to p52. The EMBO journal. 2002; 21(20):5375–5385.
23. Claudio E, Brown K, Park S, Wang H and Siebenlist U. BAFF-induced NEMO-independent processing of NF-kappa B2 in maturing B cells. Nature immunology. 2002; 3(10):958–965.
24. Madge LA, Kluger MS, Orange JS and May MJ. Lymphotoxin-alpha 1 beta 2 and LIGHT induce classical and noncanonical NF-kappa B-dependent proinflammatory gene expression in vascular endothelial cells. Journal of immunology. 2008; 180(5):3467–3477.
25. Senftleben U, Cao Y, Xiao G, Greten FR, Krahn G, Bonizzi G, Chen Y, Hu Y, Fong A, Sun SC and Karin M. Activation by IKKalpha of a second, evolutionary conserved, NF-kappa B signaling pathway. Science. 2001; 293(5534):1495–1499.
26. Xiao G, Harhaj EW and Sun SC. NF-kappaB-inducing kinase regulates the processing of NF-kappaB2 p100. Molecular cell. 2001; 7(2):401–409.
27. Verhagen AM, Ekert PG, Pakusch M, Silke J, Connolly LM, Reid GE, Moritz RL, Simpson RJ and Vaux DL. Identification of DIABLO, a mammalian protein that promotes apoptosis by binding to and antagonizing IAP proteins. Cell. 2000; 102(1):43–53.
28. Yang QH and Du C. Smac/DIABLO selectively reduces the levels of c-IAP1 and c-IAP2 but not that of XIAP and livin in HeLa cells. The Journal of biological chemistry. 2004; 279(17):16963–16970.
29. Gyrd-Hansen M, Darding M, Miasari M, Santoro MM, Zender L, Xue W, Tenev T, da Fonseca PC, Zvelebil M, Bujnicki JM, Lowe S, Silke J and Meier P. IAPs contain an evolutionarily conserved ubiquitin-binding domain that regulates NF-kappaB as well as cell survival and oncogenesis. Nature cell biology. 2008; 10(11):1309–1317.
30. Cossu F, Mastrangelo E, Milani M, Sorrentino G, Lecis D, Delia D, Manzoni L, Seneci P, Scolastico C and Bolognesi M. Designing Smac-mimetics as antagonists of XIAP, cIAP1, and cIAP2. Biochemical and biophysical research communications. 2009; 378(2):162–167.
31. Feltham R, Bettjeman B, Budhidarmo R, Mace PD, Shirley S, Condon SM, Chunduru SK, McKinlay MA, Vaux DL, Silke J and Day CL. Smac mimetics activate the E3 ligase activity of cIAP1 protein by promoting RING domain dimerization. J Biol Chem. 2011; 286(19):17015–17028.
32. Dueber EC, Schoeffler AJ, Lingel A, Elliott JM, Fedorova AV, Giannetti AM, Zobel K, Maurer B, Varfolomeev E, Wu P, Wallweber HJ, Hymowitz SG, Deshayes K, Vucic D and Fairbrother WJ. Antagonists induce a conformational change in cIAP1 that promotes autoubiquitination. Science. 2011; 334(6054):376–380.
33. Kang YJ, Jang M, Park YK, Kang S, Bae KH, Cho S, Lee CK, Park BC, Chi SW and Park SG. Molecular interaction between HAX-1 and XIAP inhibits apoptosis. Biochemical and biophysical research communications. 2010; 393(4):794–799.
34. Huang H, Joazeiro CA, Bonfoco E, Kamada S, Leverson JD and Hunter T. The inhibitor of apoptosis, cIAP2, functions as a ubiquitin-protein ligase and promotes in vitro monoubiquitination of caspases 3 and 7. The Journal of biological chemistry. 2000; 275(35):26661–26664.
35. Vaux DL and Silke J. IAPs, RINGs and ubiquitylation. Nature reviews Molecular cell biology. 2005; 6(4):287–297.
36. Vaux DL and Silke J. IAPs--the ubiquitin connection. Cell death and differentiation. 2005; 12(9):1205–1207.
37. Szwarc M, Sarnowska E and Grzybowska EA. [HAX-1 protein: multifunctional factor involved in apoptosis, cell migration, endocytosis and mRNA transport]. Postepy biochemii. 2007; 53(3):218–227.
38. Grzybowska EA, Zayat V, Konopinski R, Trebinska A, Szwarc M, Sarnowska E, Macech E, Korczynski J, Knapp A and Siedlecki JA. HAX-1 is a nucleocytoplasmic shuttling protein with a possible role in mRNA processing. The FEBS journal. 2013; 280(1):256–272.
39. Silke J, Kratina T, Chu D, Ekert PG, Day CL, Pakusch M, Huang DC and Vaux DL. Determination of cell survival by RING-mediated regulation of inhibitor of apoptosis (IAP) protein abundance. Proc Natl Acad Sci U S A. 2005; 102(45):16182–16187.
40. Deshaies RJ and Joazeiro CA. RING domain E3 ubiquitin ligases. Annual review of biochemistry. 2009; 78:399–434.
41. Mace PD, Linke K, Feltham R, Schumacher FR, Smith CA, Vaux DL, Silke J and Day CL. Structures of the cIAP2 RING domain reveal conformational changes associated with ubiquitin-conjugating enzyme (E2) recruitment. The Journal of biological chemistry. 2008; 283(46):31633–31640.
42. Ozkan E, Yu H and Deisenhofer J. Mechanistic insight into the allosteric activation of a ubiquitin-conjugating enzyme by RING-type ubiquitin ligases. Proc Natl Acad Sci U S A. 2005; 102(52):18890–18895.
43. Varfolomeev E, Blankenship JW, Wayson SM, Fedorova AV, Kayagaki N, Garg P, Zobel K, Dynek JN, Elliott LO, Wallweber HJ, Flygare JA, Fairbrother WJ, Deshayes K, Dixit VM and Vucic D. IAP antagonists induce autoubiquitination of c-IAPs, NF-kappaB activation, and TNFalpha-dependent apoptosis. Cell. 2007; 131(4):669–681.
44. Yilmaz ZB, Weih DS, Sivakumar V and Weih F. RelB is required for Peyer's patch development: differential regulation of p52-RelB by lymphotoxin and TNF. The EMBO journal. 2003; 22(1):121–130.
45. Hofmann K, Bucher P and Tschopp J. The CARD domain: a new apoptotic signalling motif. Trends in biochemical sciences. 1997; 22(5):155–156.
46. Nakatani Y, Kleffmann T, Linke K, Condon SM, Hinds MG and Day CL. Regulation of ubiquitin transfer by XIAP, a dimeric RING E3 ligase. The Biochemical journal. 2013; 450(3):629–638.
47. Lopez J, John SW, Tenev T, Rautureau GJ, Hinds MG, Francalanci F, Wilson R, Broemer M, Santoro MM, Day CL and Meier P. CARD-mediated autoinhibition of cIAP1's E3 ligase activity suppresses cell proliferation and migration. Molecular cell. 2011; 42(5):569–583.
48. Koontz J and Kontrogianni-Konstantopoulos A. Competition through Dimerization between Antiapoptotic and Proapoptotic HS-1-associated Protein X-1 (Hax-1). The Journal of biological chemistry. 2014; 289(6):3468–3477.
49. Eckhardt I, Roesler S and Fulda S. Identification of DR5 as a critical, NF-kappaB-regulated mediator of Smac-induced apoptosis. Cell death & disease. 2013; 4:e936.
50. Conze DB, Albert L, Ferrick DA, Goeddel DV, Yeh WC, Mak T and Ashwell JD. Posttranscriptional downregulation of c-IAP2 by the ubiquitin protein ligase c-IAP1 in vivo. Molecular and cellular biology. 2005; 25(8):3348–3356.
51. Darding M, Feltham R, Tenev T, Bianchi K, Benetatos C, Silke J and Meier P. Molecular determinants of Smac mimetic induced degradation of cIAP1 and cIAP2. Cell death and differentiation. 2011; 18(8):1376–1386.
52. Jitkaew S, Trebinska A, Grzybowska E, Carlsson G, Nordstrom A, Lehtio J, Frojmark AS, Dahl N and Fadeel B. N(alpha)-tosyl-L-phenylalanine chloromethyl ketone induces caspase-dependent apoptosis in transformed human B cell lines with transcriptional down-regulation of anti-apoptotic HS1-associated protein X-1. The Journal of biological chemistry. 2009; 284(41):27827–27837.
53. Peckl-Schmid D, Wolkerstorfer S, Konigsberger S, Achatz-Straussberger G, Feichtner S, Schwaiger E, Zaborsky N, Huemer M, Gratz IK, Schibli R, Lamers M, Crameri R, Moser K, Luger EO and Achatz G. HAX1 deficiency: impact on lymphopoiesis and B-cell development. European journal of immunology. 2010; 40(11):3161–3172.
