Abstract
Silvina Odete Bustos1, Gustavo José da Silva Pereira2, Renata de Freitas Saito1, Cristiane Damas Gil3, Daniela Bertolli Zanatta1, Soraya Soubhi Smaili2 and Roger Chammas1
1Instituto do Câncer do Estado de São Paulo, Faculdade de Medicina de São Paulo, São Paulo, Brazil
2Department of Pharmacology, Federal University of São Paulo, São Paulo, Brazil
3Laboratory of Histology, Department of Morphology and Genetics, Federal University of São Paulo, São Paulo, Brazil
Correspondence to:
Roger Chammas, email: [email protected]
Keywords: autophagy; galectin-3; melanoma; vemurafenib; starvation
Received: October 20, 2017 Accepted: February 10, 2018 Epub: February 16, 2018 Published: March 06, 2018
ABSTRACT
Melanoma is a current worldwide problem, as its incidence is increasing. In the last years, several studies have shown that melanoma cells display high levels of autophagy, a self-degradative process that can promote survival leading to drug resistance. Consequently, autophagy regulation represents a challenge for cancer therapy. Herein, we showed that galectin-3 (Gal-3), a β-galactoside binding lectin which is often lost along melanoma progression, is a negative regulator of autophagy in melanoma cells. Our data demonstrated that Gal-3low/negative cells were more resistant to the inhibition of the activity of the cancer driver gene BRAFV600E by vemurafenib (PLX4032). Interestingly, in these cells, starvation caused further LC3-II accumulation in cells exposed to chloroquine, which inhibits the degradative step in autophagy. In addition, Gal-3 low/negative tumor cells accumulated more LC3-II than Gal-3 high tumor cells in vivo. Resistance of Gal-3low/negative cells was associated with increased production of superoxide and activation of the Endoplasmic Reticulum (ER) stress response, as evaluated by accumulation of GRP78. Pharmacological inhibition of autophagy with bafilomycin A reversed the relative resistance of Gal-3low/negative cells to vemurafenib treatment. Taken together, these results show that the autophagic flux is dependent on Gal-3 levels, which attenuate the prosurvival role of autophagy.
INTRODUCTION
Galectin-3 (Gal-3) belongs to a superfamily of carbohydrate-binding proteins (lectins), and it is characterized to bind with higher specificity to β-galactoside containing oligosaccharides. Gal-3 is constituted by three domains: a short NH2-terminal domain, a proline-rich collagen-α-like domain, and COOH-terminal carbohydrate-recognition domain (CRD) [1]. Gal-3 is a pleiotropic protein that mediates processes like cell adhesion, proliferation, death, migration, survival, angiogenesis and metastasis in several tumors. Gal-3 plays different functions, depending on its subcellular location (cell surface, cytoplasm, nucleus, endosomal compartment and mitochondria) and type of tumor [2, 3]. Gal-3 displays both CRD-dependent and independent functions, which makes this molecule versatile to act in diverse scenarios [4, 5].
Melanoma is the most aggressive form of skin cancer and its incidence has increased in the last years. Melanoma progression is a multistage process that may include all the following pigmented lesions; benign nevus, dysplastic nevus, radial and vertical growth phase melanoma and the lethal metastatic melanoma. Although progression from benign lesions is considered rare, the progression model has proven useful in the identification of several molecular lesions that are common in the more advanced cases. Metastatic melanoma can progress and acquire resistance to therapy, besides accumulating a high degree of genotypic heterogeneity [6–8]. Based in accumulating insights on melanoma aggressiveness and resistance, several studies led to the characterization of progression biomarkers, which in turn led to the identification of mechanisms associated with melanoma progression. In line with this, the relationship between Gal-3 expression and melanoma has been explored in the last years. The data indicate that thin primary melanomas express more Gal-3 than benign nevus, and this profile is further lost along tumor progression, leading to a decrease of Gal-3 expression in thicker and metastatic melanoma [9, 10].
During melanoma progression several processes and pathways, such as autophagy, are activated in melanoma cells, leading to the organization of an adaptive response against different types of cellular stress [11, 12]. Autophagy is a complex process involved with cancer initiation, progression and therapy responses [13–15]. The catabolic pathway is essential to maintain the homeostasis through the lysosomal degradation of macromolecules, allowing for increased availability of amino acids, fatty acids and nucleotides for anabolic processes [16, 17]. This pathway has a dual role in cancer. Initially, it was considered a mechanism for tumor-suppression, since disruption of genes related to autophagy, such as beclin-1, resulted in tumor development [18, 19]. Moreover, autophagy prevents cellular damage due to reactive oxygen species (ROS) and maintains energy levels. Defective autophagy leads to chronic oxidative stress, tissue damage, inflammation and genomic instability [15, 20]. Taken together, these data showed that autophagy was able to prevent tumor initiation, but along tumor progression, it promotes tumor cell survival and further growth. Recently, autophagy has also been related with the conditioning of the pre-metastatic niche suggesting that autophagy promotes several steps in the metastatic cascade [21]. Consistently, several studies have shown evidence of autophagy changes in melanoma progression. Metastatic melanoma cells have higher beclin-1 and LC3 expression than primary tumors and also present higher levels of autophagic flux [22, 23]. Furthermore, autophagy pathways at the advanced step of melanoma progression are very important to melanoma survival and chemoresistance [24, 25]. Based on this, deeper studies on the mechanisms of autophagy in melanoma are still necessary to reveal autophagy modulators and pathways associated in order to find new therapeutic targets [11, 26].
As Gal-3 expression is often decreased in more advanced melanomas, phases in which autophagy play a crucial role for cell survival, we hypothesized that Gal-3 would exert a negative control of the autophagic process. Herein, we have tested this hypothesis and investigated the impact of Gal-3 expression in human melanoma cell death pathways under treatment with vemurafenib.
RESULTS
Galectin-3 silencing increases resistance of melanoma cells to vemurafenib (PLX-4032) treatment
Gal-3 is a multifunctional protein involved in melanoma progression and regulates several critical biological processes for melanoma development [27, 28]. To characterize the involvement of Gal-3 in the response of melanoma cells to the treatment with PLX-4032, a BRAF enzyme inhibitor used in the clinics to treat melanoma patients who have the BRAFV600E mutation [29, 30], we first evaluated the distribution of cells in distinct cell cycle phases and cell death in Gal-3 silenced cells treated with PLX4032. As shown in Figure 1, in control cells (shSCR for scrambled short hairpin) PLX induced a G0/G1 phase arrest at 48 and 72 h after treatment. On the other hand, in shGal-3 cells PLX was not able to induce cell cycle arrest at 48 h. In relation to cell viability, PLX treatment induced more cell death in shSCR cells than in shGal-3 after 48 - 72 h, indicating that the expression of gal-3 is associated with relative resistance to cell death (Figure 1). Likewise, upon silencing of gal-3, SK-MEL-05 cells displayed the very same response to PLX, extending the finding observed in SK-MEL-37 cells (Supplementary Figure 4). However, the effects on SK-MEL-05 were attenuated in subsequent cell passaging.

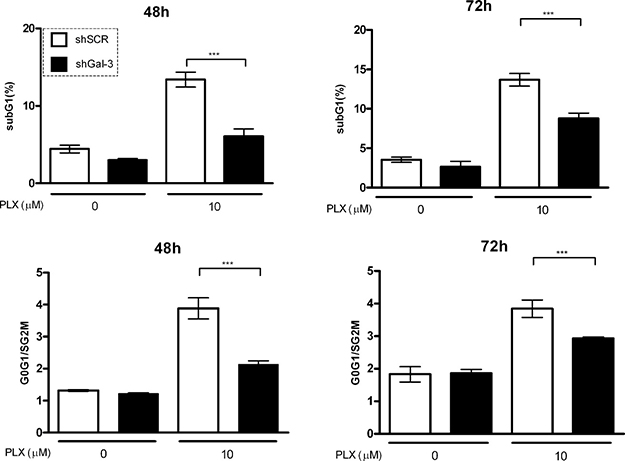

Figure 1: Galectin-3 silencing decreases both cell arrest in G0/G1 phases of the cell cycle and cell death induce by PLX in SK-MEL-37 cells. Galectin-3 expression was downregulated using specific short-harpin RNA oligonucleotides (shGal-3). Cells transduced with a short-hairpin scrambled RNA sequence (shSCR) served as controls. Both cells were cultured either in the absence or presence of PLX for 48 and 72 h and then analyzed by flow cytometry. The proportion of dying cells (SubG1, upper panels) and the distribution of cells in different phases of cell cycle (ratio G0G1/SG2M, lower panels) was assessed using propidium iodide (PI) staining. All data are representative of four independent experiments in triplicate and are expressed as mean ± SD (p < 0.001, one way ANOVA, Bonferroni post-test).
Galectin-3 regulates starvation-induced autophagic flux in melanocytes and melanoma cells
Recently, Gal-3 has been postulated to cause endocytic trafficking and to be associated with damaged endomembrane, e.g. lysosomal membrane, recycling [31] [32]. Likewise, another member of the galectin family, galectin-8 was involved in autophagy in Salmonella-infected cells [33]. To better understand how Gal-3 might be associated with the autophagic flux mediated by starvation, assays to discriminate between the rate of autophagosome formation and lysosomal activity, following both LC3-II and p62 levels, were performed either in the presence or absence of lysosomal inhibitors, e.g. Chloroquine (30 μM). In these assays, NGM melanocytes and two melanoma cells (WM1366 and SK-MEL-37) were exposed to chloroquine in the last hour of starvation, harvested and analyzed. The levels of p62 were not significantly altered (data not shown), but LC3-II was accumulated overtime in Gal-3-silenced cells. For all cell lines studied, chloroquine further increased LC3-II levels in Gal-3-silenced cells, especially 2 h after starvation (Figure 2).The addition of chloroquine increased LC3-II levels in shSCR and shGal-3 cells independent of the treatment. Chloroquine combined with EBSS incremented even more the levels of LC3-II and such accumulation was more evident in the absence of Gal-3. Thereby, to monitor and compare the autophagic flux during starvation time between siSCR cells and Gal-3-silenced cells (siGal-3), WM1366 melanoma cells transfected with mCherry-eGFP-LC3 were used to assess the formation rate of autophagosomes (AF, defined by both cherry- and GFP-puncta, i.e. yellow puncta) and autolysosomes (AL, defined by cherry only-puncta, since GFP is quenched in low pH). Upon starvation, both cells exhibited increased number of autolysosomes after 4 h. However, Gal-3-silenced cells displayed higher density of autolysosome when compared to shSCR cells (Figure 3A–3B). Next we identified more precisely the presence of autophagosomes/autolysosomes by electron microscopy. Under starvation conditions, the ultrastructure of SK-MEL-37 cells revealed the presence of several autophagic vacuoles with double-membrane and electron-dense bodies (Figure 3C). Altogether, the data showed that Gal-3 inhibition increased the autophagic flux in melanoma cells under starvation.

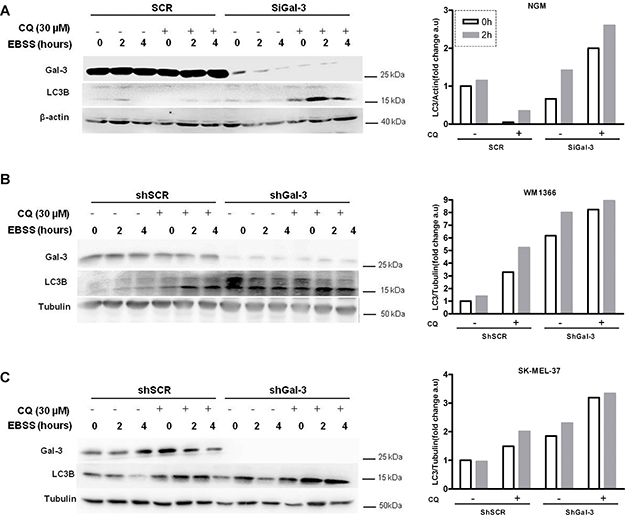

Figure 2: Galectin-3 acts as a negative regulator of starvation-induced autophagy in melanocytes and melanoma cells. LC3 lipidation and galectin-3 expression were detected by western blotting in NGM melanocytes (A), WM1366 (B) and SK-MEL-37 (C) melanoma cells, modified with either scrambled (SCR or shSCR) or interference RNAs for galectin-3 (SiGal-3 or shGal-3). Cells under starvation (EBSS) were treated in the presence or absence of the lysosomal inhibitor chloroquine (CQ, 30 μM, and 1:30 h) at indicated times, as shown at each panel. Bar graphs represent the quantification of the Western blots for LC3B (LC3-II) normalized to either β-actin or tubulin of a representative assay of three independent experiments.
Figure 3: Galectin-3 inhibition increases autolysosome formation under starvation in WM1366 cells. (A) Both shSCR and shGal-3 transduced WM1366 cells were transfected with a tandem fluorescent-tagged LC3 plasmid and further exposed to EBSS for 2 or 4 hours. Representative fluorescent image is shown (scale bars, 10 μm),(n = 2). (B) The autophagic flux was then analyzed in conditions indicated at each image by counting the number of GFP and mCherry puncta per cell. Autophagosomes (AP) are identified as positive puncta for both GFP and mCherry (yellow dots), autolysosomes (AL) are identified as mCherry-only positive puncta. Bars represent Mean ± SD, p < 0.001. (C) Ultrastructural images of melanoma cells (SK-MEL-37) treated with EBSS. Starvation (EBSS) induces vacuolar structures in melanoma cells after 2 h, which were more notable in shGal-3 cells. Several autophagic vacuoles with cytoplasmic cargo are presented (inset). Bars in the panoramic cell images represent 2 micra, while bar in the inset represents 0.5 micra.
Inhibition of galectin-3 is related to basal LC3 expression in melanoma in vivo
To further explore the basal LC3 levels in melanoma, SK-MEL-37 scramble or shGal-3 cells were injected subcutaneously in NOD/SCID mice and after 12 days, tumors were collected to detect Gal-3 and LC3-II by immunohistochemical staining. As shown in Figure 4, Gal-3 staining demonstrated that tumors derived from control shSCR-melanoma cells expressed Gal-3. However, in tumors derived from shGal-3-melanoma cells, Gal-3 was only observed in stromal cells (Figure 4, upper panel). Although basal LC3 staining was low in tumors, shGal-3 melanoma cells accumulated higher levels of LC3-II than Gal-3 expressing melanoma cells (Gal-3 high; Figure 4, on the right). The LC3 quantification results were consistent with our previous in vitro data.
Figure 4: Galectin-3 and LC3B staining in melanoma tumors from mice inoculated with either shSCR or shGal-3 transduced SK-MEL-37 cells. NC: negative control of shGal-3. Arrows indicate light brown-staining cells for the autophagy marker LC3B (LC3-II). In the bottom left, LC3B quantitative analysis by counting the proportion of positive cells. (n = 3). Error bars correspond to SD. (Student´s T test analysis, p < 0.001).
Expression of Gal-3 determines the outcome of PLX-treatment in SK-MEL-37 human melanoma cells through autophagy
As Gal-3 high cells showed less LC3-II accumulation, as well as increased sensitivity to PLX-induced cell death, SK-MEL-37 cells were treated with PLX (10 μM) for 72 hours followed by growth in fresh medium for 3, 5 and 7 days. Interestingly, the cumulative population doubling (CPD) showed a significant difference between Gal-3 high cells, since PLX led to a decrease in proliferating cells, thus controlling cell growth. On the other hand, Gal-3-silenced cells continued growing actively after treatment (Figure 5A, upper). A western blot was performed to investigate LC3-II expression in the same samples (Figure 5A, bottom). shGal-3 cells accumulated more LC3-II after 3 days of PLX treatment, in agreement with previous results (Figure 2).

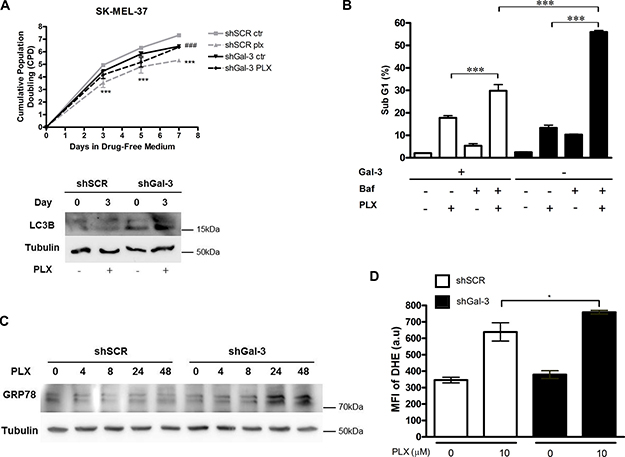

Figure 5: Expression of Gal-3 determines the outcome of PLX-treatment in SK-MEL-37 human melanoma cells through autophagy. (A) Both shSCR and shGal-3 SK-MEL-37 cells were treated with PLX (10 μM) for 72 h and after 3,5 and 7 days the cumulative population doubling (CPD) was analyzed and the LC3 levels were detected in samples from days 0 and 3. While PLX was effective in reducing the CPD in shSCR cells (***shSCR PLX relative to shSCR ctr group, p < 0.001), no differences were observed in shGal-3 cells, which accumulated LC3B. PLX was effective in galectin-3 expressing cells, and not on Gal-3 silenced cells (###, shSCR PLX relative to shGal-3 PLX group, p < 0.001). (B) Autophagy inhibitor bafilomycin was added to the untreated or treated PLX cells and the analysis of cell death (SubG1) was performed by flow cytometry. Bafilomycin increased the sensitivity of both Gal-3 high and Gal-3low/negative cells to PLX, reverting the relative resistance of Gal-3low/negative as compared to Gal-3 high cells. (C) GRP78 was detected by western blotting in SK-MEL-37 cells treated with PLX after 4,8,24 and 48 h. Accumulation of GRP78 in later time points of PLX treatment of Gal-3low/negative cells indicates activation of an endoplasmic reticulum stress response. (D) The mean fluorescence intensity (MFI) of the superoxide indicator dihydroethidium (DHE) was analyzed by flow cytometry after 48 h of PLX treatment.(a.u): arbitrary units. PLX led to increased superoxide accumulation on Gal-3low/negative cells as compared to Gal-3 high cells. Data are represented as mean ± SD ***p < 0.001;* p < 0.05. Figures show a representative assay from three independent experiments. Western blots were performed in two of the three experiments.
To explore whether the difference in cell death observed between shSCR and shGal-3 cells was related to autophagy we used two autophagy inhibitors: chloroquine (5 to 10 μM) and bafilomycin A1 (0.3 to 3 nM). Then, we evaluated the sub-G1 population after PLX treatment. We pre-treated the cells during 6 h with chloroquine or bafilomycin A1 to inhibit the last step of autophagy and avoid LC3-II degradation. Under these conditions, the cells were treated with PLX4032 for 48 h then cell death analyses were performed. As shown in Figure 5 B our results evidenced that pre-treatment with either bafilomycin or chloroquine (not shown) in combination with PLX significantly potentiated cell death, as compared to the PLX effect alone. Furthermore, the addition of Baf to PLX reduced the number of viable cells in shGal-3 group (Supplementary Figure 5). These observations suggest that the inhibitors are able to reverse the phenomena, previously demonstrated in Figure 1, via the inhibition of lysosome acidification and autophagy blockade. Together, these data showed that Gal-3 inhibition regulates autophagy and in turn this process interferes in the PLX response to cell death in shGal-3 cells.
Since melanoma is associated with ER stress and also with oxidative stress, we further tested the levels of GRP78, one of the most important ER-resident chaperones, and measured the superoxide generation in PLX-treated cells. The results revealed that PLX was capable to increasing GRP78 levels in shGal-3 cells after 48 h (Figure 5C). In the same context, the detection of superoxide by dihydroethidium (DHE) showed that PLX induces oxidative stress and such effect is greater in the shGal-3 group (Figure 5D). Because ROS is increased in the shGal-3 group, we further used an antioxidant, apocynin, to verify if LC3B accumulation observed in Gal-3 silenced cells is dependent on ROS levels. We showed that upon inhibition of NADPH oxidase activity, LC3B levels decreased after 48 h in both groups and interestingly, apocynin also reduced Gal-3 expression in shSCR cells, indicating a tight correlation between oxidative stress state and Gal-3 expression (Supplementary Figure 3). Altogether, our results showed that (i) the cell stress machinery was activated by PLX treatment of melanoma cells; (ii) autophagy protected melanoma cells from PLX-induced cell death; (iii) the autophagic flux rate was increased in the absence of Gal-3 conferring an advantage to Gal-3-silenced cells to survive to PLX treatment.
DISCUSSION
In the last years, autophagy has been widely studied as a critical metabolic process involved in cancer development, cancer cell survival and therefore in its resistance to treatment. Autophagy is often upregulated in melanoma [34] and Gal-3, a pleiotropic protein related to several cancer pathways, is down-regulated during melanoma progression [35]. Recently, a few studies showed that Gal-3 plays a role in autophagy, however, the mechanisms remain unclear. Understanding the role of Gal-3 in melanoma and as it relates with autophagy will generate new insights to autophagy pathways in cancer.
In the present work, we found that Gal-3 in melanocytes and melanoma cells decreased autophagy activity and it also regulated the cell fate after the treatment with the mutated BRAF inhibitor, vemurafenib (PLX-4032 or PLX). Moreover, autophagy blockage sensitizes melanoma cells to PLX treatment. Although PLX is used to treat BRAFV600E melanoma, patients regularly develop resistance to the drug, due to different mechanisms such as alternative activation of ERK signaling and autophagy induction [34, 36]. Firstly, we tested the effect of PLX on shSCR (Gal-3 high) and shGal-3 (Gal-3low/negative) SK-MEL-37 cells and demonstrated that Gal-3 expressing cells were more sensitive to PLX than Gal-3 low/negative cells. We next evaluated the autophagic flux assessing LC3-II and p62 levels in both Gal-3 high and Gal-3low/negative cells. Interestingly, Gal-3low/negative melanocytes and melanoma cells accumulated LC3-II after 2 h of starvation and chloroquine addition. Several studies showed that advanced malignant melanomas have increased levels of LC3-II as compared to their counterparts in early phases of progression [37]. Here, we show, for the first time, that loss of Gal-3 favors accumulation of LC3-II. Under these conditions, we were not able to detect changes in the levels of p62, a scaffold protein required for the aggregation of ubiquitinylated proteins [38, 39]. Failure in detecting a decrease in p62 levels in this study could be due to the fact that p62 (sequestosome-1) is regulated at transcriptional level, by different pathways, and its basal expression can be quickly restored after starvation [40, 41].
Increasing evidence associates Gal-3 with the autophagic process. Gal-3 is involved with the recruitment of the autophagic machinery and it is also important to recruit membranes to the autophagosome formation [42–44]. In this context, Gal-3 is important to the recognition of damaged endomembranes. In addition, Chauhan and collaborators demonstrated that TRIM16 interacts with Gal-3 in a ULK-1 dependent manner acting as a platform to organize autophagy factors and activate stages of selective autophagy in response to lysosomal and phagosomal damage [45]. The discrepancies between our results, related to increased autophagy in Gal-3low/negative cells is at least in part explained by the autophagy induction protocol we exploited herein, based on starvation and not directly dependent on endomembrane damage, as those mentioned above. Furthermore, it is well known that Gal-3 may play several roles depending on its subcellular location, where it regulates many fundamental biological processes involved in signaling, protein-protein interactions, metabolism, survival and cell death [1, 46, 47].
As a homeostatic process, autophagy is usually a transient response to different acute stressors. However, cancer cells maintain higher levels of autophagic markers chronically, as a survival adaptation strategy [48–50]. Additionally, other works using oncogene overexpression or viral infection showed a delay in autophagy induction [51, 52]. Based in these data and our findings, the differences in the CPD profile of Gal-3 high and Gal-3low/negative cells upon PLX treatment were related with up-regulation of autophagy in Gal-3low/negative cells. As autophagy may protect tumor cells through tumor cell adaptation and therefore resistance to stress, it could be necessary for the growth maintenance of Gal-3low/negative cells despite the treatment with PLX, as observed in Figure 5A and Supplementary Figure 1.
Autophagy may be regulated by several stress stimuli and their effectors, such as hypoxia, nutrient starvation, chemical drugs, viral infection, AMPK, ER stress, Erk1/2, ATP/AMP radio or intracellular reactive oxygen species (ROS) [53]. ROS have been described among the main intracellular signal transducers involved in autophagy induction. ROS, such as hydrogen peroxide (H2O2) [54] and the superoxide anion (O2-) [55] are upstream modulators of autophagy acting as oxidative stressors and inducers of cellular damage. ROS initiate early steps of autophagy and autophagy also reduces ROS levels through removal of proteins and damaged organelles [56]. Defects in autophagy promote accumulation of damaged structures leading to increase oxidative stress, thereby assembling an environment, which contributes to cancer development [57, 58]. Moreover, oxidative stress production in tumor cells in the microenvironment can induce autophagy in stroma cells stimulating metabolism and proliferation of cancer cells [59].
ER stress, as a cellular response to ROS, is an important regulator of autophagy as reviewed elsewhere [60]. ER stress is caused by the accumulation of misfolded or damaged proteins in the ER lumen. Such stress activates the unfolded protein response (UPR), which interferes with ER-resident chaperone levels, like GRP78, and ROS generation [61–63]. Accordingly, we observed higher levels of superoxide production in Gal-3low/negative cells after 48 h of PLX treatment. Upon accumulation of superoxide, Gal-3low/negative cells also accumulated GRP78 after 48 h of PLX treatment (Figure 5C and 5D). Taken together, these data indicate that Gal-3 protects cells from oxidative stress, as initially suggested by its homeostatic role in mitochondria [64]. In the absence of Gal-3, cells are in a pro-oxidative state and their survival would rely on autophagy. While it is clear that autophagy contributes to the cell fate, there is a dual response, survival or death, dependent on the stimulus and the signaling involved [65, 66]. In our setting of SK-MEL-37 cells, we observed a differential cell death response between Gal-3low/negative and Gal-3 high cells. Importantly, blockage of autophagy by late autophagy inhibitors sensitized both groups of cells after PLX treatment indicating that the pathway involved in the differential response to PLX is autophagy, acting as a survival mechanism in this context.
Considering the close integration among all these pathways and MAPK signaling as well as several reports that exhibit the regulation of autophagy in BRAF mutant melanoma, we hypothesized that extracellular signal-regulated kinase (ERK) may contribute to the regulation of autophagy in our model. Additionally, Gal-3 has been associated several times with different molecules that participate in the Ras–Raf–MAPK cascade [67–69]. Interestingly, a recent study identifies a new role for Gal-3 in which Gal-3 interaction with ανβ3 integrin drives cancer cell addiction to oncogenic KRAS. In this study, blocking Gal-3 extracellular function with a neutralizing pectin that competes for Gal-3 binding reduced nutrient uptake and increased ROS levels [70] in cancer cells. Here, we showed that the expression levels of pERK were increased in Gal-3low/negative cells after 48 h of PLX treatment (Supplementary Figure 2). Therefore, despite the inhibition of BRAFV600E, Gal-3low/negative cells rapidly rewired the RAS-RAF-MAPK pathway.
Maintenance of the activation of the ERK pathway under specific inhibitors, such as PLX, is critical for the emergence of resistant cells. In this regard, it has been shown that activation of autophagy (ATG) proteins led to the organization of molecular platforms that maintain the activation status of ERK [71] Collectively, the increased levels of ROS, ER-stress and activation of autophagy-related pathways in Gal-3low/negative cells defined the surviving phenotype in melanoma cells. On the other hand, as a negative regulator of autophagy, Gal-3 expression in tumor cells sensitizes them to the therapeutic effect of PLX. Analysis of Gal-3 expression in cohorts of patients under vemurafenib use will be useful to test whether Gal-3 could be used as a proxy for efficacy of ERK pathway inhibitors in melanoma.
MATERIALS AND METHODS
Cell culture
Human SK-MEL-37 melanoma cells (mutated BRAF) were cultured in MEM (Invitrogen). SK-MEL-05 human (mutated BRAF) and WM1366 melanoma cells (wild-type BRAF) were cultured in DMEM (Invitrogen) supplemented with 10% fetal bovine serum (FBS, Gibco), respectively. NGM cell line, derived from melanocytes of blue nevus, was obtained from Cell Bank of Rio de Janeiro (Brazil), cultured in DMEM supplemented with FBS 20% and HGMS (Invitrogen). SK-MEL-37 cells were kindly provided by Ludwig Cancer Research Institute. WM1366 and SK-MEL-05 cells were donated by Marisol Soengas (Centro Nacional de Investigaciones Oncológicas, Madrid, Spain). All cultured cells were maintained in a humidified incubator with 5% CO2 at 37°C.
Transient transfection and gal-3 specific siRNA
For SK-MEL-37 and WM1366 Gal-3 shRNA knockdown, cells were transduced with a lentivirus containing a LGALS3 shRNA sequence (OpenBiosystems, pLKO-shGAL-3 Cat. TRC0000029305) and then subjected to cell selection by puromycin (1 μg/mL) (Gibco). The shRNA scramble sequence was used as a transduction control. Gal-3 knockdown was evaluated by western blot in different passages. The plasmidial vector pLPCX (Clontech) tandem-tagged LC3 construct mCherry-eGFP-LC3 was used as previously described in Grasso et al. (2016) [72]. For gal-3 siRNA knockdown assays, WM1366 cells were transfected using a mix containing Lipofectamine ® RNAiMAX (Invitrogen), opti-MEM medium (Gibco, Invitrogen) and 20 μM of gal-3 siRNA (5′UUU CCU GAU UAG UGC UCC ACC CGC CGC-3′; 5′-GGG GGG UGG AGC ACU AAU CAG GAA A-3′) or 20 μM of scramble siRNA (IDT, Coralville, IA). NGM cells were electroporated (1200 V, 10 ms, 3 p) using Neon transfection system (Invitrogen) and 20 μM of gal-3 siRNA or 20 μM of scramble siRNA (IDT, Coralville, IA).
Cell treatments
To evaluate LC3 levels, cells were treated with chloroquine 30 μM (CQ, Sigma-Aldrich) for 90 minutes before the end the experiment. For the cell death experiments, cells were pretreated with 10 μM of CQ for 6 h and then 10 μM of PLX-4032 (Selleck, USA) in DMSO in combination with 5 μM of CQ. The same conditions were used in experiments with bafilomycin (BAF, Tocris Bioscience, UK) using BAF 3 nM and reduced to 0.5 nM after 6 h. Starvation was induced by EBBS Earle’s Balanced Salt Solution (Calcium Chloride 1.8 mM, Potassium Chloride 5.3 mM, Magnesium Sulfate 0.8 mM, Sodium Chloride 117 mM, Sodium Bicarbonate 26 mM and Sodium Phosphate Monobasic 1 mM). To reduce ROS levels we treated the cells with apocynin 100 μM during 2, 24 and 48 hours. The cumulative population doubling was performed as described in Filippe-Chiela et al. [50].
DNA content analysis by propidium iodide staining (PI)
All the cells were cultured in triplicates in 24-well plates (2.104 cells) and exposed to CQ, BAF or PLX as described above. After 48 or 72 h, cells were analyzed for their DNA content by PI staining for the evaluation of sub-G1 population and the distribution of cells in the distinct phases of cell cycle. Cells were harvested by trypsinization, fixed in ethanol 70% and analyzed by flow cytometry (Attune, Invitrogen). Next, the cells were washed with PBS, centrifuged for 4 min at 2000 rpm and incubated in 20 μg/mL of propidium iodide, 200 μg/mL of RNAse A and 0,1% v:v of Triton X-100 in PBS for 30 minutes protected from light. The cellular DNA content was analyzed using the Attune software.
Western blot
Cells were cultured in 6-well plates (2.5.105 cells/well), where they were exposed to the described treatment conditions. After treatment, the cells were lysed in a buffer containing 50 mM Tris, pH 7.5, 150 mM NaCl, 10 mM MgCl2, 0.5 mM DTT, 1 mM EDTA, 10% glycerol, 2% SDS, 1% Triton X-100 and protease inhibitors (aprotinin 2 μg/mL and PMSF 1 mM) for 30 min on ice. After centrifugation (13.000 rpm for 15 min at 4°C), the protein supernatants were collected, quantified by the Bradford method (Bio-Rad, Richmond, CA) and 30 μg total proteins were separated by SDS-PAGE. Next, the proteins were transferred onto PVDF membranes, blocked with 5% non-fat dry milk or TBS/BSA 5% for 1 h and incubated overnight with primary antibodies: LC3B (1:1000, Cell Signalling Technologies, Beverly, MA, USA, 2775), M3/38 rat antiGal-3 (1:100), GRP78 (1:1000, N-20, Santa Cruz Biotechnology, sc-1050), ERK and pERK from Sigma (Rehovot, Israel). For loading controls, antibodies to β-actin (1:4000, Sigma-Aldrich, Saint Louis, MO, USA, AC-74), GAPDH (1:4000, Ambion Thermo Fischer Scientific, Waltham, MA, USA, AM4300) and Tubulin (1:1000, Calbiochem, USA, DM1A) were used. The samples were visualized with the chemiluminescent substrate ECL (GE Healthcare). When necessary, we stripped the membranes using a buffer containing 25 mM glycine-HCl, pH 2, and 1% SDS. Spot intensity measurement was performed using ImageJ® software.
Confocal microscopy assay
WM1366 cells expressing mCherry-eGFP-LC3 were grown on coverslips, starved with EBSS and fixed with 4% paraformaldehyde for 15 min in PBS. Coverslips were mounted and the autophagic flux was measured under a confocal microscope (Zeiss 710, Germany).
Electron microscopy
SK-MEL-37 cells were starved with EBSS and later fixed in a 2% paraformaldehyde, 2% glutaraldehyde solution (1:1) in sodium cacodylate buffer 0.1 M (pH 7.4) for 24 h at 4°C. The cells were subsequently post-fixed in 1% osmium tetroxide, dehydrated in a graded ethanol series and embedded in Araldite resin (Electron Microscopy Science). Ultrathin sections (~90 nm) were stained with uranyl acetate and lead citrate and examined using a ZEISS Leo 906 electron microscope (Carl Zeiss).
Animals and immunohistochemistry
All procedures were in accordance with the guidelines of the Brazilian Council on Animal Care (COBEA) and approved by the Ethical Committee for Animal Research of School of Medicine, University of São Paulo. Eight-week-old female NOS/SCID wild-type (WT) mice were divided into two groups: shSCR (n = 6) and shGal-3 (n = 6). These animals were kept in sterile and specific pathogen free environments supplied with water and certified rodent diet ad libitum. Mice received a subcutaneous inoculation of 5 × 105 SK-MEL-37 cells in right flank and after 12 days euthanasia was done and tumors were collected for immunohistochemistry. Immunohistochemistry was performed on paraffin sections from SK-MEL-37 tumors. Sections were stained with rabbit LC3 (1:100, Cell Signalling Technologies, Beverly, MA, USA, 2775), rat Gal-3 (1:500, Santa Cruz Biotechnology, Texas, USA) diluted in 1% BSA overnight. After washing, the specimens were incubated with a secondary biotinylated antibody (LAB-SA Detection kit, Invitrogen, Paisley, UK). Positive staining was detected using a peroxidase-conjugated streptavidin complex, and color was developed using DAB substrate (Invitrogen). The sections were counterstained with hematoxylin and analyzed in Axioskop 2-Mot Plus Zeiss microscope (Carl Zeiss). To quantify LC3 stain positive cells were counted in different fields and the percentage of stain cells were calculated. Negative controls for immunohistochemistry consisted of specimens incubated only with the secondary biotinylated antibody and further developed.
Detection of reactive oxygen species (ROS) by Dihydroethidium (DHE)
DHE is useful for the detection of superoxide. Cells were plated in 24-well plates (2 × 104) and treated with PLX for 48 h. After harvesting, at least 105 viable cells from each experimental condition were incubated with 4 μM DHE in HBSS for 30 minutes at 37oC and then immediately analyzed using a flow cytometer.
Statistical analysis
All statistical analyses were performed with the GraphPad Prism 5.0 software. Differences were considered statistically significant if the probability value was less than 0.05 and all data are presented as mean ± SD.* P ≤ 0.05, ** P ≤ 0.01,*** P ≤ 0.001.
Abbreviations
Vemurafenib (PLX4032) Galectin-3 (Gal-3) Reactive Oxygen Species (ROS) Unfolded Protein Response (UPR) Mitogen-Activated Protein Kinase (MAPK) autophagy-related (ATG) cumulative population doubling (CPD).
Author contributions
SOB and RC conceived the study and designed the experiments. SOB conducted the experiments with critical and expert collaboration of GJSP, RFS, CDG and SSS. DBZ provided expert assistance in the construction of viral vectors and production of the virus used herein. All the authors discussed the results and their interpretation. SOB prepared the manuscript, which was read and edited by all the authors.
ACKNOWLEDGMENTS
The authors thank Profs Mauro Piacentini, Gian Maria Fimia and Guido Lenz for insightful discussions and comments.
CONFLICTS OF INTEREST
The authors have no conflict of interest to disclose. The research project was funded by Fundação de Amparo à Pesquisa do Estado de São Paulo (FAPESP) and Conselho Nacional de Desenvolvimento Científico e Tecnológico, which had no interference in the acquisition of data or their analysis.
FUNDING
This work was supported by FAPESP (1998/14247-6), CNPq (305225/2013-8) and INCT-Redoxoma.
