The NF1 gene revisited – from bench to bedside

Abstract

Neurofibromatosis type 1 (NF1) is a relatively common tumour predisposition syndrome related to germline aberrations of NF1, a tumour suppressor gene. The gene product neurofibromin is a negative regulator of the Ras cellular proliferation pathway, and also exerts tumour suppression via other mechanisms.

Recent next-generation sequencing projects have revealed somatic NF1 aberrations in various sporadic tumours. NF1 plays a critical role in a wide range of tumours. NF1 alterations appear to be associated with resistance to therapy and adverse outcomes in several tumour types.

Identification of a patient’s germline or somatic NF1 aberrations can be challenging, as NF1 is one of the largest human genes, with a myriad of possible mutations. Epigenetic factors may also contribute to inadequate levels of neurofibromin in cancer cells.

Clinical trials of NF1-based therapeutic approaches are currently limited. Preclinical studies on neurofibromin-deficient malignancies have mainly been on malignant peripheral nerve sheath tumour cell lines or xenografts derived from NF1 patients. However, the emerging recognition of the role of NF1 in sporadic cancers may lead to the development of NF1-based treatments for other tumour types. Improved understanding of the implications of NF1 aberrations is critical for the development of novel therapeutic strategies.

Introduction

Neurofibromatosis type 1, also known as NF1 or von Recklinghausen’s disease, is a tumour predisposition syndrome characterized by the development of multiple neurofibromas, café-au-lait spots and Lisch nodules. Initially described by Professor Von Recklinghausen, a German pathologist back in 1882, NF1 is one of the most common genetic disorders worldwide [1, 2]. The NF1 gene is a classic tumour suppressor gene on chromosome 17. Its product neurofibromin is an important negative regulator of Ras cellular proliferation pathways [3-7]. Individuals with NF1 are at increased risk of developing various tumours, including malignant peripheral nerve sheath tumour (MPNST), phaeochromocytoma, leukaemia, glioma, rhabdomyosarcoma and breast cancer [8, 9]. Neurofibromatosis type 1 or NF1 is distinct from neurofibromatosis type 2 (NF2), which is less common. NF2 syndrome is related to mutations in NF2 on chromosome 22, with a different spectrum of tumours, notably schwannomas, meningiomas and ependymomas [10].

More recently, somatic NF1 aberrations have been increasingly reported in various sporadic tumours, including brain, lung, breast, ovarian tumours and melanomas. Significant challenges remain in the detection of both germline and somatic aberrations. A better understanding of the implications of these aberrations is critical for the improvement of treatment outcomes of tumours with NF1 aberrations.

NF1 syndrome

NF1 is a relatively common genetic condition, with an incidence of approximately 1 in 2,000 to 1 in 5,000 individuals worldwide [2]. Although it is an autosomal dominant genetic disorder, approximately half of the cases have no family history, with the condition arising from sporadic mutations of the NF1 gene. The germline NF1 mutation rate is ten-fold higher than that observed in other inherited disease genes, with estimates from 1/7,800 to 1/23,000 gametes [2, 11].

The condition has 100% penetrance but its degree of expression varies considerably, even within the same family with the identical mutation [12]. NF1 is diagnosed clinically for most patients, with genetic testing reserved for equivocal cases or in the context of research studies. The National Institutes of Health (NIH) diagnostic criteria stipulate that at least 2 of the criteria in Table 1 must be fulfilled to make the clinical diagnosis of NF1 [13].

Loss-of-function mutations in the NF1 gene can also lead to the development of a wide range of abnormalities in the cardiovascular, musculoskeletal and nervous systems, in addition to the predisposition to benign and malignant tumours. Hypertension, vasculopathy, valvular dysfunction, skeletal anomalies, dysmorphic features, osteoprorosis, cognitive impairment and epilepsy may occur as part of the NF1 syndrome [14].

Table 1: National Institutes of Health (NIH) diagnostic criteria for neurofibromatosis type 1 (NF1)

• Six or more café-au-lait macules >5mm in greatest diameter in prepubertal individuals, and >15mm in postpubertal individuals
• Two or more neurofibromas of any type or one plexiform neurofibroma
• Freckling in the axillary or inguinal regions
• Optic glioma
• Two or more iris hamartoma (Lisch nodules)
• Distinctive bony lesion such as sphenoid dysplasia, or thinning of the long bone cortex with or without pseudoarthrosis
• A first-degree relative (parent, sibling or offspring) with NF1 based on the above criteria

The NF1 phenotype is highly variable, ranging from a very mild manifestation of the disease in certain individuals, to a very severe form in some others [12]. In general, there is no definite correlation between a particular alteration and phenotype. Exceptions include deletion of the entire NF1 gene which is associated with a severe form of the disease [15], a recurrently ascertained 3-bp in-frame deletion of exon 17 (c.2970-2972 delAAT) that is associated with the typical pigmentary NF1 features but without cutaneous or surface plexiform neurofibromas [16], and duplication of the NF1 locus which usually leads to intellectual impairment and epilepsy without the other NF1 features [17, 18]. Intra- and interfamilial variation in severity of the phenotype suggests that expression of the same genotype may be influenced by epigenetic or environmental factors [12, 19]. Females with NF1 often experience an exacerbation of the condition following pregnancy, possibly related to changes in the hormonal milieu [20].

This overview will focus on mainly the oncological aspects of NF1 aberrations, given the recent discovery of somatic NF1 aberrations in various cancers in individuals without germline NF1.

Biology of NF1 and neurofibromin

Identified and cloned in 1990, the NF1 gene is located at chromosome 17q11.2 [4, 21], and is one of the largest genes in the human genome, with 60 exons spanning over 350kb of genomic DNA [4, 22]. Another distinctive feature of the gene is the presence of 3 genes in intron 27b on the antisense strand: OMGP (oligodendrocyte-myelin glycoprotein), a membrane glycoprotein, and EVI2A and EVI2B (ecotropic viral integration sites), which are involved in the development of mouse leukemia [23, 24].

NF1 encodes the protein neurofibromin, which has an estimated molecular mass of 327kDa and consists of 2818 amino acids. Neurofibromin is ubiquitously expressed, but most highly in the central nervous system, especially in neurons, astrocytes, oligodendrocytes and Schwann cells [25]. As might be expected for such a large gene, alternate exons, splice variants and alternate start sites have been reported. The major reported functional isoforms are derived from the insertion of extra exons that preserve the open reading frame and show tissue restricted expression.

The two major isoforms are neurofibromin types I and II. Neurofibromin type I is expressed predominantly in the brain, and has significant Ras regulatory activity. Neurofibromin type II, also known as GRD2 (domain II-related GAP) is the product of the insertion of exon 23a. In contrast to neurofibromin type 1, it has limited GAP regulatory function [26, 27]. It is expressed mainly in Schwann cells, and is essential for learning and memory in mouse models. In studies on sporadic colon, ovarian and breast cancers as well as gastric cancer cell lines, expression of the type I isoform relative to type II isoform is increased in tumour samples compared to normal tissue [28-31].

Information on other neurofibromin isoforms is limited. Neurofibromin types III and IV, which contain exon 48a and both exons 23a and 48a respectively, are expressed in mainly cardiac and skeletal muscles. They appear to be essential for normal muscle and cardiac development [32, 33]. Apart from neurofibromin types I-IV, two other isoforms have been described. An isoform which contains exon 9a is expressed mainly in neurons of the forebrain, and may be involved in memory and learning mechanisms [34, 35]. Another isoform has alternative exon 10a-2 inserted, introducing a transmembrane domain. The function of this variant, which is observed in a majority of human tissues, is unclear, but may perform a housekeeping function in intracellular membranes [36].

Roles of NF1 and neurofibromin in tumour suppression

NF1 is considered a classical tumour suppressor gene, with both copies of the NF1 gene reported to be inactivated in benign and malignant tumours in NF1 patients [37-39]. The first hit is inherited or acquired as a germline mutation, and the second hit occurs from a somatic event. Loss of heterozygosity (LOH) due to large somatic rearrangements, deletions and somatic recombination may affect the wild-type NF1 allele. This can also potentially affect other genes on chromosome 17, which include the tumour suppressor protein p53 at 17p13.2, human epidermal growth factor receptor 2 (HER2) at 17q21.1, topoisomerase II alpha (TOP2A)(17q21.1), signal transducer and activator of transcription 3 (STAT3)(17q21.2) and breast cancer gene 1 (BRCA1 )(17q21.2) [40].

Various Nf1+/- mouse models show predisposition to tumour formation, including phaeochromocytomas, leukaemias and malignant peripheral nerve sheath tumours (MPNST), similar to the spectrum of NF1-associated malignancies observed in human counterparts [41-43].

The tumour suppressor function of neurofibromin is largely attributed to a small central region which comprises 360 amino acids encoded by exons 20-27a. This critical region has marked structural and sequence similarity to ras-guanosine-triphosphate(GTP)ase activation proteins (GAPs) and is known as the GAP-related domain (GRD). GAPs inactivate Ras by accelerating the conversion of active Ras-GTP to its inactive guanosine diphosphate (GDP)-bound form. The downregulation of oncogene Ras by neurofibromin prevents the downstream activation of mitogen-activated protein kinase (MAPK) and the PI3K/Akt/mTOR (mammalian target of rapamycin) cell proliferation and differentiation pathways, as demonstrated in Figure 1 below [3, 5-7, 44].

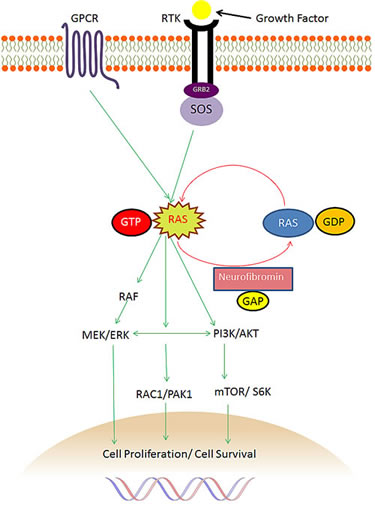

Figure 1: The role of NF1 and neurofibromin in the Ras pathway. G-protein coupled receptors (GPCRs) and receptor tyrosine kinases (RTKs), when activated by ligand, promote guanine nucleotide exchange to form activated Ras-GTP complex. Neurofibromin inactivates Ras by accelerating the conversion of active Ras-GTP to inactive GDP-bound Ras with its Ras-GTPase activity. Consequently, neurofibromin suppresses activation of the downstream effectors of Ras, including PI3K, Akt, mTOR, S6 kinase and RAF, MEK, ERK as well as RAC1 and PAK1. RTKs=receptor tyrosine kinases. Grb2=growth factor receptor bound 2. SOS=mammalian homolog of the Drosophila son of sevenless. RAS=rat sarcoma viral oncogene homologue. GDP=guanosine diphosphate. GTP=guanosine triphosphate. RAF=murine sarcoma viral oncogene homologue. MEK=MAPK-ERK kinase. PI3K=phosphatidylinositol-3–kinase. AKT=V-akt murine thymoma viral oncogene homologue 1. mTOR=mammalian target of rapamycin. Rac1=Ras-related C3 botulinum toxin substrate 1. PAK1=P21-Activated Kinase.

The Ras-GAP function of neurofibromin may be enhanced by protein kinase C (PKC) phosphorylation of the cystein-serine rich domain (CSRD) of the neurofibromin domain encoded by exons 11-17. The clustering of missense mutations in these regions among NF1 patients indicate the importance of PKC phosphorylation in sustaining normal neurofibromin function [14,45- 48].

Neurofibromin has also been demonstrated to bind to caveolin-1 (Cav-1), a membrane protein which regulates signalling molecules such as p21ras, protein kinase C and growth factor receptors. Formation of the neurofibromin-Cav-1 complex may lead to inactivation of p21ras-GTP and modulation of the p21ras/MAPK, PI3K/Akt pathways, controlling cell proliferation and differentiation [14, 49].

Apart from downregulation of Ras via the homology to GAPs, there are several other postulated mechanisms for the tumour suppressor function of neurofibromin (Table 2).

Table 2: Mechanisms of Tumour Suppression by Neurofibromin

Mechanisms of Tumour Suppression Reported

• Downregulation of Ras

• Positive regulation of adenyl cyclase (AC)

• Pro-apoptotic effect (ras-dependent and ras-independent)

• Regulation of cell adhesion and motility

• Suppression of epithelial mesenchymal transition (EMT)

• Suppression of heat shock factor (HSF)

Neurofibromin is a positive regulator of the enzyme adenylyl cyclase (AC), which generates intracellular cyclic AMP (cAMP). cAMP-dependent signaling appears to be important in learning and memory, but also provides a possible mechanism for tumour suppressor function as it regulates Ras activity [50, 51]. Increased cAMP leads to activation of Rap1, an anti-mitogenic RAS pathway antagonist, which can result in inhibition of RAF activation in astrocytes [52, 53]. cAMP-mediated regulation of MAPK may have differential effects in different tissues; the mechanisms of cAMP-mediated tumorigenesis in tissues outside the nervous system have not yet been elucidated.

Neurofibromin has also been reported to exert tumour suppressor function via a proapoptotic effect by Ras-dependent and Ras-independent pathways. Nf1-/-, Nf1+/-, and Nf1+/+ mouse embryonic fibroblasts (MEFs) exhibited gene-dosage-related resistance to apoptosis. Neurofibromin-deficient MEFs and human NF1 malignant peripheral nerve sheath tumour (MPNST) cells were more resistant to apoptosis than neurofibromin-expressing MEFs and schwannoma cells. Administration of farnesylthiosalicyic acid (FTS), a Ras inhibitor, increased apoptosis of the neurofibromin-deficient SV40 MEFs and MPNST cells, indicating dependence on the Ras pathway. However, the resistance of neurofibromin-deficient SV40 MEFs and MPNST cells to staurosporine (protein kinase C inhibitor which induces apoptosis), UV irradiation, and vincristine was independent of Ras and cAMP, as demonstrated by the inability of Ras inhibitors or agents that elevate cAMP levels to overcome the resistance. Expression levels of key apoptotic components such as Bcl-2 family proteins, caspases and the X-linked inhibitor of apoptosis (XIAP) were similar in neurofibromin-expressing and neurofibromin-deficient MEFs. The exact mechanism of the Ras-independent proapoptotic effects of neurofibromin remains unclear [54].

The role of neurofibromin in cell motility is important not only for the functioning in neurons, but may also contribute to its tumour suppressor function. Neurofibromin regulates the dynamics and reorganisation of actin filaments via the Rho-ROCK-LIMK2-cofillin pathway, and may be involved in adhesion and signalling at neuronal synapses through its interaction (via its GRD and C-terminal domains) with the transmembrane heparin sulphate proteoglycan syndecan. Lack of neurofibromin triggers the Rho-ROCK-LIMK2-cofilin pathway to alter the organization of actin cytoskeleton, promoting cell motility, invasiveness, and cell-cell adhesion, resulting in the formation of large cell aggregates. This may lead to the formation of multiple neurofibromas in NF1 patients, which consist of aggregates of various cell types, including Schwann cells, fibroblasts, endothelial cells and mast cells on a background of excessive extracellular matrix deposition [55, 56].

Another mechanism of tumour suppression by neurofibromin relates to its association with the N-terminal of focal adhesion kinase (FAK), a protein localised at contact sites of cells with extracellular matrix known as focal adhesions. This interaction helps to regulate cellular events including adhesion, proliferation, motility, cellular migration and survival. Nf1+/+ mouse embryonic fibroblast (MEF) cells exhibited less growth under serum deprivation conditions with reduced adherence on collagen and fibronectin-treated plates, compared to Nf1–/– cells [57].

There is also data to suggest that loss of neurofibromin leads to epithelial-mesenchymal transition (EMT). EMT is implicated in tumorigenesis and cancer metastasis. Immunohistochemical analysis and real-time quantitative reverse transcription polymerase chain reaction showed increased expression of EMT-related transcription factors including Snail, Slug, Twist, ZEB1 and ZEB2 in NF1-associated neurofibroma specimens and NF1-derived Schwann cells. Knockdown of NF1 with siRNA induced the expression of these transcription factors in normal human Schwann cells as well as epithelial-like breast cancer cell lines [58].

More recently, loss of NF1 has been reported to promote carcinogenesis by activating heat shock factor 1 (HSF1), the master transcriptional regulator of the heat shock response. Knockout of NF1 in MEFs triggered activation of HSF1, increasing HSF1 levels. This resulted in Nf1–/– cells becoming tolerant to proteotoxic stress with proteasome inhibitors and HSP90 inhibitor. This activation of HSF1 relied on dysregulated MAPK signaling. HSF1, in turn, supported MAPK signaling. In NPcis+/- mouse models where Trp53 and Nf1 genes are disrupted on the same chromosome to develop soft tissue sarcomas resembling human MPNSTs, Hsf1 knockout impeded NF1-associated carcinogenesis by attenuating oncogenic RAS/MAPK signaling. In cell lines from human malignant peripheral nerve sheath tumors (MPNSTs) driven by NF1 loss and in surgically excised human MPNSTs, HSF1 was also overexpressed and activated or phosphorylated [59].

Tumours associated with NF1

Individuals with NF1 are predisposed to developing both benign and malignant tumours throughout life. The risk of malignancy is increased 2.5 to fourfold in NF1 compared to the general population [8, 60]. Average life expectancy is reduced by 10-15 years, with cancer being the most common cause of death [2].

The tumour types individuals with NF1 are at increased risk of developing include both nervous system and non-nervous system tumours. The characteristics of the more common NF1-associated tumours are listed in Table 3. Accurate estimation of the relative frequencies of the various tumour types is challenging, as different studies based on hospital data may overestimate the frequency of specific tumours compared to population-based studies. This partly accounts for the wide range of prevalence or incidence figures reported in the literature for various tumours.

Malignant peripheral nerve sheath tumours (MPNSTs), previously referred to as neurofibrosarcomas, are a major cause of morbidity and mortality in NF1. MPNSTs typically arise from malignant transformation of plexiform neurofibromas, and occasionally spinal nerve root or subcutaneous neurofibromas. In NF1 the lifetime risk of developing MPNST is 8-13%, with estimated annual incidence at 0.16%, compared to 0.001% in the general population [9, 61, 62].

There is a wide range of other NF1-associated tumours including optic pathway gliomas (OPGs), rhabdomyosarcomas, neuroblastomas and juvenile myelomonocytic leukaemias (JMML) in the paediatric setting, as well as gastrointestinal stromal tumour (GIST), phaeochromocytomas and carcinoid tumours in adults. OPGs, like MPNSTs, may occur in both children and adults [9, 61, 62]. More recently, an increased risk of breast cancer among women with NF1 has also been reported [63, 64]. Breast cancer in NF1 patients appears to have an aggressive phenotype in the two reported case series [65, 66].

NF1 patients are also at an increased risk of developing radiation-induced malignancies. In a study of NF1 patients treated with radiotherapy for optic glioma, the relative risk of second CNS tumour was 3.04 (95% CI, 1.29 to 7.15) [67]. Hence radiotherapy should be avoided in children with NF1, unless it is absolutely essential. In mouse model studies, Nf1+/- mice subjected to irradiation developed in-field tumours associated with NF1 such as phaeochromocytomas, as well as typical second malignant neoplasms such as sarcomas and breast cancers [68-70]. This may be related to upregulated, perturbed cell cycle and DNA repair pathways with NF1-haploinsufficiency, as observed in human lymphoblastoid cell lines from NF1-affected and normal individuals, as well as in lymphocytes from wildtype and Nf1+/- mice. Activation of DNA damage response (DDR) genes can paradoxically trigger oncogene-induced DNA damage and genomic instability, resulting in carcinogenesis [71, 72]. Interestingly, somatic monoallelic loss of NF1 and TP53 in the adjacent allele was observed in radiation-induced malignancies arising in both wildtype and Nf1+/- mice in one study [68]. NF1 loss appears to be a critical event in mutagen-induced malignancies beyond the classical NF1-associated tumour types.

Table 3: Tumours associated with NF1 syndrome

Tumour Type Associated with NF1	Age category	Frequency	Mechanism(s)	Differences compared to sporadic tumours	References
Malignant peripheral nerve sheath tumour (MPNST)	Adult, Paediatric	Lifetime risk 8-13%	LOH of NF1, mutation in TP53, copy number alterations, including deletion of CDKN2A, loss of PTEN	Earlier onset; central rather than peripheral location	[2, 9, 61, 62, 73-80]
Optic pathway glioma (OPG)	Adult (usually young), Paediatric	Incidence 1.5%-7.5% (Patil) prevalence 5-25%	LOH of NF1, mutation in TP53, deletion of CDKN2A	Earlier onset; anterior rather than posterior optic pathway	[9, 61, 62]
Rhabdomyosarcoma	Paediatric	Prevalence 1.4-6%	unknown	Earlier onset; urinary tract rather than head and neck	[9, 61, 81]
Neuroblastoma	Paediatric	Unknown	LOH of NF1, amplification of MYCN, deletion of 1p36		[9, 82, 83]
Juvenile myelomonocytic leukaemia (JMML)	Paediatric	Lifetime risk 200-fold increased	LOH of NF1, or compound heterozygous microlesions.		[62, 84-86]
Gastrointestinal Stromal Tumours (GISTs)	Adult	Lifetime risk 6%	LOH of NF1, some copy number alterations	Small intestine and multiple rather than gastric origin; lack of response to imatinib with lack of KIT and PDGFRA mutations	[9, 61, 87, 88]
Phaeochromocytoma	Adult	Prevalence 1%	LOH of NF1	Earlier onset; occasionally bilateral or extradrenal	[9, 61, 62, 89-91]
Carcinoid	Adult	Prevalence 1%	LOH of NF1	Earlier onset; periampullary rather than small intestine	[61, 62, 92]
Breast Cancer	Adult	Standardised incidence ratio of 3.5 to 5.2	Unknown	Earlier onset; possibly more aggressive	[63-66]

Somatic NF1 Aberrations in Sporadic Tumours and Effects of NF1 Deficiency

With the recent cancer genome sequencing projects, the heterogeneity of cancer genomes has been unraveled. Somatic NF1 aberrations are increasingly reported in various sporadic tumours, including brain, lung, breast, ovarian tumours as well melanomas and leukemias (Figure 2). This is particularly relevant with the advent of novel molecular therapies which can potentially be targeted at aberrations in the NF1 pathway. Improved understanding of the mechanisms of carcinogenesis is critical for the optimisation of these targeted therapies.

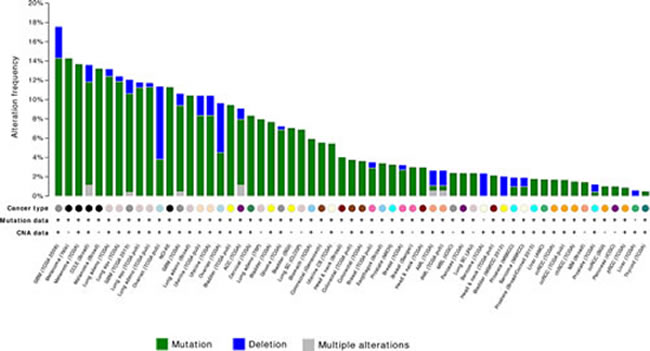

Figure 2: Frequency of NF1 mutation and homozygous deletion in human neoplasms (Source: The cBio Cancer genomics Portal; http://www.cbioportal.org)

Brain Tumours

In glioblastoma multiforme (GBM), NF1 is one of the most frequently mutated or deleted genes. The prevalence of NF1 somatic mutations in sporadic GBMs was initially estimated to be approximately 15%, with a subsequent study by The Cancer Genome Atlas (TCGA) network reporting aberrations in at least 23% (47 out of 206) of human GBM samples when both NF1 inactivating mutations and deletions (including heterozygous deletions) were analysed [93, 94]. However, when only mutations and homozygous deletions are considered, the frequency of alterations ranges from 12.1 to 17.6% [94, 95].

Data from mouse models support the importance of NF1 as a glioblastoma suppressor gene. Inactivation of TP53 and PTEN may cooperate with NF1 loss to induce the malignant transformation [96]. Haploinsufficiency for the NF1 tumour suppressor may have functional consequences, such as increased astrocyte proliferation and augmentation of angiogenesis in Nf1+/- heterozygous mouse models [97, 98]. Integrated genomic analysis of the TCGA data identified GBMs with NF1 and PTEN alterations to have a distinct mesenchymal-like expression profile. This mesenchymal subtype was characterised by the expression of mesenchymal markers such as CHI3L1 (also known as YKL40) and MET, as well as astrocytic markers (CD44, MERTK), reflecting the epithelial-to-mesenchymal transition. There was also high expression of genes in the tumour necrosis factor (TNF) and NK-ĸB pathway, related to the greater necrosis and associated inflammatory response in this subtype [99, 100].

Melanoma

Loss of NF1 in malignant melanoma cell lines was reported soon after discovery of the NF1 gene in the early 1990s [101, 102], but it was only recently that comprehensive genomic characterization of melanomas was performed. Melanomas may be classified into 3 major classes: 1) sun-shielded melanomas with wild type BRAF and NRAS which have low mutation load but high number of copy gains, 2) sun-exposed melanomas with BRAF or NRAS mutations and 3) sun-exposed melanomas with wild-type BRAF and NRAS, few copy number alterations but high mutation load. The last subtype of melanoma was typically associated with more advanced age, and 30% of melanomas from this class (10/33 samples) carried deleterious NF1 mutations. TP53, ARID2 and PTPRK were frequently mutated in these melanomas, suggesting that inactivation of tumour suppressors contribute to the pathogenesis of these BRAF and NRAS independent tumours [103, 104]. The overall frequency of NF1 mutations is estimated at 14% of cutaneous melanomas, with total of 475 specimens analysed so far in 3 separate studies (Figure 2) [103, 105].

Somatic NF1 mutations have also been reported in melanoma specimens harboring BRAF mutations [105, 106]. In a mouse model study, NF1 mutations cooperate with BRAF mutations in the pathogenesis of melanomas by preventing oncogene-induced senescence [106]. Loss of neurofibromin expression and NF1 loss-of-function mutations have been reported in melanomas from patients with de novo as well as acquired resistance to BRAF inhibitors [106, 107]. A pooled RNA interference screen targeting >16,500 genes in a BRAF inhibitor-sensitive melanoma cell line identified NF1 as the highest ranking gene whose knockdown abrogated the growth inhibitory effects of PLX4720, a BRAF inhibitor [107]. NF1-mutant melanomas are unlikely to respond to standard BRAF-targeted therapies but may benefit from drugs targeting the MEK and PI3K pathway instead. In mice injected with BRAF/NF1-mutated melanoma cells, there was resistance to vemurafenib, a BRAF inhibitor. In contrast, there was greater sensitivity to MEK inhibitor PD0325901, PI3K inhibitor GDC-0941 and rapamycin, an mTOR inhibitor. Importantly, rapamycin synergized with PD0325901, resulting in tumour regression in the allografts [106].

Lung Cancer

Whole exome or genome sequencing of primary lung adenocarcinomas identified NF1 as one of the most frequently mutated genes, with an estimated frequency of 11-12% [108, 109]. The clinical significance of NF1 mutations in the lung adenocarcinoma sequencing studies is not reported, but reduced NF1 mRNA expression was recently found to confer both intrinsic and acquired resistance to EGFR inhibitors in another recently reported study. However, somatic NF1 mutations were not found in the specimens from these patients with resistant tumours (more details in section on challenges of molecular diagnosis of NF1 and NF1 somatic aberrations) [110].

Approximately 12% of squamous cell lung cancers have alterations in NF1, according to a recently published TCGA study on squamous cell carcinomas. mRNA expression profiling identified 4 distinct subtypes of squamous cell lung cancers – classical, primitive, basal and secretory expression subtypes. The basal expression subtype of squamous cell lung carcinoma characteristically showed alterations in NF1 [111].

There is less data on small cell lung cancer, but the frequency of mutations in NF1 was reported as 2.4% and 6.9% in two separate studies of a smaller scale [112, 113].

Ovarian Carcinoma

The importance of NF1 in ovarian cancer was first reported by Sangha et al [114]. Initial genome-wide screen of DNA copy number alterations (CNAs) identified apparent NF1 homozygous deletions in 2 out of 36 primary ovarian serous carcinomas. This led to the discovery that 6 out of 18 ovarian carcinoma-derived cell lines had markedly reduced or lacked expression of NF1 protein, with 5 of the 6 cell lines harbouring NF1 mutations. Alterations in NF1, including splicing mutations and homozygous deletions, were identified in 22% (9/41) of the primary ovarian serous carcinomas studied. There was evidence of Ras pathway activation in these tumours and cell lines with NF1 defects, in the absence of KRAS or BRAF mutations. NF1 appears to cooperate with TP53 mutations which are present in virtually all ovarian serous carcinomas, in carcinogenesis [114].

In the large scale integrated genomic analyses of 489 high grade serous ovarian carcinomas by the TCGA cooperative group, NF1 has been recognized as one of the most frequently altered genes, with aberrrations in 12% of the cases (8% homozygous deletions, 4% mutations) [115]. These alterations affect signaling in the PI3K/Ras pathway, and may have therapeutic implications as discussed later in this review.

Breast Tumours

Although a computational biology study on gene expression datasets had previously reported associations between the activity levels of regulatory pathways linked with NF1 to clinical outcome in breast cancer [116], the importance of NF1 in the pathogenesis of breast cancer was not investigated further until recently. Absence of neurofibromin protein and lack of expression of NF1 mRNA type 1 isoform have been reported in the highly aggressive human breast cancer MDA-MB-231 cell line which is resistant to endocrine and cytotoxic agents. This was associated with accumulation of phosphorylated MAPK and activated Ras [117]. More recently, this Claudin-low subtype cell line was found to harbour NF1 mutation [118]. The Cancer Genome Project led by the Sanger Institute and The Cancer Genome Atlas (TCGA) projects reported NF1 mutations in approximately 3% of the breast cancers sequenced. Proportionally more NF1 mutations were found in luminal or ER+HER2- subtypes, although they were also present in selected HER2-overexpressing and triple negative or basal tumours [119, 120]. This may have therapeutic implications, given that knockdown of NF1 in MCF7 cells conferred resistance to tamoxifen in a genome-wide functional study [121].

NF1 has also been implicated as a breast cancer driver in a recent mouse model study. Chaos3 mice, which are engineered with a point mutation in the minichromosome maintenance 4 (Mcm4) gene, are highly unstable genomically, leading to the development of mammary tumours which resemble human breast cancers [122]. NF1 was found to be deleted in nearly all the mammary tumours from these mouse models. This led to re-examination of the TCGA data. 27.7% of human breast cancers in the TCGA project were subsequently found to harbour NF1 aberrations, majority of which were heterozygous deletions. Over 40% of HER2-overexpressing and basal subtypes showed these aberrations. This highlights the importance of investigating for the loss of NF1, in addition to the mutations [122].

Loss of heterozygosity of NF1 has been detected in radiation-induced breast cancers from patients without NF1 syndrome. The monoallelic loss of NF1 is likely to increase the potential for cooperating with other pathways such as TP53 pathways to promote cellular proliferation and carcinogenesis [68]. Loss of NF1 gene has also been reported in malignant phyllodes tumour of the breast [123] .

Haematological Malignancies

NF1 was previously implicated as one of the important drivers in certain sporadic haematological malignancies. Myeloid malignanices frequently harbor mutations in the Ras pathway. It is likely that NRAS/KRAS/NF1 aberrations cooperate with mutations in transcription factors and genes that regulate the epigenome in complex events leading to the development of AML [124]. In earlier studies, NF1 mutations were reported in up to 7% of acute myeloid leukemia (AML) cases, while 12% of 95 cases studied had copy number alterations in NF1 with mainly heterozygous deletions. Complete absence of NF1 expression was reported in 7% of adult AML, and this was associated with increased Ras-bound GTP [125]. In another study on a subset of AML with CBFB–MYH11 rearrangements, 16% of cases showed deletion of NF1 [126]. However, two recent large scale studies suggested that NF1 aberrations are not as frequent in de novo AML, although it may occur as a secondary event in disease progression [127, 128]. After taking into account the size of the gene in the test for significantly mutated genes, NF1 is not one of the significantly mutated genes in AML, with the gene altered in 2.7% of 187 cases [128].

Limited data suggests the frequency of NF1 alterations in myelodysplastic syndrome (MDS) varies from 0% to 9% [129, 130]. Recurrent cryptic alterations or deletions of the NF1 locus have been detected in 3 out of 35 patients in one of the studies [129]. The frequency of NF1 mutations in sporadic acute lymphoid leukemia (ALL) was recently reported as 3-8% [131, 132]. The prevalence of NF1 aberrations in other haematological malignancies such as multiple myeloma is currently unclear.

Colorectal Carcinoma

Data on the nature and the frequency of NF1 aberrations in colorectal carcinoma vary widely. After the initial report by Li et al that 1 out of 22 sporadic colon adenocarcinomas (4.5%) harboured the amino acid substitution altering Lys-1423 in the NF1 GRD [133], loss of heterozygosity (LOH) involving the NF1 gene in 14-57% of colorectal carcinomas was reported in two small studies [134, 135]. In addition to NF1 missense mutations, Ahlquist et al also found duplication of the whole NF1 gene or parts of it in 4 out of 24 specimens (17%) [136]. Nine out of ten NF1 mutations detected in this study occurred in introns likely involved in exon splicing. Notably, 8 of these 10 carcinomas showed microsatellite instability [136]. In contrast, NF1 was found to be altered in approximately 3.8-5.6% of colorectal carcinomas in two recent next generation sequencing studies [137, 138].

Other Sporadic Tumours

As displayed in Figure 2; there are several other tumours in which NF1 aberrations have been reported.

Aberrations of NF1 have also been reported in sporadic soft tissue sarcomas. Up to 10.5% of myxofibrosarcomas and 8% of pleomorphic liposarcomas harbor NF1 mutations [139, 140]. In a study on embryonal rhabdomyosarcoma, loss of NF1 occurred in 35%(9/26) of tumours (heterozygous or homozygous deletion of NF1 or heterozygous chromosomal loss), and were mutually exclusive with Ras mutations, suggesting NF1 loss as an alternative and potentially common driver of Ras activation in this major subtype of soft tissue sarcoma in young children [140].

A few studies reported somatic NF1 aberrations or inactivation in 26-41% of sporadic phaeochromocytomas from individuals without NF1. In keeping with the observation that NF1 individuals are at increased risk of developing phaeochromocytomas, these findings suggest that loss of NF1 function is a crucial event in the pathogenesis of both sporadic and NF1-associated phaeochromocytomas [91, 141, 142] .

Challenges of molecular diagnosis of NF1 and detection of NF1 somatic aberrations

The diagnosis of NF1 syndrome is usually established clinically in individuals with constitutional features of the syndrome. Germline NF1 testing is reserved mainly for equivocal cases, for prenatal diagnosis and in the research setting. Detection of NF1 mutations or deletions can be highly challenging due to several factors. NF1 is one of the largest genes, with 60 exons spanning over 350kb of DNA. The gene also has one of the highest mutation rates, with up to half of the mutations being novel mutations. In addition to the myriad of possible lesions with more than 1,200 different germline mutations reported so far (source: The Human Gene Mutation Database; http://www.hgmd.org) and the lack of mutation hotspots, the presence of several pseudogenes can complicate the molecular diagnosis further [11, 143-147]. A multi-step protocol involving analysis of genomic DNA and mRNA with RT-PCR, direct sequencing, multiplex ligation-dependent probe amplification (MLPA), and previously using also microsatellite marker analysis and FISH, was required to identify up to 95% of pathogenic mutations in individuals fulfilling the clinical NIH diagnostic criteria [148-150]. Analysis of RNA is essential as splicing mutations may be present in more than 20% of individuals with NF1 syndrome [144, 149, 150], and may be located deep in introns which may be missed when only exons are studied.

Given the potential difficulties of detecting the pathogenic mutation in individuals with clinical features of NF1, the identification of somatic NF1 aberrations in sporadic tumours can also pose a significant challenge. It is possible that the frequency of somatic NF1 alterations in various tumours is higher than what is currently recognized.

Although next generation sequencing (NGS) may be less laborious than direct sequencing, there are also limitations with NGS techniques. Decreased specificity of the capture probes may lead to the capture and enrichment of off-target sequences, including those from pseudogenes and closely related genes [143]. Exome sequencing alone may not detect splicing mutations or gene rearrangements. Whole genome sequencing combined with transcriptome analysis may be superior, but there are limitations to its applicability in the clinical setting currently due to the general requirement for fresh frozen tissue, complexity of data analysis and cost.

Downregulation of NF1 and neurofibromin via other mechanisms

Epigenetic factors, such as gene silencing by microRNAs and DNA methylation, may also influence the expression of NF1 and neurofibromin, as described below.

microRNAs are endogenous, small noncoding RNAs which can influence their target gene expression post-transcription. Downregulation of NF1 by microRNA-193b, which is overexpressed in sporadic head and neck squamous cell carcinomas (HNSCC), led to activation of ERK and resulted in tumour progression. Survival outcomes in HNSCC patients whose tumours expressed high levels of miR-193b were inferior compared to patients with low miR-193b expression. Knockdown of miR-193b in HNSCC cells increased NF1 transcript and protein expression levels, decreased ERK phosphorylation with reduction in cell viability, migration, invasion and tumour formation [151].

There is limited data on methylation changes, but methylation of NF1 was recently found to be the cause of a somatic second-hit inactivation in pilocytic astrocytoma from a patient with NF1 [152].

Excessive proteasomal degradation of neurofibromin can also result in deficiency of this critical tumour suppressor protein [153]. The ubiquitin ligase complex which controls both the regulated destruction and pathogenic destabilisation of neurofibromin was recently identified in glioblastomas as a Cullin 3(Cul3)/kelch repeat and BTB domain-containing 7 complex. Inhibition of Cul3 with Cul3-specific shRNAs suppressed Ras/ERK signaling; agents aimed at blocking neurofibromin destruction may be a potential therapeutic strategy for further development [154].

Given that the expression of NF1 may be influenced by epigenetic factors, microRNAs [155] and proteasomal degradation [153, 154], a proteomics-based approach may help to detect deficiency of neurofibromin. The utility of immunohistochemical staining of neurofibromin has not been fully explored. Complete absence of neurofibromin staining on immunohistochemistry was found in 15-18% of melanomas [106]. However, quantitation of protein expression correlating with treatment outcomes has not been well studied. This is also complicated by the fact that current antibodies available may not be able to distinguish between the normal and mutant neurofibromin protein. Functional studies of “mutant neurofibromin” will be challenging with the huge protein size and myriad abnormalities possible.

The challenges of elucidating the mechanisms of NF1 deficiency are demonstrated in the recent study on reduced NF1 expression as a driver of resistance to EGFR inhibitor in lung cancer. NF1 mRNA expression was reduced in EGFR TKI-resistant lung cancer specimens, but somatic mutations and methylation changes involving NF1 were not detected. To account for the downregulation of NF1 mRNA, immunohistochemistry using multiple antibodies was performed, but none of them demonstrated adequate specificity to detect neurofibromin in human lung tissue [110].

Therapeutic Strategies for NF1 and NF1-associated/deficient malignancies

Management Options for NF1 syndrome and neurofibromas

The management of individuals with NF1 consists mainly of surgical resection of neurofibromas when they cause discomfort or impingement of neighbouring structures such as nerves or spinal cord. There is an unmet need for novel molecular therapies to treat the systemic manifestations in NF1.

Early clinical trials using thalidomide, 13-cisretinoic acid (CRA) or interferon α-2a to target angiogenesis and differentiation in NF1 patients with plexiform neurofibromas induced at best a minor response in a minority of patients [156, 157]. Early phase trials using pirfenidone, an antifibrotic agent drug which targets the stromal contributions, showed similar limited activity in plexiform neurofibromas in adults and children [158, 159].

Since Ras is overactivated with dysfunction of NF1, subsequent NF1 trials focused on inhibition of Ras. Farnesylation and geranylgeranylation of Ras proteins is essential for translocation to the cell membrane with subsequent activation of the Ras pathway. The activity of tipifarnib, a farnesyl transferase inhibitor, was reported in a phase 1 trial on children with solid tumours or NF1 and plexiform neurofibromas. Stable disease was the best response; no significant regressions were observed [160]. More recently, in a phase 2 placebo-controlled study on children and young adults with NF1 and progressive plexiform neurofibromas, tipifarnib did not prolong the time to progression compared to placebo [161]. Similarly, results from a phase 2 study using sirolimus (rapamycin), an mTOR inhibitor, in NF1 patients with plexiform neurofibroma, did not report any regression of the lesions [162]. Clinical trials using everolimus, a newer generation mTOR inhibitor and other therapies are in progress (http://www.clinicaltrials.gov). The MEK inhibitor PD0325901 was effective in shrinking plexiform neurofibromas in more than 80% of genetically engineered mice, but data on clinical activity in human subjects is awaited [163].

Pegylated interferon-α-2b, which has antiproliferative, antiangiogenic and immunomodulatory properties, induced minor response in 29% of young patients with plexiform neurofibromas in a phase I trial [164]. Tumour stabilization or prevention of new lesions may be a more realistic endpoint as dramatic regression of established “benign” tumours is less likely. Although neurofibromas may show LOH in a subset of Schwann cells, the mode of pathogenesis is different from that of malignant tumours [165]. However, imatinib mesylate, an oral kinase inhibitor targeting c-kit and PDGFRβ, was recently reported to decrease plexiform neurofibromas by 20% or more in 6 out of 36 NF1 patients in a phase 2 trial. This effect may partially be related to targeting cellular phosphor-signalling cascades [166-168]. In contrast, sorafenib which targets c-kit and PDGFRβ as well as RAF, VEGFR2, was poorly tolerated and did not show any tumour response in a phase 1 trial on children with NF1 and plexiform neurofibromas [169]. The clinical efficacy of these compounds in treating neurofibromas remains to be tested in larger clinical trials.

Potential therapeutic strategies for NF1-deficient malignancies

Data on the efficacy of molecular therapies in NF1-deficient malignancies is currently limited to results from preclinical studies (Figure 3). Much of this research has been conducted on models of MPNST derived from NF1 patients. This is set to change with emerging clinical trials where the molecular therapy is matched to the genomic profile of each individual’s tumour. A one-size fits all approach may not always deliver an optimal outcome. For instance, although imatinib is standard-of-care for most patients with sporadic GIST, KIT/PDGFRA mutations are uncommon in GISTs arising in NF1 individuals, so response to imatinib is poor in these patients [88].

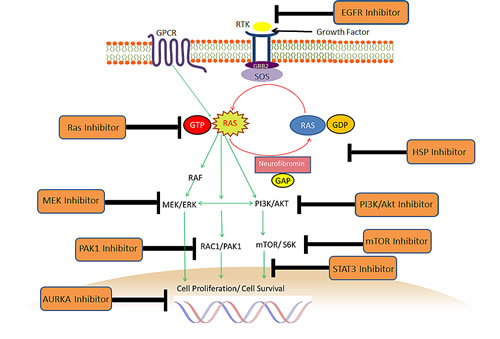

Figure 3: Potential therapeutic strategies for NF1-deficient malignancies. The molecular therapies above have been tested in the preclinical setting, largely for MPNSTs. There is also data on some of the inhibitors for neurofibromin-deficient breast cancer, glioblastoma, AML, soft tissue sarcoma, lung cancer and melanoma. Combination therapy targeting more than one checkpoint may be required for optimal inhibition.

There is preclinical data to support the activity of MEK inhibitors, Ras inhibitor farnesylthiosalicylic acid, sirolimus, everolimus and PI3K/Akt/mTOR inhibitors in MPNST cell lines or xenografts derived from NF1 patients [163, 170-174] (Figure 3). The addition of erlotinib, an epithelial growth factor receptor (EGFR) inhibitor to everolimus, inhibited growth and induced apoptosis further in 4 NF1-derived and 1 sporadic MPNST cell lines as well as the STS26T sporadic MPNST xenograft [172]. EGFR expression is present in most MPNST cell lines, and the EGFR signaling pathways were found to be associated with tumorigenesis in the Nf1:p53 mouse tumor model [172, 175].

Signal transducer and activator of transcription-3 (STAT3) is a potential target for treating NF1-associated or NF1-deficient cancers, as STAT3 is activated downstream in the PI3K/mTOR pathway. The natural product cucurbitacin-I, a potent STAT3 inhibitor, was found to inhibit the growth of NF1-deficient MPNST cells in vitro and in vivo in xenografts [176] .

Since heat shock factor is activated with loss of NF1, it is not surprising that the addition of HSP90 inhibitor IPI-504, to rapamycin, led to synergistic activity with damage of endoplasmic reticulum and mitochondria in NF1-deficient MPNST mouse models [177].

More recently, integrative transcriptome analyses have identified Aurorakinase A(AURKA) as a potential therapeutic target. AURKA was overexpressed and amplified in NF1-related MPNST, but not neurofibromas. MLN8237, an AURKA selective inhibitor, was effective in stabilizing tumour volume and prolonged survival of mice with MPNST xenografts [178].

Inhibitors of PAK1, a downstream effector in the Ras pathway, have also been reported to suppress the growth of NF1-deficient MPNST cells as well as neurofibromin-deficient human breast cancer (MDA-MB-231) xenografts in mice. There is evidence that many tumours, including breast cancers, are addicted to abnormal activation of PAK1, a Ser/Thr kinase which in turn stimulates cyclin D1, for their growth [179, 180].

In sporadic tumours harbouring NF1 aberrations, MEK inhibitors have been found to be effective in treating neurofibromin-deficient sporadic glioblastoma cell lines, NF1-deficient AMLs and NF1-deleted soft tissue sarcomas in mouse models [181-183]. Following the discovery that NF1 deficiency confers intrinsic and acquired resistance to EGFR inhibitor in lung cancer, treatment of neurofibromin-deficient lung cancers in vitro and in xenografts with MEK inhibitory drugs (AZD-6244, CI-1040 and PD0325901) restored sensitivity to erlotinib when given in combination [110].

Combination therapies targeting more than one checkpoint in the cell proliferation pathway, such as blocking both the PI3K/mTOR and MEK pathways in the allografts of NF1/BRAF-mutated melanomas and dual EGFR, MEK inhibition concurrently in TKI-resistant NF1-deficient lung adenocarcinomas, may be superior to monotherapy [106, 110]. Inhibiting a single checkpoint may lead to activation of compensatory negative feedback pathways.

Future strategies may include inhibition of excessive destruction of neurofibromin and other epigenetic therapies. In Nf2-mutant Schwann cells, inhibition of SIRT2, a class III histone deacetylase, triggered necrosis [184]. The role of HDAC inhibitors, which may decrease Akt phosphorylation, has not been fully explored for Nf1-mutant cells. Inhibition of LIM kinase in the Rho-ROCK-LIMK-cofilin pathway regulated by neurofibromin is another potential strategy. In Nf1–/– MEFs, novel LIMK inhibitors blocked the phosphorylation of cofilin, resulting in actin severance and inhibition of cell migration and growth [185]. The utility of these drugs in NF1-deficient tumours may be worth investigating, especially in combination with Ras or AURKA inhibitors, which may have synergistic effects [185, 186]. Improved understanding of the biology of NF1 and neurofibromin in normal cells and cancer is critical for the development of novel treatment strategies.

Conclusions

NF1 and neurofibromin play critical roles in tumour suppression. The frequency of somatic NF1 aberrations in sporadic tumours is increasingly recognized. These alterations are associated with distinct subtypes in certain cancers, and may be associated with poorer treatment outcomes. Significant challenges remain in unravelling the complexity of the large NF1 gene and its product neurofibromin. Improved molecular diagnosis techniques are essential for detecting these aberrations. There is also an unmet need to develop novel systemic therapies for treating NF1-deficient tumours.

Acknowledgements

This work was supported in part by SingHealth Foundation Research Grant, Singapore (SHF/FG426S/2009).
