RB1 gene inactivation by chromothripsis in human retinoblastoma

INTRODUCTION

Most retinoblastomas are believed to initiate with biallelic inactivation of the retinoblastoma susceptibility gene (RB1) which is rate limiting for tumorigenesis [2, 3]. Over the past 27 years since the RB1 gene was cloned, researchers have focused on identifying genetic lesions in retinoblastoma that contribute to tumor progression following RB1 inactivation [4]. Specifically, cytogenetic and array comparative genome hybridization (aCGH) studies have led to the identification of regions of the genome that are gained or lost in retinoblastomas and may contribute to tumorigenesis [4]. Indeed, candidate oncogenes and tumor suppressor genes have been identified whereby copy number variations (CNVs) correlate with changes in gene expression. For example, the DEK gene is within the 0.6 Mb minimal region of chromosome 6p22 that is gained in retinoblastoma and there is a significant increase (~2.5 fold) in gene expression in tumors with 6p22 gain (n=5) compared to those without 6p22 gain (n=2) [5]. In a separate study using 21 primary retinoblastomas, Grasemann et al. identified 3 genes (NUP153, E2F3 and TTRAP) with significantly elevated expression (1.7-2.2 fold increase) in tumors with 6p gains [6].

Another recurrent focal amplification found in ~9% of retinoblastomas is a region of the genome on chromosome 2p spanning the MYCN oncogene. MYCN has been implicated in metastasis in genetically engineered mouse models of retinoblastoma [7] but it is not known if it contributes to progression or metastases in human retinoblastomas. In addition, a recent study reported that a small subset of human unilateral nonfamilial retinoblastomas (1.5%) with MYCN amplification ( ≥10 copies) lack RB1 mutations. The authors suggested that in those patients, MYCN amplification may be sufficient for retinoblastoma tumorigenesis [1].

While aCGH and cytogenetic studies have contributed to the identification of recurrent chromosomal lesions in human retinoblastoma, higher-resolution platforms (i.e. SNP 6.0 arrays) may help to identify additional candidate oncogenes or tumor suppressor genes that contribute to retinoblastoma progression. However, such analyses could be complicated by chromosome instability because it may be difficult to distinguish driver mutations that contribute to retinoblastoma progression from those regions of the genome that are inherently unstable but do not directly contribute to tumorigenesis. Recent whole genome sequencing of 4 primary retinoblastomas and their matched germline DNA demonstrated that at least some retinoblastomas have relatively stable diploid genomes with few CNVs or somatic nucleotide variations (SNV)[8]. Therefore, genome instability may not be required for retinoblastoma progression and the overall low rate of mutation in retinoblastoma may streamline the identification of additional secondary and tertiary genetic lesions in retinoblastomas that contribute to tumorigenesis.

In this study, we performed SNP 6.0 analysis of 94 human retinoblastomas and their matched normal germline DNA. These data allowed us to more precisely define the boundaries of recurrent chromosomal gains and losses and to identify recurrent focal lesions in individual genes or small groups of genes. MYCN was the most commonly amplified gene in 8.5% (8/94) of tumors in our retinoblastoma cohort. We also identified focal amplification in OTX2 in 3% (3/94) retinoblastoma samples. In addition to recurrent deletions in RB1, the most common focal deletions were in BCOR in 4% (4/94) of our retinoblastomas. To characterize the relationship between MYCN amplification and RB1 gene inactivation, we analyzed the RB1 gene status in 46 retinoblastomas with sufficient DNA for custom capture Illumina sequencing. Ten of those tumors had no evidence of RB1 SNVs or indels in the coding region. We performed whole genome sequencing (WGS), RB1 immunohistochemistry and fluorescence in situ hybridization (FISH) using probes spanning the RB1 locus on all 10 tumors. One of the tumors had a wild type RB1 gene and expressed nuclear RB1 protein in virtually all the tumor cells. It also had MYCN amplification consistent with previously published data showing that 1.5% of retinoblastomas may initiate by this mechanism [1]. Most of the tumors had complex structural variations (SVs) inactivating the RB1 gene and 3 tumors had focal chromothripsis on chromosome 13 spanning the RB1 locus. This provides a novel mechanism of retinoblastoma initiation and suggests that molecular assays to detect RB1 chromothripsis should be included in future analyses of this important tumor suppressor pathway.

RESULTS

Recurrent Chromosomal Lesions in Retinoblastoma

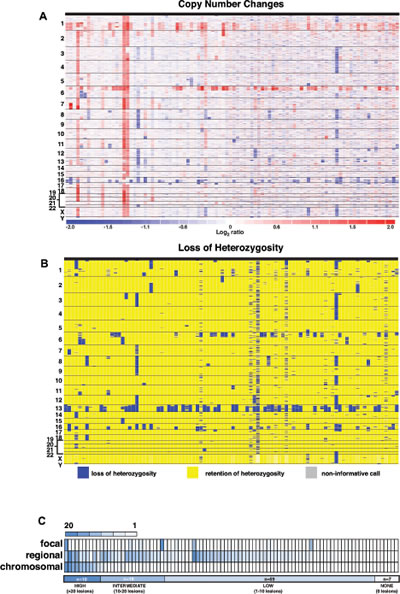

Previous aCGH and cytogenetic studies of human retinoblastoma have identified several recurrent whole chromosome gains and losses including chromosome 16 monosomy (18%)[9, 10], gain of chromosome 19 (12-27%) [11] and occasional loss of the X and Y chromosomes[4, 12]. We performed SNP 6.0 analysis of DNA isolated from 94 human retinoblastomas and their matched germline DNA to characterize copy number changes and LOH (Fig. 1 A-C and Table S1). Gains and losses of whole chromosomes were identified in 38.3% (36/94) of retinoblastomas (Tables S2, S3) and 19 of those 36 tumors had a single chromosomal gain or loss (Table S2). In our cohort, the most common whole chromosome losses were chromosomes 16 (12.8%; 12/94), chromosome 8 (6.4%; 6/94) and chromosome X (6.4%; 6/94) (Table 1). The most common whole chromosome gains were chromosome 7 (10.6%; 10/94) and 19 (11.7%; 11/94) (Table 1). The overall average number of gains or losses of whole chromosomes was 1.7 per tumor. In total, 81.9% of retinoblastomas in our cohort had one or fewer whole chromosome gain or loss and only 9.6% had more than 5 whole chromosome gains or losses.

In addition to whole chromosome gains and losses, several whole chromosome arms and/or large chromosomal regions (>3Mb) have been found to be gained or lost in retinoblastoma [4, 12]. In our cohort, we found that 43.6% (41/94) of tumors had chr6p gain, 43.6% (41/94) had a chr1q gain, 12.8% (12/94) had a chr2p gain and 20.2% (19/94) had a chr16q loss (Table S4). We also identified frequent gains and losses of large chromosomal regions (>3Mb) on chromosomes 1, 6, 13 and 16(Table 2). The recurrent gain of MDM4 in 45% (43/94) on chromosome 1 has been described previously[13-15]. The overall average number of gains or losses of large chromosomal regions (>3Mb), including chromosome arm gains/losses, was 5.2 per tumor (Table S5, S6). In total, 29.8% (28/94) of our retinoblastomas had two or fewer regional chromosomal gains or losses (Table S5, S6).

To determine if there was any correlation with the most frequent regional chromosomal gains or losses and expression of genes located in those regions, we analyzed gene expression array data from 23 tumors in our cohort that were either diploid or had a gain or loss of the entire arm for chr6p, 1q, 16q, and/or 2p. Overall mean expression level for all genes located on 6p were modestly increased in tumors with a 6p gain (0.254 logratio; p value = .0007). We identified 4 genes on chromosome 6p (RAB23, HCG18, C6orf64, and SNRNP48) that had statistically significant increase in expression and were more that 2-fold increased in tumors with a 6p gain (p value ≤ 0.05; FDR value ≤ 0.05) (Fig. 2, Table S7). RAB23 is a downstream effector of Hedgehog signaling in a variety of cancers including those of the bladder, lung and liver[16-19]. HCG18 is a HLA complex group 18 non-protein coding gene, C6orf64 encodes an SAYSVFN motif containing protein and SNRNP48 encodes a small nuclear ribonucleoprotein (U11/U12). Similar analysis was performed for 1q, 16q, and 2p (Fig. S1). Only 1 gene (COX4I1) was differentially expressed in tumors with a 16q loss and no genes were identified on 1q or 2p. The COX4I1 gene encodes a subunit of cytochrome c oxidase and there is some evidence that this gene is downregulated in skin cancer[20].

Recurrent Focal Lesions in Retinoblastoma

To identify recurrent focal lesions in retinoblastoma, we analyzed our SNP 6.0 data for lesions <3 Mb. Among those recurrent lesions that were less than 3 Mb, we defined the minimal region of the individual overlapping lesions, identified recurrent genes in the region and then ranked them by frequency in our retinoblastoma cohort (Tables 3, S8). There were 21 recurrent focal chromosomal lesions (7 gains and 15 losses) in our cohort of 94 tumors (Table 3). Among those, 3 have been reported previously (RB1 loss, MYCN gain/amplification and BCOR loss) (Table 3) [3, 8, 21]. The majority (11/16) of recurrent focal chromosomal losses were on chromosome 13 spanning the RB1 locus (Table 3). The most common focal gain or amplification other than MYCN was in a region on chr14q22.3 spanning OTX2 (3%;3/94) (Table 3 and Fig. 3). OTX2 is a homeodomain-containing transcription factor required for retinal photoreceptor development [22, 23]. This focal lesion was validated as an amplification (≥10 copies) by genomic DNA qPCR in each of the 3 samples (Fig. 3C). The most common focal deletion that was not on chromosome 13 spanning the RB1 locus was in BCOR in 4%(4/94) (Table 3). These data are consistent with previous studies showing that BCOR is recurrently mutated in retinoblastoma [8]. Taken together, our data suggest that MYCN and OTX2 are the most common focal gains found in retinoblastoma and RB1, and BCOR are the most common focal losses found in retinoblastoma.

MYCN amplification in Retinoblastoma

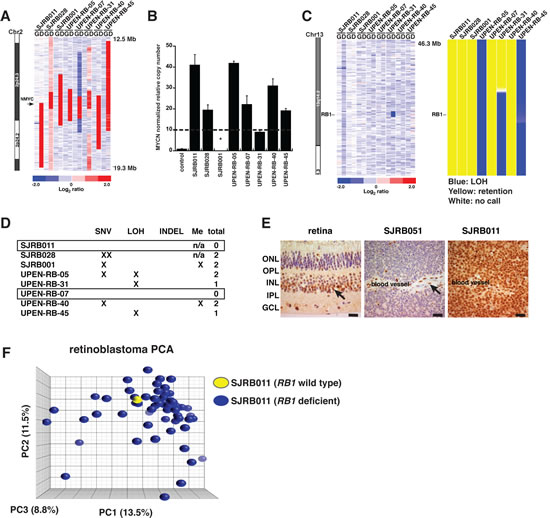

It has been previously reported that a small proportion (1.5%) of retinoblastomas with MYCN amplification express wild type RB1[1]. It was proposed that MYCN amplification is sufficient to initiate retinoblastoma in those patients [1]. In our cohort, we discovered 8 retinoblastomas with MYCN amplification (>10 copies; Fig. 4A,B). Among those 8 tumors, 3 had LOH spanning the RB1 gene (UPEN-RB-05, UPEN-RB-31 and UPEN-RB-45) and one of them (UPEN-RB-31) had a focal RB1 deletion (Fig. 4C). Subsequent RB1 gene sequence analysis and promoter methylation analysis showed that 6 of the 8 tumors with MYCN amplification had at least 1 hit in the RB1 gene (Fig. 4D and Materials and Methods). A tissue block was available for one of the tumors with no apparent RB1 gene mutations (SJRB011) so we performed RB1 immunohistochemistry on that sample (Fig. 4E). We used a retinoblastoma tumor (SJRB051) with confirmed biallelic RB1 deletion as a negative control (see below) and normal adjacent retinal tissue as a positive control. The SJRB011 retinoblastoma had abundant nuclear RB1 protein in virtually all the tumor cells (Fig. 4E). To determine if there was any difference in the molecular features of this retinoblastoma with wild type RB1 and MYCN amplification, we performed gene expression array analysis. The SJRB011 tumor was indistinguishable from other retinoblastomas in our cohort by gene expression array analysis (Fig. 4F).

To determine if there were additional tumors in our cohort that had wild type RB1, we performed custom capture and Illumina sequence analysis of all 27 RB1 exons in the 46 tumors with sufficient DNA from patients treated at St. Jude Children’s Research Hospital (Table S9). In addition to SJRB011, we identified an additional 9 tumors that had no evidence of SNVs or indels in the RB1 gene. To characterize the genomic landscape of these 9 tumors in addition to SJRB011 in more detail, we performed whole genome sequencing (WGS) of the tumor and matched normal DNA. Using a paired-end–sequencing approach, we generated 3064 Gb of sequence data for the 10 pairs of samples (germline DNA and tumor DNA); 2793 Gb (91%) were successfully mapped to the reference genome (Table S10). The average genome coverage was 42×, and the average exon coverage was 39×; 99% of SNPs detected across all 20 genomes (10 tumor and 10 germline) showed concordance with their corresponding SNP array genotype calls at the same genomic positions (Table S10).

All somatic alterations including sequence mutations and structural variations were experimentally validated by custom-capture technology and Illumina sequencing. We identified 1201 validated somatic sequence mutations and 306 validated SVs across the 10 tumors (Table 4). These included 25 missense or nonsense gene mutations (tier-1) (Table S11), 122 mutations in regulatory regions or evolutionarily conserved regions of the genome (tier-2), 1,019 mutations in nonrepetitive regions of the genome that are not part of tiers 1 or 2 (tier-3) (Tables 4 and S11). The average number of sequence mutations was 120.1 per case (range, 2-558), with 2.5 mutations per case (range, 0-15) resulting in amino acid changes (Table 4 and Table S11). The average number of validated SVs was 30.6 per case (range, 0-96). The estimated mean background mutation rate was 1.25×10-7 per base (range, 1.34×10-8–2.28×10-7) (Table 4). Consistent with our previous whole genome sequencing results [8], 9 of the tumors had very few SNVs (≤5) in coding regions that resulted in amino-acid changes (average of 2.33 SNVs per tumor). However, one tumor carried 15 SNVs in gene coding regions that resulted in amino-acid changes (SJRB031) (Fig. S2).

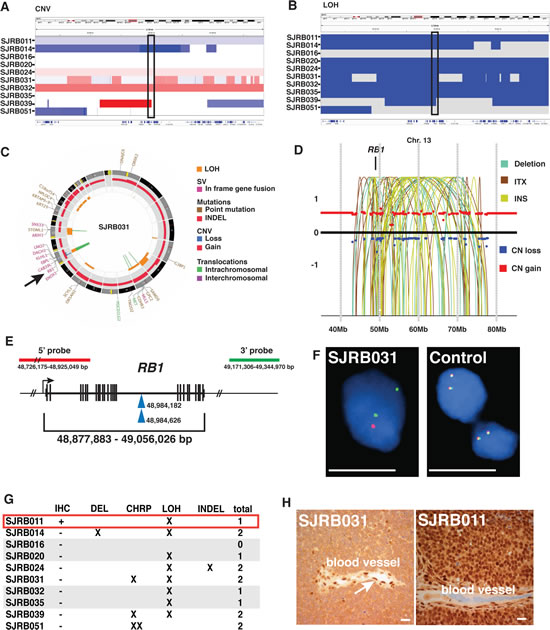

Whole genome sequencing confirmed that SJRB011 had a wild type copy of the RB1 gene even though there was evidence of a reduction in RB1 gene copy number and LOH spanning the RB1 locus (Fig. 5A,B). Indeed, 8 of the 10 tumors had LOH spanning the RB1 gene and 1 of those (SJRB014) had a deletion (Fig. 5A,B). In SJRB024, we identified an indel that led to a frameshift after amino acid 34 of the RB1 gene (Table S10). This mutation was missed in our RB1 custom capture and Illumina sequencing analysis due to lack of sequence coverage in this region. Importantly, three tumors (SJRB031, SJRB039, SJRB051) had evidence of chromothripsis on chr13 spanning the RB1 gene (Fig 5C,D and Fig. S3). The remaining 3 tumors (SJRB016, SJRB020 and SJRB035) did not have any CNVs, indels, deletions, SVs or SNVs in the RB1 gene from WGS data.

To further validate the chromothripsis and SVs in the RB1 gene, we developed a two-color FISH assay with separate probes homologous to the 5’ and 3’ regions of the RB1 locus (Fig. 5E,F). There was agreement between the FISH and WGS data for all 10 samples (Fig. 5E, Figs. S3, S4). For example, in one of the samples with chromothripsis (SJRB031) there was separation of the 5’ and 3’ FISH probes for one allele and the 5’ region of the locus was absent for the other allele (Fig. 5E,F and Fig. S3). To complement the FISH and WGS analysis, we also performed RB1 immunostaining on all 10 samples. Only SJRB011 had nuclear RB1 protein expression (Fig. 4E, 5H and Figs. S3, S4).

DISCUSSION

In this study, we characterized the chromosomal, regional and focal CNVs and LOH of 94 human retinoblastomas using SNP 6.0 chips. A subset of the tumors (11%) had relatively high rates of chromosomal, regional and focal CNVs with more than 20 lesions per tumor. A larger subset (22%) had an intermediate rate with 10-20 lesions per tumor and the majority of tumors (60%) had few lesions (1-9) or none at all (7%). In addition to the previously reported recurrent focal losses of RB1 and BCOR and amplification of MYCN, we also identified a recurrent focal amplification of OTX2 in 3% of retinoblastomas. We identified 10 tumors in our cohort that lacked RB1 gene mutations using conventional exon sequencing approaches so we performed whole genome sequence analysis of the 10 tumors and their matched germline tissue. All SNVs, indels and structural variations were validated by custom capture and illumina sequencing. Among those 10 tumors, one had wild type RB1 with expression of RB1 protein and MYCN amplification. One of the tumors had an indel that was not detected in our sequence analysis, one had a deletion and 3 tumors had focal chromothripsis spanning the RB1 locus and disrupting the RB1 gene. These data suggest that a regional chromothripsis event may initiate retinoblastoma by inactivating the RB1 gene.

The Genomic Landscape of Retinoblastoma

Previously, we performed whole genome sequencing on 4 primary retinoblastomas and their matched germline DNA, as well as an orthotopic xenograft derived from one of the primary tumors that was continuously passaged for 9 months before sequencing [8]. The analysis presented here on 94 tumors validates and extends the previous finding from the whole genome sequencing and earlier aCGH studies. Specifically, the majority (70%) of retinoblastomas have relatively few (≤10 per tumor) chromosomal, regional or focal CNVs. In our cohort, there is no correlation between the rate of CNVs and the heritable or sporadic form of disease nor is there any relationship between the type of RB1 mutation and the number of lesions. A much larger study will be required to determine if there are more subtle associations between the clinicopathological features of retinoblastoma and the rate of CNVs.

The relatively higher rate of chromosomal, regional and focal lesions in a subset of tumors (30%) does not necessarily indicate that those retinoblastomas have unstable genomes. Chromosome instability is a dynamic process that cannot be accurately measured at a single time point because it involves the acquisition of sequential chromosomal lesions over time. It is important to distinguish between such dynamic processes that reflect the continuous accumulation of genetic lesions from more acute genomic events such as chromosomal “shattering” called chromothripsis [24, 25]. To distinguish the cumulative acquisition of genetic lesions from acute events, it is useful to analyze orthotopic retinoblastoma xenografts over the course of several months in order to more accurately measure the acquisition and selection of mutations.

The overall low rate of CNVs was consistent with the paucity of focal recurrent lesions in genes. As reported previously, we found that inactivation of the RB1 gene and the BCOR gene were the most common deletion events and amplification of the MYCN gene was the most common focal recurrent gain[8]. Here we identified a new recurrent focal amplification of OTX2 in 3% of retinoblastomas. OTX2 is a homeobox gene that is involved in photoreceptor and retinal pigment epithelium development[23, 26-28]. Retinoblastomas express a variety of rod and cone photoreceptor genes [13, 29] and it will be important to determine if OTX2 plays a role in modulating the photoreceptor differentiation program in retinoblastoma in future studies.

Correlations Between CNVs and Gene Expression

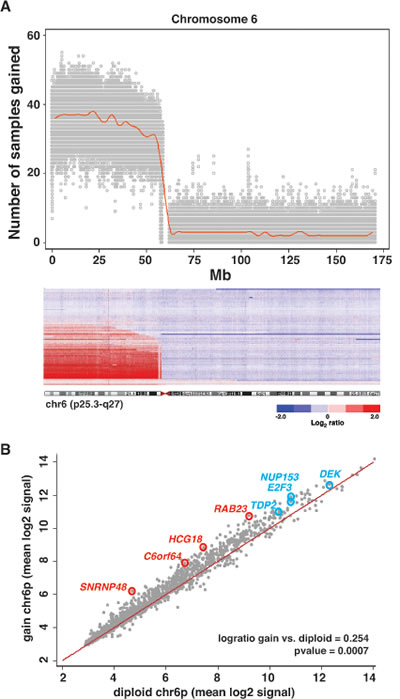

For the most common large chromosomal lesions (6p, 1q, 2q, 16q) we integrated our data on copy number changes with the gene expression data from the same tumors. While there was an overall trend of subtle changes in expression for the genes on those altered regions, only 5 genes (RAB23, HCG18, C6orf64, SNRP48 and COX4I1) we found to be altered by more than 2-fold and significantly associated with the copy number alteration. The RAB23 gene is upregulated in retinoblastomas with 6p gain and there is evidence that RAB23 may potentiate Hedgehog signaling in cancer [13-16]. Also, the COX4I1 gene is downregulted in tumors with 16q loss and previous studies have shown that this gene is downregulated in skin cancer [20]. The other genes identified in our analysis have not been previously implicated in cancer.

The genes that have been previously found to show changes in gene expression that correlate with gain of 6p were DEK, NUP153, E2F3 and TTRAP[5, 6]. Those previous studies included fewer samples than the current study and in our larger cohort, those genes did not achieve statistical significance or more than 2-fold changes in expression. We did observe subtle elevation in the expression of DEK, NUP153, E2F3 and TTRAP and additional studies will be required to determine the functional significance of elevated gene expression in human retinoblastoma.

One important caveat of our analysis is the possibility that genes involved in tumor initiation and/or progression may be altered in retinoblastoma irrespective of copy number changes. For example, MDM4 is found on a region of chromosome 1 that is gained in 45% of retinoblastomas but the gene and protein are increased in virtually all retinoblastomas. Therefore, the lack of a statistically significant association between copy number and gene expression does not necessarily mean that the gene is dispensable for tumorigenesis.

We were not able to perform detailed integrated analysis of gene expression and copy number changes for the less frequent focal lesions such as MYCN, BCOR, or OTX2 because we did not have enough samples with both copy number data and gene expression data. A much larger study will be required to determine if those tumors have distinct gene expression signatures and if there is any association between the focal genetic lesion and the expression of those genes.

Mechanisms of Retinoblastoma Initiation

One of the goals of our study was to explore the relationship between MYCN amplification and RB1 inactivation to determine if a subset of retinoblastomas can be driven by a single oncogenic lesion (MYCN amplification) without RB1 loss [1]. The possibility of a primary role of MYCN in retinoblastoma tumorigenesis was first suggested in 1984 when Lee and colleagues described retinoblastomas with MYCN amplifications[21]. However, one of the challenges with identifying retinoblastomas driven exclusively by MYCN amplification is excluding all possible mechanisms of RB1 gene inactivation including SNVs, indels, LOH, deletions, translocations and promoter hypermethylation. In our cohort, we identified 10 retinoblastomas that had no evidence of RB1 gene inactivation by sequencing the 27 exons of the gene. Whole genome sequencing of those 10 tumors and their matched normal germline DNA showed that at least 5 had mutations. One had an indel that was missed due to poor coverage of that exon in our custom capture sequencing analysis. One had a deletion and LOH that was also missed in our targeted sequence analysis. Remarkably, 3 of the tumors had complex structural variations that occurred focally on chromosome 13 spanning the RB1 gene locus. These lesions had all the features of chromothripsis and had breakpoints in the RB1 gene leading to loss of protein expression. This is an important discovery because it is the first report of focal chromothripsis as a mechanism of RB1 gene inactivation in cancer. Moreover, it suggests that chromothripsis can initiate tumorigenisis by inactivating a tumor suppressor gene. This type of lesion would be missed by conventional RB1 mutational analysis and this is why it has gone undetected since the RB1 gene was first cloned in 1986[30]. Specifically, exon sequencing would return wild type RB1 sequence because all of the exons are intact in a sample with chromothripsis spanning RB1. Copy number and LOH analysis may also show distributions that are difficult to distinguish from the germline reference because both alleles are present and copy number changes are focal and subtle. Our data suggest that a significant proportion of retinoblastomas (3/10) thought to have wild type RB1 may actually have gene inactivation by chromothripsis. Whole genome sequencing combined with break-apart FISH analysis of the RB1 locus and RB1 IHC can be used to identify this unique subset of retinoblastoma tumors.

It is important to emphasize that in our cohort of 10 retinoblastomas that we analyzed by WGS, FISH and IHC there were 5 tumors that had at least 1 intact RB1 gene (SJRB011, SJRB016, SJRB020, SJRB032, SJRB035). Among those, only SJRB011 had MYCN amplification and nuclear expression of RB1 protein. The other 3 had reduced RB1 protein expression and all 3 lacked MYCN amplification. There were no known cancer genes mutated in those 3 tumor samples. It is possible that those tumor samples had biallelic promoter hypermethylation and this caused the reduction in protein expression. Unfortunately, we did not have sufficient DNA to perform methylation analysis. It is also possible that there is a novel oncogenic drive that is altered in those tumors that has not yet been characterized and this in turn leads to downregulation of the RB1 protein. A much larger analysis will be required explore the spectrum of genomic lesions that contribute to retinoblastoma initiation in the absence of RB1 gene mutation.

MATERIALS AND METHODS

Retinoblastoma Tumors Samples

Details for tumors samples acquired at St. Jude Children’s Research Hospital have been previously described [13]. In addition, we received DNA for 50 primary tumors and germline samples from the University of Pennsylvania. Tumors and matching blood samples from these patients were identified by clinicians from pediatric oncology clinics within North America and requested the molecular test at the Genetic Diagnostic Laboratory at the University of Pennsylvania. As most of the tested individuals were minors, the respective legal guardians consented. Clinical evaluation of these individuals, and genetic counseling, both before and after the results of genetic testing became available, was provided by the respective referral centers. Genomic DNA was isolated from blood and frozen tumor material using the specific commercial DNA isolation kits following the manufacturer’s instructions. Gentra Puregene Blood Kit (3 ml) (Qiagen, P/N 158422) for DNA isolation from blood and DNeasy Blood & Tissue Kit (50) for processing frozen tumor samples (Qiagen, P/N 69504).

SNP6.0 array assays

Details for the SNP6.0 arrays have been previously described [8]. The SNP6 array data for primary tumors collected at St. Jude Children’s Research Hospital were deposited in the dbGaP database (phs000352.v1.p1). Samples were genotyped using Affymetrix SNP 6.0 microarrays according to the manufacturer’s instructions. CEL files were generated using GeneChip Command Console Software. SNP calls were generated using Genotyping Console (Affymetrix) and the Birdseed v2 algorithm with default parameters, with at least 50 arrays in each analysis. Array normalization and copy-number inference were performed according to a published workflow[31],[32]. Normalized data were viewed in dChip[33], and regions with abnormal copy number were identified computationally by circular binary segmentation (CBS)[34] and analyzed as described[31],[32]. All calls for gain and loss were manually reviewed as previous described [35] using dChip software [33, 36].

RB1 mutation analysis

RB1 mutation analysis was performed as described previously [37]. All 27 exons of RB1, including the flanking intronic regions, and the promoter region were amplified by the polymerase chain reaction (PCR) and Sanger sequenced. Large deletions and rearrangements were detected by quantitative-real time PCR assays designed to measure the copy number of each individual exon of RB1, including the promoter and 3’ untranslated regions. Quantitative-real time PCR was performed using a StepOne Plus instrument (Applied Biosystems). Experimental plate setup and analysis was performed in StepOne software v 2.1 (Applied Biosystems). A master mix was prepared for each assay following the manufacturer’s instructions. The data was analyzed by the comparative Ct method. The Ct values were then compared with the endogenous control (RNase P) and the reference sample to calculate a ΔΔCt value. Copy number (CN) was then calculated using the formula: CN = 2*2−ΔΔCt.

Methylation state of the RB1 promoter of tumor samples was analyzed using the Methyl-ProfilerTM DNA Methylation qPCR assays following the manufacturer’s instructions, with an assay for RB1 gene (EPHS103757-1A, SABiosciences).

Gene amplification validation

MYCN copy number was detected by a Taqman copy number assay (Hs00824796_cn, Applied Biosystems, Inc.) using quantitative-real time PCR as described above.

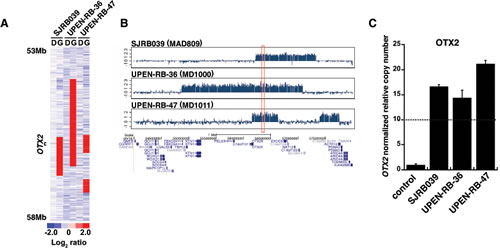

OTX2 copy number was detected by quantitative real-time PCR using Sybr Green (Applied Biosystems 4472942) and analyzed by Eppendorf Mastercycler ep Realplex2 system (Eppendorf, Germany) following manual instruction. DNA was isolated from primary tumor and blood as indicated above. Whole genome amplified DNA was used for samples acquired at St. Jude Children’s Research Hospital [8]. Copy number was determined using relative standard curve method. Flanking 5’ and 3’ primers were designed to SNP_A-1914401 (rs698015) located in the amplified region of OTX2 at chr.14:56339578 and CTNNA3 designed to SNP_A- 2245588 (rs2105702) at chr10:67396520 as an internal diploid reference based on SNP6.0 data analysis. Primers were designed using Primer3 [38, 39] for the following:

OTX2: forward – AACAGGGCTGGTAAAGAG; reverse – GAGTAGTGCCACTCAGCACA. CTNNA3: forward- CAGGTAGGCCAACAAGTCC; reverse – AAGGTACCTGCCATGTGAATA.

Fluorescence In-Situ Hybridization

The Cancer Center Core Cytogenetic Laboratory received 10 formalin fixed paraffin embedded (FFPE) retinoblastoma tissue specimens in order to determine by FISH if there is a disruption of the RB1 gene in these tumors. Purified BAC DNA from two RB1 3-prime clones (RP11-115I22 and RP11-90K7) were labeled with a green-dUTP (AF488, Molecular Probes) by nick translation, and one RB1 5-prime clone (RP11-795F23) was labeled with a red-dUTP (AF 594, Molecular Probes). In normal cells that contain normal RB1 gene this probe set produces very tightly linked red and green signals since the probes are separated by only 80kb. This assay was specifically designed to detect any disruption of the RB1 gene occurring between introns 6 and 16. One hundred interphase nuclei from each tumor were scored for the presence of either normal RB1 genes (tightly linked red and green signals) or disrupted or deleted RB1 genes (separated red and green signals or deletion of either one). Details for FISH protocol have previously been described [8] .

Immunohistochemistry

Details of IHC protocol have previously been described [13]. IHC was performed on 10 formalin-fixed paraffin-embedded primary tumor samples using 4µm sections to stain with Retinoblastoma Gene Protein Antibody (clone 13A10- Vector laboratories).

Whole Genome Sequencing and Exome Capture Validation

Whole genome sequencing and exome capture validation has previously been described [8].

ACKNOWLEDGEMENTS

This work was supported, in part, by Cancer Center Support (CA21765) from the NCI, grants to M.A.D from the NIH (EY014867 and EY018599 and CA168875), and the American Lebanese Syrian Associated Charities (ALSAC). M.A.D. is a Howard Hughes Medical Institute Investigator. The whole-genome sequencing was supported as part of the St. Jude Children’s Research Hospital – Washington University Pediatric Cancer Genome Project.
