High TGF-β1 expression predicts poor disease prognosis in hepatocellular carcinoma patients

Abstract

Transforming growth factor beta (TGF-β) promotes the pathogenesis of hepatocellular carcinoma (HCC). We evaluated the associations between TGF-β1 expression and clinicopathological parameters in HCC patients from The Cancer Genome Atlas (TCGA), as well as the prognostic power of TGF-β1 expression. Eligible studies were retrieved from several databases, and effects (hazard ratios (HRs) with 95% confidence intervals (CIs)) for overall survival (OS), disease-free survival (DFS), recurrence-free survival (RFS), metastasis-free survival (MFS), and progression-free survival (PFS) were pooled to assess the prognostic ability of TGF-β1 expression in HCC patients. Twelve qualified articles and our TCGA data comprising 2,021 HCC patients were incorporated. In the TCGA analysis, HCC patients with higher TGF-β1 expression presented a shorter OS than those with lower TGF-β1 expression (HR = 1.42, p < 0.05). In the meta-analysis, univariate analyses showed that HCC patients with higher TGF-β1 expression had a shorter OS (pooling HR = 1.71, p < 0.01) and DFS/RFS/MFS/PFS (pooling HR = 1.60, p < 0.01) than those with lower TGF-β1 expression. In conclusion, our results suggested that high TGF-β1 expression promotes a poor prognosis in HCC patients.

INTRODUCTION

Hepatocellular carcinoma (HCC) is a common neoplasm of the estimated 782,000 new cancer cases worldwide (50% in China alone), as well as the third leading cause of death from cancer worldwide with nearly 745,000 deaths in 2012 [1, 2]. Despite the growing prevalence in liver cancer, there is a lack of therapies. Besides physical methods (such as radiation, transplant, and operation), there exists just one authorized treatment, which had been followed by a series of costly defeats and controversial candidate drugs [3]. Meanwhile, liver cancer is fatal in both developed and developing countries, with the 5-year overall survival rate generally lower than 20 % [4], and the ratio of mortality to morbidity is 0.95 [1]. HCC is a devastating disease with disappointing outcomes, so it is a very important and urgent task to discover survival outcome predictors, and to furnish potential targets for personalized therapy.

Since its discovery in the early 1980s, transforming growth factor beta (TGF-β) signaling has been increasingly recognized as a cancer promoter [5, 6]. TGF-β orchestrates a favorable microenvironment for cancer cell growth and progression of the epithelial - mesenchymal transition (EMT) [6] and promotes fibrogenesis [7, 8], suggesting TGF-β stimulates HCC pathogenesis and metastasis. TGF-β signaling inhibitors could hinder HCC cell growth and progression by inhibiting the EMT process in distinct experiment models, leading to the clinical investigation of the TGF-β inhibitor LY2157299 (phase II clinical trial, Identifier: NCT01246986, http://clinicaltrials.gov) [6, 9]. However, whether TGF-β1 expression has the potential to predict HCC prognosis is inconsistent. For example, some articles reported that HCC patients with high TGF-β1 expression showed shorter OS and DFS/PFS [10–12], while some other studies revealed negative findings on OS [13, 14]. There is a need to implement meta-analysis and larger sample evaluation, aiming to systematically elaborate on the prognostic power of TGF-β1 expression in HCC patients.

In the current study, we extracted a dataset on HCC from The Cancer Genome Atlas (TCGA), analyzed the associations of TGF-β1 expression with clinicopathological parameters, and evaluated the prognostic power of TGF-β1 expression in HCC patients. In combination with our TCGA analysis, we pooled the prognostic ability of TGF-β1 expression in HCC according to 12 available articles.

RESULTS

HCC patient characteristics from TCGA database

One TCGA dataset of liver hepatocellular carcinoma (n = 423) was analyzed in July 2016, which was composed of 271 males and 136 females. Moreover, patient characteristics including BMI’ (< 12.23, > 12.23), gender (female, male), age (≤ 62, > 62), weight (≤ 35 kg, > 35 kg), height (≤ 1.68 m, > 1.68 m), clinical stage (I, II, III, IV), etc. were grouped by median and shown in Supplementary Table 1. BMI was grouped by the international obesity standard (< 25, ≥ 25). In addition, HCC patients were stratified by median into two groups of TGF-β1 expression: high and low. There were no clinicopathologic differences between the two groups (p > 0.05; Supplementary Table 1).

High TGF-β1 expression predicted a poor prognosis in HCC patients from TCGA

OS

To further explore the association between TGF-β1 expression and HCC patients’ clinical outcome, the TCGA liver hepatocellular carcinoma cohort was analyzed. HCC patients with higher TGF-β1 expression had a shorter OS in comparison with those with lower TGF-β1 expression (Figure 1A; HR = 1.417, 95% CI = 1.014–1.979, p = 0.0411). In addition, subsequent univariate and multivariate COX proportional hazards regression models were conducted to determine the independence of the prognostic power of TGF-β1 expression in HCC patients’ OS. In the COX univariate regression models, higher TGF-β1 expression was correlated with shorter OS (HR = 1.412, 95% CI = 1.011–1.973, p = 0.043) in HCC patients. Also, advanced clinical stage (HR = 1.842, 95% CI =1.265–2.681, p =0.001) was correlated with shorter OS in HCC patients (Table 1). Multivariate COX regression analysis revealed that a shorter OS trend was seen in HCC patients with higher TGF-β1 expression than those with lower TGF-β1 expression (Table 1; HR = 1.390, 95% CI = 0.972–1.987, p = 0.071).

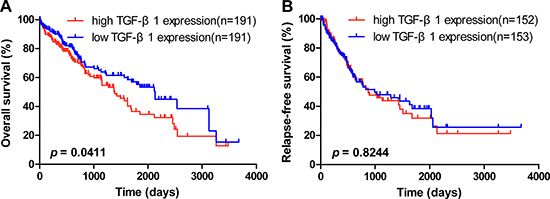

Figure 1: OS and RFS of TGF-β1 expression in HCC patients. The overall survival [OS] (A) and relapse-free survival [RFS] (B) of TGF-β1 expression were shown in hepatocellular carcinoma from TCGA liver hepatocellular carcinoma (LIHC) dataset (LIHC - IlluminaHiSeq; n _OS = 382 and n _RFS = 305). The median length of OS in high TGF-β1 expression (n _high = 191) and low TGF-β1 expression (n _low = 191) was 1386 days and 2131 days, respectively (p < 0.05).

Table 1: Univariate and multivariate analysis of clinic pathologic factors for overall survival of 423 HCC patients from TCGA

Risk factors	Univariate analysis			Multivariate analysis
	HR	95 % CI	p	HR	95 % CI	p
TGF-β1 expression (high vs. low)	1.412	1.011–1.973	0.043	1.390	0.972–1.987	0.071
Gender (male vs. female)	0.907	0.645–1.277	0.576
Age (> 62 vs. ≤ 62)	1.333	0.948–1.873	0.096
Weight (> 35 vs. ≤ 35 kg)	1.372	0.960–1.961	0.083
Height (> 1.68 vs. ≤ 168 cm)	1.160	0.799–1.686	0.435
BMI (≥ 25 vs. < 25)	0.049	0.000–392.299	0.510
BMI’ (> vs. ≤ 12.22363946)	1.011	0.697–1.465	0.955
Clinical stage (III-IV vs. I-II)	1.842	1.265–2.681	0.001	1.841	1.265–2.679	0.001
Grade (G3–4 vs. G1–2)	1.193	0.839–1.698	0.326
platelet (> 212 vs. ≤ 212)	1.428	0.992–2.057	0.056
Albumin (> 4 vs. ≤ 4)	0.734	0.506–1.064	0.102
Alpha fetoprotein (> 16 vs. ≤ 16)	1.438	0.958–2.157	0.080
Serum creatinine (> 0.9 vs. ≤ 0.9)	0.962	0.668–1.384	0.833
Prothrombin time (> 1.1 vs. ≤ 1.1)	1.360	0.942–1.962	0.100
Total bilirubn (> 0.7 vs. ≤ 0.7)	1.124	0.770–1.640	0.544
Liver fibrosis ishak score category (fibrosis vs. no fibrosis)	7342.525	0.000–4.062E60	0.894
Vascular tumor cell invasion (positive vs. negative)	1.287	0.880–1.882	0.193

RFS

We also analyzed the association between TGF-β1 expression and HCC patients’ RFS from the TCGA. There was no difference on RFS between the two TGF-β1 expression groups (Figure 1B; HR = 1.041, 95% CI = 0.7278–1.490, p = 0.8244). Subsequent univariate and multivariate COX proportional hazards regression models were conducted to determine the independence of the prognostic power of TGF-β1 in HCC patients’ RFS. In the univariate COX regression models, more advanced clinical stage (HR = 2.332, 95% CI =1.547–3.516, p < 0.0001) and higher platelet levels (HR = 1.459, 95% CI = 1.001–2.127, p = 0.049) were correlated with shorter RFS in HCC patients (Supplementary Table 2). However, high TGF-β1 expression was not correlated with RFS (HR = 1.041, 95% CI = 0.729–1.488, p = 0.825). COX multivariate regression revealed that more advanced clinical stage (HR = 2.769, 95% CI = 1.752 – 4.376, p < 0.0001) could predict a worse prognosis on RFS of HCC patients (Supplementary Table 2). To summarize, these TCGA results show that high TGF-β1 expression could act as a prognostic indicator on OS but not RFS in HCC patients.

Search results for meta-analysis

A total of 1,106 papers were identified by the systematic literature search, where 106 duplicates, 52 reviews, 6 non-English, and 71 non-human studies were excluded and removed, resulting in 868 papers. Further, 856 articles were removed due to relevance, design, and outcome data through the title, abstract, and full-text screening (Figure 2). Ultimately, 12 papers were incorporated into the meta-analysis.

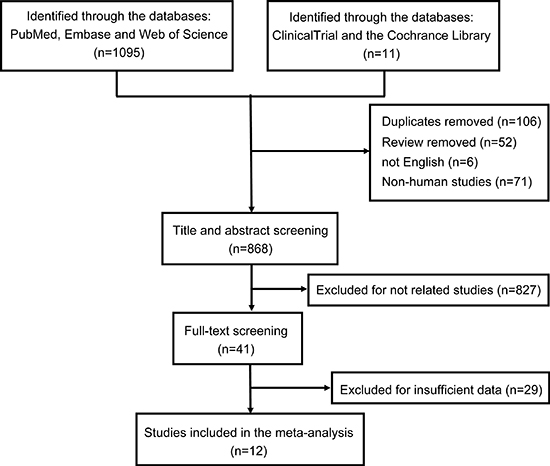

Figure 2: Flow chart of the literature search procedure.

Characteristics of eligible studies

Twelve articles [10–14, 24–30] and our TCGA analysis containing a total of 2,021 individuals were incorporated in the meta-analysis. One of the articles contained two datasets [30], which counted as two studies in our meta-analysis. The principal features of these subjects with TGF-β1 expression were displayed in Table 2. Sample size of the published studies ranged from 67 to 350 patients. Interestingly, all included studies were performed in Asia: ten publications originated from China, one from Japan, and one from Singapore. For specimens, two articles were from urine, three from plasma/serum, and seven from tumor tissue. Additionally, the detection method of TGF-β1 expression included in one by quantitative real-time polymerase chain reaction (qPCR), two by 125I radioimmunoassay kit, three by enzyme linked immunosorbent assay kit (ELISA), and six by immunohistochemistry (IHC). Risk of bias (see quality assessment in methods) was appraised basing on the three categories of NOS, and all 12 articles (100%) were regarded as high quality (7–9 stars) (Table 2).

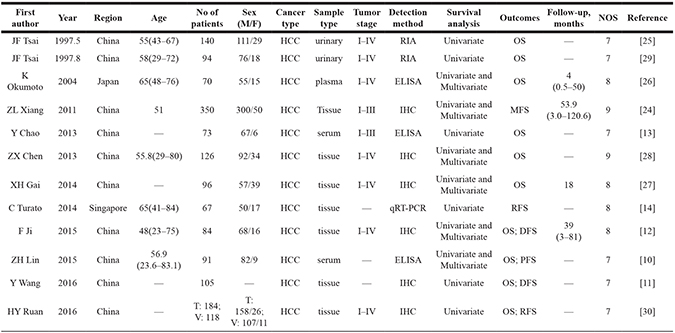

Table 2: Characteristics of the eligible studies in meta-analysis

—, there is no corresponding data presented.

DFS, disease-free survival; ELISA, enzyme linked immunosorbent assay kit; HCC, Hepatocellular Carcinoma; IHC, immunohistochemistry; M/F, Male/Female; qRT-PCR, quantitative real-time polymerase chain reaction; RFS, relapse-free survival; RIA, ¹²⁵ I radioimmunoassay kit; OS, overall survival; MFS, metastasis-free survival; PFS, progression-free survival; NOS, Newcastle-Ottawa Scale.

T, Test; V, Validation.

A meta-analysis of prognostic power of TGF-β1 expression in HCC patients

OS

Data were derived from COX univariate analysis of all 12 studies, totaling 1604 HCC patients (Figure 3). With a random-effect model, shorter OS was seen with higher TGF-β1 expression in comparison with those with lower TGF-β1 expression (Figure 3; pooling HR = 1.71, 95% CI = 1.34–2.17, p < 0.0001). Data were derived from COX multivariate analysis of six studies, totaling 890 HCC patients. With a random-effect model, HCC patients with high TGF-β1 expression presented a shorter OS than those with low TGF-β1 expression (Figure 4; pooling HR = 2.29, 95% CI = 1.46–3.57, p = 0.0003). This suggests that high TGF-β1 expression could predict inferior clinical outcomes on OS in HCC patients.

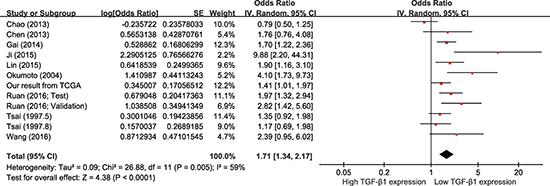

Figure 3: Meta-analysis of the HRs with 95% CI for OS from univariate analysis in HCC. The size of the blocks or diamonds represents the weight for the random-effect model in the meta-analysis. HR > 1 indicates that high TGF-β1 expression is correlated with a more unfavorable overall survival (OS).

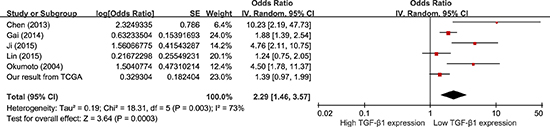

Figure 4: Meta-analysis of the HRs with 95% CI for OS from multivariate analysis in HCC. The size of the blocks or diamonds represents the weight for the random-effect model in the meta-analysis. HR > 1 indicates that high TGF-β1 expression is correlated with a more unfavorable overall survival (OS).

DFS/RFS/PFS

Data were extracted from COX univariate analysis of eight studies, totaling 1,422 HCC patients. With a random-effect model, a shorter DFS/RFS/MFS/PFS was seen in HCC patients with higher TGF-β1 expression in comparison to those with lower TGF-β1 expression (Figure 5; pooling HR = 1.60, 95 % CI = 1.20–2.14, p = 0.001). Data were derived from COX multivariate analysis of three studies, totaling 525 patients. With a random-effect model, there was no difference of DFS/MFS/PFS between the two TGF-β1 expression groups (Supplementary Figure 1; pooling HR = 1.62, 95 % CI = 0.66–3.98, p = 0.29). These results suggest that high TGF-β1 expression could predict poor prognosis on DFS/RFS/MFS/PFS with COX univariate analysis by meta-analysis in HCC patients.

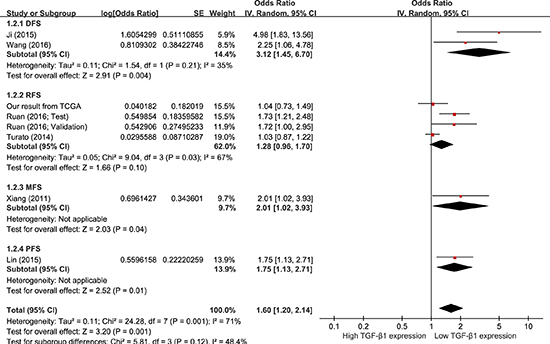

Figure 5: Meta-analysis of the HRs with 95% CI for DFS/RFS/MFS/PFS from univariate analysis in HCC. The size of the blocks or diamonds represents the weight for the random-effect model in the meta-analysis. HR > 1 indicates that high TGF-β1 expression is correlated with a more unfavorable disease-free survival (DFS), relapse-free survival (RFS), metastasis-free survival (MFS), and progression-free survival (PFS).

Publication bias was conducted via RevMan. Although the shape of funnel plots in OS and DFS/RFS/MFS/PFS outcomes did not meet global symmetry (Supplementary Figure 2), random-effect models were used, results were receivable and merit consideration. Furthermore, sensitivity tests were conducted during the meta-analysis, and elimination of any individual study did not alter the overall findings (Supplementary Table 3, Supplementary Table 4).

Prognostic power of TGF-β1 expression in different sample types of HCC patients

Tissue

Subgroup analyses of HRs for OS and DFS/RFS/MFS/PFS among HCC patients in fixed- and random-effect models were carried out on different sample types: tissue, plasma/serum, and urine (Table 3, Table 4). Matching forest plots and funnel plots of sample type subgroups are in Supplementary Figures 3–11.

Table 3: Outcomes of subgroups analysis in fixed-effect models from different sample type of HCC patients

Subgroup	Univariate					Multivariable
	N of S*	I2 (%)	p’	HR (95% CI)	p-value	N of S	I2 (%)	p’	HR (95% CI)	p-value
OS
Tissue	7	36	0.16	1.79(1.49–2.15)	< 0.00001	4	76	0.006	1.86(1.49–2.32)	< 0.00001
Plasma/Serum	3	85	0.001	1.40(1.03–1.92)	0.03	2	83	0.02	1.66(1.07–2.58)	0.02
Urinary	2	0	0.67	1.29(0.94–1.75)	0.11	0	―	―	―	―
DFS/RFS/MFS/PFS
Tissue	7	73	0.001	1.23(1.08–1.40)	0.002	2	88	0.003	1.95(1.12–3.41)	0.02
Plasma/Serum	1	―	―	1.75(1.13–2.71)	0.01	1	―	―	1.15(0.71–1.86)	0.56
Urinary	0	―	―	―	―	0	―	―	―	―

OS, overall survival; DFS, disease-free survival; RFS, relapse-free survival; MFS, metastasis-free survival; PFS, progression-free survival; N of S, number of studies; N of P, number of patients; HR, hazard ratio; CI, confidence interval;

―, there is no corresponding data presented;

*, Our analysis data from TCGA database, Test and Validation sets of Ruan’s study were acted as three studies here.

Table 4: Outcomes of subgroups analysis in random-effect models from different sample type of HCC patients

Subgroup	Univariate					Multivariable
	N of S	I2 (%)	p’	HR (95% CI)	p-value	N of S	I2 (%)	p’	HR (95% CI)	p-value
OS
Tissue	7	36	0.16	1.90(1.47–2.46)	< 0.00001	4	76	0.006	2.44(1.40–4.27)	0.002
Plasma/Serum	3	85	0.001	1.73(0.73–4.07)	0.21	2	83	0.02	2.22(0.63–7.80)	0.21
Urinary	2	0	0.67	1.29(0.94–1.75)	0.11	0	―	―	―	―
DFS/RFS/MFS/PFS
Tissue	7	73	0.001	1.59(1.15–2.19)	0.005	2	88	0.003	1.99(0.39–10.11)	0.41
Plasma/Serum	1	―	―	1.75(1.13–2.71)	0.01	1	―	―	1.15(0.71–1.86)	0.56
Urinary	0	―	―	―	―	0	―	―	―	―

OS, overall survival; DFS, disease-free survival; RFS, relapse-free survival; MFS, metastasis-free survival; PFS, progression-free survival; N of S, number of studies; N of P, number of patients; HR, hazard ratio; CI, confidence interval;

―, there is no corresponding data presented;

*, Our analysis data from TCGA database, Test and Validation sets of Ruan’s study were acted as three studies here.

Data were derived from COX univariate analysis of seven studies. With a fixed-effect model, a shorter OS was observed in tissues with high TGF-β1 expression compared with those with low TGF-β1 expression (pooling HR = 1.79, 95% CI = 1.49–2.15, p < 0.00001; Table 3 and Supplementary Figure 3). Data were also derived from COX multivariate analysis of four studies. With a random-effect model, a shorter OS was observed in tissues of HCC patients with high TGF-β1 expression compared with those with low TGF-β1 expression (pooling HR = 2.44, 95% CI = 1.40–4.27, p = 0.002; Table 4, Supplementary Figure 6).

In addition, data were derived from COX multivariate analysis of two studies. With a random-effect model, there was no difference on DFS/RFS/MFS/PFS between the two TGF-β1 expression groups (pooling HR = 1.99, 95 % CI = 0.39–10.11, p = 0.41; Table 4, Supplementary Figure 10). Data were derived from COX univariate analysis of seven studies. With a random-effect model, a shorter DFS/RFS/MFS/PFS was observed in tissues of HCC patients with high TGF-β1 expression compared with those with low TGF-β1 expression (pooling HR = 1.59, 95% CI = 1.15–2.19, p = 0.005; Table 4 and Supplementary Figure 8).

Plasma/serum and urine

With a random-effect model, there was no difference on OS between high and low TGF-β1 expression in plasmas of HCC patients from both COX univariate analysis of three studies (pooling HR = 1.73, 95 % CI = 0.73–4.07, p = 0.21; Table 4 and Supplementary Figure 4) and COX multivariate analysis of two studies (pooling HR = 2.22, 95 % CI = 0.63–7.80, p = 0.21; Table 4 and Supplementary Figure 6). Similarly, with a fixed-effect model in a COX univariate analysis of 2 studies, there was no difference on OS between high and low TGF-β1 expression in urine of HCC patients (pooling HR = 1.29, 95% CI = 0.94–1.75, p = 0.11; Table 3 and Supplementary Figure 3).

DISCUSSION

TGF-β1 expression can help primary carcinoma cells migrate and disseminate to distant sites [22–24]. This metastasis contributes to high mortality of hepatocellular carcinoma (HCC) [25–28], which is the third dominating cause of cancer-related deaths worldwide [29–32]. With so many people affected, it is important to study TGF-β1 in the development and progression of HCC. Some meta-analyses have reported that certain TGF-β1 polymorphisms (+869C/T and –509C/T) promote susceptibility to HCC [33–36], but clinical significance and prognostic value of TGF-β1 expression in HCC has remained uncharacterized.

We evaluated the prognostic value of TGF-β1 expression in 12 articles and our TCGA analyzing data with 2,021 total HCC patients via implementing a meta-analysis. We found that high TGF-β1 expression can act as an independent indicator of unfavorable prognosis on OS from original univariate and multivariate analysis. High TGF-β1 expression can predict a worse DFS/RFS/PFS in meta-analysis from original univariate analysis, while multivariate analysis yielded no difference on DFS/PFS between the groups of high and low TGF-β1 expression.

We first analyzed a dataset of 423 HCC patients from TCGA, and found that high TGF-β1 expression could indicate an unfavorable prognosis on OS, but not on RFS. The results were consistent with our meta-analysis on OS. The different clinical effects of high TGF-β1 expression in the same tumor type from different studies may be due to variant cut-off values of TGF-β1 expression between different studies. The complex environment of cancer cells and the duality of TGF-β1 in cancers are other possible causes. TGF-β1 can act as an epithelium (including hepatocellular) cellular proliferative depressor, a tumor accelerator, or both, depending on the cell environment [37, 38].

Although there was a certain but acceptable heterogeneity in OS and DFS/RFS/PFS studies, the outcomes of meta-analysis still deserve to be considered. Several reasons could have contributed to the heterogeneity, including the constituent ratio of patients’ age, detection method, and a diverse source of samples in each study. For example, samples in two articles were from urine [16, 20], three from plasma/serum [10, 13, 17], and seven from tumor tissue [11, 12, 14, 15, 18, 19, 21]. Secondly, there were variable definitions of the cut-off value among these publications. No relevant studies to investigate the uniform criterion of TGF-β1 positive or high expression, which could be an important source of potential bias. Thirdly, all the incorporated publications were completely implemented in Asia. Lastly, the original individual information of HCC patients was not available for all studies, which also likely led to the heterogeneity of our analysis.

Some limitations existed in our study. All the studies were from Asia, which possibly resulted in regional bias. The articles incorporated into our analyses were all published in English, so the language bias appeared. Selective reporting was observed in some publications, which led to the loss of some meritorious data. For example, the pooled HRs for DFS/RFS/MFS/PFS were displayed in fewer studies compared to HRs for OS. The HRs that were evaluated indirectly might be less reliable than those acquired directly from published data. Finally, if these studies could have provided patients’ individual information, our meta-analysis would have been much more precise.

In summary, both data mining results from the TCGA database and meta-analysis results from published studies definitively presented a negative prognostic effect of high TGF-β1 expression on the OS in HCC patients. Our results may provide an insight for the prognostic prediction of HCC patients. Further preclinical and clinical research with larger samples and open individual data of patients are required to validate the prognostic significance of TGF-β1 expression in HCC patients.

MATERIALS AND METHODS

Data extraction from TCGA database

An independent dataset including information on mRNA expression and clinical features of HCC patients (n = 423 for TCGA liver hepatocellular carcinoma, gene expression by RNAseq with IlluminaHiSeq) was obtained from the UCSC Cancer Genomics Browser of TCGA (https://genome-cancer.soe.ucsc.edu). We analyzed the differences of clinicopathologic variables between two groups: high TGF-β1 expression and low TGF-β1 expression. We also evaluated the prognostic influence of TGF-β1 expression on OS and RFS in this HCC cohort.

Kaplan-meier survival analysis and COX regression analysis

Differences between the clinicopathological data of higher TGF-β1 expression and lower TGF-β1 expression was assessed by the Chi-squared test. For survival analysis, OS was calculated from the day of diagnosis to the day of death or last follow-up, while RFS was defined as the time from the day of the first complete remission to the day of first relapse or death [39–42]. Survival curves were established using the Kaplan-Meier approach, with log-rank tests applied to appraise the differences between the groups. Hazard ratios (HRs) were produced using COX’s proportional hazards model. COX Univariate and multivariate models for the prognostic effect of TGF-β1 expression on OS/RFS in HCC patients from the TCGA were analyzed. SPSS 17.0 software (IBM, Chicago, USA) was applied to conduct statistical analysis, and a two-sided p-value < 0.05 was regarded as statistical significance. All survival-related figures were plotted in GraphPad Prism 5 (GraphPad, La Jolla, USA).

Literature search for meta-analysis

Literatures search was retrieved from PubMed, Web of Knowledge, Embase, ClinicalTrials, and the Cochrane Library with the following search terms (mainly from MeSH Term and its corresponding Entry Terms): TGF-beta1, Transforming Growth Factor beta 1, TGF-beta-1, TGF beta 1, TGF-β1, Transforming Growth Factor β1, TGF-β-1, TGF β1, Transforming Growth Factor beta 1 Latency Associated Peptide, TGF-beta1 Latency-Associated Protein, Latency-Associated Protein, TGF-beta1, TGF beta1 Latency Associated Protein, TGF-beta1LAP, TGF beta1LAP; AND Liver Neoplasms, Neoplasms, Liver, Liver Neoplasm, Neoplasm, Liver, Hepatic Neoplasms, Neoplasms, Hepatic, Hepatic Neoplasm, Neoplasm, Hepatic, Cancer of Liver, Cancer, Hepatocellular, Hepatocellular Cancer, HCC, Cancers, Hepatocellular, Hepatocellular Cancers, Cancer, Hepatic, Hepatic Cancer, Cancers, Hepatic, Hepatic Cancers, Cancer, Liver, Liver Cancer, Cancers, Liver, Liver Cancers, Cancer of the Liver; AND prognostic, prognosis, prognoses, outcome, outcomes, mortality, survival, overall survival, OS, disease-free survival, DFS, relapse-free survival, recurrence-free survival, RFS, metastasis-free survival, MFS, progression-free survival, or PFS.

Study selection, data extraction, and quality assessment of meta-analysis

No related review protocol has existed or been registered. Inclusion criteria: (1) studies were full papers in English prior to February 10, 2017; (2) Original articles as cohort studies; (3) Patients were grouped in terms of the expression levels of TGF-β1; (4) Focused on prognostic effect of TGF-β1 expression on patients with liver cancer; (5) Offered data on survival including OS and/or DFS/RFS/MFS/PFS. Exclusion criteria: (1) Duplicate publications; (2) Conference abstracts, meta-analysis, reviews, letters, comments, expert opinions and case reports; (3) Being not yet published in English; (4) Non-human experiments; (5) Studies without qualified data. Repetitive literature was managed and removed by Endnote X4.

Two researchers independently inspected all literature that satisfied the inclusion criteria, and the divergences between reviewers were settled through symposium. Information including first author, publication year, region, median age, sample size, gender distribution, cancer type, tumor stage, detection method, and follow-up time were extracted from each eligible study. Matching HRs with 95% CI for OS and DFS/RFS/MFS/PFS were calculated using COX univariable and multivariable models containing original data, or data extracted from Kaplan-Meier curves, as previously described [43, 44].

The methodological quality of included literature was appraised via the Newcastle-Ottawa Scale (NOS) [45]. The NOS is composed of three dimensions: selection, comparability, and exposure or outcome. Up to 4, 2, and 3 stars are given for the three dimensions respectively, with a total maximum score of 9 stars. Using the NOS, the quality of these studies was classified into three tiers: high quality (7–9 stars), intermediate quality (4–6 stars), and low quality (1–3 stars) [45–47].

Statistics of meta-analysis

Meta-analysis was conducted with Review Manager (RevMan) software (version 5.3.5; the Nordic Cochrane Centre, Copenhagen, Denmark). The prognostic role of TGF-β1 expression on OS and/or DFS/RFS/MFS/PFS was assessed by the pooled HRs and their matching 95% CI with the inverse variance method. Statistical heterogeneity was assessed by the chi-squared test (the significance of heterogeneity was artificially expressed as p’-value to distinguish from the significance of outcomes) and I² statistics. When there was no significant heterogeneity (p’-value > 0.1 and I² < 50%), the pooled HRs were assessed by fixed-effect models. Otherwise, random-effect models were utilized to enhance the stability of the meta-analysis by providing a conservative standard error and wider confidence interval. Publication bias was appraised by Begg funnel plot and Egger’s test.

Authors’ contributions

GCL and XQY conceived and designed the manuscript. LP collected and analyzed the data and drafted the manuscript. XQY, CYZ, FY, HFZ and WLL helped to analyze and check the data. ZYL, YQZ, XP and GCL critically revised the manuscript. All authors read and approved the final manuscript.

ACKNOWLEDGMENTS

This work was supported by the Open-End Fund for the Valuable and Precision Instruments of Central South University (CSUZC201746), Hunan Provincial Innovation Foundation for Postgraduates (CX2016B056), Fundamental Research Funds for the Central Universities of Central South University (2015zzts096), and the Science and Technology Department Research Foundation of Hunan province (12JJ2052). We all thank the TCGA project team for the mass available data.

CONFLICTS OF INTEREST

The authors declare that they have no conflicts of interest.
