Noncanonical Wnt signaling plays an important role in modulating canonical Wnt-regulated stemness, proliferation and terminal differentiation of hepatic progenitors

INTRODUCTION

As the largest internal organ and gland in the body, the liver provides vital metabolic, exocrine and endocrine functions, including secretion of several hormones such as insulin-like growth factors, angiotensinogen and thrombopoietin, production of bile, metabolism of dietary compounds, regulation of cholesterol synthesis and transport, urea metabolism, drug detoxification, regulation of glucose levels through glycogen storage, and control of blood homeostasis by secretion of clotting factors and serum proteins such as albumin and apolipoproteins [1–3]. Given the fact the liver plays such critical roles in normal physiological processes, pathological conditions, such as hepatic fibrosis, cirrhosis and hepatitis, and hepatocellular carcinoma, lead to high rates of morbidity and mortality [3]. In fact, liver disease is the fourth leading cause of death among middle-aged adults in the United States [3]. Thus, there is an unmet need in understanding the molecular mechanisms that regulate liver development and liver progenitor cell differentiation.

The liver is one of the most regenerative tissues in the body, capable of fully recovering mass and function after a variety of injuries [4, 5]. The hepatocytes are the principal cell type in the liver and account for ~70% of the mass of the adult organ. Hepatocytes, along with biliary epithelial cells, are derived from the embryonic endoderm, while the stromal cells, stellate cells, kuppfer cells and blood vessels, are derived from mesoderm [1–3]. The liver has long been speculated to harbor facultative stem cells that can become activated if the injury impairs the ability of the mature cells, especially hepatocytes, to replicate [4, 5]. These facultative stem cells are believed to reside near the portal region of the hepatic lobule in the canal of Hering [4, 5]. After activation, the hepatic stem cells may proliferate and produce ‘oval cells’, intermediate cells that have properties of both bile ducts and hepatocytes, which then would differentiate into functional mature hepatocytes [4, 5]. However, it has been shown that hepatocytes can also be derived from rare cells that reside in the pancreas, bone marrow, and brain [1, 2, 6]. Nonetheless, the liver exhibits extraordinary regenerative potential, which is presumably facilitated by hepatic progenitor cells [2, 5]. Thus, harnessing the regulatory mechanisms that control the proliferation and differentiation of liver progenitor cells may hold great promise to facilitating liver regeneration and/or progenitor cell-based therapies for liver diseases [5].

Several signaling pathways including Wnt signaling have been shown to play essential roles in liver development and postnatal liver regeneration [1, 2, 4, 5]. Wnt signaling plays essential roles in the development and numerous physiological and pathological processes [7–14]. Wnts are secreted glycoproteins that require extensive post-translation modifications for their biologic activity [15]. Biologically active Wnt ligands bind to receptor Frizzled (Fzd) and co-receptor LDL-related protein 5 (LRP5) or LRP6 to initiate a signaling cascade, which regulates a diverse set of downstream signaling events either through the canonical β-catenin/T-cell factor (TCF)/lymphoid enhancement factor (LEF) pathway, or noncanonical planar cell polarity (PCP) pathway or the Wnt/calcium pathway [7, 15, 16]. Canonical Wnt/β-catenin signaling has been shown to play important roles in regulating liver development and the proliferation and differentiation of liver progenitor cells, as well as in metabolic zonation [9, 15, 17]. However, it remains to be determined whether noncanonical Wnts play any significant roles in regulating liver development and regeneration.

In order to gain mechanistic insights into the regulatory circuitry governing the proliferation and differentiation of hepatic progenitor cells, we previously established a reversibly immortalized mouse hepatic progenitor cell line (iHPx), which retains long-term proliferative activity and yet possesses hepatic differentiation potential upon stimulated with appropriate differentiation cues [18–22]. Here, we comprehensively analyze the expression pattern of the essential components of both canonical and noncanonical Wnt signaling pathways at the different postnatal stages of mouse liver tissues and the iHPx cells, and find that the noncanonical Wnts Wnt4, Wnt5a, Wnt9b, Wnt10a, and Wnt10b are highly expressed concordantly with the high levels of canonical Wnts in the analyzed liver tissues. The noncanonical Wnts Wnt5a, Wnt9b, Wnt10a and Wnt10b are able to antagonize Wnt3a-induced β-catenin/TCF activity, reduce the stemness of the iHPx progenitor cells, and promote hepatic differentiation of liver progenitors in vitro. In vivo stem cell implantation assay demonstrates that Wnt5a, Wnt9b, Wnt10a and Wnt10b can inhibit cell proliferation and promote hepatic differentiation of the iHPx progenitor cells. Thus, our results strongly suggest that noncanonical Wnt signaling may play an important role in fine-tuning the Wnt/β-catenin signaling activity during liver development and regeneration.

RESULTS

Both canonical and noncanonical Wnt signaling components, as well as Wnt signaling modulators, are dynamically expressed at different stages of postnatal liver development

Although the biological roles of several canonical Wnts and β-catenin signaling in liver development and hepatocellular tumorigenesis have been extensively studied [15, 17], it remains to be fully understood about how canonical Wnt signaling is modulated under physiological and/or pathological conditions of the liver. Here, we sought to analyze the expression pattern of most essential components of canonical and noncanonical Wnt signaling during postnatal liver development. We collected total RNA from freshly obtained liver tissues of newborn (0 day), two-week-old (14D), one-month-old (28D), and six-month-old (180D) mice, and conducted TqPCR analysis of essential components of Wnt signaling.

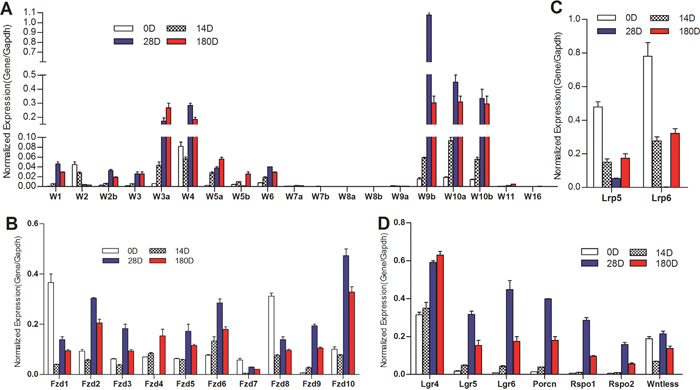

We first analyzed the expression profile of the 19 Wnt ligands in the liver samples collected from different time points. Our results indicate that the expression levels of seven of the 19 Wnts (i.e., Wnt7a, Wnt7b, Wnt8a, Wnt8b, Wnt9a, Wnt11 and Wnt16) were undetectable or very low under our assay condition (Figure 1A). The expression of five of the six canonical Wnts (e.g., Wnt1, Wnt2, Wnt3, Wnt3a and Wnt6) was readily detected and increased at later stages (D28 and D180) of liver development (Figure 1A). Noticeably, the commonly-studied canonical Wnt3a exhibited the highest expression levels, compared with other canonical Wnts, at late time points of liver development (Figure 1A). Surprisingly, several noncanical Wnts, such as Wnt2b, Wnt4, Wnt5a, Wnt5b, Wnt9b, Wnt10a and Wnt11, were highly expressed in 14D, 28D and 180D liver tissues. In particular, the expression levels of Wnt4, Wnt9b, Wnt10a and Wnt10b were at least equal to or higher than that of Wnt3a’s at the same stages, and their expression levels were correlated with the development stages of liver (Figure 1A). These results showed that more noncanonical Wnts were highly expressed than canonical Wnts, suggesting that the expression of canonical Wnts may be counter-balanced by that of noncanonical Wnts, and that noncanonical Wnts may play an important role in modulating canonical Wnt signaling during postnatal liver development.

We further found that almost all of the ten Fzd receptors (except Fzd7) were highly expressed in four stages of liver samples, while Fzd2, Fzd6 and Fzd10 expressed highest levels in one-month and/or 6-month liver samples (Figure 1B). Interestingly, Fzd1 and Fzd8 expressed at the highest levels at birth (newborn) (Figure 1B). The expression levels of Wnt co-receptors Lrp5 and Lrp6 were readily detectable in most time points although shown at the highest at birth (Figure 1C). We further analyzed other factors that were associated with Wnt signaling, and found that Lgr4 and Wntless were highly expressed in all stages of liver samples, while Lgr5, Lgr6, Porcn, Rspo1, and Rspo2 were expressed at higher levels in one-month and 6-month liver samples (Figure 1D), suggesting that these accessory factors may express at comparable levels with the increased expression of Wnt ligands.

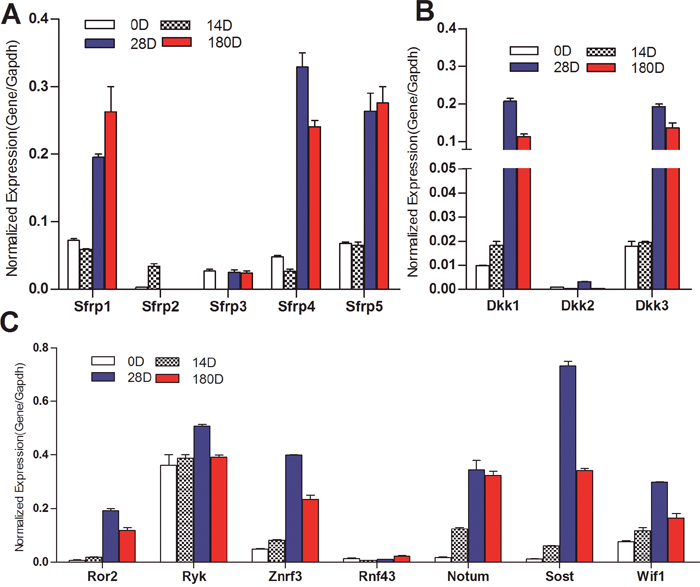

We further found that three of the five Fzd antagonists Sfrp1, Sfrp4, and Sfrp5 were highly expressed at late stages of liver development (e.g., 28D and 180D after birth), while Sfrp2 and Sfrp3 were expressed at low but detectable levels (Figure 2A). The Lrp5/6 antagonists Dkk1 and Dkk3 were also highly expressed at late stages of liver development (Figure 2B). The receptor-associated factor Ryk was highly expressed at all tested stages of liver development, while Ror2 was highly expressed in day 28 and 6 month liver samples (Figure 2C). Several negative regulators of Wnt signaling including Znrf3, Notum, Sost and Wif1, were highly expressed in later stages of liver development although Rnf43 was expressed at low but detectable levels (Figure 2C). These results strongly suggest that many of the Wnt negative regulators may be highly expressed during the differentiation and maturation of hepatocytes in order to maintain canonical Wnt signaling under fine-tuned regulation.

The reversibly immortalized mouse liver progenitor iHPx cells serve as a good model cell system for studying canonical and noncanical Wnt signaling during hepatic differentiation

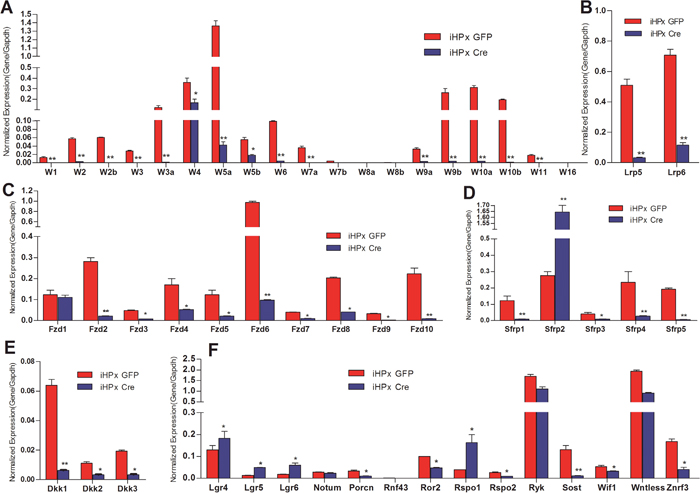

We previously established and characterized the reversibly immortalized mouse hepatic progenitor iHPx cells, which maintain the potential to differentiate into mature functional hepatocytes [18–22]. We next analyzed the expression patterns of Wnt ligands and their essential signaling components in the iHPx cells with or without the Cre-mediated removal of the immortalizing gene SV40 T antigen. We found the expression pattern of Wnt ligands in iHPx cells was very similar to that of the different stages of liver samples: the expression of five canonical Wnts (e.g., Wnt1, Wnt2, Wnt3, Wnt3a and Wnt7a) and 10 noncanonical Wnts (e.g., Wnt2, Wnt4, Wnt5a, Wnt5b, Wnt6, Wnt9a, Wnt9b, Wnt10a, Wnt10b and Wnt11) was readily detected (Figure 3A). The highly expressed Wnt ligands include Wnt3a, Wnt4, Wnt5a, Wnt9b, Wnt10a, and Wnt10b. These results reiterate the fact that more noncanonical Wnts were highly expressed than canonical Wnts in iHPx cells, further highlighting the check-balance of Wnt signaling in maintaining the stemness and differentiation of hepatic progenitor cells. However, a Cre-mediated removal of SV40 T antigen led to a pronounced decrease in the expression of both canonical and noncanonical Wnt. In particular, almost all canonical Wnts were expressed at extremely low; and only noncanonical Wnt4, Wnt5a and Wnt5b were expressed at relatively high levels (Figure 3A). We focused on four noncanonical Wnts (e.g., Wnt5a, Wnt9b, Wnt10a and Wnt10b) for further functional studies.

We further found that the expression patterns of co-receptors Lrp5 and Lrp6 and the Fzd receptors were similar to that of the 4-week old and 6-month-old liver samples’, and Fzd2, Fzd6, Fzd8 and Fzd10 were highly expressed in the iHPx cells (Figure 3B & 3C). However, upon the removal of SV40 T antigen from the iHPx cells, the expression levels of all co-receptors Lrp5 and Lrp6 and Fzds (except Fzd1) were significantly reduced (Figure 3B & 3C). It seems that Fzd1 expression was not affected by the removal of SV40 T antigen and remained as one of the highly expressed Fzds, along with Fzd4 and Fzd6 (Figure 3C). The expression of most Sfrps and Dkks were decreased upon the immortalization reversal of the iHPx cells (Figures 3D & 3E), although Sfrp2 expressed at a significantly higher level after the removal of SV40 T antigen (Figure 3D). Among other Wnt signaling regulators, we found that the expression of Porcn, Ror2, Ryk, Sost, Wif1, Wntless and Znrf3 was decreased upon the removal of SV40 T antigen, whereas the expression of Lgr4, Lgr5, Lgr6, and Rspo1was significantly increased when SV40 T antigen was removed (Figure 3F). These results demonstrate that the iHPx cells can be used as a model liver progenitor cells to study the effects of Wnt signaling on proliferation and differentiation. Furthermore, these results suggest that SV40 T antigen may immortalize the progenitors and preserve the stemness of the progenitors through up-regulating canonical Wnt signaling, which is counter-balanced by noncanonical Wnts and/or multiple negative regulators of Wnt signaling.

The iHPx cells are responsive to canonical Wnt activation, which can be effectively antagonized by noncanonical Wnts

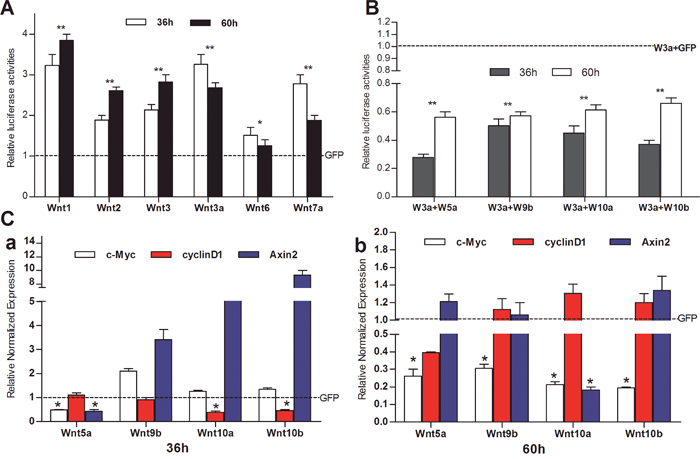

To determine if the iHPx cells are responsive to canonical stimulation, we introduced the β-catenin/TCF4/LEF reporter TOP-Luc into the iHPx cells and transduced with adenoviral vectors expressing canonical Wnts, such as Wnt1, Wnt2, Wnt3, Wnt3a, Wnt6, Wnt7a, or GFP control for 36h and 60h. We found that the TOP-Luc reporter activities were significantly induced by all six tested canonical Wnts although Wnt6 was less effective in the iHPx cells (Figure 4A). To test potential direct inhibitory effect of noncanonical Wnts on canonical Wnts, we first introduced the TOP-Luc reporter into the iHPx cells, which were then co-infected with Wnt3a and noncanonical Wnts, such as Wnt5a, Wnt9b, Wnt10a, and Wnt10b, and found that Wnt3a-stimulated TOP-Luc activity was significantly inhibited by the tested four noncanonical Wnts (Figure 4B). We further examined the effect of noncanonical Wnts on the expression of canonical Wnt target genes Axin2, c-Myc and cyclin D1, and found that different noncanonical Wnts had distinct effects on the target gene expression (Figure 4C). Wnt5a inhibited Axin2 expression at 36h, while Wnt9b and Wnt10b significantly induced Axin2 expression (Figure 5C). However, Wnt9b, Wnt10a, and Wnt10b (especially Wnt10a) showed a trend to bring down the Axin2 levels to basal or lower levels (Figure 5C). While it’s not clear why the noncanonical Wnts can up-regulate Axin2 expression, it’s conceivable that such induction may be caused by feedback regulation of the canonical Wnt signaling pathway, particularly at the early stage of stimulations.

Noncanonical Wnts inhibit the expression of hepatic stemness markers while induce the expression of hepatic differentiation associated markers

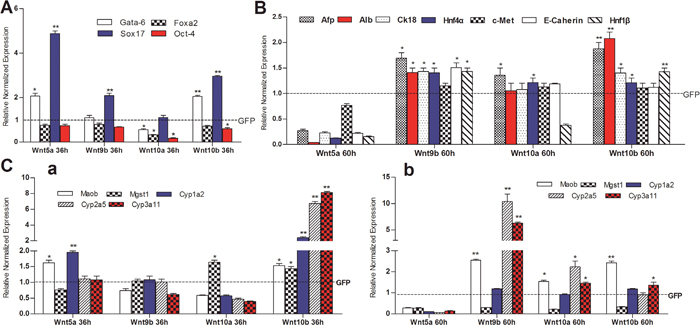

We further tested the effect of four noncanonical Wnts (e.g., Wnt5a, Wnt9b, Wnt10a and Wnt10b) on the expression of stemness markers and differentiation status of hepatic progenitors. We found that among the four noncanonical Wnts Wnt10a most effectively inhibited the expression of stem cell markers Gata-6, Foxa2 and Oct4, while no significant effect on Sox17 (Figure 5A). Wnt5a, Wnt9b and Wnt10b also effectively inhibited the expression of Foxa2 and Oct4, while inducing Sox17 as well Gata-6 to a lesser extent (Figure 5A). Furthermore, we analyzed the effect of the four noncanonical Wnts on the expression of hepatic regulator and liver marker genes such as Afp, Alb, Ck18, Hnf4α, c-Met, E-cadherin and Hnf1β, and found that Wnt9b, Wnt10a and Wnt10a effectively induced the expression of most if not all of these regulator and marker genes (Figure 5B). Interestingly, Wnt5a was shown to significantly inhibit the expression of Afp, Alb, Ck18, Hnf4α, c-Met, E-cadherin and Hnf1β (Figure 5B).

The effect of noncanonical Wnts on the expression of mature hepatocyte markers (e.g., Moab, Mgst1, Cyp1a2, Cyp2a5, and Cyp3a11) was also analyzed. We found that Wnt10b was able to induce the expression of these markers at 30h, but not at 60h (Figure 5C a vs. b). Wnt5a, Wnt9b and Wnt10a were shown to induce the expression of some but not all of the mature hepatocyte markers (Figure 5C a & b). We also analyzed the effect of noncanonical Wnts on the above markers in the Ad-Cre-treated iHPx cells and found the expression patterns were very similar (Supplementary Figure 1). Furthermore, using the previously established Alb-GLuc reporter line [18, 20, 21], we found that Wnt5a, Wnt9b, Wnt10a, and Wnt10b were able to induce GLuc activity significantly (data not shown).

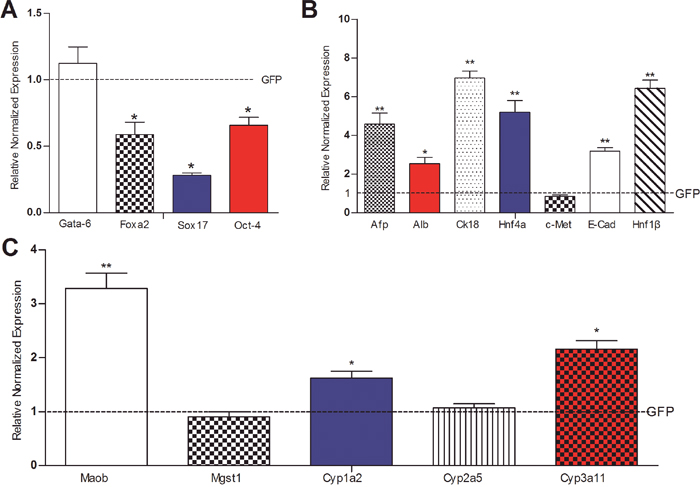

Considering that the SV40 T antigen may affect cell proliferative activity and differentiation potential in the iHPx cells, we transduced the iHPx cells with Ad-Cre and examined the endogenous expression levels of the above stemness marker genes and hepatic regulator/marker genes. We demonstrated that the SV40 T antigen was effectively removed (data not shown), and found that the removal of SV40 T antigen led to a significant decrease in the expression of stem cell markers Foxa2, Sox17 and Oct-4 although Gata-6 expression was not affected (Figure 6A). However, the expression of Afp, Alb, Ck18, Hnf4α, E-cadherin, and Hnf1β, but not c-Met, was significantly increased upon the removal of SV40 T antigen (Figure 6). Furthermore, the expression of mature hepatocyte functional markers Maob, Cyp1a2, and Cyp3a11, but not Mgst1 and Cyp2a5, also increased significantly (Figure 6C). These results strongly suggest that the removal of the immortalizing SV40 T antigen in the iHPx cells may reduce the stenmess of the cells and facilitate terminal differentiation of iHPx cells, which is reminiscent of the noncanonical Wnts’ effect on liver progenitor cells.

Noncanonical Wnts promote hepatic differentiation and facilitate hepatocyte maturation of the iHPx cells

We also examined the effect of noncanonical Wnts on hepatic differentiation and maturation of iHPx cells by analyzing the ICG uptake and glycogen synthesis/storage assays. When the iHPx cells were stimulated with Wnt5a, Wnt9b, Wnt10a, Wnt10b, Wnt3a or GFP control, we found that three of the four noncanonical Wnts, Wnt5a, Wnt10a and Wnt11b, were shown to effectively promote ICG update, when compared to that of GFP control or Wnt3a, although the removal of SV40 T antigen only slightly enhanced the Wnt-induced ICG uptake (Figure 7A, a vs. b).

PAS staining is one of the commonly used assays to assess the glycogen synthesis and storage function of mature hepatocytes. We found that Wnt10a-stimulated iHPx cells exhibited most significant PAS-positive staining, while Wnt5a, Wnt9b, and Wnt10b were shown to induce a significantly higher level of PAS staining than that that for the GFP control or Wnt3a treated cells (Figure 7B). Similar to the ICG uptake assay, the PAS staining results were not significantly affected by the removal of SV40 T antigen (Figure 7B, a vs. b). Collectively, these results indicate that noncanonical Wnts (e.g., Wnt5a, Wnt9b, Wnt10a and Wnt10b) can promote hepatic differentiation of hepatic progenitors.

Lastly, we tested the in vivo effect of noncanonical Wnts on the proliferation and β-catenin expression of the iHPx cells. Using the subcutaneous stem cell implantation assay [23–25], we found that the Ad-Wnt or Ad-GFP-transduced iHPx cells formed transient masses within the first two weeks, which gradually disappeared after two weeks. These results were consistent with our earlier findings in which the iHPx cells are not tumorigenic and rarely undergo spontaneous differentiation [18, 20–22]. We were able to recover cellular masses at 10 days post injection. Histological analysis indicated that, while Wnt3a promoted significant cell proliferation, Wnt5a, Wnt9b, Wnt10a and Wnt10b formed significantly smaller masses and inhibited cell proliferation, compared to that of the GFP-treated cells (Figure 8A). The cellular proliferative activity was further confirmed by PCNA immunohistochemical staining. Both Wnt3a and GFP-treated group exhibited high levels of PCNA-positive staining, while the masses retrieved from Wnt5a, Wnt9b, Wnt10a and Wnt10b groups had a significantly weaker or more sparsely positive staining (Figure 8B). Lastly, we examined the β-catenin status in these samples and found that, compared to the strongly positive staining in the Wnt3a treatment group, the masses recovered from Wnt5a, Wnt9b, Wnt10a and Wnt10b groups only exhibited weak or marginally positive β-catenin staining (Figure 8C), consistent with the in vitro results about the inhibitory effect of noncanonical Wnts on Wnt3a signaling activity in the iHPx cells

DISCUSSION

Wnt signaling transduces evolutionarily conserved pathways which play important roles in initiating and regulating a diverse range of cellular activities, including cell proliferation, calcium homeostasis, and cell polarity [7–13]. Wnt signaling is a rather complex signaling network, which contains 19 Wnt ligands, 10 Fzd receptors, several types of co-receptors and numerous antagonists/negative regulators [12, 13]. Traditionally, Wnt signaling is classified into two large categories: the canonical Wnt (or β-catenin-dependent) and non-canonical Wnt (or β-catenin-independent) pathways [12, 13]. The canonical and non-canonical pathways form intersecting signaling networks that coordinately regulate complex processes, such as embryonic development, stem cell maintenance, tissue homeostasis, and wound healing [12, 13]. It’s generally assumed that the canonical Wnt/β-catenin pathway regulates cell fate, proliferation, and survival, while non-canonical Wnt pathways are more often associated with differentiation, cell polarity, and migration [7–13]. Canonical Wnt/β-catenin signaling has been shown to play important roles in regulating the proliferation and differentiation of liver progenitor cells and metabolic zonation [9, 15, 17]. However, possible roles of noncanonical Wnts in regulating liver development and regeneration remain undefined.

In this study, we conduct a comprehensive analysis of the expression patterns of Wnt signaling components and find that several noncanonical Wnts, such as Wnt4, Wnt5a, Wnt9b, Wnt10a and Wnt10b, are highly expressed concordantly with the high levels of canonical Wnts in postnatal mouse liver tissues and the iHPx progenitor cells. Noncanonical Wnts Wnt5a, Wnt9b, Wnt10a and Wnt10b are able to antagonize Wnt3a-induced β-catenin/TCF reporter activity, reduce the stemness of the iHPx progenitor cells, and promote hepatic differentiation of liver progenitors in vitro. In vivo stem cell implantation assay demonstrates that Wnt5a, Wnt9b, Wnt10a and Wnt10b can inhibit cell proliferation and promote hepatic differentiation of the iHPx progenitor cells. Thus, our findings highlight the potentially critical roles of noncanonical Wnt signaling in maintaining a fine-tuned modulation of liver progenitor cells by canonical Wnt/β-catenin under physiological conditions (Figure 9).

Noncanonical Wnt signaling can be initiated by Wnt interaction with Frizzled receptors (Fzds), or RYK and ROR receptor tyrosine kinases and regulates small GTPases (such as RhoA, Rac, and Cdc42), and/or activates calcium flux and kinase cascades, including those of protein kinase C (PKC), calcium/calmodulin-dependent protein kinase II (CaMKII), and JUN N-terminal kinase (JNK) [7–13]. Interestingly, a recent study examined the important role of Wnt5a in hepatocyte proliferation and liver regeneration [26]. Using the liver-specific knockout models of Wntless (Wls-LKO), Yang et al showed that when subjected to partial hepatectomy the Wls-LKO showed prolongation of hepatocyte proliferation for up to 4 days compared with littermate controls, which coincided with increased β-catenin/TCF activity and decreased expression and secretion of Wnt5a [26]. However, Wnt5a expression increased between 24 and 48 hours, and Fzd2 between 24 and 72 hours after partial hepatectomy in normal mice, suggesting that Wnt5a may suppress β-catenin signaling in hepatocytes, thereby contributing to timely conclusion of the liver regeneration [26]. These findings are largely consistent with our results and further emphasize the important role of noncanonical Wnts in restricting Wnt/β-catenin signaling in liver development and liver regeneration.

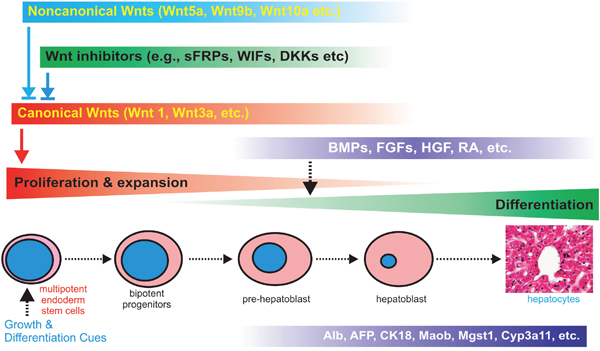

Taken together, our findings highlight the potentially critical roles of noncanonical Wnt signaling in maintaining a fine-tuned modulation of liver progenitor cells by canonical Wnt/β-catenin under physiological conditions (Figure 9). It would be of significance to investigate the roles of canonical Wnts such as Wnt4, Wnt5a, Wnt9b, Wnt10a and Wnt10b in liver development and postnatal liver regeneration. Therefore, a thorough understanding of the potential functions of noncanonical Wnts in liver stem cells may unravel the mechanisms underlying the important roles of Wnt/β-catenin in liver development, liver regeneration, and the development of hepatocellular carcinoma.

MATERIALS AND METHODS

Cell culture and chemicals

HEK-293 derivative 293pTP cells were previously described [27]. The iHPx cells are the pooled mouse liver progenitors that were reversibly immortalized mouse E12.5 hepatic progenitor cells described previously [18, 20]. Both 293pTP and iHPx cells were maintained in complete Dulbecco's modified Eagle's medium (DMEM) supplemented with 10% fetal bovine serum (FBS, Gemini Bio-Products, West Sacramento, CA, USA), 100 units of penicillin and 100 mg of streptomycin at 37°C in 5% CO₂. Unless indicated otherwise, all chemicals were purchased from Sigma-Aldrich (St Louis, MO, USA) or ThermoFisher Scientific (Waltham, MA, USA).

Total RNA isolation and touchdown-quantitative real-time PCR (TqPCR) analysis

Total RNA from both cultured cells and fresh tissues was isolated by using the TRIZOL Reagent (ThermoFisher) according to the manufacturer’s instructions. Briefly, the freshly prepared mouse liver tissues at the indicated development stages (n=5 CD1 male mice for each time point) were dissected out, quickly rinsed with PBS, minced, and then homogenized in the TRIzol reagent. For the cultured cells, subconfluent iHPx cells were treated with different conditions for varied duration and lysed in TRIZOL Reagent. Total RNA was extracted according to the manufacturer’s instructions and subjected to reverse transcription reactions with hexamer and M-MuLV reverse transcriptase (New England Biolabs, Ipswich, MA). The cDNA products were further diluted and used as PCR templates. The gene-specific PCR primers were designed by using Primer3 program [28] (Supplementary Table 1). TqPCR was carried out by using SYBR Green-based TqPCR analysis on a CFX-Connect unit (Bio-Rad Laboratories, Hercules, CA) as described [23, 29, 30]. The TqPCR reactions were done in triplicate. Gapdh was used as a reference gene.

Construction and amplification of recombinant adenoviruses Ad-Wnts, Ad-TOP-Luc, Ad-Cre, and Ad-GFP

Recombinant adenoviruses were generated using the AdEasy technology as described [31–34]. Briefly, the coding regions of mouse Wnt1, Wnt2, Wnt3, Wnt3a, Wnt5a, Wnt6, Wnt7a, Wnt9b, Wnt10a, and Wnt10b were PCR amplified and subcloned into an adenoviral shuttle vector, and subsequently used to generate recombinant adenoviruses in HEH-293 or 293pTP cells [27]. The resulting adenoviruses were designated as Ad-Wnt1, Ad-Wnt2, Ad-Wnt3, Ad-Wnt3a, Ad-Wnt5a, Ad-Wnt6, Ad-Wnt7a, Ad-Wnt9b, Ad-Wnt10a, and Ad-Wnt10b, all of which also express GFP. The recombinant adenovirus Ad-TOP-Luc containing the TCF/LEF-responsive elements driven firefly luciferase (FLuc) was also constructed and generated using the AdEasy technology [35]. The coding region of Cre recombinase was PCR amplified and subcloned into an adenoviral shuttle vector, and subsequently used to generate recombinant adenoviruses in 293pTP cells. An analogous adenovirus expressing GFP only (i.e., Ad-GFP) was used as a negative or mock virus control [36–39]. For all adenoviral infections, polybrene (4-8 μg/ml) was added to enhance infection efficiency as previously reported [40].

TOP-Luc firefly luciferase (FLuc) reporter assay

The TOP-Luc reporter assays were carried out as described [41–44]. Briefly, exponentially growing iHPx cells were seeded in 100mm cell culture dishes and infected with Ad-TOP-Luc reporter virus for ~16h, and then replated into 24-well plates, followed by infection with different Ad-Wnt viruses or Ad-GFP control. At 24h and 36h after infection, the cells were lysed and subjected to luciferase activity assays using the Firefly Luciferase Assay System (Promega, Madison, WI, USA). Each assay condition was done in triplicate.

Indocyanine Green (ICG) uptake/release assay

The ICG uptake and release assay was carried out as described [18, 20, 21]. Briefly, exponentially growing iHPx cells were seeded in 24-well culture plates, and co-infected with Ad-GFP or Ad-Cre and Ad-Wnt3a, Ad-Wnt5a, Ad-Wnt9b, Ad-Wnt10a, or Ad-Wnt10b for 10 days. Cells were washed with PBS and incubated with ICG (1mg/mL in complete DMEM) at 37°C for 1h, followed by PBS washes. ICG uptake was observed and recorded under a bright field microscope. For ICG release detection, the ICG-containing medium was changed with complete DMEM, and the cells were incubated for additional 6h. The status of ICG-stained cells was again observed and recorded under a microscope. Each assay condition was done in triplicate.

Periodic acid-schiff (PAS) staining

PAS staining was carried out as described [18, 20, 21]. Briefly, exponentially growing iHPx cells were seeded in 24-well culture plates and co-infected with Ad-GFP or Ad-Cre and Ad-Wnt5a, Ad-Wnt9b, Ad-Wnt10a, or Ad-Wnt10b. At 10 days post infection, cells were fixed with 4% paraformaldehyde for 10min, followed by stained with 0.5% periodic acid solution for 5min. After being rinsed in distilled water for 3 min, cells were incubated in the Schiff’s reagent for 15min, followed by thorough rinses with tap water. Cell staining was recorded using a microscope. Each assay condition was done in triplicate.

Subcutaneous stem cell implantation of iHPx cells

All animal experiments were carried out in accordance with the approved guidelines approved by the Institutional Animal Care and Use Committee. The stem cell implantation assays were carried out as described [45–49]. Briefly, the iHPx cells were infected with Ad-Wnt3a, Ad-Wnt5a, Ad-Wnt9b, Ad-Wnt10a, Ad-Wnt10b, Ad-GFP for 36h, and then collected and resuspended in PBS at 10⁷ cells/ml for subcutaneous injection into the flanks of athymic nude mice (Harlan Laboratories, 5-6 week old, male, 5×10⁶ cells/injection, 6 injections per mouse, and 5 mice per group). At 10 days after injection, mice were sacrificed, and subcutaneous masses were retrieved for histologic evaluation.

H & E staining and immunohistochemical (IHC) staining of the masses retrieved from subcutaneous stem cells implantation

The retrieved tumor masses were fixed in formalin, paraffin-embedded, and sectioned. The slides were deparaffinized, rehydrated and subjected to H & E staining [50–52]. IHC staining was performed as described [53–55]. Briefly, the sections were subjected to deparaffinization, followed by antigen retrieval and immunostaining with an anti-PCNA or anti-β-catenin antibody (Santa Cruz Biotechnology). Control IgG and minus primary antibodies were used as negative controls.

Statistical analysis

Quantitative data were expressed as mean ± standard deviation. Statistical analysis was carried out using Microsoft Excel program. Data were expressed as mean ± SD. Statistical significances were determined by one-way analysis of variance and the student’s t test. A p< 0.05 was considered statistically significant.

CONFLICTS OF INTEREST

The authors declare no conflicts of interest.

GRANT SUPPORT

The reported work was supported in part by research grants from the National Institutes of Health (AT004418, AR50142 to TCH and RCH), the 973 Program of Ministry of Science and Technology (MOST) of China (#2011CB707900 to TCH), the Major National S & T Program (2013ZX10002002 to ALH), the Major Project of Chongqing Science & Technology Commission (cstc2013jcyjC10002 to ALH), and the Natural Science Foundation Project of CQ CSTC (2010BB5359 to ALH and HT). This work was also supported in part by The University of Chicago Core Facility Subsidy grant from the National Center for Advancing Translational Sciences (NCATS) of the National Institutes of Health through Grant UL1 TR000430. Funding sources were not involved in the study design; in the collection, analysis and interpretation of data; in the writing of the report; and in the decision to submit the paper for publication.
