Abstract
Xiaoqin La1,*, Lichao Zhang1,2,*, Zhuoyu Li1, Peng Yang1, Yingying Wang1
1Institute of Biotechnology, Key Laboratory of Chemical Biology and Molecular Engineering of National Ministry of Education, Shanxi University, Taiyuan 030006, China
2School of Life Science, Shanxi University, Taiyuan 030006, China
*These authors have contributed equally to this work
Correspondence to:
Zhuoyu Li, email: [email protected]
Keywords: berberine, autophagy, cancer cell death, GRP78, VPS34
Received: May 13, 2016 Accepted: January 10, 2017 Published: February 01, 2017
ABSTRACT
Berberine, an isoquinoline alkaloid extracted from Coptidis Rhizoma, has been shown to induce cancer cell autophagic death. Glucose regulated protein 78 (GRP78) is associated with stress-induced autophagy. However, the related mechanisms between berberine-induced cancer cell autophagy and GRP78 remain to be elucidated. Here, we report that berberine can induce autophagic cancer cell death by elevating levels of GRP78. These results further demonstrated that berberine enhanced GRP78 by suppression of ubiquitination / proteasomal degradation of GRP78 and activation of ATF6. Moreover, fluorescence spectrum assay revealed that berberine could bind to GRP78 and form complexes. Finally, co-IP analysis showed that the ability of GRP78 to bind to VPS34 was increased with berberine treatment. Taken together, our results suggest that berberine induces autophagic cancer cell death via enhancing GRP78 levels and the ability of GRP78 to bind to VPS34.
INTRODUCTION
Autophagy is the cellular process that delivers damaged organelles and invasive bacteria to lysosomes for degradation in order to maintain intracellular homeostasis during various cell stresses [1]. These substrates are engulfed along with bulk cytoplasm by a double-membrane, with the extension and fusion of the membrane edge, resulting in the formation of the autophagosome [2]. After the fusion of the autophagosome and lysosome, the degradation products are recycled back into the cytosol and are reused to enhance cell survival during nutrient deprivation [3]. The entire autophagy process is complex and involves many critical proteins. Among these, LC3 (targeted to autophagosome membranes) [3] and class III phosphatidylinositol 3-kinase (also known as VPS34) are responsible for membrane remodeling and trafficking events in autophagy [4]. In addition, autophagy can be inhibited at different stages by various inhibitors, such as 3-MA and wortmannin, which block the initial phase of the autophagic process by specifically inhibiting PI3K activity. CQ and Bafilomycin A1 can suppress the fusion of the autophagosome and lysosome during later stages.
Accumulating evidence suggests that autophagy serves a largely cytoprotective role in physiologically relevant conditions. The cytoprotective function of autophagy is activated in many circumstances by suppressing apoptosis [5]. It is now being recognized that autophagy is not only a survival response to growth factor or nutrient deprivation, but also an important mechanism underlying tumor cell suicide [6]. Interminable autophagy has been shown to enhance anticancer drug-induced cell death. In contrast, disruption of autophagy promotes tumorigenesis [7]. Thus, induction of autophagy has been implicated as a cancer suppressive mechanism in drug-induced cell death [8]. Therefore, elevating the basal levels of autophagy may be a useful approach in cancer therapeutics.
One potential regulator of autophagy is activation of the unfolded protein response (UPR), an endoplasmic reticulum stress pathway [9, 10]. UPR activation occurs when unfolded proteins accumulate within the endoplasmic reticulum, resulting in the release of protein chaperone glucose-regulated protein 78 (GRP78, also known as BiP or HSPA5) from either PKR-like endoplasmic reticulum kinase (PERK, EIF2AK3), inositol requiring enzyme 1 (IRE1, ERN1), and/or activating transcription factor 6 (ATF6) [11]. GRP78, a key upstream activator of the UPR, participates in promoting protein folding, assembly and degradation, endoplasmic reticulum stress sensing, and cellular calcium homeostasis [12, 13]. High levels of GRP78 contribute to stress-induced autophagy, and functional blockade of the proteasome induces GRP78 to promote autophagosome formation [12, 14–19].
As a major active compound of Coptidis Rhizoma (Huanglian in Chinese), berberine is an isoquinoline alkaloid, which has long been used as a nonprescription oral drug in China for the treatment of gut infections and diarrhea [20]. Historically, berberine has been developed as a clinical drug due to its diverse efficacy, as an antimicrobial, antihyperlipidemic, antidiabetic, anti-inflammation and antioxidant factor [21, 22]. Importantly, the antineoplastic activities of berberine have been intensive studied and reported since the 1990s [20]. A large number of studies have revealed the cytotoxicity, metastasis inhibition and antiangiogenic properties of berberine [23–28]. Other studies have focused on cell-cycle checkpoint control, DNA repair and regulation of initiating oxidative stress in cancer cells, which highlight new antitumor mechanisms of berberine to light.
Recent studies have revealed that berberine can trigger autophagic cell death of tumor [8], and its beneficial effects are receded when the autophagic process is genetically or pharmacologically inactivated, suggesting that autophagy is indispensable for the protective effects of berberine [8, 29]. Here, we revealed that berberine could elevate GRP78 to induce autophagy in cancer cells, which may represent a promising candidate for cancer therapy.
RESULTS
Berberine treatment induced cell death in some cancer cell lines
Previous studies have confirmed that berberine can inhibit the growth of cancer cells with a relatively low IC50 in vitro [23-27, 30-34]. To test the toxicity of berberine in colon cancer cells HCT-116, DLD1 and hepatic carcinoma cells HepG2, normal liver cell line HL-7702, the cell viability corresponding to a series of berberine concentrations was measured (Figure 1A). These results showed that DLD1 treated with 100 μM berberine caused a significant decrease in cell viability. HCT-116 and HepG2 were more sensitive to berberine treatment, in which 50 μM produced an obvious inhibition effect. Interestingly, in the normal liver cell line HL-7702, there was a slight decrease in viability when the berberine concentration was less than 150 μM, suggesting that berberine was more effective in cancer cells compared to normal cells. The cell viabilities were plotted against berberine concentrations, revealing that the IC50 of berberine was 80 μM, 100 μM, 200 μM and 300 μM in HCT-116, HepG2, DLD1 and HL-7702, respectively. The addition of 3-MA reduced the effect of berberine on HCT-116 cell viability (Figure 1B). Consistent with these findings, silencing of ATG5 and Beclin1 attenuated berberine-induced HepG2 cell death (Figure 1C, 1D and 1E), indicating that induced autophagy may function as one anti-cancer mechanisms of berberine.

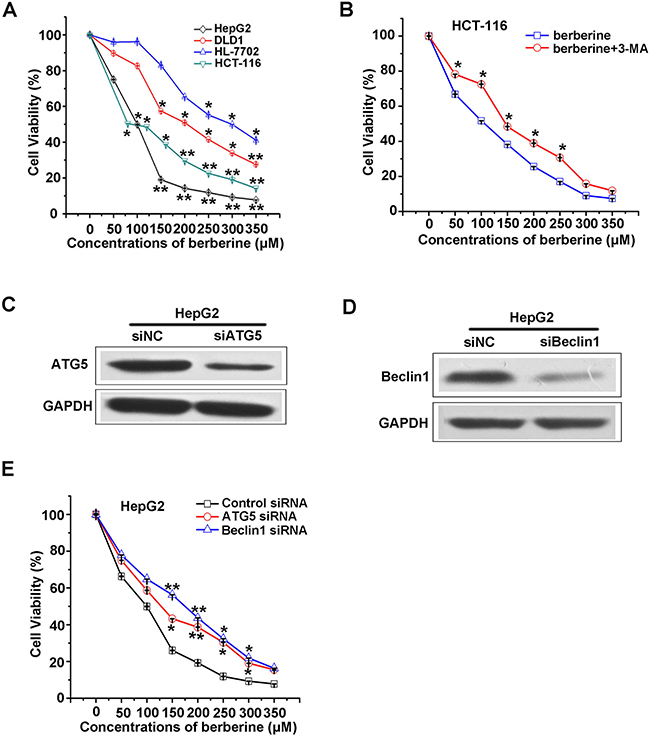

Figure 1: Berberine treatment induced autophagic cancer cells death. A. HCT-116, DLD1, HepG2 and HL-7702 cells were treated with different concentrations of berberine for 24 h. Cell viability was detected using the MTT assay and plotted against berberine concentrations, n=3. The cell viability curve was fitted using the Hill equation. IC50 indicated the concentration at which 50% of the cells survived. B. Viability of HCT-116 cells after treatment with berberine plus or minus 3-MA (10mM) was measured by MTT. C. Expression of ATG5 in HepG2 cells transfected with control or ATG5 siRNA was detected by western blot. D. Expression of Beclin1 in HepG2 cells transfected with control or Beclin1 siRNA by western blot are shown. E. The cytotoxicity of berberine can be attenuated by introducing siRNA against ATG5 and Beclin1 into HepG2 cells. All experiments were performed in triplicate and the results were analyzed for statistical significance (*p<0.05, **p<0.01).
Berberine activated autophagy in HCT-116 cells
To determine whether berberine treatment resulted in autophagic cell death, the expression levels of LC3-II, p62 and Beclin1, indicators of autophagy, were investigated in HCT-116 cells. These data showed that the expression of LC3 and Beclin1 were significantly increased with berberine treatment for 24 h, while the levels of p62 were reduced in a dose-dependent manner, peaking at 120 μM (Figure 2A and 2B). Because the accumulation of LC3-II may be attributed to an increase in autophagosome formation or decrease in lysosomal fusion and degradation, we next used chloroquine (CQ) and Bafilomycin A1 (BAF), inhibitors of the autophagosome, to block autophagic flux. These results showed that CQ or BAF treatment resulted in further accumulation of LC3-II in HCT-116 cells treated with berberine (Figure 2C, 2D, 2E and 2F), which exclude the possibility of lysosomal dysfunction caused LC3-II accumulation.

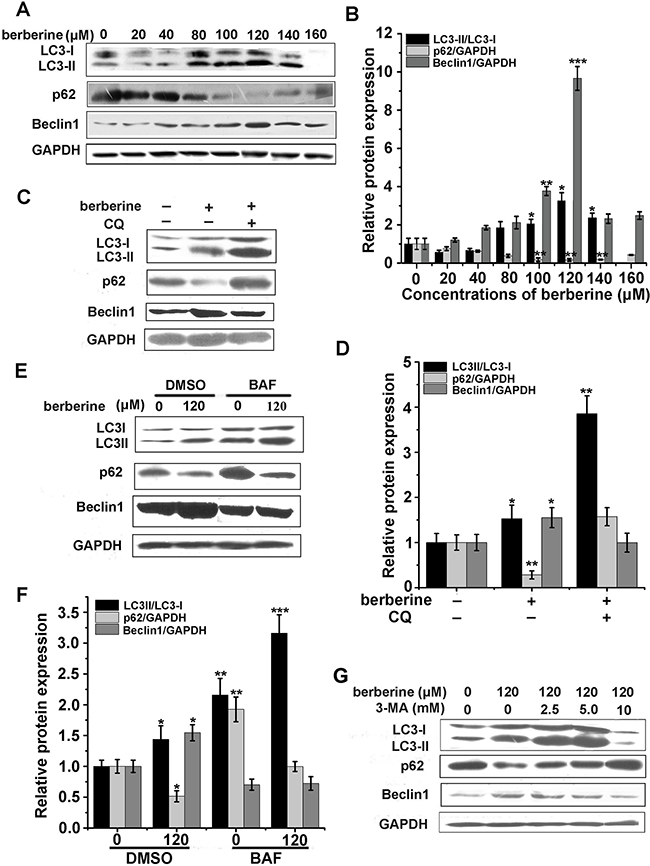

Figure 2: Berberine-activated autophagy in HCT-116 cells. A and B. Western blots of LC3, p62, Beclin1 and GAPDH were performed on HCT-116 cell lysates treated with berberine at the indicated concentrations for 24 h. The relative protein expression was calculated by Image J. C-D. HCT-116 cells were treated with the indicated concentrations of berberine for 24 h with or without CQ (50 μM). The levels of LC3, p62 and Beclin1 were monitored by western blot of the cell lysates (C) and the relative protein expression was calculated by Image J (D). E-F. Western blotting analysis of LC3-II/LC3-I, p62 and Beclin1 levels (E) and the relative protein expression were quantified by Image J (F) in HCT-116 cells treated with berberine at the indicated concentrations for 24 h, in the absence or presence of 37.5 μM BAF (treated in combination with berberine). G. Protein expression levels of LC3, p62 and Beclin1 were analyzed by western blot in HCT-116 cells after treatement with berberine at the indicated concentrations for 24 h, in the absence or presence of 3-MA at different concentrations (treated in combination with berberine). Three independent experiments were performed, and the data were expressed as the mean ± SD. *p<0.05, **p<0.01, ***p<0.001 were compared to the untreated group.
Furthermore, 3-MA, an inhibitor of autophagosome formation, was applied to block autophagic flux. These results showed that 10 mM 3-MA could inhibit LC3-II expression levels (Figure 2G and 3A). In contrast, the expression of LC3-II produced no obvious changes in the protein levels when treated with a series of berberine concentrations in normal hepatocytes HL-7702 (Figure 3B and 3C).

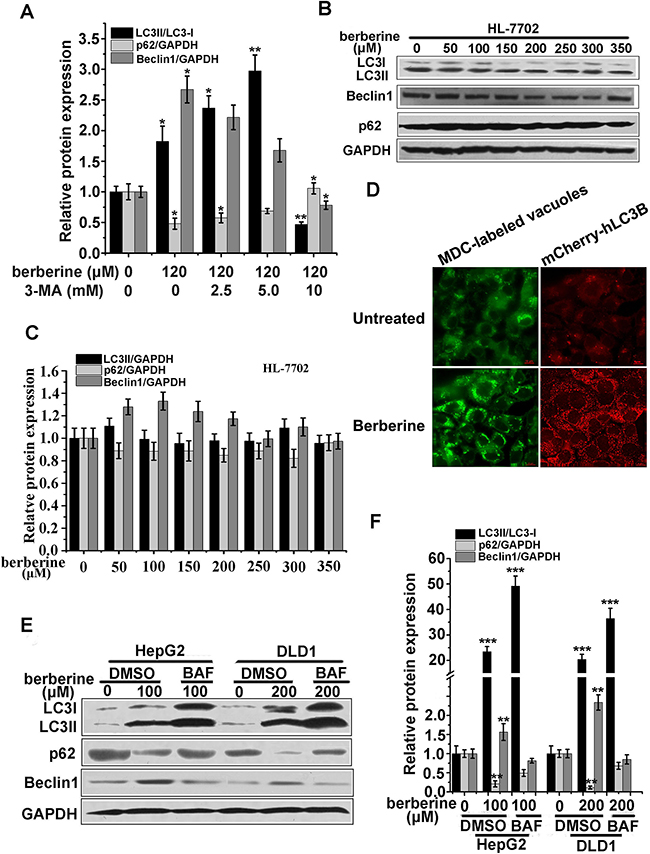

Figure 3: Berberine activated autophagy in cancer cell lines of HCT-116, DLD1, and HepG2. A. Quantification of the relative protein expression is shown in Figure 2G of three independent experiments using Image J software. B and C. Western blot analysis of LC3, Beclin1 and p62 expression (B) and the relative protein expression were evaluated by Image J (C) in HL-7702 cells treated with various concentrations of berberine. D. HCT-116 cells incubated with 0.05 mM monodansylcadaverine (MDC) for 10 min after treatment with the indicated concentration of berberine 24 h (left panel) or transfected with mCherry-hLC3B treated with 120 μM berberine for 24 h (right panel). The cells were then analyzed using fluorescence microscopy. Scale bar, 5 μm. E-F. HepG2 and DLD1 cells were treated with the indicated concentrations of berberine for 24 h with or without BAF co-incubation. LC3, Beclin1 and p62 were analyzed by western blotting analyses (E) and relative protein expression levels were calculated by Image J (F). Three independent experiments were performed, and the data were expressed as the mean ± SD. *p<0.05, **p<0.01, ***p<0.001 compared to the untreated group.
Confirmation of autophagy induced by berberine treatment
Next, autophagic vacuole organelle (AVO) formation was detected and measured by staining with MDC. Berberine-treated HCT-116 cells showed stronger fluorescence intensity and a greater number of MDC-labeled particles compared with the control group (Figure 3D), indicating that berberine increased the formation of autophagosomes in the cytoplasm. Similar to MDC staining, exogenous mCherry-hLC3B was overexpressed and assembled into autophagosomes upon berberine treatment (Figure 3D). Similar results were obtained in DLD1 and HepG2 cells treated with berberine (Figure 3E and 3F). Importantly, transmission electron microscopy observations showed that in berberine-treated HepG2 cells, autophagosome-related structures were observed (Figure 4A), which was not as easily visible in control cells. These data suggested that berberine could strongly promote cellular autophagy in HCT-116, DLD1, and HepG2 cells, but not in normal hepatocytes HL-7702 cells.

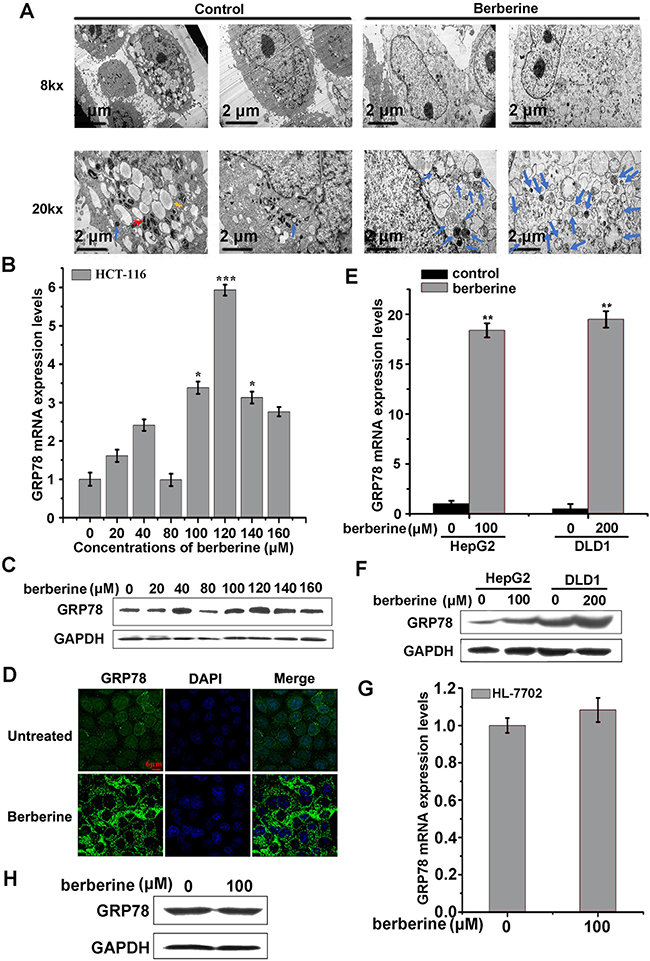

Figure 4: GRP78 was elevated in berberine treated cancer cell lines. A. Electron microscopic images of HepG2 control and berberine-treated cells (120 μM) for 24 h. Lipid droplets (yellow arrow); autophagosomes and autolysosome of double-membrane, single-membrane, and multivesicular body-like vesicles (blue arrows); mitochondria (red arrow). Scale bars are indicated at the bottom. B and C. HCT-116 cells were exposed to 20, 40, 80,100,120,140 and 160 μM berberine for 24 h. GRP78 was detected by qRT-PCR (B) and western blotting analyses (C). D. HCT-116 cells were exposed to 120 μM berberine for 24 h, and the cells were then fixed and stained with GRP78-specific antibody and examined using fluorescence microscopy. E and F. HepG2 and DLD1 cells were exposed to the indicated concentrations of berberine for 24 h, and GRP78 was detected by qRT-PCR (E) and western blotting analyses (F). G and H. HL-7702 cells were exposed to 100 μM berberine for 24 h, and GRP78 was detected by qRT-PCR (G) and western blotting analyses (H).
Berberine treatment enhanced GRP78 expression levels
Previous studies have demonstrated that GRP78 was an autophagy inducer under conditions of glucose starvation [35]. We further explored whether GRP78 was involved in berberine-induced autophagy. First, HCT-116 cells were treated with a gradient of berberine for 24 h, and the expression of GRP78 was then measured. These results showed that cell autophagy was accompanied with an increase in GRP78 expression (Figure 4B and 4C). Furthermore, immunofluorescence results showed that the fluorescence intensity of GRP78 was strengthened with berberine treatment (Figure 4D). In addition, we observed an enhancement of GRP78 in DLD1 and HepG2 cells (Figure 4E and 4F). Importantly, GRP78 showed no obvious changes in non-neoplastic HL-7702 cells with berberine treatment (Figure 4G and 4H). Taken together, these results suggested that berberine induced cancer cell autophagy, which was accompanied by an increase in GRP78 that was not observed in normal cells.
GRP78 played a dominant role in the modulation of autophagy
To further assess whether berberine-induced GRP78 expression is correlated with autophagic cancer cell death, we transfected HCT-116, DLD1, HepG2 cells with GRP78 siRNA. The cells were then treated with berberine at the optimum concentration for 24 h. The protein expression of LC3 was then examined. These results showed that three types of cancer cells treated with 10 nM siRNA for 48 h could lead to approximately 50% repression of GRP78 expression compared to control (Figure 5A, 5D and 6A), and the expression of LC3 were significantly decreased in the three types of cancer cell lines depleted of GRP78 cells (Figure 5B, 5C, 5E, 5F, 6B and 6C). Furthermore, the siRNA of GRP78 was utilized to detect cell viability, and MTT results indicated that DLD1-siGRP78 cells exhibited greater resistance to berberine treatment (Figure 6D). Taken together, these data suggested that GRP78 played a critical role in berberine-induced autophagic cancer cell death.

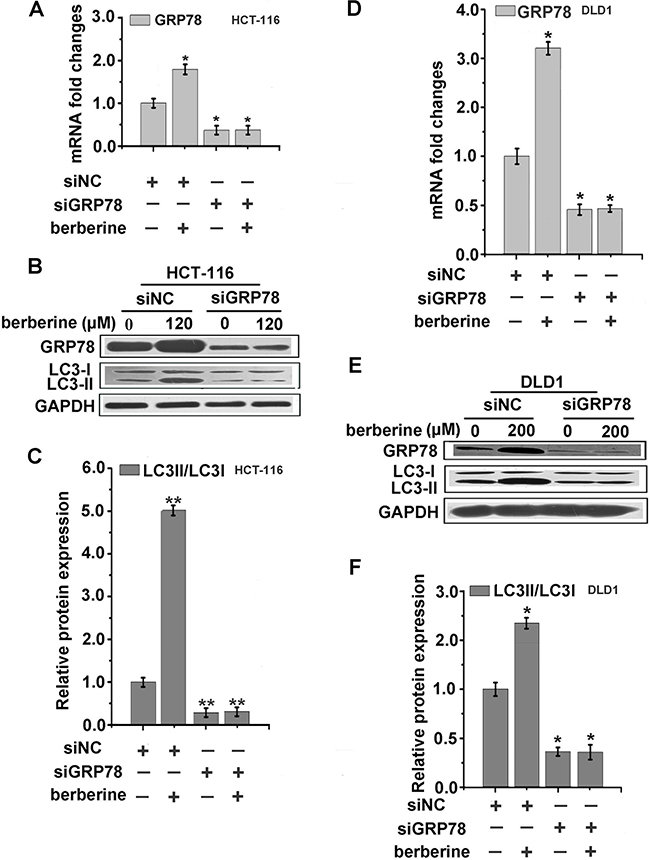

Figure 5: Knockdown of GRP78 abolished the autophagy effect of berberine in HCT-116 and DLD1 cells. A-F. HCT-116 and DLD1 cells were transfected with control siRNA or siRNA targeting GRP78, respectively. After 48 h, the cells were treated with indicated concentrations of berberine for 24 h, then GRP78 was measured by qRT-PCR (A and C) and GRP78, LC3 were examined by western blotting analyses (B and E). The LC3-II/LC3-I relative protein expression levels were calculated by Image J (C and F). Data were expressed as the mean ± SEM of three different experiments. *p<0.05 and **p<0.01 vs. respective control.

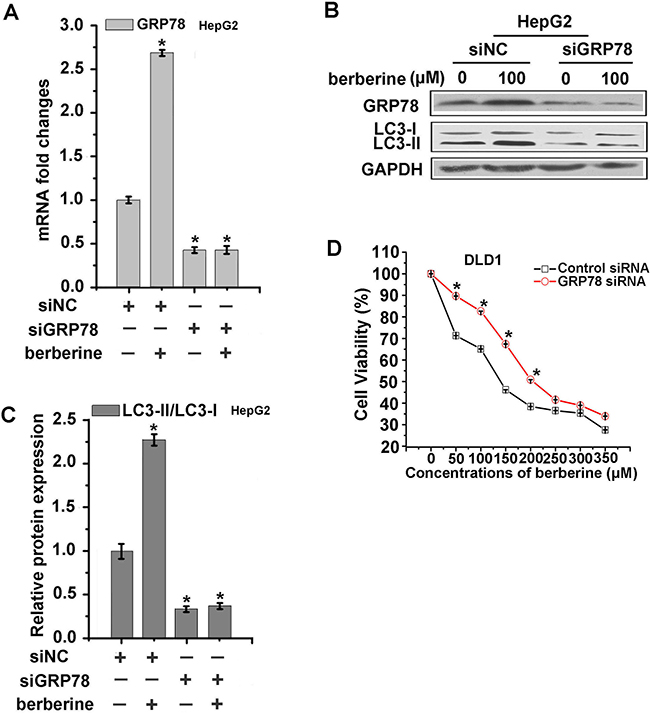

Figure 6: GRP78 played a dominant role in the modulation of autophagy in HepG2 and DLD1 cells A-C. HepG2 cells were transfected with control siRNA or siRNA targeting GRP78, respectively. After 48 h, the cells were treated with indicated concentrations of berberine for 24 h, then GRP78 was measured by qRT-PCR (A) and GRP78, LC3 were examined by western blotting analyses (B). The LC3-II/LC3-I relative protein expression levels were calculated by Image J (C). D. The cytotoxicity of berberine can be attenuated by introducing siRNA against GRP78 into DLD1 cells. Data were expressed as the mean ± SEM of three different experiments. *p<0.05 vs. respective control.
Berberine elevated GRP78 expression via increased ATF6 levels
It is known that ATF6 (activating transcription factor 6) and YY1 (Yin Yang 1) are the main transcription factors regulating GRP78 expression [11, 36]. To determine which transcription factor is required for berberine-induced GRP78, the expression of ATF6 and YY-1 was analyzed in HCT-116 and HepG2 cells using RT-PCR. Compared to control, the mRNA of ATF6 increased significantly in cells treated with berberine (Figure 7A), but YY1 expresses only showed a slight change (Figure 7B). Western blotting analysis of ATF6 after berberine treatment confirmed the increased expression (Figure 7C). Consistent with these findings, silencing of ATF6 largely attenuated berberine-induced GRP78 expression (Figure 7D). These data indicated a novel function of berberine on the ATF6-GRP78 cascade.

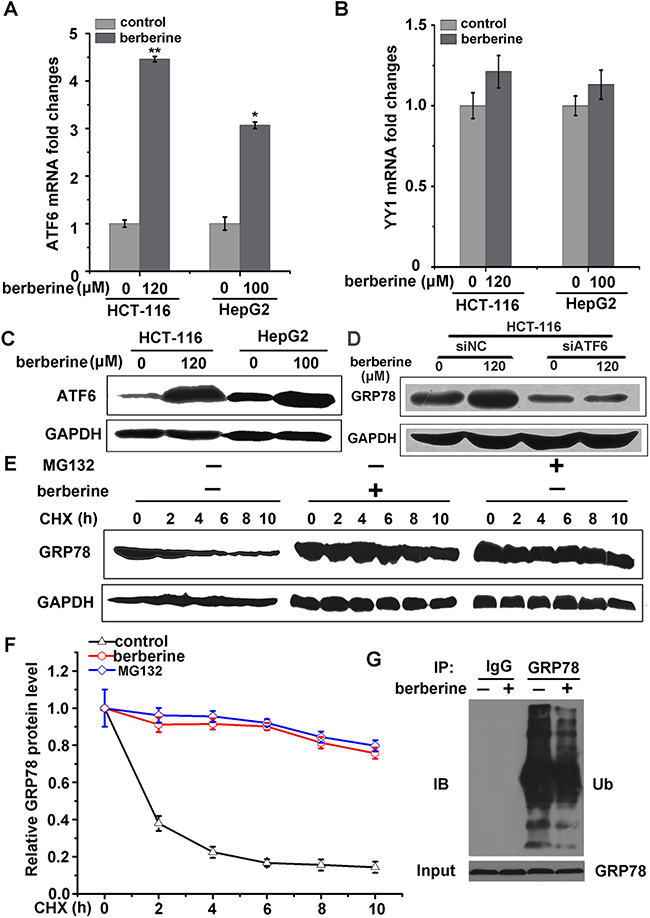

Figure 7: Berberine induced GRP78 expression by increased ATF6 expression and GRP78 stability. A. HCT-116 and HepG2 cells were treated with berberine for 24 h. ATF6 mRNA was measured by qRT-PCR. B. HCT-116 and HepG2 cells were treated with berberine for 24 h. YY1 mRNA was measured by qRT-PCR. C. Western bloting analyses were performed to examine ATF6 expression levels in HCT-116 and HepG2 cells. D. HCT-116 cells were transfected with control siRNA or siRNA targeting ATF6. After 48 h, the cells were treated with the indicated concentrations of berberine for 24 h, and GRP78 was measured by western blot. E. In the presence of berberine or proteasome inhibitor MG132 (5 μM), HCT-116 cells were treated with cycloheximide (CHX, 0.1 mg/ml) for the indicated times and GRP78 expression was then analyzed by western blot. F. Quantification of GRP78 expression was performed on three independent experiments using Image J software and normalized against vehicle control (Figure 6E). G. HCT-116 cells were treated with MG132 in the presence or absence of berberine for 24 h. GRP78 was immunoprecipitated, and GRP78 ubiquitination was examined. Three independent experiments were performed, and the data were expresses as the mean ± SD. *p<0.05, **p<0.01 were compared to the untreated group.
Berberine inhibits the ubiquitination and proteasomal degradation of GRP78
To determine whether the half-life of GRP78 protein was increased by berberine treatment, HCT-116 cells were treated with the protein synthesis inhibitor cycloheximide at various time points. These results showed that GRP78 was degraded much slower in berberine-treated cells, similar to findings obtained in 26S proteasome inhibitor MG132-treated cells, suggesting that berberine-induced GRP78 elevation occurred via the ubiquitination proteasome system (Figure 7E and 7F). In addition, co-immunoprecipitation with an anti-GRP78 antibody was performed using an anti-ubiquitin antibody and revealed that the ubiquitination signals of GRP78 were attenuated after treatment with berberine (Figure 7G). These results suggested that berberine decreased GRP78 ubiquitination, further resulting in the suppression of proteasomal degradation andelevating the stability of GRP78.
Berberine can interact with GRP78
To examine the mechanism underlying berberine inhibition of ubiquitination and proteasomal degradation of GRP78, His tagged-GRP78 was expresses and purified using the E. coli system (Supplementary Figure 1A, 1B and 1C). Fluorescence spectrum studies were performed to determine its ability to bind to berberine. These studies indicated that the fluorescence intensity of GRP78 gradually declined with an increasing concentration of berberine (Figure 8A), and a blue-shift was observed for the maximum emission (Figure 8B). These findings suggested that berberine could quench the fluorescence of GRP78, and the chromophore of Trp residue was placed in a more hydrophobic environment after the addition of berberine. Furthermore, the Stern–Volmer equation revealed that the quenching was not caused by dynamic collision but was due to static quenching caused by the formation of a complex between GRP78 and berberine (Figure 8C and Table 1).

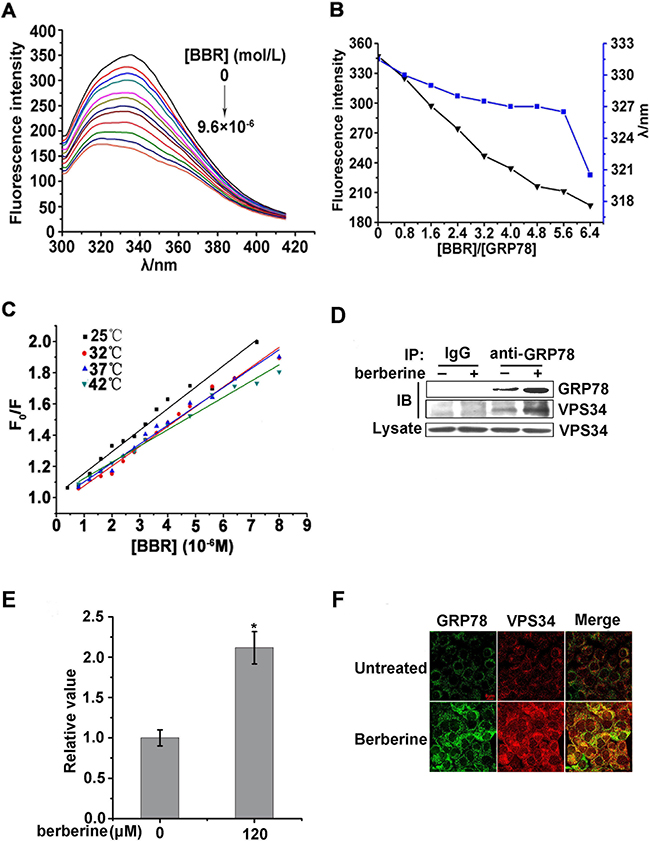

Figure 8: Berberine can interact with GRP78 and induce autophagy by facilitating the ability of GRP78 to bind to VPS34 A. Effect of berberine on fluorescence spectra of GRP78. λex = 295 nm, [GRP78] = 1.0×10-6 M, curves 1–12 [berberine]/[GRP78] = 0, 0.8, 1.2, 1.6, 2.4, 2.8, 3.2, 3.6, 4.8, 6.4, 8.0, 9.6, pH 7.4, at 42°C. B. The dots represent [berberine]/[GRP78] = 0, 0.8, 1.6, 2.4, 3.2, 4.0, 4.8, 5.6, 6.4, pH 7.4, at 42 °C. The fluorescence intensity of GRP78 declined gradually, and the blue-shift occurred for the emission maximum (from 331.5 to 320.5 nm). C. The values of Ksv, Kq and R2 were determined with Stern–Volmer equation by linear regression of plots of F0/F vs [Q] at different temperature. The Stern–Volmer equation: F0/F=1+Ksv[Q]=1+Kqτ0[Q], where F0 and F were fluorescence intensities of GRP78 before and after the addition of berberine, Kq was the quenching rate constant, and τ0 was the average lifetime of biomolecule without quencher that was valued at approximately 10-8s. [Q] was the concentration of berberine as a quencher, and Ksv was the Stern–Volmer quenching constant. D. HCT-116 cells were treated with berberine for 24 h. GRP78 was immunoprecipitated and IgG served as a negative control, VPS34 was then examined. E. Quantification of GRP78-VPS34 levels in the immunoprecipitated complex are shown in Figure 7D of three independent experiments using Image J software and normalized against the vehicle control. F. Confocal microscopy detection of co-localization of endogenous GRP78 with VPS34 in HCT-116 cells treated with berberine for 24 h. Permeabilized cells were stained with anti-GRP78 and anti-VPS34 antibody to detect GRP78 (green) (left) and VPS34 (red) (right). The merged images showed co-localizations (yellow) of GRP78 and VPS34 detected at multiple corresponding sites. Scale bars represent 6 μm.
Table 1: Stern-Volmer quenching constant of the interaction between berberine and GRP78
T | Ksv/105 | Kq/1013 | R2 |
|---|---|---|---|
25 | 1.377 | 1.377 | 0.9737 |
32 | 1.265 | 1.265 | 0.9818 |
37 | 1.206 | 1.206 | 0.9858 |
42 | 1.038 | 1.038 | 0.9859 |
The values of Ksv, Kq and R2 were determined with Stern–Volmer equation: F0/F=1+Ksv [Q] =1+Kq τ0 [Q] by linear regression of plots of F0/F vs [Q] at different temperature.
Berberine induced autophagy by facilitating the ability of GRP78 to bind to VPS34
GRP78 can form a complex with VPS34, which plays an important role in autophagosome formation [35, 37]. Next, we examined the ability of GRP78 to bind to VPS34 in HCT-116 cells treated with berberine. These results indicated that there was enhanced binding between GRP78 and VPS34 upon berberine treatment (Figure 8D and 8E). Moreover, immunofluorescence staining results showed that stronger co-localization of endogenous GRP78 and VPS34 after berberine treatment 24 h (Figure 8F).
DISCUSSION
An increased number of studies have revealed that berberine can induce autophagic cell death by up regulating P38 MAPK in cancer cells [8]. In our study, we found that berberine could up-regulate GRP78, and the expression of ATF6 was positively correlated with GRP78 (Figure 7A, 7C and 7D). Thus, ATF6 may represent a new target of berberine, which is responsible for berberine-induced GRP78 elevation.
GRP78 can be degraded by the ubiquitination and proteasomal pathway via GP78 (E3 ubiquitin ligase) [38]. In our study, the ubiquitination of GRP78 was significantly decreased in the presence of berberine (Figure 7G). According to prior data, GRP78 acetylation at K353 prevents the ubiquitination and degradation of GRP78 [38]. Thus, we hypothesized that berberine may inhibit GRP78 ubiquitination by promoting GRP78 acetylation.
However, berberine may suppress ubiquitin-proteasome degradation by directly binding with GRP78. We performed a fluorescence spectrum assay, which revealed that berberine strongly bound to GRP78 and only one binding site was detected in GRP78 with berberine at 37°C (Supplementary Figure 2A and Supplementary Table 2). Moreover, thermodynamics parameters and the nature of the binding forces revealed that hydrogen bonding and vander Waals forces played a dominant role in the binding of berberine to GRP78 (Supplementary Table 3). However, the precise interaction site of berberine-GRP78 requires further detailed studies.
Although most evidence supports the role of autophagy in sustaining cell survival, cell death resulting from excessive cellular consumption has been attributed to unrestrained autophagy [39, 40]. Thus, there must be a threshold value for autophagy. If the level of cell autophagy exceeds the value, then cell death occurs. However, the value and factors that regulate the level of cell autophagy are still unknown. The expression of GRP78 in cancer cells was higher compared to normal cells, and GRP78 binds to VPS34 to promote autophagy. This study showed that berberine could enhance GRP78 levels and the ability of GRP78 to bind to VPS34. Thus, autophagy in cancer cells may reach the threshold value more readily compared to normal cells upon berberine treatment. Taken together, these explanations may account for the opposing results between cancer cells and normal cells observed with berberine treatment, and reveal that GRP78 is an important regulator of the autophagic paradox.
Moreover, previous studies have indicated that AMPK is a major intermediate in facilitating the beneficial effects of berberine [41–43]. Indeed, we observed increased p-AMPKT183/172 in berberine-treated HCT-116 and DLD1 cells, and siGRP78 largely decreased berberine-induced p-AMPK levels (Supplementary Figure 2B, 2C and 2D), indicating that AMPK may function as a downstream regulator of GRP78. Thus, our study provides a link between AMPK and GRP78 in berberine-induced cancer cell autophagic death.
In summary, our studies demonstrated that berberine could induce GRP78 expression by activation of ATF6 cleavage, and inhibition of ubiquitination and proteasomal degradation, further resulting in autophagy and cancer cell death.
MATERIALS AND METHODS
Reagents and antibodies
Berberine was purchased from J&K SCIENTIFIC LTD (China). The RPMI-1640 medium, Dulbecco,s modified Eagle,s (DMEM) medium, DMEM / F-12 1:1 medium and fetal bovine serum (FBS) were obtained from GIBCO (Grand Island, NY). MTT and monodansylcadaverin (MDC) were obtained from Sigma (St. Louis, MO). Trizol, PrimeScript RT Master Mix and SYBR green PCR master mix were from Takara (Shiga, Japan). GRP78 antibody was obtained from Abcam (Cambridge, UK). Antibodies for LC3, p62, AMPK, p-AMPKT183/172 and ATF6 were obtained from Proteintech (Chicago, USA). GAPDH, GRP78, Ub, Beclin1 and chloroquine were purchased from Bioworld Technology (Minneapolis, MN). VPS34 antibody was obtained from Cell Signaling Technology (Danvers, MA). FITC- and TRITC- secondary antibodies were obtained from Invitrogen (Carlsbad, CA). Bafilomycin and 3-methyladenine of autophagy inhibitors were purchased from Cayman Chemical (MI, USA). MG-132 (proteasome inhibitor) and cycloheximide (protein synthesis inhibitor) were obtained from Sigma (St. Louis, USA). Sodium dodecylsulfate polyacrylamide gel electrophoresis (SDS-PAGE) protein standard was obtained from Thermo Scientific. BCA protein assay kit was purchased from Beyotime.
Cell culture and proliferation assay
Human colon carcinoma HCT-116 and DLD1, human hepatoma HepG2, human liver normal HL-7702 cell lines were obtained from the American Type Culture Collection and cultured in RPMI-1640 or DMEM / F12 1:1 medium supplemented with 10% FBS at 37 °C in a humidified tissue culture incubator containing 5% CO2.
Patient tumor cells and normal cells viabilities were measured using the MTT dye absorbance. Next, 5×103 cells were plated in 96-wells and incubated in media, and then treated with drugs and incubated for 24 h. MTT was added into each well after 24 h, incubated for 4 h and then removed. Next, 100 μl DMSO was added, and the absorbance was determined using a BMG Labtech FLUOSTAR OPTIMA plate reader at 570 nm wavelength.
RNA extraction, reverse transcription and real-time PCR analysis
Total RNA was extracted using Trizol reagent and reverse-transcribed into complementary DNA (cDNA) using 500 ng RNA for qPCR according to the manufacturer’s instructions. qPCR was performed using the SYBR Green PCR Master Mix on an Applied Biosystems StepOnePlus Real-time PCR System (Applied Biosystems, Inc., Foster City, CA, USA). GAPDH served as an endogenous control. The relative expression of each targeted gene was normalized by subtracting the corresponding GAPDH threshold cycle (Ct) values using the ΔΔCt method. The primers used in this study are listed in Supplementary Table 1.
RNA interference
Small interfering RNA (siRNA) targeting GRP78, ATG5, Beclin1, ATF6 and siGenome non-targeting siRNA were used for GRP78, ATG5, Beclin1, ATF6 knockdown and control, respectively. The set of siRNAs against GRP78 (sense 5′-AAGGUUACCCAUGCAGUUGTT-3′, antisense 5′-CAACUGCAUGGGUAACCUUTT-3′), the set of siRNAs against ATG5 (sense 5′-GACGUU GGUAACUGACAAATT-3′, antisense 5′-UUUGUCAG UUACCAACGUCTT-3′), the set of siRNAs against Beclin1 (sense 5′-CUGGACACGAGUUUCAAGATT-3′, antisense 5′-UCUUGAAACUCGUGUCCAGTT-3′), the set of siRNAs against ATF6 (sense 5′-GGAGACAGC AACGUAUGAUTT-3′, antisense 5′-AUCAUACGUU GCUGUCUCCTT-3′) and a negative control siRNA (sense 5′-UUCUCCGAACGUGUCACGUTT-3′, antisense 5′-ACGUGACACGUUCGGAGAATT-3′) were obtained from GenePharma. Briefly, cells were grown in 6-well plates and transiently transfected at 60-80% confluence with siRNA at a final concentration of 5 nM using siRNA-MateTM transfection reagent (GenePharma) according to the manufacturer,s instructions. After 48 h transfection, the cells were incubated with fresh medium alone or with the indicated concentrations of berberine. After 24 h, the cells were harvested for GRP78 analysis of mRNA and protein levels by qPCR and western blotting analyses, respectively.
Transfection assays, autophagosome detection and immunofluorescence analysis
To assess the alteration and location of targets, HCT-116 cells were plated on 12-well glass slides and grown to 60 to 80% confluence. A total of 2 μg mCherry-hLC3B plasmid was transfected using TurboFect transfection reagent (Thermo). Approximately 48 h later, cells were treated again with the indicated concentrations of berberine for an additional 24 h. The cells were then fixed in 4% paraformaldehyde in PBS for 30 min, and permeabilized with 0.3% Triton X-100 in PBS for 10 min fot cytoplasmic protein staining. Next, the cells were labeled with 0.05 mM MDC in PBS at 37°C for 10 min. The cells were then incubated with 4-6-diamidino-2-phenylindole (DAPI, Vector Lab) to visualize the nucleus. After incubation, cells were washed four times with PBS, and intracellular MDC and LC3 were measured after the slides were mounted in Gelvatol. Confocal immunofluorescence analysis was performed with settings optimized for DAPI, TRITC and FITC.
For the endogenous protein assay, the cells were fixed and permeabilized. The samples were blocked in 2% goat serum for 1 h and incubated with primary antibodies at 4 °C overnight. The samples were then washed and incubated with the corresponding secondary antibodies. After three PBS washes, the cells were analyzed using confocal microscopy.
Transmission electron microscopy
Cells were fixed with 4% glutaraldehyde and post-fixed in 1% osmium tetroxide at 4°C. The samples were then washed again, dehydrated with graded alcohol, and embedded in Epon-Araldite resin. Next, 50 nm of ultrathin sections were obtained using an ultramicrotome (Leica). Sections were then stained with uranyl acetate and lead citrate. A Hitachi H-7500 transmission electron microscope was used to observe autophagosomes.
Protein stability assay, western blotting analyses and immunoprecipitation studies
GRP78 protein degradation was analyzed by CHX-chase analysis. HCT-116 cells were pre-incubated with or without 120 μM berberine for 24 h. Subsequently, 5 μg/ml CHX was added to inhibit protein synthesis. The cells were collected at 0, 2, 4, 6, 8 and 10 h following treatment with CHX.
Total protein in the supernatant was measured using the bicinchoninic acid (BCA) protein assay kit (P0010-1, Beyotime, China). Cells were lysed supplemented with protease inhibitors PMSF.
For the co-IP studies, the lysates were centrifuged for 15 min at 13,000× g and the resulting supernatant was precleared by incubation with Protein A (for rabbit antibody) or G (for mouse antibody) for 1 h at 4°C. The precleared supernatant was subjected to overnight immunoprecipitation using the indicated antibodies or control IgG antibodies at 4°C. On the next day, protein complexes were collected by incubation with Protein A (for rabbit antibody) or G (for mouse antibody) for 2 h at 4°C. The collected protein complexes were washed five times with co-immunoprecipitation buffer and eluted by boiling in protein sample buffer under reducing conditions. Sample proteins were then resolved by SDS-PAGE and analyzed by western blotting.
The lysates were boiled for 5 min and separated by 10–12% SDS-PAGE before the proteins were transferred onto PVDF membranes (Millipore). After blocking in 5% skimmed milk for 1 h, the membranes were rinsed and probed with 1:1000-diluted primary antibodies against LC3, GRP78, ATF6, and Ub overnight at 4°C, followed by horseradish peroxidase (HRP)-conjugated secondary antibodies for 2 h at room temperature. Next, the immunoreactive protein bands were visualized using the enhanced chemiluminescence detection kit (PerkinElmer, Waltham) and X-ray film. Finally, the blots were scanned, and densitometric analysis was performed on the scanned images using Image J Software.
Construction, expression, purification of plasmid His-GRP78
The target gene GRP78 was subcloned into the pET-28a plasmid to generate the recombinant plasmid pET-28a-GRP78. The recombinant plasmid was then confirmed by restriction analysis using BamHI and XhoI, PCR and sequencing by Sangon Biotech Co., Ltd. Next, BL21 was transformed with pET-28a-GRP78, which was cultured at 37°C until the OD600 reached 0.8, and IPTG was added to a final concentration of 1mM to induce GRP78 expression.
BL21 cells expressing GRP78 were harvested by centrifugation, and resuspended in 10 mM phosphate buffered saline (PBS, pH7.4) for sonication on ice. After centrifugation, the supernatant was then collected and applied into a 10 ml Ni2+- Sepharose 6 Fast Flow column pre-equilibrated. The column was eluted with 50, 100, 150, 200, 250, 300, 400 and 500 mM imidazole. The eluted fraction of GRP78 protein was dialyzed overnight in 10 mM PBS to remove imidazole. The purity of GRP78 was analyzed using 10% SDS-PAGE.
Fluorescence spectra measurements
Quantitative analysis of the potential interaction between berberine and GRP78 was performed by fluorometric titration. The GRP78 sample was purified and berberine was dissolved into double distilled water between 60-80°C. A 1.0 mL solution of GRP78 was added to 1.0 cm quartz cells at a given temperature and was titrated by successive addition of berberine. Berberine was mixed with GRP78 and incubated for 5 min to allow the reagents to react prior to the measurements. The fluorescence emission spectra were recorded in the range of 315–600 nm. Both slits of excitation and emission were 10 nm, with an excitation wavelength at 295 nm and an optical path of 10 mm.
Statistical analysis
All experiments were performed in triplicate, and a representative experiment was selected for presentation. Data were expressed as the mean ± SEM. Differences among groups were tested by one-way analysis of variance (ANOVA) and a p-value <0.05 was considered statistically significant. Comparisons between two groups were evaluated using Student’s t-test.
Abbreviations
GRP78: Glucose-regulated protein 78; MTT: Methyl thiazolyl tetrazolium; SDS-PAGE: Sodium dodecyl sulfate polyacrylamide gel electrophoresis; PVDF: polyvinylidene fluoride; MDC: monodansylcadaverin; ATF6: activating transcription factor 6; YY1: Yin Yang 1; CQ: chloroquine; BAF: Bafilomycin; 3-MA: 3-methyladenine; CHX: cycloheximide.
ACKNOWLEDGMENTS
This work was supported by the National Natural Science Foundation of China (No. 31271516), Research Project Supported by Shanxi Scholarship Council of China (2015-2), the R&D Infrastructure and Facility Development Program of Shanxi Province (2015091015), and Zhejiang Province Science Foundation (LY15H280008), the Scientific and Technological Innovation Programs of Higher Education Institutions in Shanxi (Grant No. 2016121), Shanxi Province Science Foundation for Outstanding Youths (201601D021007), Shanxi Province Science Foundation for Youths (201601D021107).
CONFLICTS OF INTEREST
The authors disclose no potential conflicts of interest.
