MYCN is a novel oncogenic target in pediatric T-cell Acute Lymphoblastic Leukemia

INTRODUCTION

T- cell acute lymphoblastic leukemia (T-ALL) represents about 15% of pediatric ALL cases and is generally associated with unfavorable clinical features and aggressive biologic behavior such as higher risk for primary resistant disease, early relapse and isolated central nervous system relapse compared with B-progenitor ALL patients. The prognosis of T-ALL in children and adolescent has improved in recent years as a result of more intensive chemotherapy approaches but it remains worse compared to B-lineage acute leukemia especially in presence of poor initial response to therapy [1-3].

Current understanding of the molecular pathogenesis of T-ALL has allowed to identify several oncogenes aberrantly expressed in different subgroups of pediatric T-ALL, such as TLX1, TAL1, LYL1, TLX3 and HOXA genes [4]. Even if many studies have reported promising results [5-9], unfortunately the improvement in understanding the biological background of pediatric T-ALL has not yet triggered a comparable development of novel molecularly-directed therapies that may improve patients’ prognosis.

MYCN belongs to the MYC family of proto-oncogenes which encode for transcription factors involved in the control of cell proliferation, differentiation and apoptosis and broadly implicated in oncogenesis [10, 11]. During murine development MYCN expression is high in multiple tissues but it becomes down-regulated over the first weeks of life, persisting mainly in the early phases of B-cell differentiation [12, 13]. MYCN is overexpressed, frequently as a consequence of genomic amplification, in a large number of childhood malignancies, such as neuroblastoma, rhabdomyosarcoma and medulloblastoma, and enhanced MYCN expression correlates with increased growth potential and dismal prognosis [14-18]. Even if the mechanism through which MYCN mediates tumorigenesis remains largely unknown, experimentally induced downregulation of MYCN in neuroblastoma cells leads to growth arrest and cell death in vitro and decreased incidence and tumor mass in vivo [19, 20].

Up to now few evidences have suggested a possible involvement of MYCN in the pathogenesis of haematologic malignancies. For example, MYCN locus is a common target of retroviral integration in mouse T-cell lymphoma [21], and transgenic mice that overexpressed MYCN (Eμ-N-myc genes) develop pre-B and B lymphoid malignancies. The Eμ-N-myc transgene also appears to participate in the generation of T cell lymphoma [22]. High MYCN expression was detected in five of six acute myeloid leukemia (AML) cases, in one of nine acute lymphoblastic leukemia (ALL) cases and in several leukemia cell lines [23, 24]. MYCN overexpression was observed in a relevant percentage of pediatric patients with AML by micro-array and qRT-PCR analysis. Moreover, retrovirus-mediated overexpression of MYCN in mouse bone marrow stimulates the proliferation and self-renewal of myeloid cell in vitro and rapidly causes AML in vivo [25].

Peptide nucleic acids (PNA) are DNA analogs with considerable therapeutic potential [26]. Our group has already achieved interesting results by using PNA-mediated inhibition of MYCN in neuroblastoma cell lines [19, 27] while other studies supported the possible applications of anti-gene oligonucleotide strategies in hematologic malignancies [28, 29]. Recently we showed that a pharmacological inhibition of MYCN through administration of a specific PNA (PNA-MYCN) is able to block rhabdomyosarcoma cell growth both in vitro and in vivo, without evidence of systemic toxicity [30].

We show here that MYCN oncogene is overexpressed in a relevant proportion of pediatric T-ALL, in particular in the TAL1+ subgroup, and its selective inhibition by using PNA targeted against MYCN results in the arrest of cell growth and induction of apoptosis both in vitro and in human blast cells from pediatric T-ALL patients.

RESULTS

MYCN expression in pediatric T-ALL

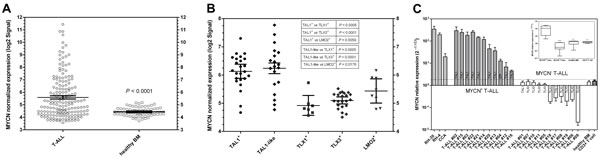

To assess the frequency of MYCN overexpression in T-ALL we analyzed the expression profiles of blast cells from 174 pediatric and adult T-ALL samples and of mononuclear cells from 74 healthy bone marrow donors from the previously reported Stage 1 MILE study [31]. MYCN expression in T-ALL samples was significantly higher than that in bone marrow from healthy individuals (mean expression ± 95% CI: 5.57 ± 0.25, T-ALL; 4.44 ± 0.08, healthy donor BM; P< 0.0001, Student t test, two-tailed) and 40% of T-ALL samples expressed MYCN at a level higher than the mean + 3SD of expression in normal bone marrow (Fig. 1A).

Focusing on pediatric T-ALL, we analyzed the expression profiles of blast cells from the SET-NUP214 dataset [32] finding that MYCN-expressing samples were found almost exclusively in the TAL1+ subgroup (Fig. 1B), while the other molecular subgroups did not show almost any MYCN overexpression (mean expression ± 95% CI: 6.13 ± 0.25, TAL1+; 4.92 ± 0.35, TLX1+; 5.09 ± 0.13, TLX3+; 5.43 ± 0.42, LMO2+). The same was true for the class of patients without recurrent cytogenetic aberrations that the authors reported to show a TAL1-like gene expression profile; these patients exhibited the same upregulation of MYCN expression as those carrying rearrangements of the TAL1 locus (Fig. 1B).

To further assess the expression of MYCN in pediatric T-ALL, we determined MYCN expression level in blast cells from 22 pediatric patients treated at the Pediatric Oncology and Hematology Section, Policlinico S.Orsola-Malpighi of Bologna, by qRT-PCR (Fig. 1C). In 11 out of 22 samples (50%) MYCN expression was significantly higher than that in bone marrow donors and CD3+ T-cells from healthy individuals (P= 0.001 and P= 0.005 respectively, Student t test, two-tailed). Single nucleotide polimorphism analysis (SNParray) and FISH analysis performed on the samples with higher MYCN expression revealed that MYCN overexpression was not due to amplification of the gene (Supplementary Figure 1).

Clinical and biological features associated with MYCN expression

MYCN expression did not correlate significantly with overall and event-free survival while it was associated with poor response to steroid prephase (P=0.009, Fisher exact test). To confirm the association with different oncogene subclasses we analyzed TAL1, TLX1 and TLX3 positivity in leukemic cells from the 22 pediatric T-ALL patients by qRT-PCR. Positivity for TAL1, TLX1 and TLX3 was detected in 11 (50%), 2 (9%) , and 7 (32%) samples respectively (Supplementary Figure 2). Among the TAL1-positive patients we did not find any translocation leading to TAL1 activation, while six out of eleven patients showed evidence of the interstitial deletion leading to SIL-TAL1 fusion transcript (Supplementary Figure 3). In line with gene expression profiling results, MYCN overexpression was significantly found only in the TAL1+ group, since almost all the TAL1+ samples overexpressed MYCN, while no TLX1+ or TLX3+ samples showed high level of MYCN expression. Positive association between TAL1 and MYCN overexpression was statistically significant (P= 0.009, Fisher exact test), as well as inverse association between MYCN and TLX3 (P= 0.004).

The high MYCN expression in a considerable proportion of pediatric T-ALL suggested its potential role as a target for novel molecularly-directed therapies. Therefore we examined MYCN gene and protein expression level in human T-ALL cell lines (Jurkat, CCRF-CEM, RPMI 8402 and DND-41) to be used as in vitro models. All cell lines apart from DND-41 showed high MYCN transcript and protein expression, at levels comparable to other cell lines known to overexpress MYCN (CCA rhabdomyosarcoma cell line) although lower than MYCN-amplified cell lines (RH30 rhabdomyosarcoma cell line) (Supplementary Figure 4A,B). It is noteworthy that the first three cell lines overexpress TAL1, with RPMI 8402 and CCRF-CEM also showing cryptic 1p32 deletion that gives rise to SIL-TAL1 fusion (Supplementary Figure 3B), while DND-41 harbours t(5;14)(q35.1;q32.2) that activates TLX3 .

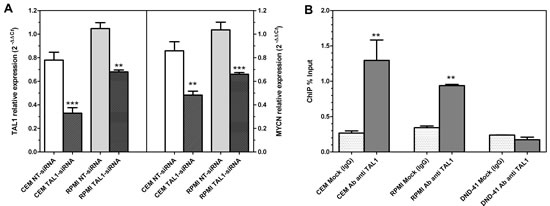

To further investigate the possible link between TAL1 and MYCN concurrent overexpression observed in T-ALL cell lines and leukemic blast cells, CCRF-CEM and RPMI-8402 cells were transfected with siRNAs targeted against TAL1. After 24 hours from nucleofection, TAL1 knockdown by siRNAs resulted in a significant reduction of MYCN expression, implying that TAL1 pathway activation could directly or indirectly lead to a significant increase in MYCN expression (Fig. 2A). Moreover, ChIP analysis showed that MYCN can be directly targeted by TAL1, since the promoter region upstream of MYCN is significantly enriched by immunoprecipitation with a TAL1-specific antibody in TAL1-positive cell lines (CCRF-CEM and RPMI-8402) but not in the TAL1-negative DND-41 cell line (Fig. 2B).

Effect of MYCN knockdown in T-ALL blast cells and cell lines

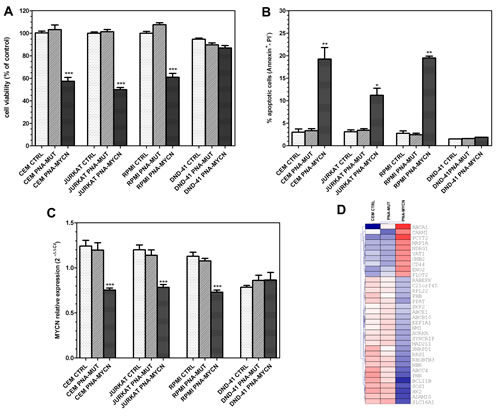

To investigate if MYCN could be an oncogenic target in T-ALL, we inhibited MYCN expression in T-ALL cell lines by a peptide nucleic acid (PNA) targeted against MYCN transcription (PNA-MYCN) [19, 27, 30]. After 72 hours of treatment, MYCN knockdown by PNA-MYCN on CCRF-CEM, Jurkat and RPMI 8402 resulted in a significant reduction of cell viability of 42%, 50% and 39%, respectively (P<0.0001, Student t test, two-tailed) (Figure 3A). No effect was elicited by using a mismatch PNA (PNA-MUT) harboring 3 point mutations, thus demonstrating the mechanism specificity. Furthermore PNA-MYCN treatment was not effective in the MYCN-negative DND-41 cell line (Fig. 3A). Flow cytometric analysis of Annexin-V/ PI staining performed on the three cell lines showed that the inhibitory effect of anti-gene PNA-MYCN on cell viability led to increased apoptosis of 19.3%, 11.2% and 19.5% in CCRF-CEM, Jurkat and RPMI 8402, respectively, while no effect was elicited on the MYCN-negative cell line (Fig. 3B). PNA-MYCN treatment led to significant down-regulation of MYCN in the three cell lines, with no effect of control PNA-MUT (Fig. 3C). MYCN down-regulation in T-ALL cell lines was not associated with a reduction of TAL1 gene expression, suggesting the absence of a positive loop between TAL1 and MYCN (data not shown). PNA-MYCN effect on cell viability, on MYCN expression and on apoptosis was specific, since no effect was obtained with PNA-MUT treatment. MYCN inhibition in CCRF-CEM cell line determined the differential expression of known MYCN target genes derived from the MYCNot database, in particular upregulation of N-MYC downstream regulated gene 1 (NDRG1) and CD44, that are normally repressed by MYCN, and downregulation of SLC16A1, hexokinase 2, ABCC4 and ABCE1, ADAM10 and BCL11B (Fig. 3D). Overall these genes regulate leukocyte activation (NBN, ADAM10, RPL22, BCL11B, NDRG1), progression through cell cycle (MAD2L1, SKP2, RRS1, C21orf45, AURKA), glycolysis (ENO2, HK2) and drug transport (ABCC4, ABCB10, ABCE1).

To further demonstrate the specificity of the biological effect mediated by MYCN, we inhibited MYCN expression also by RNAi on RPMI-8402 cell line, confirming that MYCN downregulation significantly inhibits cell growth (Supplementary Figure 5A). The effect however is smaller than the one elicited by PNA-MYCN (24% and 37% inhibition at 24 and 48 hours), since RNAi are less efficient that PNAs at inhibiting MYCN (Supplementary Figure 5B).

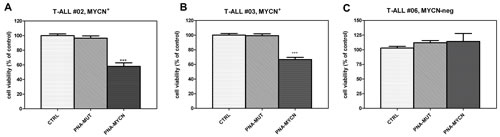

To assess the efficacy of MYCN inhibition as a potential therapeutic strategy in T-ALL, we examined pediatric T-ALL patient samples isolated from bone marrow or peripheral blood for their sensitivity to PNA-MYCN. PNA-MYCN treatment significantly reduced cell viability of blast cells from two pediatric patients with high MYCN expression (42% for T-ALL#02 and 34% for T-ALL#03) (P<0.0001), while no effect was elicited on leukemic cells from one MYCN-negative patient (T-ALL#06) and by using the mismatch PNA (PNA-MUT) (Fig. 4).

DISCUSSION

The implication of MYCN in the genesis of T-cell leukemias and lymphomas was suggested by few previous studies on the evidence of high MYCN expression in neoplasms arisen in transgenic mice or found in leukemia and lymphoma cell lines [21-25]. In this article we show that MYCN could play a role in the oncogenic phenotype of T-lineage ALL: as a matter of fact we find that 40 to 50% of T-ALL overexpress MYCN, in close association with the overexpression of TAL1. These findings highlight that another member of the myc-family of trascription factors could be a critical component of T-ALL oncogenesis, along with MYC which has already been characterized as a master oncogene in human T-ALL, particularly as a consequence of Notch1 mutation [33-35]. However, the mechanism through which MYCN mediates oncogenesis in T-ALL has yet to be precisely defined. On the basis of the concurrent overexpression of MYCN and TAL1 detected in a large proportion of blast cells from pediatric T-ALL samples, along with the evidence in qRT-PCR analysis that TAL1 knockdown resulted in a reduction on MYCN expression and that TAL1 directly binds to MYCN promoter region by ChIP analysis, we hypothesized that TAL1 pathway activation could directly sustain the up-regulation of MYCN expression. The work by Kusy et al. [36] lends further support to this hypothesis evaluating the gene expression profile of two T-ALL cell lines in basal conditions and after TAL1 or NKX3.1 silencing by RNA interference: in the cell line showing high levels of TAL1 protein (Jurkat), knockdown of TAL1 or of its downstream effector NKX3.1 significantly down-regulates MYCN expression (derived from the analysis of published gene expression data). On the other hand, the fact that MYCN down-regulation is not associated with a reduction in TAL1 expression suggests the absence of a positive loop between MYCN and TAL1.

Previously Ferrando et al. reported that MYCN can be overexpressed in T-ALL, in particular in the LYL1+ subgroup [4]. It is interesting to note that both TAL1 and LYL1 belong to the basic helix-loop-helix (bHLH) family of transcription factors which are implicated in T-cell leukemogenesis mainly by interfering with the transcriptional activity of E2A and HEB during T-cell lymphopoiesis [37-40]. This fact suggests that they could act through a common mechanism in increasing MYCN expression and supports the idea that different pathways can converge on MYCN activation. In fact, we observed that not only patients carrying SIL-TAL1 fusion show MYCN overexpression, but also those with TAL1 overexpression without any TAL1 rearrangement, or those exhibiting a TAL1-like signature (data from the Dutch SET-NUP214 dataset). We know from the literature that up to 60% of T-ALL patients display TAL1 abnormal expression, and that other mechanisms, apart from chromosomal rearrangement or interstitial deletion, lead to TAL1 upregulation [41]. This would imply that MYCN could be an interesting therapeutic target in a large proportion of patients with T-ALL and it is plausible that other oncogenic events or phenotypic T-ALL classes (as the early T cell precursor ALL - ETP-ALL) can exhibit MYCN activation. Indeed we show here that a case of ETP-ALL (T-ALL#04) overexpresses MYCN, further sustaining the hypothesis that MYCN upregulation can be a common event in T-ALL without TLX1 or TLX3 abnormalities. Whether gaining further insights on the molecular pathways that could link MYCN and TAL1 expression is needed, these results indicates that MYCN is a potential component of pediatric T-ALL genesis and a candidate for targeted therapy. Considering this assumption, in this study we investigated the ability of nucleic acid analogs targeted against MYCN transcription to impair viability of blast cells from two pediatric patients with T-ALL overexpressing MYCN. We found that selective MYCN inhibition resulted in a significant reduction of blast cells viability ex vivo. An encouraging impairment of cell growth and viability, mainly through the activation of the apoptotic pathway, was also observed in T-ALL cell lines. These findings indicate that PNA-mediated transcriptional silencing of MYCN could significantly inhibit T-ALL cell growth both in vitro and on primary leukemic cells, which supports the role of MYCN as a target for therapy in T-ALL. Moreover, our results highlight peptide nucleic acids as anti-gene agents with considerable therapeutic potential complementary to conventional therapies not only in pediatric solid tumors [30] but also in hematopoietic malignancies. More preclinical studies evaluating the effect of MYCN inactivation will be necessary to determine whether this oncogene can be effectively exploited as a novel target for therapy of pediatric T-ALL.

METHODS

Patient samples

Bone marrow or peripheral blood-derived leukemic cells were collected (with informed consent in accordance with the Declaration of Helsinki and institutional review board approval) from children with T-ALL who were treated with Berlin-Frankfurt-Muenster (BFM) -oriented chemotherapy being enrolled in AIEOP ALL 95, 2000 or 2009 protocols at the Oncology and Hematology Section of the Pediatrics Operative Unit, Policlinico S. Orsola-Malpighi, Bologna. Mononuclear cells were purified by Ficoll-Hypaque centrifugation before cryopreservation. All specimens consisted of more than 85% lymphoblasts. Clinical features of the patients are summarized in Table 1. Immunophenotypic, cytogenetic and molecular analysis was performed according to the relevant Protocol.

Gene expression analyses

Gene expression profiles of primary T-ALL patient samples and healthy normal bone marrow samples were derived from two previously published datasets stored at the NCBI Gene Expression Omnibus database: the Stage 1 Microarray Innovations in LEukemia (MILE) study [31] (GSE13159) and the pediatric SET-NUP214 T-ALL dataset that includes TLX3-, TLX1-, TAL1-, LMO2- and HOXA-positive molecular subgroups (GSE10609) [32]. Gene expression profiles from a total of 174 adult and pediatric T-ALL and 74 bone marrows from healthy donors were taken from the first study; from the second study we selected 61 pediatric T-ALL samples including 24 TAL1+, 22 TLX3+, 7 TLX1+ and 8 LMO2+ cases and 19 samples of unknown class showing a TAL1-like gene expression signature. Samples belonging to classes of ≤ 5 patients were excluded from the analysis. Raw data (CEL files) of hybridization to HG-U133 Plus 2.0 arrays (Affymetrix) were normalized and summarized with the rma algorithm using Bioconductor packages under the R environment.

Cell lines and apoptosis assay

T-ALL cell lines were cultured in RPMI-1640 medium (Invitrogen, Milan, Italy) supplemented with 10% fetal calf serum (Euroclone, Milan, Italy), 100 IU/mL penicillin, 100 μg/mL streptomycin and 1% L-glutamine, at 37°C in humidified air containing 5% CO2.

To assess the extent of apoptosis induction, flow cytometric analysis of Annexin V–FITC/propidium iodide (PI)-stained samples was performed after 6 hours of treatment with PNA-MYCN, PNA-MUT and in basal condition, following manufacturer’s instruction (Annexin-V-FLUOS Staining Kit, Roche Diagnostics, Monza, Italy). Samples were analyzed by a FACSCanto flow cytometer (Beckton Dickinson, Franklin Lakes, NJ). Apoptotic cells were identified as Annexin V-positive, PI-negative cells.

PNA and siRNA treatment

The anti-gene PNA either specific for the MYCN gene (PNA-MYCN) or containing three point mutations in the PNA-MYCN sequence to check specificity (PNA-MUT), were designed as previously reported and conjugated to a nuclear localization signal (NLS) peptide for the delivery [19, 30]. The PNA-peptides were synthesized using solid phase peptide synthesis protocols as previously described [19, 30], and purified by preparative HPLC (using IP-RP methodology); the purified products were analyzed by HPLC-ESI/MS to check purity.

For PNA experiments, cells were seeded in 96-well plates at a concentration of 105 cells/ml in Opti-MEM medium (Invitrogen) supplemented with antibiotics and glutamine, and treated with PNA-MYCN or PNA-MUT at a final concentration of 10μM. Fetal calf serum (4%) was added after 6 hours of incubation with PNA. Cell viability was measured 72 hours after seeding with ATPlite assay (PerkinElmer, MA, USA). For each cell line, different treatments were performed in triplicate and each experiment was replicated at least 4 times.

For the analysis of primary patient samples, cryopreserved T-ALL lymphoblasts were thawed and viable cells were counted with acridine orange. 5 x 105 viable cells were plated in Opti-MEM medium supplemented with 100 IU/mL penicillin, 100 μg/mL streptomycin, 1% L-glutamine, gentamycin, amphotericin-B, Insulin/Transferrin/Sodium Selenite (Sigma Aldrich, Milan, Italy) and treated with PNA-MYCN or PNA-MUT at a final concentration of 10μM. Fetal calf serum was added after 6 hours, at a final concentration of 20%. Cell viability was measured after 96 hours of incubation, by acridine orange counting and ATPlite assay. At least five wells for each treatment were seeded.

TAL1 inhibition was performed by nucleofection on a Nucleofector II device (Lonza GmbH, Cologne, Germany) using Hs_TAL1_5 and Hs_TAL1_6 siRNAs (Qiagen, Milan, Italy). MYCN inhibition was performed with the small interfering RNA MYCN_7 (5’-GGACAGUGAGCGUCGCAGAUU-3’) purchased from Dharmacon Research (ThermoScientific, Lafayette, Colorado). Mock transfection was performed with a non-targeting (NT) control siRNA (Dharmacon Research). CCRF-CEM and RPMI-8402 cells were transfected with siRNAs at a final concentration of 50-200 nM and the effect on TAL1 and MYCN expression was analyzed 24-48 hours after nucleofection.

RNA extraction and quantitative PCR (qRT-PCR)

Total RNA was extracted by either RNeasy spin column method (Qiagen) or TriZol reagent (Invitrogen) following manufacturer’s instructions after 6 hours of treatment with PNA-MYCN, PNA-MUT and in basal condition. 1 μg total RNA was reverse transcribed to single-stranded cDNA using the Transcriptor first strand cDNA synthesis kit (Roche Diagnostics) with oligo-dT primers (2.5 μM). Gene-specific primers amplifying MYCN, TAL1, TLX1 and TLX3 were designed with Primer Express 3.0 Software (Applied Biosystems, Monza, Italy) and qRT-PCR was performed using FastStart Sybr Green (Roche Diagnostics) on the LightCycler 480 apparatus (Roche Diagnostics). DDCt method was used to quantify gene product levels relative to three housekeeping genes, GAPDH, ATP5B and ACTB. Quantitative RT-PCR primer sequences were as follows: MYCN-forward, 5’-CGACCACAAGGCCCTCAGT-3’; MYCN-reverse, 5’-TGACCACGTCGATTTCTTCCT-3’; TAL1-forward, 5’-TTCACCACCAACAATCGAGTG-3’; TAL1-reverse, 5’-CCGCGTTCACATTCTGCTG-3’; TLX1-forward, 5’-CCCTGGATGGAGAGTAACCG-3’; TLX1-reverse, 5’-CAGGCGTGTGAAGGACGTG-3’; TLX3-forward, 5’-TTCCAAAACCGGAGGACCA-3’; TLX3-reverse, 5’-ACAGCGGGAACCTTGGAAC-3’; GAPDH forward, 5’-CGGGAAGCTTGTCATCAAT-3’; GAPDH reverse, 5’- GACTCCACGACGTACTCAGC-3’; ATP5B forward, 5’-GTCTTCACAGGTCATATGGGGA-3’; ATP5B reverse, 5’-ATGGGTCCCACCATATAGAAGG-3’; ACTB forward, 5’-TCCTCCCTGGAGAAGAGCTACGAG-3’; ACTB reverse, ACACGGAGTACTTGCGCTCAGG-3’. All qRT-PCR primer pairs used span intron/exon boundaries. MYCN expression in T-ALL samples was compared to that in normal bone marrow and CD3+ T-cells from healthy individuals. Criteria for defining overexpression were: statistical significance by Student’s t test and expression higher than the mean + 3SD of normal bone marrow and CD3+ T-cells.

SIL-TAL1 chimeric transcript, that results from the cryptic 1p32 deletion, was measured as previously described in the BIOMED-1 concerted action [42]. T-ALL samples were defined TAL1+ if expressing TAL1 at levels higher than the lowest expression found in T-ALL samples harboring TAL1 deletion, as previously described [4].

SNP-array and FISH analysis

FISH experiments were performed on T-ALL cell lines with the Vysis specific probe protocols (Vysis, Downers Groove, USA) using the LSI-MYCN (2p24.1) probe marked with Spectrum Green (green), that contains unique DNA sequences specific for the MYCN oncogene located within the 2p24.1 region of chromosome 2, and the CEP2 probe, marked with Spectrum orange (red), complementary to sequences located in the centromeric region of chromosome 2 (2p11.1-2q11.1). FISH analysis to detect TAL1 rearrangements was performed on metaphase e interphase cells using two BlueFISH probes (BlueGnome Ltd., Cambridge) for chromosome 1 according to manufacturer’s instructions.

Genomic DNA was extracted using the QIAamp DNA kit (Qiagen), labeled and hybridized to an oligonucleotide SNP array (Genome Wide SNP 6.0; Affymetrix, Santa Clara, CA, USA). Copy number analysis was performed by Partek Genomics Suite, which compares Signal log2 ratios to a reference of 270 normal Hapmap samples. Genomic segmentation was used to detect amplified and deleted segments with stringent parameters (P<0.0001, >15 markers, signal/noise ≥ 0.4). Multiple hypothesis correction by Benjamini and Hochberg was applied and FDR threshold was set at 0.05. SNP, gene and cytogenetic band locations are based on the hg19 Genome build.

Western blotting

Cells were collected by centrifugation, washed twice in phosphate buffered saline (PBS) and lysed for 30 min at 4°C in RIPA-buffer supplemented with 1 mM PMSF, 10μg/ml Aprotinin, 10μg/ml Leupeptin, 1 mM Orthovanadate Sodium salt (Sigma Aldrich). Homogenates were centrifuged at 13,000 x g for 15 min at 4°C and supernatants were stored at –80°C. Protein concentrations were determined with the BCA protein Assay (Pierce Rockford, IL). Ten micrograms of protein was resolved on a 10% SDS PAGE gel and transferred onto polyvinylidene difluoride (PVDF) membranes. Nonspecific binding sites were blocked by incubation in blocking buffer (PBS containing 0.1% Tween-20 (PBS/T), with 5% w/v BSA) for 1 hour at room temperature. After three PBS/T washes, membranes were incubated with primary antibodies overnight at 4°C in PBS/T with 5% bovine serum albumin. Then, membranes were washed and incubated with peroxidase conjugate secondary antibodies diluted in blocking buffer for 1 hour at room temperature. Antigens were revealed using Enhanced Chemiluminescence Reaction (ECL+, Amersham Pharmacia Biotech, Les Ulis, France). The following antibodies were used: mouse monoclonal MYCN antibody (Calbiochem, San Diego, CA, USA) and rabbit polyclonal β-Tubulin antiboby (Santa Cruz Biotechnology, Santa Cruz, CA).

Chromatin Immunoprecipitation (ChIP)

Chromatin extracted from CCRF-CEM, RPMI-8402 and DND-41 cell lines was sonicated into fragments approximately 500bp in size. Immunoprecipitation was performed with Imprint Chromatin Immunoprecipitation Kit (Sigma-Aldrich, St Louis, MO, USA), using specific primary antibody against TAL1 (Santa Cruz Biotechnology, Inc.). RNA Polimerase II antibody or normal IgG were used as positive and negative controls.

The precipitated DNA fractions were then amplified by a Sybr-Green-based semi-quantitative Real-Time PCR method, using specific primers for putative MYCN promoter sequence (forward: 5′-AGGCCTCCTCCCAGCACACTT -3′; reverse: 5′-GCTGCGGCCCAGAAATCTTCAGT -3′). Reactions were run on the ABI PRISM 7300 sequence detection system (Applied Biosystems, Foster City, CA, USA). Data were normalized using the % of input (normalization to the amount of input chromatin) method [43].

Gene expression profiling

CCRF-CEM cell line was treated with either PNA-MYCN or PNA-MUT at 10 µM for 12hr. Total RNA was then labelled following the Affymetrix GeneChip Expression Analysis Technical Manual (Affymetrix, Santa Clara, CA, USA) and hybridized onto HG-U133 Plus 2.0 Arrays (Affymetrix). Gene expression data were quantified by the MAS5 algorithm, filtered and differentially expressed genes were selected if called “Increased” or “Decreased” with respect to both untreated cells and cells treated with PNA-MUT by the Change algorithm of the MAS5 pipeline. MYCN target genes were selected from the MYCNot database [http://medgen.ugent.be/MYCNot], that lists all MYCN target genes. Hierarchical clustering using Manhattan distance was performed using MeV TM4 software [http://www.tm4.org].

Statistics

The t-test was used to compare continuous variables obtained with in vitro and gene expression experiments. Differences in the distribution of categorical parameters were compared using Fisher’s exact tests. A p-value of 0.05 was used as the cut-off below which results were considered statistically significant.

Acknowledgements

We thank all the affected children and their families for their participation in this study. This work was partially supported by AIRC (personal grant to A. Pession and regional grant) and by AGEOP-ONLUS (Associazione Genitori Ematologia Oncologia Pediatrica).

Disclosure of potential conflicts of interest

The authors declare no competing financial interests.

References

1. Goldberg JM, Silverman LB, Levy DE, Dalton VK, Gelber RD, Lehmann L, Cohen HJ, Sallan SE, Asselin BL. Childhood T-cell acute lymphoblastic leukemia: the Dana-Farber Cancer Institute acute lymphoblastic leukemia consortium experience. J Clin Oncol 2003; 21:3616-22.

2. Pui CH, Evans WE. Treatment of acute lymphoblastic leukemia. N Engl J Med 2006; 354: 166-8.

3. Conter V, Aricò M, Basso G, Biondi A, Barisone E, Messina C, Parasole R, De Rossi G, Locatelli F, Pession A, Santoro N, Micalizzi C, Citterio M et al. Long-term results of the Italian Association of Pediatric Hematology and Oncology (AIEOP) Studies 82, 87, 88, 91 and 95 for childhood acute lymphoblastic leukemia. Leukemia 2010; 24:255-64.

4. Ferrando AA, Neuberg DS, Staunton J, Loh ML, Huard C, Raimondi SC, Behm FG, Pui CH, Downing JR, Gilliland DG, Lander ES, Golub TR, Look AT. Gene expression signatures define novel oncogenic pathways in T cell acute lymphoblastic leukemia. Cancer Cell 2002;1:75-87.

5. Chiarini F, Grimaldi C, Ricci F, Tazzari PL, Evangelisti C, Ognibene A, Battistelli M, Falcieri E, Melchionda F, Pession A, Pagliaro P, McCubrey JA, Martelli AM. Activity of the novel dual phosphatidylinositol 3-kinase/mammalian target of rapamycin inhibitor NVP-BEZ235 against T-cell acute lymphoblastic leukemia. Cancer Res 2010;70:8097-107.

6. Pession A, Masetti R, Kleinschmidt K, Martoni A. Use of clofarabine for acute childhood leukemia. Biologics 2010; 4:111-8.

7. McCubrey JA, Steelman LS, Chappell WH, Sun L, Davis NM, Abrams SL, Franklin RA, Cocco L, Evangelisti C, Chiarini F, Martelli AM, Libra M, Candido S et al. Advances in targeting signal transduction pathways. Oncotarget. 2012; 3:1505-21.

8. Martelli AM, Chiarini F, Evangelisti C, Cappellini A, Buontempo F, Bressanin D, Fini M, McCubrey JA. Two hits are better than one: targeting both phosphatidylinositol 3-kinase and mammalian target of rapamycin as a therapeutic strategy for acute leukemia treatment. Oncotarget. 2012; 3:371-94.

9. Bressanin D, Evangelisti C, Ricci F, Tabellini G, Chiarini F, Tazzari PL, Melchionda F, Buontempo F, Pagliaro P, Pession A, McCubrey JA, Martelli AM. Harnessing the PI3K/Akt/mTOR pathway in T-cell acute lymphoblastic leukemia: eliminating activity by targeting at different levels. Oncotarget. 2012; 3:811-23.

10. Grandori C, Cowley SM, James LP, Eisenman RN. The Myc/Max/Mad network and the transcriptional control of cell behavior. Annu Rev Cell Dev Biol 2000; 16:653-99.

11. Meyer N, Penn LZ. Reflecting on 25 years with MYC. Nat Rev Cancer 2008; 8:976-90.

12. Zimmerman KA, Yancopoulos GD, Collum RG, Smith RK, Kohl NE, Denis KA Nau MM, Witte ON, Toran-Allerand D, Gee CE, Minna JD, Alt FW. Differential expression of myc family genes during murine development. Nature 1986; 319:780-3.

13. Strieder V, Lutz W. Regulation of N-Myc expression in development and disease. Cancer Lett 2002;180: 107-19.

14. Brodeur GM, Seeger RC, Schwab M, Varmus HE, Bishop JM. Amplification of N-myc in untreated human neuroblastomas correlates with advanced disease stage. Science 1984;224:1121-24.

15. Bordow SB, Norris MD, Haber PS, Marshall GM, Haber M. Prognostic significance of MYCN oncogene expression in childhood neuroblastoma. J Clin Oncol 1998;16:3286-94.

16. Williamson D, Lu YJ, Gordon T, Sciot R, Kelsey A, Fisher C, Poremba C, Anderson J, Pritchard-Jones K, Shipley J. Relationship between MYCN copy number and expression in rhabdomyosarcomas and correlation with adverse prognosis in the alveolar subtype. J Clin Oncol 2005; 23:880-8.

17. Pfister S, Remke M, Benner A, Mendrzyk F, Toedt G, Felsberg J, Wittmann A, Devens F, Gerber NU, Joos S, Kulozik A, Reifenberger G, Rutkowski S et al. Outcome prediction in pediatric medulloblastoma based on DNA copy number aberrations of chromosomes 6q and 17q and the MYC and MYCN loci. J Clin Oncol. 2009; 27:1627-36.

18. Swartling FJ, Grimmer MR, Hackett CS. Pleiotropic role for MYCN in medulloblastoma. Genes Dev 2010; 24:1059-72.

19. Tonelli R, Purgato S, Camerin C, Fronza R, Bologna F, Alboresi S, Franzoni M, Corradini R, Sforza S, Faccini A, Shohet JM, Marchelli R, Pession A. Anti-gene peptide nucleic acid specifically inhibits MYCN expression in human neuroblastoma cells leading to cell growth inhibition and apoptosis. Mol Cancer Ther 2005; 4:779-86.

20. Burkhart CA, Cheng AJ, Madafiglio J, Kavallaris M, Mili M, Marshall GM, Weiss WA, Khachigian LM, Norris MD, Haber M. Effects of MYCN antisense oligonucleotide administration on tumorigenesis in a murine model of neuroblastoma. J Natl Cancer Inst 2003; 95:1394-403.

21. Van Lohuizen M, Breuer M, Berns A. N-myc is frequently activated by proviral insertion in MuLV- induced T-cell lymphomas. EMBO J 1989; 8:133-6.

22. Dildrop R, Ma A, Zimmerman K, Hsu E, Tesfaye A, DePinho R, Alt FW. IgH enhancer-mediated deregulation of N-myc gene expression in transgenic mice: generation of lymphoid neoplasias that lack c-myc expression. EMBO J 1989;8:1121-28.

23. Hirvonen H, Hukkanen V, Salmi TT, Mäkelä TP, Pelliniemi TT, Knuutila S, Alitalo R. Expression of L-myc and N-myc proto-oncogenes in human leukemia and leukemia cell lines. Blood 1991; 78:3012-20.

24. Hirvonen H, Hukkanen V, Salmi TT, Pelliniemi TT, Alitalo R. L-myc and N-myc in hematopoietic malignancies. Leuk Lymphoma 1993; 11:197-205.

25. Kawagoe H, Kandilci A, Kranenburg TA, Grosveld GC. Overexpression of N-myc rapidly causes acute myeloid leukemia in mice. Cancer Res 2007; 67:10677-85.

26. Nielsen PE, Egholm M, Berg RH, Buchardt O. Sequence-selective recognition of DNA by displacement with a thymine-substituted polyamide. Science 1991; 254:1497-500.

27. Pession A, Tonelli R, Fronza R, Sciamanna E, Corradini R, Sforza S, Tedeschi T, Marchelli R, Montanaro L, Camerin C, Franzoni M, Paolucci G. Targeted inhibition of NMYC by peptide nucleic acid in N-myc amplified human neuroblastoma cells: cell-cycle inhibition with induction of neuronal cell differentiation and apoptosis. Int J Oncol 2004; 24:265-72.

28. Boffa LC, Cutrona G, Cilli M, Matis S, Damonte G, Mariani MR, Millo E, Moroni M, Roncella S, Fedeli F, Ferrarini M. Inhibition of Burkitt’s lymphoma cells growth in SCID mice by a PNA specific for a regulatory sequence of the translocated c-myc. Cancer Gene Ther 2007; 14:220-26.

29. Cutrona G, Carpaneto EM, Ulivi M, Roncella S, Landt O, Ferrarini M, Boffa LC. Effects in live cells of a c-myc anti-gene PNA linked to a nuclear localization signal. Nat Biotechnol 2000; 18:300-3.

30. Tonelli R, McIntyre A, Camerin C, Walters ZS, Di Leo K, Selfe J, Purgato S, Missiaglia E, Tortori A, Renshaw J, Astolfi A, Taylor KR, Serravalle S et al. Antitumor activity of sustained N-myc reduction in rhabdomyosarcomas and transcriptional block by antigene therapy. Clin Cancer Res 2012; 18:796-807.

31. Kohlmann A, Grossmann V, Klein HU, Schindela S, Weiss T, Kazak B, Dicker F, Schnittger S, Dugas M, Kern W, Haferlach C, Haferlach T. Clinical utility of microarray-based gene expression profiling in the diagnosis and subclassification of leukemia: report from the International Microarray Innovations in Leukemia Study Group. J Clin Oncol 2010; 28:2529-37.

32. Van Vlierberghe P, van Grotel M, Tchinda J, Lee C, Beverloo HB, van der Spek PJ, Stubbs A, Cools J, Nagata K, Fornerod M, Buijs-Gladdines J, Horstmann M, van Wering ER et al. The recurrent SET-NUP214 fusion as a new HOXA activation mechanism in pediatric T-cell acute lymphoblastic leukemia. Blood 2008; 111:4668-80.

33. Weng AP, Millholland JM, Yashiro-Ohtani Y, Arcangeli ML, Lau A, Wai C, Del Bianco C, Rodriguez CG, Sai H, Tobias J, Li Y, Wolfe MS, Shachaf C et al. c-Myc is an important direct target of Notch1 in T-cell acute lymphoblastic leukemia/lymphoma. Genes Dev 2006; 20:2096-109.

34. Palomero T, Lim WK, Odom DT, Sulis ML, Real PJ, Margolin A, Barnes KC, O’Neil J, Neuberg D, Weng AP, Aster JC, Sigaux F, Soulier J, Look AT et al. NOTCH1 directly regulates c-MYC and activates a feedforward- loop transcriptional network promoting leukemic cell growth. Proc Natl Acad Sci U S A 2006; 103:18261-6.

35. Rakowski LA, Garagiola DD, Li CM, Decker M, Caruso S, Jones M, Kuick R, Cierpicki T, Maillard I, Chiang MY. Convergence of the ZMIZ1 and NOTCH1 pathways at C-MYC in acute T lymphoblastic leukemias. Cancer Res 2013; 73:930-41

36. Kusy S, Gerby B, Goardon N, Gault N, Ferri F, Gérard D, Armstrong F, Ballerini P, Cayuela JM, Baruchel A, Pflumio F, Roméo PH. NKX3.1 is a direct TAL1 target gene that mediates proliferation of TAL1-expressing human T cell acute lymphoblastic leukemia. J Exp Med 2010; 207:2141-56.

37. Palomero T, Odom DT, O’Neil J, Ferrando AA, Margolin A, Neuberg DS, Winter SS, Larson RS, Li W, Liu XS, Young RA, Look AT. Transcriptional regulatory networks downstream of TAL1/SCL in T-cell acute lymphoblastic leukemia. Blood 2006; 108:986-92.

38. O’Neil J, Shank J, Cusson N, Murre C, Kelliher M. TAL1/SCL induces leukemia by inhibiting the transcriptional activity of E47/HEB. Cancer Cell 2004; 5:587-96.

39. Miyamoto A, Cui X, Naumovski L, Cleary ML. Helix-loop-helix proteins LYL1 and E2a form heterodimeric complexes with distinctive DNA-binding properties in hematolymphoid cells. Mol Cell Biol 1996; 16:2394-401.

40. Zhong Y, Jiang L, Hiai H, Toyokuni S, Yamada Y. Overexpression of a transcription factor LYL1 induces T and B-cell lymphoma in mice. Oncogene 2007; 26:6937-47.

41. Van Vlierberghe P, Ferrando A. The molecular basis of T cell acute lymphoblastic leukemia. J Clin Invest 2012; 122:3398-406.

42. Van Dongen JJ, Macintyre EA, Gabert JA, Delabesse E, Rossi V, Saglio G, Gottardi E, Rambaldi A, Dotti G, Griesinger F, Parreira A, Gameiro P, Diáz MG et al. Standardized RT-PCR analysis of fusion gene transcripts from chromosome aberrations in acute leukemia for detection of minimal residual disease. Report of the BIOMED-1 Concerted Action: investigation of minimal residual disease in acute leukemia. Leukemia 1999; 13:1901-28.

43. Haring M, Offermann S, Danker T, Horst I, Peterhansel C, Stam M. Chromatin immunoprecipitation: optimization, quantitative analysis and data normalization. Plant Methods 2007; 3:11.
