Abstract
Chen-Xu Ni1,*, Yang Qi1,*, Jin Zhang1,2,*, Ying Liu2, Wei-Heng Xu1, Jing Xu2, Hong-Gang Hu1, Qiu-Ye Wu1, Yan Wang1, Jun-Ping Zhang1
1School of Pharmacy, Second Military Medical University, Shanghai 200433, China
2Department of Pharmacy, Shanghai East Hospital, Tongji University, Shanghai 310000, China
*These authors have contributed equally to this work
Correspondence to:
Jun-Ping Zhang, email: [email protected]
Yan Wang, email: [email protected]
Keywords: matrine derivative, hepatocellular carcinoma, cancer stem-like cells, GSK3β, AKT
Received: January 18, 2016 Accepted: October 14, 2016 Published: October 22, 2016
ABSTRACT
The eradication of cancer stem cells (CSCs) is significant for cancer therapy and prevention. In this study, we evaluated WM130, a novel derivative of matrine, for its effect on CSCs using human hepatocellular carcinoma (HCC) cell lines, their sphere cells, and sorted EpCAM+ cells. We revealed that WM130 could not only inhibit proliferation and colony formation of HCC cells, but also suppress the expression of some stemness-related genes and up-regulate some mature hepatocyte marker genes, indicating a promotion of differentiation from CSCs to hepatocytes. WM130 also suppressed the proliferation of doxorubicin-resistant hepatoma cells, and markedly reduced the cells with CSC biomarker EpCAM. Moreover, WM130 suppressed HCC spheres, not only primary spheres but also subsequent spheres, indicating an inhibitory effect on self-renewal capability of CSCs. Interestingly, WM130 exhibited a remarkable inhibitory preference on HCC spheres and EpCAM+ cells rather than their parental HCC cells and EpCAM- cells respectively. In vivo, WM130 inhibited HCC xenograft growth, decreased the number of sphere-forming cells, and remarkably decreased the levels of EpCAM mRNA and protein in tumor xenografts. Better inhibitory effect was achieved by WM130 in combination with doxorubicin. Further mechanism study revealed that WM130 inhibited AKT/GSK3β/β-catenin signaling pathway. Collectively, our results suggest that WM130 remarkably inhibits hepatic CSCs, and this effect may via the down-regulation of the AKT/GSK3β/β-catenin pathway. These findings provide a strong rationale for the use of WM130 as a novel drug candidate in HCC therapy.
INTRODUCTION
Liver cancer, including hepatocellular carcinoma (HCC), remains a leading cause of cancer death worldwide [1]. Increasing evidence indicates that a small subpopulation of cancer cells, termed cancer stem cells (CSCs), exist in many types of cancer [2–8]. Recently, the existence of CSCs has also been shown in liver cancer cell lines and primary HCC specimens [9–19]. HCC CSCs can be isolated and characterized by using various stem cell markers such as EpCAM, CD133, CD90 and CD44. They exhibit stem cell-like characteristics such as spherical colony formation in vitro, self-renewal, differentiation and resistance to chemo- and radiotherapies. CSCs are responsible for cancer initiation, growth, metastasis and recurrence, and have been regarded as a critical target for cancer eradication [20]. Actually, neutralizing antibodies, RNA interference against CSC markers, and small molecule CSC inhibitors alone or in combination with chemotherapies have been shown to reduce tumor incidence, growth, and metastasis in animal models [10, 14, 19–24]. Thereby, therapy specifically eradicating CSCs, either alone or in combination with conventional chemotherapies, may provide advantages for cancer eradication.
Matrine (Figure 1A), a major active alkaloid of the Chinese herbal medicine Sophora flavescens Ait, possesses significant anti-neoplastic, anti-inflammatory, anti-fibrotic, and anti-viral properties [25–31]. It has been used in clinic in China for the treatment of cancer, viral hepatitis, enteritis, viral myocarditis, arrhythmia, colpitis and eczema [32]. Nevertheless, its potency is relatively low and its half-life is relatively short. To improve its features as a drug, we have recently semi-synthesized a series of matrine derivatives by replacing the carbonyl oxygen atom with a sulfur atom and introducing various amino groups to the keto-beta position. These derivatives exhibit better anti-inflammatory, anti-fibrotic and anti-tumor activities [33–36]. WM130 (C30N4H40SO5F; Figure 1A) is one of the novel matrine derivatives with improved pharmacological activities. In this study, we examined WM130 for its effect on inhibiting hepatic cancer stem-like cells in both HCC cell lines and xenografts, and elucidated the underlying mechanism.

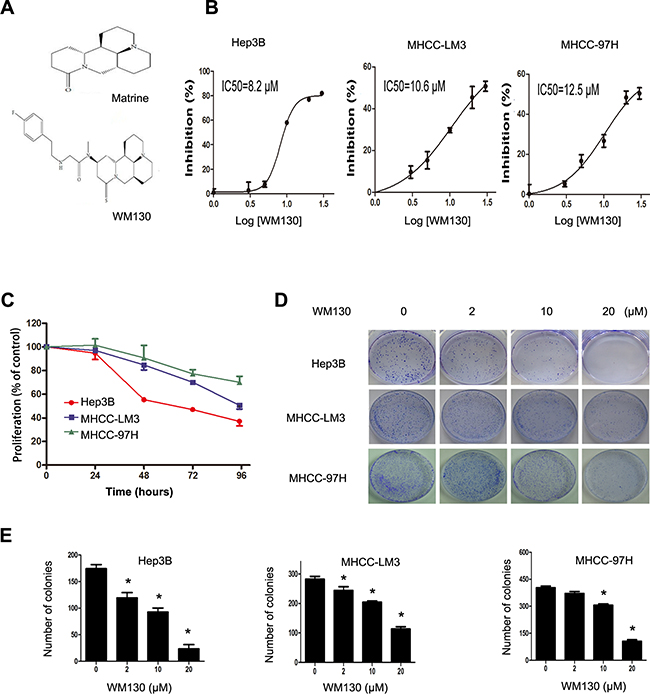

Figure 1: Effect of WM130 on the proliferation and colony formation of human hepatoma cells. A. Chemical structures of matrine and its derivative WM130. B. WM130 inhibited the proliferation of human hepatoma cells. Hep3B, MHCC-LM3 and MHCC-97H cells were treated with WM130 for 72 h. Proliferation was measured by a CCK8 assay. The IC50 values are shown. C. WM130 inhibited the proliferation of human hepatoma cells in a time-dependent manner. D and E. WM130 suppressed the colony formation of human hepatoma cells. N=3, *p<0.05 versus control.
RESULTS
WM130 inhibits proliferation and colony formation of hepatoma cells
WM130 suppressed the proliferation of HCC cell lines, including Hep3B, MHCC-LM3 and MHCC-97H, in a concentration-dependent manner with IC50 values being 8.2, 10.6 and 12.5 μmol/L respectively (Figure 1B). Moreover, WM130 exerted its effect in a time-dependent manner (Figure 1C), and its anti-proliferative effect was enhanced with the passing of time.
We further examined the effect of WM130 on colony formation of hepatoma cells through clonogenic assay. The results indicated that WM130 significantly reduced the number of formed colonies, and the results are consistent in all the three HCC cell lines tested (Figure 1D and 1E).
Notably, the immortalized human hepatocyte cell line L02 and rat primary hepatocytes were not affected by WM130 at the concentrations tested (data not shown), which indicated that WM130 exerted a more selective activity against HCC cells than normal cells.
WM130 inhibits proliferation of doxorubicin (DOX)-resistant hepatoma cells and reduces the expression of stemness-related genes in hepatoma cells
We further examined the effect of WM130 on DOX-resistant cells expressing CSC biomarker EpCAM. DOX-resistant HCC cells were obtained by exposing HCC cells (Hep3B and MHCC-LM3) to 2 μmol/L DOX for 5 days. The cells were resistant to DOX but still sensitive to WM130 (Figure 2A and Supplementary Figure S1A). Remarkably, among the DOX-resistant cells, the number of EpCAM+ cells was significantly increased and this increasing was eliminated by WM130 treatment (Figure 2B). More specifically, after WM130 treatments, the EpCAM+ cells were reduced from 32.32% to 3.04%, and from 27.99% to 2.02% in DOX-resistant Hep3B and MHCC-LM3 cells respectively. In contrast, no inhibitory effect was observed of DOX.

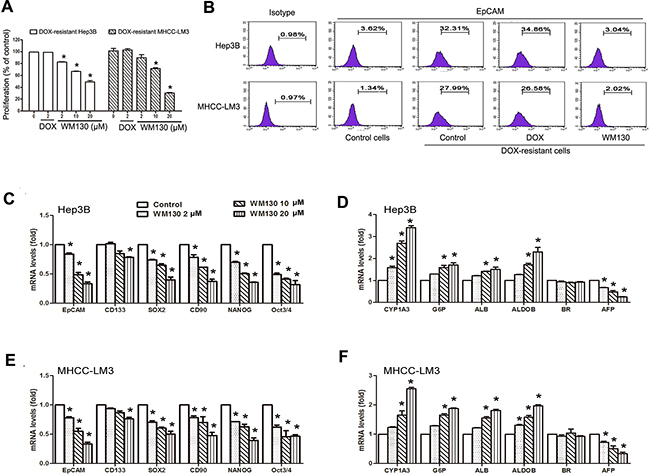

Figure 2: The effect of WM130 on DOX-resistant cells and the influence of WM130 on the expression of genes relevant to stemness and differentiation of hepatic stem/progenitor cells. Hep3B and MHCC-LM3 cells were treated with DOX (2 μmol/L) for 5 days to obtain DOX-resistant cells, and the resistant cells were exposed to WM130 or DOX for 3 days. A. DOX-resistant HCC cells remained sensitive to WM130. N=3, *p<0.05 versus control. B. WM130 (10 μmol/L) eliminated the increased EpCAM+ fraction in DOX-resistant cells. The results are representative of two independent experiments. C-F. Hep3B (C, D) and MHCC-LM3 (E, F) cells were treated with 10 μmol/L WM130 for 24 h. The expression of “stemness” and liver-specific genes was detected by real-time RT-PCR. The mRNA levels were normalized against β-actin and are relative to the control. N=3, *p<0.05 versus control.
We further detected the expression of some stemness-related genes and mature hepatocyte biomarker genes in hepatoma cells. WM130 treatment concentration-dependently reduced the mRNA levels of stemness-related gene EpCAM, CD133, CD90, Oct3/4, Sox2 and NANOG in HCC cells (Figure 2C and 2E, Supplementary Figure S1B). As to liver-specific genes, WM130 increased the expression of cytochrome P450(CYP)1A3 (CYP1A3), glucose-6-phosphatase (G-6-P), albumin (ALB), aldolase B (ALDOB), which was accompanied by the down-regulation of hepatocyte malignance gene alpha-fetoprotein (AFP), while biliverdin synthetase (BR) expression remained unchanged (Figure 2D and 2F, Supplementary Figure S1C). These results suggest that WM130 may inhibit cancer stem-like cell and promote the differentiation from CSCs to hepatocytes.
WM130 inhibits HCC spheres among hepatoma cells
To determine the effect of WM130 on HCC spheres, we enriched populations of hepatic cancer stem-like cells using the sphere culture technique. Flow cytometric analysis revealed that WM130 treatment reduced the number of EpCAM+ cells in Hep3B, MHCC-LM3 and MHCC-97H spheres in a concentration-dependent manner, while WM130 rendered no evident influence on CD133+ cells (Figure 3A). WM130 concentration-dependently inhibited the formation of primary spheres, as evidenced by both reduced number and decreased size of the spheres (Figure 3B and 3C). Moreover, the number of subsequent spheres were also reduced under condition that WM130-treated primary spheres were cultured for subsequent two passages in the absence of WM130 (Figure 3B), indicating that WM130 inhibited the self-renewal ability of CSCs.

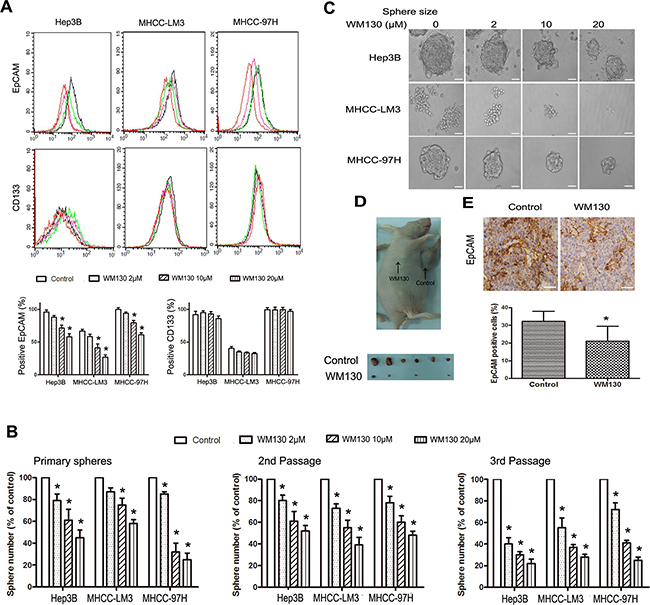

Figure 3: WM130 inhibits HCC spheres. A. WM130 decreased the number of EpCAM+ cells in the spheres. The results are representative of three independent experiments (black line, control; green line, 2 μmol/L WM130; pink line, 10 μmol/L WM130; orange line, 20 μmol/L WM130). N=3, *p<0.05 versus control. B. WM130 reduced the number of Hep3B, MHCC-LM3 and MHCC-97H spheres. N=3, *p<0.05 versus control. C. WM130 reduced the size of primary spheres. Scale bar=50 μm. D. Images of the tumor xenografts derived from WM130-treated Hep3B spheres and control spheres. E. EpCAM expression in tumor tissues. Scale bar=100 μm. N=3, *p<0.05 versus control.
The inhibitory effect of WM130 on HCC spheres was confirmed in a xenograft model. WM130-treated Hep3B spheres and vehicle-treated spheres were subcutaneously injected into nude mice. Palpable tumors (about 1 mm in diameter) developed from vehicle-treated spheres within 2-3 weeks, while WM130 treatment delayed palpable tumor formation by about 2 weeks. The tumor xenografts derived from WM130-treated spheres were significantly smaller than those derived from control spheres (Figure 3D). Immunohistochemical staining revealed that the number of EpCAM+ cells was significantly diminished (p < 0.01) in the WM130 group compared with the control group (Figure 3E).
WM130 preferentially inhibits HCC spheres and EpCAM+ Hep3B cells
We further compared the inhibitory effect of WM130 on sphere cells and their corresponding parental HCC cells. WM130 preferentially inhibited sphere cell proliferation and colony formation in all the cell lines tested, including Hep3B, MHCC-LM3 and MHCC-97H. In contrast, DOX preferentially inhibited the HCC cells rather than their spheres (Figure 4A, 4B and Supplementary Figure S2A and S2B). Moreover, WM130 preferentially decreased the EpCAM mRNA in all the three types of spheres than in their parental cells. Nevertheless, as to the influence of WM130 on the expression of CD133 and Oct3/4, no preference was observed on spheres or their parental cells (Figure 4C and Supplementary Figure S2C).

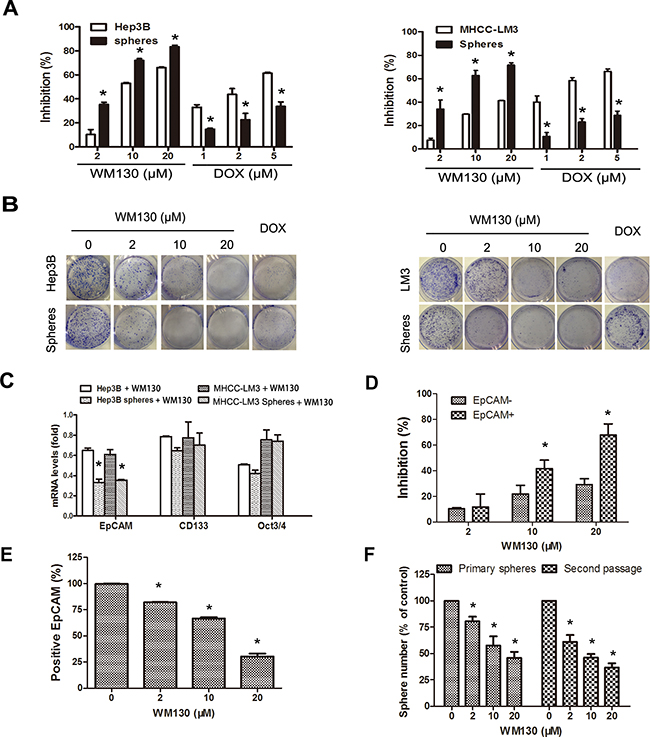

Figure 4: WM130 preferentially inhibits HCC spheres and the sorted EpCAM+ Hep3B cells. A. Growth inhibitory effect of WM130 and DOX on Hep3B and MHCC-LM3 sphere cells compared with their corresponding parental cells. N=3, *p<0.05 versus control. B. Inhibition of colony formation by WM130 and DOX (2 μmol/L). N=3, *p<0.05 versus control. Quantitative data were shown in Figure S2B. C. WM130 preferentially decreased EpCAM expression in spheres. N=3, *p<0.05 versus control. D. WM130 preferentially inhibited proliferation of EpCAM+ Hep3B cells. N=3, *p<0.05 versus EpCAM- Hep3B cells. E. WM130 reduced the number of EpCAM+ Hep3B cells. N=3, *p<0.05 versus control. F. WM130 reduced the number of EpCAM+ Hep3B spheres. Second passage of spheres was cultured without WM130. N=3, *p<0.05 versus control.
We fractionated Hep3B cells into EpCAM+ and EpCAM- subpopulations by magnetic-activated cell sorting, with more than 99% purity in EpCAM+ cells and more than 82% purity in EpCAM- cells (Supplementary Figure S3A). The sorted EpCAM+ Hep3B cells exhibited stronger proliferation ability and sphere forming ability than EpCAM- cells (Supplementary Figure S3B and S3C). We generated single-cell derived clones by introducing EpCAM+ Hep3B cells into 96-well plates at a dilution yielding an average of <1 cell per well. The limiting dilution assay results indicated that 50% of EpCAM+ Hep3B single cells formed monoclones after 7 days’ culture. The number of monoclones reached 80% after the second 7 days’ culture. After the third 7 days’ culture, all EpCAM+ Hep3B single cells formed monoclones. These results suggested that EpCAM+ cells could serve as a part of cancer stem/progenitor cells. WM130 exhibited a stronger inhibitory effect on the proliferation of EpCAM+ subpopulations than EpCAM- subpopulations (Figure 4D). WM130 also concentration-dependently reduced the number of EpCAM+ cells in sorted EpCAM+ subpopulations as determined by flow cytometric analysis (Figure 4E). Consistently, WM130 inhibited the sphere formation of sorted EpCAM+ subpopulations. More specifically, WM130 treatment clearly reduced the number of primary spheres (Figure 4F). Furthermore, when WM130-treated primary spheres were cultured for the second passage in the absence of drug, the number of spherical colonies also significantly decreased compared with the control (Figure 4F). Moreover, WM130 also concentration-dependently reduced the size of single-cell derived EpCAM+ monoclones (Supplementary Figure S3D).
Effect of WM130 on HCC xenograft growth
Using nude mice, we evaluated the anti-tumor effect of WM130 in vivo. WM130 markedly inhibited the growth of MHCC-LM3 xenografts. The combination of DOX and WM130 exerted a stronger inhibitory effect on tumor growth than either WM130 or DOX alone (Figure 5A). These results were in accordance with the weights of MHCC-LM3 xenografts at sacrifice (Figure 5B). The average body weight of WM130-treated mice did not vary significantly throughout the experiment, and WM130 did not aggravate DOX-induced weight loss (Figure 5C).

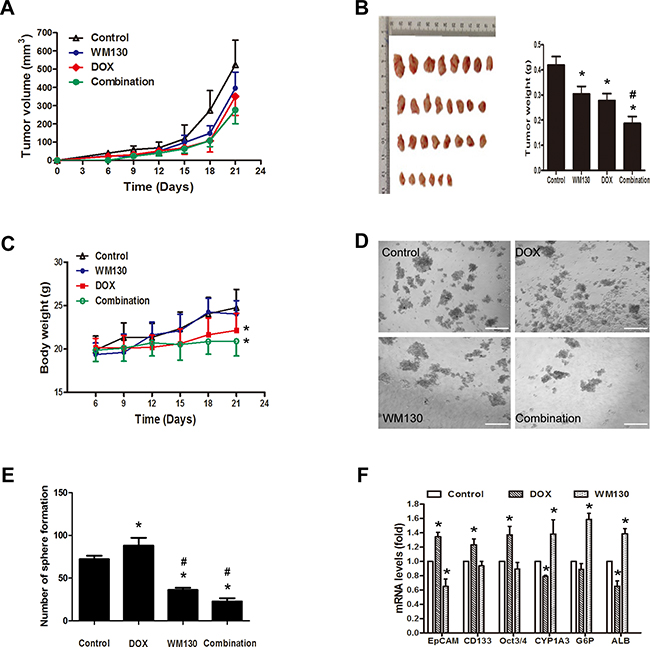

Figure 5: Effect of WM130 and DOX on tumor growth in vivo. A. MHCC-LM3 tumor growth curves. B. Images and tumor weights of excised tumors. Similar results were observed in two separate experiments. A representative result was shown. N=6, *p<0.05 versus control and #p<0.05 versus groups treated with either agent alone. C. Body weights of mice. N=6, *p<0.05 versus control or WM130 groups. D and E. Spheroid colony formation of cancer cells isolated from dissociated MHCC-LM3 tumors. N=6, *p<0.05 versus control and #p<0.05 versus groups treated with either agent alone. Images of tumorsphere cultures are shown. Scale bar=100 μM. F. mRNA levels of stemness and liver-specific genes in tumor tissues. N=6, *p<0.05 versus control.
We further investigated whether WM130 directly targeted hepatic cancer stem-like cells in vivo. The number of sphere-forming cells decreased in WM130-treated tumors compared with the control tumors. In contrast, the number increased in DOX-treated tumors. Of note, WM130 further reduced the number of tumor sphere-forming cells when administered in combination with DOX (Figure 5D and 5E). Further investigation revealed that WM130 administration remarkably decreased the levels of EpCAM mRNA and protein in tumor xenografts (Figure 5F, Figure 6C and D), which was accompanied by the increased expression of CYP1A3, G-6-P and ALB. In contrast, DOX increased the expression of EpCAM, CD133 and Oct3/4, but decreased the expression of CYP1A3 and ALB (Figure 5F).

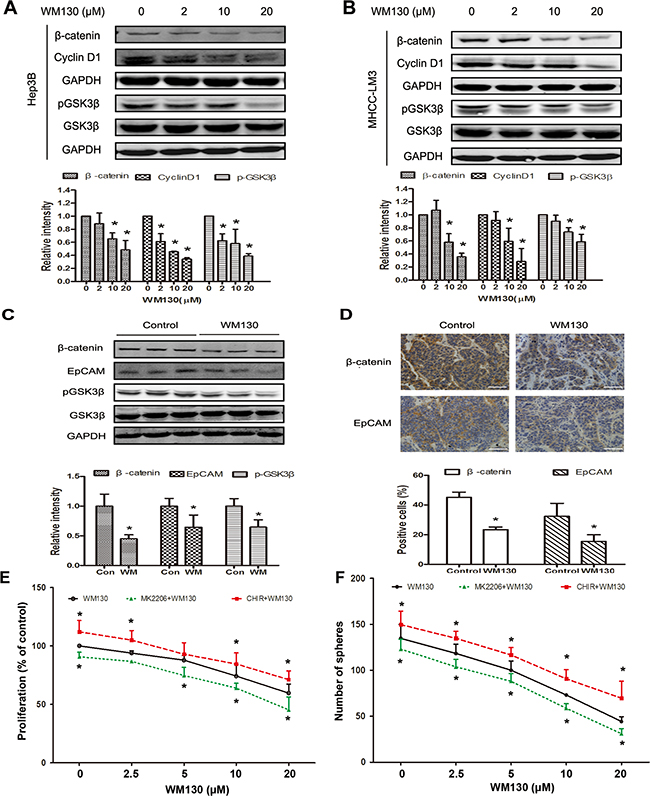

Figure 6: WM130 suppresses the GSK3β/β-catenin pathway in vitro and in vivo. A and B. Western blot analysis of Hep3B and MHCC-LM3 cells treated with WM130 for 4 days. The band intensities were quantified. GAPDH was used as a loading control. N=3, *p<0.05 versus control. C. Western blot analysis of tumors from control- and WM130-treated mice. The representative results of three animals are shown. N=3, *p<0.05 versus control. D. Representative immunohistochemical staining of tumors from control- and WM130-treated mice. Scale bar=100 μM. β-catenin- and EpCAM-positive areas in tumor sections were quantified. N=3, *p< 0.05 versus control. E. Proliferation of EpCAM+ Hep3B cells treated with WM130, WM130 and MK2206 (0.5 μM), or WM130 and CHIR99021(2.5 μM). N=3, *p< 0.05 versus WM130. F. Sphere formation of EpCAM+ Hep3B cells treated withWM130, WM130 and MK2206 (0.5 μM), or WM130 and CHIR99021(2.5 μM). N=3, *p < 0.05 versus WM130.
In addition, the colony formation ability of MHCC-LM3 cells from WM130-treated mice and WM130 plus DOX-treated mice significantly decreased compared with the control (Supplementary Figure S4A). Of note, MHCC-LM3 cells from DOX-treated mice displayed higher proliferation ability than those from control mice, and the cells were resistant to DOX but sensitive to WM130 upon in vitro treatment (Supplementary Figure S4B).
WM130 suppresses the GSK3β/β-catenin pathway in hepatoma cells in vitro and in vivo
Further mechanism study revealed that WM130 markedly decreased the phosphorylation of GSK3β (Ser9) in Hep3B and MHCC-LM3 cells. Moreover, WM130 reduced the protein level of β-catenin in parallel with decreased expression of Cyclin D1, a Wnt/β-catenin target gene (Figure 6A and 6B). Consistent results were obtained in vivo in the MHCC-LM3 tumor xenografts. More specifically, WM130 administration notably reduced the phosphorylation of GSK3β (Ser9) and decreased the expression of β-catenin and its target EpCAM in the xenografts, as evidenced by western blotting and immunostaining results (Figure 6C and 6D).
We have previously shown that WM130 suppressed the AKT pathway in HCC cells [36]. To investigate if the inhibition of the AKT/GSK3β pathway contributed to the inhibitory actions of WM130 on hepatic CSCs, EpCAM+ cells were treated with series concentrations of WM130 and specific AKT inhibitor MK2206 (0.5 μM) or GSK3β inhibitor CHIR99021 (2.5 μM). As shown in Figure 6E and 6F, treatment with MK2206 resulted in slight inhibition of cell proliferation and sphere formation, and co-treatment of cells with WM130 and MK2206 result in a greater inhibition than that observed with WM130 alone. In contrast, CHIR99021 increased cell proliferation and sphere formation, and antagonized WM130’s effects on inhibiting the growth and sphere formation of EpCAM+ cells.
DISCUSSION
CSCs are believed to be responsible for HCC growth and relapse, and the cure of HCC requires the eradication of hepatic cancer stem cells [14, 17]. WM130 has been previously shown to inhibit hepatoma Huh-7 cell xenograft growth. This effect is associated with the inhibition of cell proliferation, invasion and migration, and the induction of apoptosis in HCC cells [36]. Nevertheless, the effect of WM130 on CSCs remains unknown. In the current study, by using hepatoma sphere cells and the sorted hepatoma EpCAM+ cells, we evaluated the inhibitory effect of WM130 on HCC CSCs.
Through sphere culture technique, we found that three types of Hep3B, MHCC-LM3 and MHCC-97H spheres exhibited CSC features, including self-renewal, clonogenicity, expression of CSC biomarkers EpCAM and CD133, and resistance to chemotherapeutic drug such as DOX. The CSC features of Hep3B spheres were confirmed by the findings in in vivo tumorigenicity assay. Using these sphere cells as models, we found that WM130 concentration-dependently reduced the subpopulation expressing CSC biomarkers EpCAM/CD133. Moreover, the WM130-treated sphere cells exhibited weaker tumorigenicity in mice compared with the control. CSCs being resistant to chemotherapy, our results also showed that WM130 could inhibit DOX-resistant cells and eliminate the remarkable increase of EpCAM+ cells in the resistant cells. Of note, the WM130-induced reduction of cancer stem-like cells (EpCAM/CD133 positive) appeared to be associated with the suppression of self-renewal capability and the promotion of differentiation from CSCs to hepatocytes. More specifically, WM130 induced a marked decrease not only for primary spheres, but also for spheres in the subsequent two passages without WM130 treatment, indicating the suppression of self-renewal capability. Additionally, the expression of stem cell biomarkers was reduced and the expression of mature hepatocyte biomarkers was increased in the WM130-treated HCC cells, indicating the promotion of differentiation from CSCs to hepatocytes. Interestingly, in contrast to DOX, WM130 preferred to inhibit sphere cell proliferation, colony formation and EpCAM mRNA expression. Consistently, WM130 had a stronger inhibitory effect on EpCAM+ subpopulations than EpCAM- subpopulations. Collectively, these data suggest that WM130 can selectively inhibit cancer stem-like cells (CSLCs).
In a xenograft model, we substantiated our observations in vitro that WM130 preferred to inhibit CSLCs. WM130 alone had an inhibitory effect on tumor growth and markedly reduced the number of surviving CSLCs. In contrast, DOX inhibited tumor growth but increased the number of surviving CSLCs. Notably, cotreatment with DOX and WM130 resulted in a higher inhibition of tumor growth than treatment alone. Moreover, the number of surviving CSLCs in DOX and WM130-cotreated mice was even lower, which was consistent with our in vitro finding that WM130 suppressed DOX-resistant HCC cells, especially EpCAM+ cells. It would be more definitive to assess the ability of residual cancer stem cells to initiate tumors upon secondary implantation in NOD/SCID mice [21, 37]. Notwithstanding this limitation, this study does suggest that WM130 preferentially targeted hepatic CSLCs rather than the bulk cell population.
Wnt/β-catenin signaling is one of the key pathways for CSC self-renewal [38]. The expression of the hepatic stem cell biomarker EpCAM is regulated by Wnt/β-catenin signaling, and β-catenin degradation or β-catenin inhibitors could reduce EpCAM gene expression [14, 39]. We have previously shown that WM130 could inhibit the growth of tumor xenografts and suppress EGFR and PTEN/AKT signaling pathways [36]. In the current study, we showed that WM130 could reduce the protein levels of β-catenin and its target gene Cyclin D1 in hepatoma cells. Importantly, downregulation of β-catenin and EpCAM proteins was clearly observed in tumor xenografts of WM130-treated groups. These results suggested that WM130 could downregulate the Wnt/β-catenin self-renewal pathway. The level of intracellular β-catenin is regulated by AKT substrate GSK3β, which phosphorylates β-catenin and promotes ubiquitin-proteasome degradation of the phosphorylated β-catenin [40]. Phosphorylation of GSK3β at Ser9 results in its inhibition, thereby the stabilization of β-catenin [41, 42]. Our data clearly demonstrated that WM130 decreased the phosphorylation of GSK3β (Ser9) in HCC cells and tumor xenografts, suggesting that WM130-induced β-catenin degradation was possibly mediated by the activation of GSK3β. Recently, an AKT inhibitor has been demonstrated to potently reduce the number of brain cancer stem cells. This effect was associated with a preferential induction of apoptosis and a suppression of neurosphere formation [43]. To conclude that the inhibition of the AKT/GSK3β pathway by WM130 contributes to its inhibitory effect on hepatic CSCs, we used specific AKT inhibitor MK2206 and GSK3β inhibitor CHIR99021. The results verified our speculation. MK2206 inhibited, whereas CHIR99021 increased EpCAM+ cell proliferation and sphere formation. Moreover, co-treatment of cells with WM130 and MK2206 had an additive effect, while CHIR99021 antagonised WM130’s effect. Taken together, our data suggest that the inhibitory effect of WM130 on hepatic CSLCs was mediated, at least partly, by inhibiting the AKT/GSK3β/β-catenin signaling pathway.
Collectively, this study demonstrates that WM130 preferentially inhibits hepatic CSLCs and reduces HCC xenograft growth. These beneficial effects were associated with the downregulation of the AKT/GSK3β/β-catenin signaling pathway. We also show that the combination of WM130 and DOX exhibits a stronger anti-cancer efficacy than either treatment alone. These findings provide a strong rationale for the development of WM130 as a novel drug candidate for HCC therapy.
MATERIALS AND METHODS
Cell lines and reagents
Human HCC cell lines Hep3B, MHCC-LM3, and MHCC-97H were kindly provided by the Department of Gastroenterology, Shanghai Changzheng Hospital, Second Military Medical University. All cells were grown in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum (Gibco BRL, NY), 100 U/ml penicillin, and 100 U/ml streptomycin in a 37°C incubator containing 5% CO2.
WM130 (>98% purity) was synthesized in our laboratory, dissolved at a concentration of 40 mmol/L in 1 mmol/L acetate acid as a stock solution, and diluted with medium or saline before use. Doxorubicin (DOX) hydrochloride was obtained from Main Luck Pharmaceuticals Inc. (Shenzhen, China). Recombinant human basic fibroblast growth factor (FGF), recombinant human epidermal growth factor (EGF), and DMEM/F-12 were purchased from PeproTech (Rocky Hill, NJ). B27 (50×) and Insulin-Transferrin-Selenium (ITS, 100×) were from Gibco BRL. L-glutamine (100×) was from Invitrogen (Carlsbad, CA). Anti-CD133 (AC133)-PE and anti-CD326 (EpCAM)-APC antibodies, and isotype-matched mouse anti-IgG1-PE and anti-IgG1-APC were from Miltenyi Biotec (North Rhine-Westphalia, Germany). Antibodies against β-catenin, GSK-3β, phospho-GSK-3β (Ser9), and EpCAM were purchased from Cell Signaling Technology (Beverly, MA). Antibodies against Cyclin D1 and glyceraldehyde phosphate dehydrogenase (GAPDH) were from Santa Cruz Biotechnology (Santa Cruz, CA). IRDye680-conjugated anti-rabbit and anti-mouse secondary antibodies were purchased from Rockland (Gilbertsville, PA). AKT inhibitor MK2206 and GSK3β inhibitor CHIR99021 were purchased from Selleck Chemicals (Shanghai, China).
Cell proliferation and colony formation assays
HCC cells were cultured at a density of 3 ×103 cells per well in 96-well plates (NEST Biotech, Wuxi, China) overnight and then exposed to WM130. After 72 h of culture, cell proliferation was assessed using a Cell Counting Kit-8 (CCK8, Dojindo Laboratories, Tokyo, Japan), and the 50% inhibition concentration (IC50) was calculated. For the colony formation assay, cells were seeded at a density of 1×103 cells per well in 6-well plates (NEST Biotech) and treated with or without WM130. Culture medium was changed every 3-5 days. 17-21 days later, the colonies were stained with Coomassie brilliant blue and photographed. The total number of colonies (>50 cells/colony) was counted.
Spheroid formation assay
Spheroid culture was performed as described previously [11, 21] with a slight modification. Briefly, HCC spheres were cultured in DMEM/F-12 supplemented with FGF (20 ng/mL), EGF (20 ng/mL), B27 (1×), ITS (1×), and L-glutamine (1×). For WM130 treatment, primary sphere cells were dissociated with trypsin to a single cell suspension and seeded in 96-well ultra-low attachment plates (Corning, Lowell, MA) at a density of 1×103 cells/well. The cells were then exposed to various concentrations of WM130 for 7 days. The second and third passages of cells were grown for 7 days in the absence of WM130. The number of spheres (>30 μm in diameter) was counted, and spheres were photographed under a phase contrast microscope (Olympus, Tokyo, Japan).
Isolation of EpCAM+ and EpCAM- HCC cells
To obtain EpCAM+ and EpCAM- enriched cell populations, cells were firstly incubated with EpCAM antibodies conjugated with magnetic beads with biotin binded. Separation was carried out by using a magnetic column (Miltenyi Biotec). EpCAM+ cells were maintained in their undifferentiated state using stem cell medium. EpCAM- cells were maintained in their differentiated state with DMEM medium. To examine the effect of WM130, EpCAM- medium was changed to EpCAM+ medium before treatment with WM130.
Flow cytometric analysis
Cells were harvested and incubated with anti-AC133-PE and anti-EpCAM-APC antibodies. Isotype-matched mouse anti-IgG1-PE and anti-IgG1-APC were used for controls. Samples were analyzed with a FACSCalibur flow cytometer (BD Biosciences, San Jose, CA).
Quantitative real-time RT-PCR
Total RNA was extracted using an RNAsimple Total RNA Kit (Tiangen, Shanghai, China). cDNA was synthesized from 1 μg total RNA using a Prime Script RT reagent Kit (TaKaRa, Dalian, China). Real-time PCR was performed using a SYBR Green PCR Kit (TaKaRa, Dalian, China) with the primers listed in Supplementary Table S1. The mRNA expression was normalized against β-actin mRNA levels.
Western blotting
Proteins were extracted, and approximately 20 μg of total proteins were subjected to SDS-polyacrylamide gel electrophoresis, and transferred to a nitrocellulose membrane. The membrane was incubated with primary antibodies against β-catenin (1:1000), Cyclin D1 (1:1000), GSK-3β (1:500), phospho-GSK-3β (1:1000), or GAPDH (1:3000), followed by IRDye680-conjugated anti-rabbit or anti-mouse secondary antibodies (1:5000). Detection was performed with an Odyssey infrared imaging system (LI-COR Biotechnology, Nebraska).
Tumor xenograft model
Four-week-old male Balb/c nude mice were purchased from Shanghai SLAC Laboratory Animal Co. Ltd (Shanghai, China). Hep3B spheres were treated with or without 10 μmol/L WM130 for 4 days and then allowed to recover and expand for another 4 days without treatment prior to injection. The WM130-treated cells (1×105) were mixed with Matrigel (BD Biosciences) and subcutaneously injected into the flank of each mouse. To avoid individual differences, an equal number of vehicle-treated control cells were subcutaneously injected into the opposite flank of the same mouse. Tumor growth was monitored for 45 days after cell injection.
For in vivo drug treatments, 1×106 MHCC-LM3 cells were subcutaneously injected into nude mice. Drug treatments were initiated at 24 h after cell injection. Animals were administered either saline, WM130 (20 mg/kg, orally by gavage daily), DOX (6 mg/kg, intraperitoneal injection, once a week), or WM130 in combination with DOX for 3 weeks. The tumor size was measured with a caliper as the longest surface length (mm; L) and width (mm; W). Tumor volume (mm3; V) was calculated as V=1/2×LW2. All mice were sacrificed, and tumor tissues were excised and weighted at the end of experiments.
A portion of the tumor tissues was dissociated enzymatically to obtain a single cell suspension for spheroid formation assay, proliferation assay and colony formation assay, and the remaining tumor tissues were used for real-time RT-PCR analysis, western blotting and immunostaining. All procedures involving animals and their care were approved by our institutional Animal Care Committee in accordance with the institutional guidelines for animal experiments.
Immunohistochemical staining
Tumor tissue sections were fixed by immersion in 10% paraformaldehyde diluted in phosphate buffered saline, dehydrated in graded ethylic alcohol solutions, and embedded in paraffin. Immunohistochemical examinations were carried out to detect the expression of β-catenin and EpCAM (1:500) with a primary mouse monoclonal antibody and horseradish-peroxidase-conjugated goat anti-mouse IgG (Gene Tech, Shanghai, China) as the secondary antibody. All staining was visualized and photographed under an ordinary optical microscope. Areas of immunohistochemically positive and negative cells were determined using a computer-assisted automated image analyzer (Qwin Leica) as described previously [34].
Statistical analysis
Results are expressed as the mean ± standard deviation. Statistical analyses were performed using one-way analysis of variance or the two-tailed Student’s t test. p < 0.05 was considered as the minimum level of significance.
Abbreviations
CSCs, cancer stem cells; HCC, hepatocellular carcinoma; CSLCs, cancer stem-like cells; EpCAM, epithelial cell adhesion molecule; DOX, doxorubicin; GSK3β, glycogen synthase kinase 3β; AKT, protein kinase B (PKB)
ACKNOWLEDGMENTS AND FUNDING
This work was supported by grants from the National Natural Science Foundation of China (81270508) and the National Major Special Science and Technology Project (2012ZX09103101-043). We thank Li Su (School of Pharmacy, Second Military Medical University) for his excellent technical assistance.
CONFLICTS OF INTEREST
The authors declare no conflicts of interest.
REFERENCES
1. Tsai WL, Chung RT. Viral hepatocarcinogenesis. Oncogene. 2010; 29:2309–24.
2. Lapidot T, Sirard C, Vormoor J, Murdoch B, Hoang T, Caceres-Cortes J, Minden M, Paterson B, Caligiuri MA, Dick JE. A cell initiating human acute myeloid leukaemia after transplantation into SCID mice. Nature. 1994; 367:645–8.
3. O’Brien CA, Pollett A, Gallinger S, Dick JE. A human colon cancer cell capable of initiating tumour growth in immunodeficient mice. Nature. 2007; 445:106–10.
4. Patrawala L, Calhoun T, Schneider-Broussard R, Li H, Bhatia B, Tang S, Reilly JG, Chandra D, Zhou J, Claypool K, Coghlan L, Tang DG. Highly purified CD44+ prostate cancer cells from xenograft human tumors are enriched in tumorigenic and metastatic progenitor cells. Oncogene. 2006; 25:1696–708.
5. Ponti D, Costa A, Zaffaroni N, Pratesi G, Petrangolini G, Coradini D, Pilotti S, Pierotti MA, Daidone MG. Isolation and in vitro propagation of tumorigenic breast cancer cells with stem/progenitor cell properties. Cancer Res. 2005; 65:5506–11.
6. Singh SK, Clarke ID, Terasaki M, Bonn VE, Hawkins C, Squire J, Dirks PB. Identification of a cancer stem cell in human brain tumors. Cancer Res. 2003; 63:5821–5828.
7. Reya T, Morrison SJ, Clarke MF, Weissman IL. Stem cells, cancer, and cancer stem cells. Nature. 2001; 414:105–11.
8. Li C, Heidt DG, Dalerba P, Burant CF, Zhang L, Adsay V, Wicha M, Clarke MF, Simeone DM. Identification of pancreatic cancer stem cells. Cancer Res. 2007; 67:1030–7.
9. Chiba T, Kita K, Zheng YW, Yokosuka O, Saisho H, Iwama A, Nakauchi H, Taniguchi H. Side population purified from hepatocellular carcinoma cells harbors cancer stem cell-like properties. Hepatology. 2006; 44:240–51.
10. Haraguchi N, Ishii H, Mimori K, Tanaka F, Ohkuma M, Kim HM, Akita H, Takiuchi D, Hatano H, Nagano H, Barnard GF, Doki Y, Mori M. CD13 is a therapeutic target in human liver cancer stem cells. J Clin Invest. 2010; 120:3326–39.
11. Xu X, Liu RF, Zhang X, Huang LY, Chen F, Fei QL, Han ZG. DLK1 as a potential target against cancer stem/progenitor cells of hepatocellular carcinoma. Mol Cancer Ther. 2012; 11:629–38.
12. Ma S, Chan KW, Hu L, Lee TK, Wo JY, Ng IO, Zheng BJ, Guan XY. Identification and characterization of tumorigenic liver cancer stem/progenitor cells. Gastroenterology. 2007; 132:2542–56.
13. Yamashita T, Honda M, Nakamoto Y, Baba M, Nio K, Hara Y, Zeng SS, Hayashi T, Kondo M, Takatori H, Yamashita T, Mizukoshi E, Ikeda H, et al. Discrete nature of EpCAM+ and CD90+ cancer stem cells in human hepatocellular carcinoma. Hepatology. 2013; 57:1484–97.
14. Yamashita T, Ji J, Budhu A, Forgues M, Yang W, Wang HY, Jia H, Ye Q, Qin LX, Wauthier E, Reid LM, Minato H, Honda M, et al. EpCAM-positive hepatocellular carcinoma cells are tumor-initiating cells with stem/progenitor cell features. Gastroenterology. 2009; 136:1012–24.
15. Yang ZF, Ho DW, Ng MN, Lau CK, Yu WC, Ngai P, Chu PW, Lam CT, Poon RT, Fan ST. Significance of CD90+ cancer stem cells in human liver cancer. Cancer Cell. 2008; 13:153–166.
16. Yang ZF, Ngai P, Ho DW, Yu WC, Ng MN, Lau CK, Li ML, Tam KH, Lam CT, Poon RT, Fan ST. Identification of local and circulating cancer stem cells in human liver cancer. Hepatology. 2008; 47:919–28.
17. Yin S, Li J, Hu C, Chen X, Yao M, Yan M, Jiang G, Ge C, Xie H, Wan D, Yang S, Zheng S, Gu J. CD133 positive hepatocellular carcinoma cells possess high capacity for tumorigenicity. Int J Cancer. 2007; 120:1444–1450.
18. Zhu Z, Hao X, Yan M, Yao M, Ge C, Gu J, Li J. Cancer stem/progenitor cells are highly enriched in CD133+CD44+ population in hepatocellular carcinoma. Int J Cancer. 2010; 126:2067–78.
19. Liu S, Li N, Yu X, Xiao X, Cheng K, Hu J, Wang J, Zhang D, Cheng S, Liu S. Expression of intercellular adhesion molecule 1 by hepatocellular carcinoma stem cells and circulating tumor cells. Gastroenterology. 2013; 144:1031–41.
22. Al-Hajj M, Becker MW, Wicha M, Weissman I, Clarke MF. Therapeutic implications of cancer stem cells. Curr Opin Genet Dev. 2004; 14:43–7.
21. Li Y, Zhang T, Korkaya H, Liu S, Lee HF, Newman B, Yu Y, Clouthier SG, Schwartz SJ, Wicha MS, Sun D. Sulforaphane, a dietary component of broccoli/broccoli sprouts, inhibits breast cancer stem cells. Clin Cancer Res. 2010; 16:2580–90.
22. Zhou J, Zhang H, Gu P, Bai J, Margolick JB, Zhang Y. NF-kappaB pathway inhibitors preferentially inhibit breast cancer stem-like cells. Breast Cancer Res Treat. 2008; 111:419–27.
23. Gupta PB, Onder TT, Jiang G, Tao K, Kuperwasser C, Weinberg RA, Lander ES. Identification of selective inhibitors of cancer stem cells by high-throughput screening. Cell. 2009; 138:645–59.
24. Reipas KM, Law JH, Couto N, Islam S, Li Y, Li H, Cherkasov A, Jung K, Cheema AS, Jones SJ, Hassell JA, Dunn SE. Luteolin is a novel p90 ribosomal S6 kinase (RSK) inhibitor that suppresses Notch4 signaling by blocking the activation of Y-box binding protein-1 (YB-1). Oncotarget. 2013; 4:329–45. doi: 10.18632/oncotarget.834.
25. Wang W, You RL, Qin WJ, Hai LN, Fang MJ, Huang GH, Kang RX, Li MH, Qiao YF, Li JW, Li AP. Anti-tumor activities of active ingredients in Compound Kushen Injection. Acta Pharmacol Sin. 2015; 36:676–9.
26. Yong J, Wu X, Lu C. Anticancer Advances of Matrine and Its Derivatives. Curr Pharm Des. 2015; 21:3673–80.
27. Zhang JP, Zhang M, Zhou JP, Liu FT, Zhou B, Xie WF, Guo C. Antifibrotic effects of matrine on in vitro and in vivo models of liver fibrosis in rats. Acta Pharmacol Sin. 2001; 22:183–6.
28. Shi D, Zhang J, Qiu L, Li J, Hu Z, Zhang J. Matrine Inhibits Infiltration of the Inflammatory Gr1(hi) Monocyte Subset in Injured Mouse Liver through Inhibition of Monocyte Chemoattractant Protein-1. Evid Based Complement Alternat Med. 2013; 2013:580673.
29. Zhang B, Liu ZY, Li YY, Luo Y, Liu ML, Dong HY, Wang YX, Liu Y, Zhao PT, Jin FG, Li ZC. Antiinflammatory effects of matrine in LPS-induced acute lung injury in mice. Eur J Pharm Sci. 2011; 44:573–9.
30. Huang WC, Chan CC, Wu SJ, Chen LC, Shen JJ, Kuo ML, Chen MC, Liou CJ. Matrine attenuates allergic airway inflammation and eosinophil infiltration by suppressing eotaxin and Th2 cytokine production in asthmatic mice. J Ethnopharmacol. 2014; 151:470–7.
31. Yang Y, Xiu J, Zhang X, Zhang L, Yan K, Qin C, Liu J. Antiviral effect of matrine against human enterovirus 71. Molecules. 2012; 17:10370–6.
32. Liu M, Liu XY, Cheng JF. [Advance in the pharmacological research on matrine]. [Article in Chinese]. Zhongguo Zhong Yao Za Zhi. 2003; 28:801–4.
33. Xu Y, Peng Z, Ji W, Li X, Lin X, Qian L, Li X, Chai X, Wu Q, Gao Q, Su C. A Novel Matrine Derivative WM130 Inhibits Activation of Hepatic Stellate Cells and Attenuates Dimethylnitrosamine-Induced Liver Fibrosis in Rats. Biomed Res Int. 2015; 2015:203978.
34. Xu WH, Hu HG, Tian Y, Wang SZ, Li J, Li JZ, Deng X, Qian H, Qiu L, Hu ZL, Wu QY, Chai YF, Guo C, et al. Bioactive compound reveals a novel function for ribosomal protein S5 in hepatic stellate cell activation and hepatic fibrosis. Hepatology. 2014; 60:648–60.
35. Hu H, Wang S, Zhang C, Wang L, Ding L, Zhang J, Wu Q. Synthesis and in vitro inhibitory activity of matrine derivatives towards pro-inflammatory cytokines. Bioorg Med Chem Lett. 2010; 20:7537–9.
36. Qian L, Liu Y, Xu Y, Ji W, Wu Q, Liu Y, Gao Q, Su C. Matrine derivative WM130 inhibits hepatocellular carcinoma by suppressing EGFR/ERK/MMP-2 and PTEN/AKT signaling pathways. Cancer Lett. 2015; 368:126–34.
37. Korkaya H, Paulson A, Charafe-Jauffret E, Ginestier C, Brown M, Dutcher J, Clouthier SG, Wicha MS. Regulation of mammary stem/progenitor cells by PTEN/Akt/beta-catenin signaling. PLoS Biol. 2009; 7:e1000121.
38. Yang W, Yan HX, Chen L, Liu Q, He YQ, Yu LX, Zhang SH, Huang DD, Tang L, Kong XN, Chen C, Liu SQ, Wu MC, et al. Wnt/beta-catenin signaling contributes to activation of normal and tumorigenic liver progenitor cells. Cancer Res. 2008; 68:4287–95.
39. Yamashita T, Budhu A, Forgues M, Wang XW. Activation of hepatic stem cell marker EpCAM by Wnt-beta-catenin signaling in hepatocellular carcinoma. Cancer Res. 2007; 67:10831–9.
40. Liu C, Li Y, Semenov M, Han C, Baeg GH, Tan Y, Zhang Z, Lin X, He X. Control of beta-catenin phosphorylation/degradation by a dual-kinase mechanism. Cell. 2002; 108:837–47.
41. Cohen P, Frame S. The renaissance of GSK3. Nat Rev Mol Cell Biol. 2001; 2:769–76.
42. Cross DA, Alessi DR, Cohen P, Andjelkovich M, Hemmings BA. Inhibition of glycogen synthase kinase-3 by insulin mediated by protein kinase B. Nature. 1995; 378:785–9.
43. Eyler CE, Foo WC, LaFiura KM, McLendon RE, Hjelmeland AB, Rich JN. Brain cancer stem cells display preferential sensitivity to Akt inhibition. Stem Cells. 2008; 26:3027–36.
